TSGS: Improving Gaussian Splatting for Transparent Surface Reconstruction via Normal and De-lighting Priors

T0 review · 4 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Transparent surfaces get accurate 3D geometry by learning geometry separately from appearance and extracting first-surface depth with a sliding-window rule.

desk verdict Solid engineering paper with a useful synthetic dataset, but the headline 3 mm error bound and the central depth-extraction mechanism are both weaker than claimed. read the letter →

arxiv 2504.12799 v2 pith:726KO6JV submitted 2025-04-17 cs.CV

Mingwei Li , Pu Pang , Hehe Fan , Hua Huang , Yi Yang This is my paper · ORCID
classification cs.CV
keywords 3DGaussiansplattingtransparentsurfacereconstructionfirst-surfacedepthextractionaccumulatedtransmittancealpha-blendingnormalandde-lightingpriorsanisotropicsphericalGaussiansTransLabdataset
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that the transparency-depth dilemma in 3D Gaussian Splatting—where alpha-blending weights tuned for realistic appearance push depth estimates of transparent objects behind the true surface—can be resolved without abandoning the 3DGS framework. It introduces TSGS, which learns geometry from de-lighted images and normal priors in a first stage, then refines appearance with anisotropic specular modeling while freezing opacity in a second stage. For depth, it replaces full alpha-blended depth with a sliding-window maximum-weight search over accumulated transmittance, extracting the first surface along each ray. On the new TransLab dataset of laboratory glassware, TSGS reports a 37.3% lower chamfer distance and an 8.0% higher F1 score than the strongest baseline, with a 0.41 dB PSNR gain, showing geometry and photorealistic transparency can be recovered together. This matters because robotic lab manipulation needs millimeter-accurate positions of transparent vessels.

What carries the argument

The load-bearing mechanism is the maximum-weight sliding-window first-surface extractor. For each pixel ray, after sorting intersecting Gaussians by depth, it computes accumulated transmittance $T_i$ and blending weight $T_i\alpha_i$, keeps only the segment with $T_i$ between $T_{\text{end}}$ and $T_{\text{start}}$, slides a window of fixed size $\delta_t$ (3 mm) over candidate Gaussians, and selects $W^* = \arg\max_j \sum_{i\in W_j} T_i\alpha_i$. The first-surface depth is $D_{\text{first}}(\mathbf{u}) = (\sum_{i\in W^*} T_i\alpha_i \hat{d}_i(\mathbf{u})) / (\sum_{i\in W^*} T_i\alpha_i)$, using per-Gaussian plane depths rather than center depths. This is what isolates the first surface from background transmission and averages out floaters; the two-stage training, geometry on de-lighted images with normal priors followed by appearance refinement with opacity frozen and anisotropic spherical Gaussians, supplies the opacity field that makes the window meaningful.

What would settle it

Construct a controlled scene with a flat transparent slab of known position, varying surface opacity and background texture contrast, and compare TSGS's extracted first-surface depth against the known slab distance: if depth error exceeds the 3 mm window size whenever the slab's alpha contribution is low, the window-containment assumption is violated. A simpler version is a filled beaker with an immersed object, where multi-layer transparency is present and the single-layer assumption predicts a biased first-surface depth.

Watch

Extended reading notes

Core claim

On its own terms, the discovery is that the opacity field learned purely for appearance still contains a reliable first-surface signal: the accumulated transmittance $T_i$ drops where Gaussians representing the first surface contribute, and the sum of $T_i\alpha_i$ spikes there. TSGS locates this by restricting attention to the ray segment where $T_i$ lies between thresholds, sliding a fixed-size window along the sorted Gaussians, and picking the window with the largest total $T_i\alpha_i$ weight. Depth is then the weighted average of per-Gaussian plane depths $\hat{d}_i(\mathbf{u}) = d_i/(\mathbf{n}_i \cdot \mathbf{v}_\mathbf{u})$ inside that window. Weighting by $T_i\alpha_i$ within the window suppresses floaters that corrupt nearest-depth methods, while restricting to the window excludes background Gaussians seen through transparency that corrupt standard $\alpha$-blended depth. The window size doubles as an error bound, set to 3 mm in the paper, so the reported accuracy figures rest on the window's ability to contain the true surface.

Load-bearing premise

The load-bearing premise is that the ray segment where the sliding-window sum of accumulated-transmittance-weighted alpha values is largest actually contains the true first surface; if a weak first-surface signal relative to transmitted background or poor threshold choices breaks that containment, the extracted depth is biased.

Editorial extensions

If this is right

  • Transparent object geometry becomes extractable from standard appearance-optimized Gaussians at inference time, without a separate depth network or ray-tracing pass.
  • With the 3 mm window bound, the resulting depth error is controlled enough for millimeter-precision robotic manipulation of laboratory glassware, on the paper's reported results.
  • Freezing opacity after geometry learning prevents appearance refinement from eroding shape accuracy, so visual fidelity and geometry are not forced to trade off within a single optimization.
  • On TransLab, the full pipeline yields CD 1.85 and F1 0.95, compared with 2.95 and 0.88 for the strongest baseline, while keeping 105 FPS rendering and a training time near 0.8 hours.
  • The same geometry stage transfers to opaque objects: on DTU, TSGS reports a mean chamfer distance of 0.51, competitive with or better than the compared surface reconstruction methods.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editor's inference: The sliding-window rule could be applied as a drop-in depth estimator to other volume-rendered transparent-object reconstructions, since it only needs accumulated-transmittance weights that those renderers already compute.
  • Editor's inference: The stated 3 mm error bound is conditional on the maximum-weight window containing the true first surface; a stress test crossing single-layer versus nested transparent objects, such as liquid inside a beaker, would show how often that containment fails.
  • Editor's inference: Because the ablation shows the normal prior is the largest single geometry contributor, the method's accuracy is likely sensitive to the quality of that diffusion-derived prior; testing on scenes with heavy occlusion or unusual glassware would quantify this sensitivity.
  • Editor's inference: A direct extension would be multi-window extraction to recover the second surface, turning TSGS from a single-shell reconstruction into a layered refractive reconstruction; the paper's own limitation section points at this direction.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. TSGS addresses transparent surface reconstruction with 3D Gaussian Splatting by separating geometry learning from appearance refinement. Stage 1 optimizes geometry with de-lighted hybrid images, normal priors from StableNormal, a transparency-attribute loss, and flatten regularization; Stage 2 fixes opacity and adds anisotropic spherical Gaussian (ASG) appearance modeling supervised by the original images. At inference, a first-surface depth is extracted by restricting the ray to an accumulated-transmittance interval, selecting a sliding window that maximizes the sum of T_i alpha_i, and averaging the Gaussian plane depths in that window. The method is evaluated on a new synthetic TransLab dataset of eight laboratory scenes with ground-truth meshes, on DTU, and on a limited subset of ClearPose; it reports a 37.3% chamfer-distance reduction and an 8.0% F1 improvement over PGSR on TransLab, plus a 0.41 dB PSNR gain.

Significance. The paper targets a real problem, the transparency-depth dilemma in 3DGS, and its proposed pipeline is coherent and reasonably motivated. The authors release code and a dataset, and they include a comparison against baselines augmented with the same normal priors (Table 8), which strengthens the attribution of the gains. The two-stage strategy with frozen opacity is a sensible way to prevent appearance optimization from corrupting geometry, and the use of masked normal and de-light priors is carefully designed. However, the headline geometric improvement is measured on a synthetic dataset, the signature first-surface extraction contributes only a small amount in the ablation (Table 4), and the claimed 3 mm error bound in Appendix A.3 is not actually proven. These issues temper the contribution, although they are addressable within the manuscript's scope.

major comments (4)
  1. [Appendix A.3, Eq. (18)] The statement that the depth error is 'naturally bounded' by the window size, at most delta_t = 3 mm, is not established. The bound is valid only if the true first surface lies inside the selected window W*, but the maximum-weight criterion is a heuristic and is not shown to guarantee this; for a highly transparent foreground with small alpha_i relative to a more opaque background, the maximum-weight window can sit on the transmitted background. Please remove or replace this bound with an empirical error distribution against the ground-truth depth maps available in TransLab, and state explicitly that the assumption of window containment is what the method relies on.
  2. [Table 4, Section 3.4] The ablation shows that replacing the first-surface extraction with unbiased depth changes chamfer distance only from 1.85 to 1.89 and leaves the F1 score unchanged, a small effect relative to the headline gain over PGSR (1.85 vs. 2.95). This does not support the description of the maximum-weight window extraction as the load-bearing mechanism behind the reported improvement. Please provide a targeted analysis, such as per-transparent-mask errors or a breakdown on the scenes with the strongest transparency effects, and adjust the wording in Sections 1 and 3.4 to reflect the measured contribution.
  3. [Section 4.1, Section 3.4] Several core hyperparameters are not reported anywhere: T_start, T_end, theta_T, theta_n, and the sliding-window size is given only in the appendix (3 mm). Without these values, without a sensitivity analysis, and without variance across random seeds or initialization, the TransLab results cannot be fully reproduced or assessed for stability. Please report the settings and include error bars or seed variance for the main quantitative tables.
  4. [Appendix A.4] The paper honestly acknowledges the single-layer transparency assumption, but this limitation should be connected to the benchmark claims. TransLab is a synthetic dataset and, as described, does not include the multi-layer refractive cases (e.g., liquid inside a beaker) that motivate the lab-manipulation application, so the 37.3% chamfer-distance improvement may not transfer to those cases. Please scope the claims accordingly and, if feasible, add a TransLab variant with such multi-layer scenes.
minor comments (5)
  1. [Section 1] There is a typo in the Introduction: 'chamber distance' should be 'chamfer distance'; the same misspelling appears in the abstract-related text and should be checked throughout.
  2. [Section 4.1 / Appendix A.1] The abstract and Section 4.1 describe TransLab as close to 'realistic conditions,' while Appendix A.1 states that it is a synthetic benchmark rendered with Blender's PBR engine; the main text should state clearly that the dataset is synthetic.
  3. [Section 3.4] In the phrase 'T_i guadually decreases,' 'guadually' should be 'gradually'; please also proofread the equations for formatting issues such as the garbled subscripts in Eq. (5) and the surrounding text.
  4. [Table 6 / Section 4.3] The ClearPose evaluation uses only one scene per set, subsamples one frame every 100, and reports a unidirectional chamfer distance; this is a weak basis for the claim of real-world robustness and should be described as a preliminary result rather than a definitive validation.
  5. [Appendix A.6] The comparison with NU-NeRF on TransLab (Table 9) reports that NU-NeRF collapses to a spherical shape; please provide the qualitative evidence in the appendix or state the convergence criterion used, since a single failure mode does not by itself establish method superiority.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the paper's claims rest on external priors and independent ground-truth evaluation, not on self-referential fits.

full rationale

The derivation chain is self-contained against independent benchmarks. Stage 1 geometry uses normal and de-light priors from StableNormal/StableDelight [75] and a transparency mask from Grounded-SAM; these are external models, not outputs of TSGS. Stage 2 freezes opacity and adds ASG appearance following Spec-Gaussian [73] and PGSR [9], which are prior external works. The first-surface depth extraction (Eq. 18) is presented as a heuristic ('We operate under the hypothesis...'), not as a fitted prediction; its accuracy is measured against ground-truth meshes on TransLab, DTU, and ClearPose, so the headline 37.3% CD reduction is not a renamed training objective. The paper's own limitation (Appendix A.4) concedes the single-layer-transparency assumption, and the 3 mm error bound in Appendix A.3 is logically incomplete because it presupposes that the true first surface lies in the selected window W*; however, this is a correctness gap in an auxiliary error analysis, not a circular reduction of an output to an input. The only self-citation is reference [84] (same authors) in a related-work list of diffusion priors; it is not load-bearing for any claimed result. No fitted parameter is relabeled as a prediction, and no asserted uniqueness theorem or author-imported constraint forces the claimed outcome.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The method's headroom over baselines depends on several hand-set thresholds that are not reported and on external diffusion priors. The least justified assumption is that the maximum-weight window contains the first surface; the paper's own limitation section restricts this to single-layer transparency. No new physical entities are introduced.

free parameters (5)
  • Sliding window size delta_t = 3 mm
    Set by hand in Appendix A.3; the final depth is a weighted average inside the window, and the claimed theoretical error bound equals this value.
  • Transmittance search thresholds T_start and T_end = Not reported
    These define the ray segment used to search for the first surface in Section 3.4; no numerical values are given anywhere in the paper.
  • Transparency attribute threshold theta_T = Not reported
    Used in Section 3.2 to decide whether a Gaussian is transparent; the value is never specified.
  • Normal prior mask threshold theta_n = Not reported
    Used in Equation 8 to mask unreliable normal priors; the value is never specified.
  • Loss weights lambda_t, lambda_n, lambda_f, lambda_r = 0.1, 0.1, 100, 0.2
    Reported in Sections 3.2 and 3.3; chosen by hand and likely tuned on the TransLab benchmark itself.
assumptions (5)
  • domain assumption Known camera poses are available from SfM or SLAM.
    Stated in Section 2; all multi-view reconstruction and TSDF fusion rely on this.
  • domain assumption StableNormal and StableDelight provide sufficiently accurate priors after masking.
    Section 3.2 supervises geometry with these external diffusion-model outputs; if the priors are wrong in unmasked regions, the geometry is wrong.
  • domain assumption PGSR flattened Gaussians and plane depth give usable per-Gaussian surface geometry.
    Sections 3.1 and 3.4 adopt PGSR's flatten regularization and Gaussian plane depth; the first-surface depth averages these plane depths.
  • ad hoc to paper The maximum-weight sliding window contains the true first surface.
    Core heuristic of Section 3.4; the paper provides no proof and its own limitation section says multi-layer transparency is not handled.
  • domain assumption TransLab synthetic renderings are representative of real transparent surfaces.
    The main quantitative claims are evaluated only on this synthetic Blender dataset; real-world ClearPose results are limited to four subsampled scenes in the appendix.

how reviews work

0 comments
Cite this review

Pith. "Pith review of TSGS: Improving Gaussian Splatting for Transparent Surface Reconstruction via Normal and De-lighting Priors." pith.science (2026). https://pith.science/paper/726KO6JV

@misc{pith2026250412799,
  author       = {Pith},
  title        = {Pith review of: TSGS: Improving Gaussian Splatting for Transparent Surface Reconstruction via Normal and De-lighting Priors},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/726KO6JV}},
  note         = {Machine review of arXiv:2504.12799}
}
abstract

Reconstructing transparent surfaces is essential for tasks such as robotic manipulation in labs, yet it poses a significant challenge for 3D reconstruction techniques like 3D Gaussian Splatting (3DGS). These methods often encounter a transparency-depth dilemma, where the pursuit of photorealistic rendering through standard $\alpha$-blending undermines geometric precision, resulting in considerable depth estimation errors for transparent materials. To address this issue, we introduce Transparent Surface Gaussian Splatting (TSGS), a new framework that separates geometry learning from appearance refinement. In the geometry learning stage, TSGS focuses on geometry by using specular-suppressed inputs to accurately represent surfaces. In the second stage, TSGS improves visual fidelity through anisotropic specular modeling, crucially maintaining the established opacity to ensure geometric accuracy. To enhance depth inference, TSGS employs a first-surface depth extraction method. This technique uses a sliding window over $\alpha$-blending weights to pinpoint the most likely surface location and calculates a robust weighted average depth. To evaluate the transparent surface reconstruction task under realistic conditions, we collect a TransLab dataset that includes complex transparent laboratory glassware. Extensive experiments on TransLab show that TSGS achieves accurate geometric reconstruction and realistic rendering of transparent objects simultaneously within the efficient 3DGS framework. Specifically, TSGS significantly surpasses current leading methods, achieving a 37.3% reduction in chamfer distance and an 8.0% improvement in F1 score compared to the top baseline. The code and dataset are available at https://longxiang-ai.github.io/TSGS/.

Figures

Figures reproduced from arXiv: 2504.12799 by the authors.

Figure 1
Figure 1. (a) We introduce TransLab, a novel dataset specifically designed for evaluating transparent object reconstruction. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. The transparency-depth dilemma in Gaussian Splat [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Pipeline of TSGS. (a) The two-stage training process. In Stage 1, 3D Gaussians are optimized using geometric priors [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: Normal prior mask. Normal priors can be inaccurate [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Comparison of normal maps derived from differ [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Comparison with other methods on the TransLab [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: Additional qualitative reconstruction results on various scenes from the TransLab dataset. Our method (TSGS) [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]
Figure 8
Figure 8. Figure 8: Additional qualitative reconstruction results on various scenes from the TransLab dataset. Our method (TSGS) [PITH_FULL_IMAGE:figures/full_fig_p015_8.png]
Figure 9
Figure 9. Figure 9: Additional qualitative reconstruction results on scenes from the DTU dataset. This demonstrates the effectiveness of [PITH_FULL_IMAGE:figures/full_fig_p016_9.png]
Figure 10
Figure 10. Figure 10: Additional qualitative reconstruction results on scenes from the DTU dataset (Continued). This demonstrates the [PITH_FULL_IMAGE:figures/full_fig_p017_10.png]
Figure 11
Figure 11. Figure 11: Additional qualitative reconstruction results on scenes from the DTU dataset (Continued). This demonstrates the [PITH_FULL_IMAGE:figures/full_fig_p018_11.png]
Figure 12
Figure 12. Figure 12: Additional qualitative reconstruction results on scenes from the DTU dataset (Continued). This demonstrates the [PITH_FULL_IMAGE:figures/full_fig_p019_12.png]
Figure 13

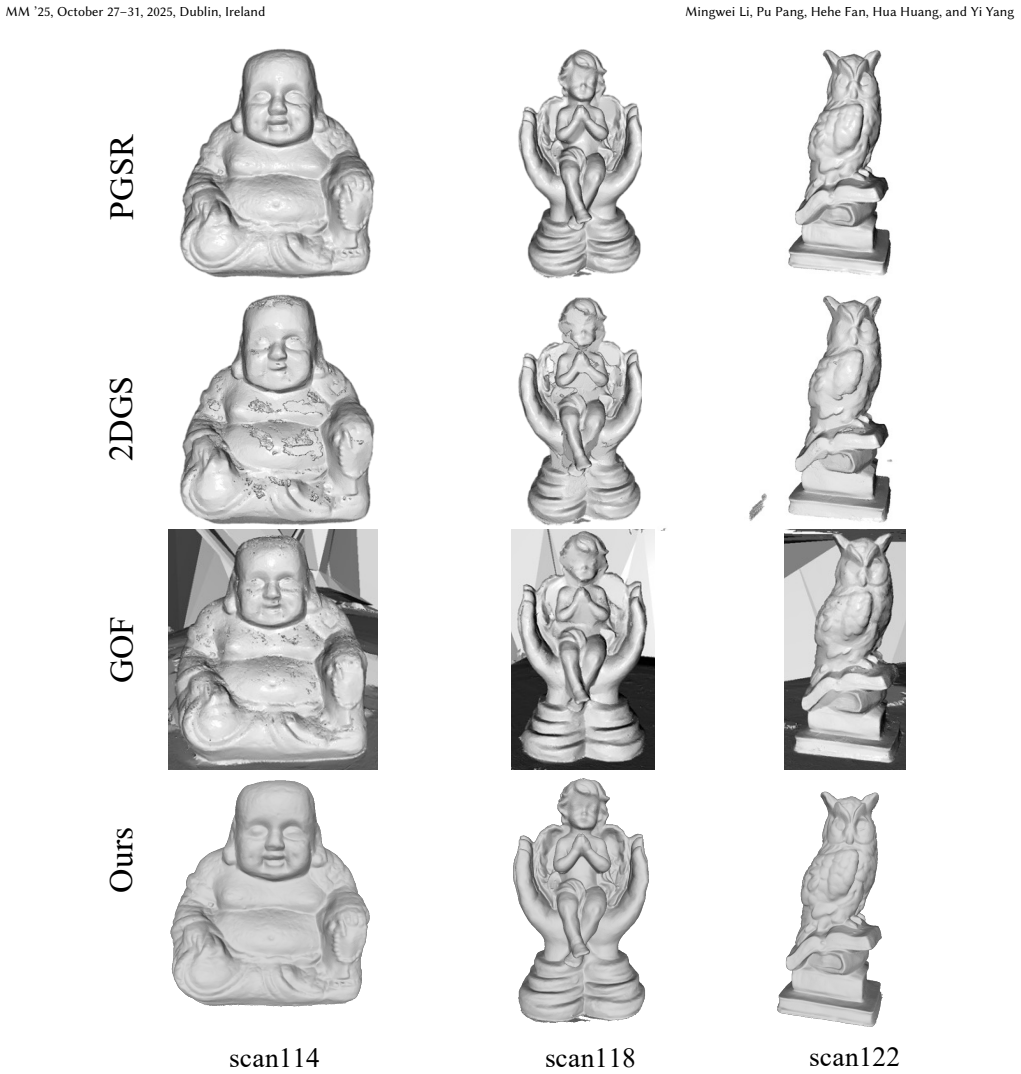

Figure 13. Figure 13: Additional qualitative reconstruction results on scenes from the DTU dataset (Continued). This demonstrates the [PITH_FULL_IMAGE:figures/full_fig_p020_13.png]
