SG-Reg: Generalizable and Efficient Scene Graph Registration

T0 review · 4 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read SG-Reg claims that noisy, real-world semantic scene graphs can be registered without an initial guess by learning a sparse multi-modal node feature, matching image-based localization accuracy while transmitting only 52 KB per frame.

desk verdict Solid engineering contribution to scene graph registration with a real gap in the generalizability claim: every automatically built scene graph comes from the authors' own FM-Fusion front-end, so transfer across semantic mapping pipelines is untested. read the letter →

arxiv 2504.14440 v2 pith:L5ICOCI2 submitted 2025-04-20 cs.RO cs.CV

Chuhao Liu , Zhijian Qiao , Jieqi Shi , Ke Wang , Peize Liu , Shaojie Shen This is my paper · ORCID
classification cs.ROcs.CV
keywords scenegraphregistrationsemanticgraphsmulti-agentSLAMloopclosureneuralnetworkpointcloudself-supervisedlearningcommunication-efficientlocalization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to prove that two robots—or one robot and a prior map—can register their semantic scene graphs, the object-level maps produced by a semantic mapping pipeline, without any initial guess about relative pose. The proposed SG-Reg encodes each semantic node from three modalities—an open-set text label, a yaw-invariant local topology described by triplets around the node, and the point-cloud shape of the object—and learns to match nodes and then points in a coarse-to-fine manner. Because training data are generated automatically by reconstructing scene graphs with vision foundation models rather than relying on ground-truth annotations, the learned features are meant to transfer to the noisy, partially inconsistent scene graphs a real robot encounters. The pay-off claimed is that semantic scene graphs become a practical communication format for multi-agent SLAM: about 52 KB per frame instead of megabyte-scale image streams, with registration recall comparable to or slightly better than an image matching baseline in the paper's two-agent benchmark.

What carries the argument

The central mechanism is the triplet-boosted GNN with late-fused shape features. For each node $v_i$, the model samples ordered triplets $(v_j, v_k)$ from its neighborhood and encodes the edge lengths $|e_{i,j}|$, $|e_{i,k}|$ and the cosine of the included angle $\hat{e}_{i,j}\cdot \hat{e}_{i,k}$ using sinusoidal embeddings; a $z$-component cross-product check enforces anti-clockwise ordering, making the triplet feature invariant to yaw rotation and translation. Attention over these triplets updates the node feature, giving the GNN spatial awareness that a vanilla graph attention network lacks. A point backbone with KPConv kernels extracts per-point features, and a shape backbone aggregates node-wise shape features that are concatenated after the GNN, so semantic topology and geometry stay separable. Node matching uses dual-normalized similarity scores with mutual top-$k$ selection; point matching uses Sinkhorn optimal transport; and the final pose comes from a robust estimator that prunes outliers with maximum clique and verifies candidate transformations geometrically.

What would settle it

Cross-mapper test: run the trained SG-Reg on scene graphs built by an independent semantic mapping system from the same RGB-D sequences and compare registration recall. A large drop would show the features are tuned to FM-Fusion's over-segmentation and label noise; a small drop would support the paper's generalization claim.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that a scene graph registration network can be trained without ground-truth semantic annotations and still register noisy, real-world semantic maps. Each node's feature fuses a frozen BERT encoding of its open-set semantic label, a triplet-boosted graph neural network feature that is invariant under 4-DoF global transformations, and a shape feature aggregated from the node's point cloud. Hierarchical matching layers first associate nodes through dual-normalized similarities and then find point correspondences inside matched node pairs using optimal transport; a robust pose estimator based on maximum-clique pruning and graduated non-convexity removes outliers and estimates the relative transformation. The system outperforms the closest learning-based baseline SG-PGM in node recall and registration recall, achieves higher overall registration recall than GeoTransformer in a cross-domain setting, and in the two-agent SLAM comparison reaches a success rate slightly above image-based HLoc before pose averaging, at 52 KB per frame.

Load-bearing premise

The load-bearing premise is that scene graphs reconstructed by FM-Fusion have the same kind and amount of noise as the scene graphs a deployed robot will actually encounter, so features learned on that data transfer to other mappers without retraining.

Editorial extensions

If this is right

  • Bandwidth for cross-robot registration drops to about 52 KB per query frame, because only node features, node centers, and on-demand point clouds are transmitted instead of images.
  • A robot can register against a prior map or another agent's map in a single shot without an initial guess, tolerating large viewpoint differences that break image-feature matching.
  • Training scene graph registration no longer depends on ground-truth semantic annotations; posed RGB-D sequences plus foundation-model-based semantic mapping are enough to generate training pairs.
  • Sparse semantic nodes keep GPU memory and FLOPS low enough to process large indoor scenes on a single RTX-3090, where dense superpoint baselines run out of memory.
  • Because matching is conservative, low scene overlap produces few registrations, and the authors find success grows once scene graphs contain enough shared objects; combining SG-Reg with image constraints in a factor graph is their proposed remedy.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: the cleanest untested generalization check is cross-mapper transfer—registering scene graphs produced by a semantic mapping system other than FM-Fusion. If recall drops sharply, the learned features are specialized to FM-Fusion's particular noise rather than to scene-graph noise in general.
  • Editorial inference: the triplet descriptor is a portable spatial-encoding primitive; it could be reused in any graph representation where local yaw-invariant geometry is more reliable than absolute positions, such as floor-plan matching or planar-graph SLAM.
  • Editorial inference: the 52 KB figure assumes the coarse-to-fine protocol with dense messages spaced about 5.4 s apart; running on coarse messages alone lowers success from 62.3% to 34.9%, so bandwidth and success should be quoted together.
  • Editorial inference: the evaluation treats each agent's map as a rigid body with no odometry drift. In a full multi-session SLAM pipeline, SG-Reg would supply the initial alignment, but pose-graph optimization would still be needed to maintain global consistency over long trajectories.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes SG-Reg, a learned method for registering two rigid semantic scene graphs without an initial guess. Scene graph nodes encode open-set semantic labels via BERT, local topology via a triplet-boosted GNN, and geometric shape via a point-cloud backbone plus a shape backbone. Matching is done hierarchically with dual-normalized assignment matrices and optimal transport, followed by a robust pose estimator built on G3Reg with GNC/MAC. A key contribution is an automatic data-generation pipeline that uses FM-Fusion and vision foundation models to build noisy scene graphs from RGB-D sequences, avoiding ground-truth semantic annotations. The method is evaluated on 3RScan-GT, ScanNet-Mapping, a cross-domain 3RScan-Mapping benchmark, and a custom two-agent SLAM benchmark, where it is compared with SG-PGM, GeoTransformer, Hydra, and HLoc.

Significance. If the claims hold, SG-Reg would be a practically valuable sparse representation for multi-agent and multi-session SLAM, offering competitive registration accuracy with a communication cost of about 52 KB per query frame, far below image-based methods. The paper has notable strengths: the ablations in Sec. VII-D support the contribution of the triplet-boosted GNN and late shape fusion; the cross-domain margin over SG-PGM in Table VI is large; the authors release code; and the two-agent benchmark is a realistic testbed. However, the headline comparisons against HLoc are statistically fragile, and the central "generalizable" claim is not directly tested across scene-graph construction front-ends, because every automatically generated graph in the paper comes from FM-Fusion.

major comments (4)
  1. [Sec. IV-A, VII-A(4), VII-C, VII-E] The title-level claim that SG-Reg is "generalizable" is not directly supported, because all automatically generated scene graphs used for training (ScanNet-Mapping), cross-domain evaluation (3RScan-Mapping), and the two-agent benchmark are constructed by FM-Fusion. A different semantic mapping front-end with different over-segmentation, label vocabulary, or object completeness will produce systematically different graph topology, and the learned node and point features may have adapted to FM-Fusion-specific statistics. The 3RScan-GT experiments use an annotation-based idealized domain and are not a transfer target. I recommend adding at least one evaluation in which scene graphs are built by an alternative front-end (e.g., ConceptGraphs, Kimera, or a deliberately perturbed FM-Fusion segmentation) or, if that is infeasible, narrowing the wording from "generalizable" to "cross-dataset" and explicitly stating the front-end dependence.
  2. [Sec. VII-E(8), Table XI] The abstract's claim of "slightly higher registration recall" over visual loop closure networks rests on a 0.7-percentage-point raw difference (32.4% vs 31.7% in Table XI), and the difference reverses after robust pose averaging: HLoc reaches 34.1% at Pose Avg@3 and 35.6% at Pose Avg@5, while SG-Reg drops to 32.0% and 31.5%. No error bars, per-sequence variance, or significance tests are reported for these numbers. Since this is one of the central advertised results, the paper should either provide statistical uncertainty across the ten sequence pairs or soften the claim to "comparable registration recall."
  3. [Sec. VII-B, VII-C] The SG-PGM baseline is modified by setting all relationship labels to "none" in the 3RScan-GT benchmark (Sec. VII-B), even though 3RScan-GT provides relationship labels that the original SG-PGM was designed to use. This adaptation may handicap the baseline and inflate the reported margin in Table IV. Please report the original SG-PGM with its native relationship labels on 3RScan-GT as an additional column, and clarify that the modified version is a domain-matched variant rather than the original method.
  4. [Sec. IV-E(2)] The "self-supervised" training still relies on geometric-overlap pseudo-labels: ground-truth node matches are obtained by IoU between FM-Fusion point clouds, and ground-truth point matches by a 0.05 m distance threshold. Because the same FM-Fusion pipeline is used for both training and evaluation, the learned features may exploit FM-Fusion-specific reconstruction artifacts. A useful additional experiment would be to train on 3RScan-GT annotation-based graphs and evaluate on 3RScan-Mapping graphs, which would test transfer from clean annotations to noisy FM-Fusion graphs rather than only ScanNet-FM-Fusion to 3RScan-FM-Fusion.
minor comments (5)
  1. [Sec. IV-E(2)] The text says "We compute the intersection-over-unit (IoU)"; this should be "intersection-over-union."
  2. [Sec. VII-D(3), Table X] The entry for late fusion reads "63.1(5.6)" while the other improvement is written as "(+3.2)"; the plus sign is missing in "(5.6)."
  3. [Sec. IV-C] There is a typo, "addtion," in the sentence describing the shape backbone's advantages.
  4. [Sec. IV-A, V] Several thresholds are named but not given numerical values: the edge-distance threshold tau_d, the GNC/MAC inlier-ratio trigger (stated as "below a certain value, such as 0.3"), and the NMS distance threshold. Please report the exact values in the implementation section or the supplementary material for reproducibility.
  5. [Sec. VII-F(2)] The reported runtimes exclude point-cloud pre-processing, which can take up to 900 ms per frame. This is stated in the text, but the main runtime table (Table XV) should carry a caption-level caveat so readers do not interpret the totals as end-to-end inference times.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the registration pipeline is evaluated on held-out external benchmarks; same-group citations (FM-Fusion, G3Reg) are components, not derivation inputs that force the results.

full rationale

This is an empirical learning system rather than an analytic derivation, so there is no equation-level reduction to check. The scene graph features are produced by trained encoders (BERT label features, triplet-boosted GNN, shape network), and correspondences are obtained from learned similarity matrices with Sinkhorn/optimal transport in Eqs. (10)-(13). The pose estimate is computed from those correspondences by the G3Reg-based estimator in Eqs. (17)-(19). None of these equations is defined in terms of the final registration output, and no fitted parameter is renamed as a prediction. The training labels are generated from IoU overlap of point clouds under random 4-DoF transformations (Sec. IV-E2 and Sec. VII-A4), while evaluation uses standard node recall/precision, inlier ratio, registration recall, and RMSE against ground-truth alignments; the network never sees the evaluation label at inference. The most legitimate concern is external validity: all automatically constructed graphs used for training, cross-domain evaluation, and the two-agent benchmark are produced by FM-Fusion, a same-group previous work, so transfer across different semantic-mapping front-ends is untested. That is a limitation of the breadth of the generalizability claim, not a circularity, because the tested scenes are held out and the reported metrics are measured against external ground truth. FM-Fusion [11] and G3Reg [28] are same-group citations, but they are used as components with independent published content, and no load-bearing argument reduces to an unverified self-citation. The abstract's slightly higher recall versus HLoc is the no-pose-average comparison, while Table XI shows HLoc improves with pose averaging; that is selective reporting rather than circular reasoning. No self-definitional, fitted-input, uniqueness-imported, ansatz-smuggled, or renamed-known-result step was identified.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The central claim rests mostly on data and engineering choices rather than new mathematical axioms: FM-Fusion graph quality, the 4-DoF assumption, and the representativeness of auto-generated training data. No new physical entities are introduced. The tuned hyperparameters mainly affect matching thresholds and the pose estimator; the network weights are learned, not hand-fitted constants.

free parameters (6)
  • Kp (sampled points per semantic node) = 256 (inferred from Table XVII matching main results)
    Chosen by hand; larger values reduce correspondence count and registration recall (Table XVII: RR 78.0, 69.0, 59.0 for Kp=256, 512, 1024).
  • Node match extraction threshold and mutual top-k = not stated
    Matches are kept only above an assignment-score threshold and if mutually top-k; exact values are not given in the paper, yet they set the number and precision of node matches.
  • GNC/MAC inlier-ratio trigger = 0.3
    The pose estimator switches from GNC to maximum clique only when the GNC-estimated inlier ratio falls below 0.3 (Sec V), a hand-set tradeoff.
  • NMS distance threshold on correspondences = not stated
    Used to suppress repetitive correspondence patterns before maximum clique; value is not reported.
  • Edge distance threshold tau_d = depends on node shape size, formula not given
    Determines graph connectivity in scene graph construction; different thresholds change the local topology input to the triplet GNN.
  • Evaluation success thresholds (IoU 0.3, RMSE 0.2 m, RTE 0.2 m, RRE 5 deg) = as listed
    All reported success rates depend on these hand-chosen criteria; changing them would change the headline numbers. These are conventional, not fitted to data.
assumptions (5)
  • domain assumption FM-Fusion reconstructed scene graphs are representative enough of real-world deployment graphs for training and evaluation
    The paper only trains and tests on FM-Fusion graphs (ScanNet-Mapping, 3RScan-Mapping) plus one private building; no other mapper is tested (Secs IV-A, VII-A4, VII-C).
  • domain assumption Relative roll and pitch between the two agents are known or gravity-aligned, leaving only 4-DoF uncertainty (position plus yaw)
    The triplet descriptor and GNN invariance are designed for 4-DoF transforms; this assumption is stated in Sec IV-A and supported by visual-inertial SLAM practice.
  • domain assumption RAM-Ground-SAM and FM-Fusion provide object labels and instances that, despite noise, are informative for matching across views
    The whole method consumes these labels; the paper documents semantic noise and shows failure cases where noise kills registration (Appendix D).
  • standard math Sinkhorn optimal transport, maximum clique pruning, GNC, and G3Reg behave as described in their source papers
    These are prior published algorithms used as black-box components; the paper's pyramid-graph and hybrid-GNC variants are modifications of G3Reg.
  • domain assumption Training with known relative transformations from posed RGB-D sequences provides sufficient supervision without GT semantic labels
    Ground-truth node matches are derived from known transforms and point-cloud overlap; this assumes the reconstruction geometry is accurate enough for that overlap to indicate identity.

how reviews work

0 comments
Cite this review

Pith. "Pith review of SG-Reg: Generalizable and Efficient Scene Graph Registration." pith.science (2026). https://pith.science/paper/L5ICOCI2

@misc{pith2026250414440,
  author       = {Pith},
  title        = {Pith review of: SG-Reg: Generalizable and Efficient Scene Graph Registration},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/L5ICOCI2}},
  note         = {Machine review of arXiv:2504.14440}
}
read the original abstract

This paper addresses the challenges of registering two rigid semantic scene graphs, an essential capability when an autonomous agent needs to register its map against a remote agent, or against a prior map. The hand-crafted descriptors in classical semantic-aided registration, or the ground-truth annotation reliance in learning-based scene graph registration, impede their application in practical real-world environments. To address the challenges, we design a scene graph network to encode multiple modalities of semantic nodes: open-set semantic feature, local topology with spatial awareness, and shape feature. These modalities are fused to create compact semantic node features. The matching layers then search for correspondences in a coarse-to-fine manner. In the back-end, we employ a robust pose estimator to decide transformation according to the correspondences. We manage to maintain a sparse and hierarchical scene representation. Our approach demands fewer GPU resources and fewer communication bandwidth in multi-agent tasks. Moreover, we design a new data generation approach using vision foundation models and a semantic mapping module to reconstruct semantic scene graphs. It differs significantly from previous works, which rely on ground-truth semantic annotations to generate data. We validate our method in a two-agent SLAM benchmark. It significantly outperforms the hand-crafted baseline in terms of registration success rate. Compared to visual loop closure networks, our method achieves a slightly higher registration recall while requiring only 52 KB of communication bandwidth for each query frame. Code available at: \href{http://github.com/HKUST-Aerial-Robotics/SG-Reg}{http://github.com/HKUST-Aerial-Robotics/SG-Reg}.

Figures

Figures reproduced from arXiv: 2504.14440 by the authors.

Figure 1
Figure 1. Register the semantic scene graphs in the two-agent [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Our system overview. We denote the encoded node features as lXA/B, where its layer index l ∈ {0, 1, 2}. As shown in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Visualization of a semantic scene graph from ScanNet [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (14 more)
Figure 4
Figure 4. Figure 4: Visualization of the shape network structure and its [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5

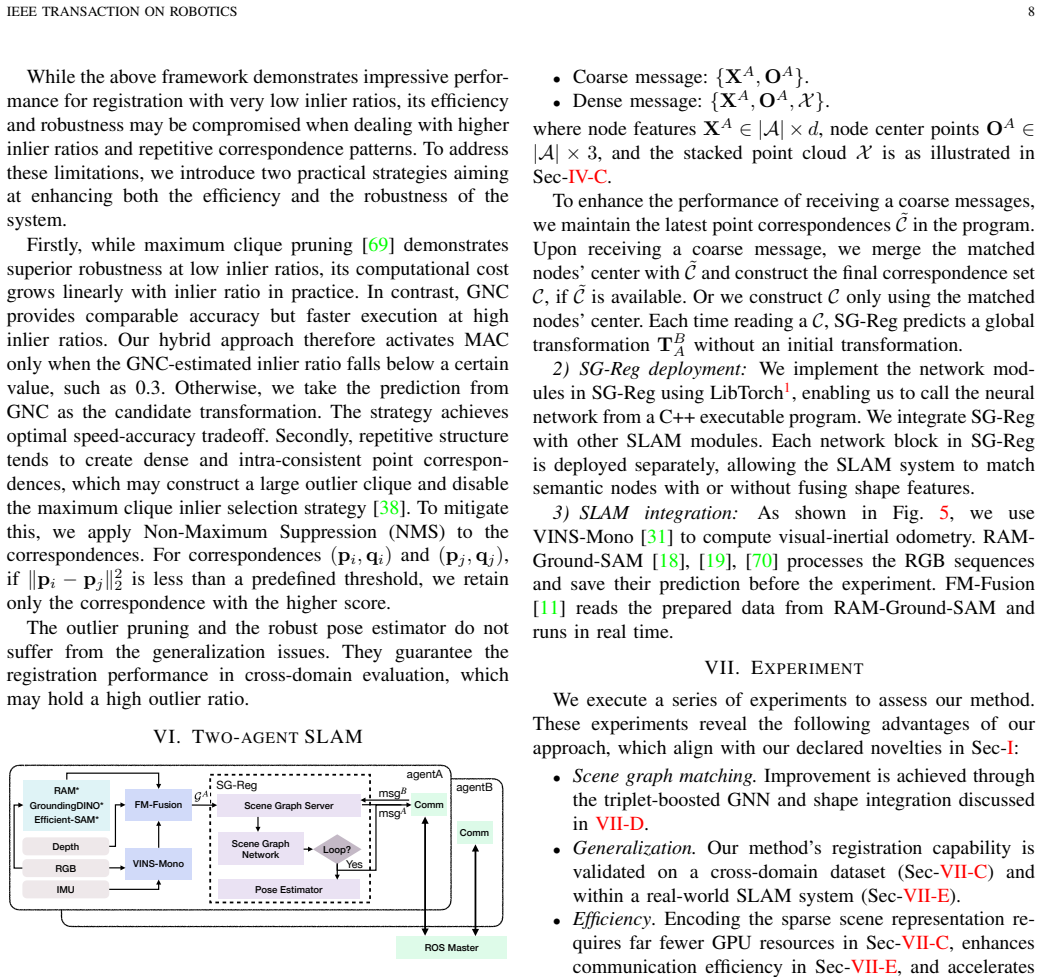

Figure 5. Figure 5: Two agent SLAM system structure. Module marked [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Registration results in a 3RScan median scene. In SG-PGM results, the adversarial outliers are highlighted in purple [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]
Figure 7
Figure 7. Figure 7: (a) Sparsed 3D representations from the 3RScan scenes in the cross-domain benchmark. (b) The reserved memory and computational complexity on a Nvidia RTX-3090 GPU. The MFLOPS are shown in exponential scales. encode scenes at a higher compression ratio. As illustrated i…
Figure 8
Figure 8. Figure 8: Visualize the scene graph match result from different GNN backbone. Results are from ScanNet [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 9
Figure 9. Figure 9: Scene graph matching at a ScanNet scene. We high￾lighted a few false positives that are rejected after the fusion, and a few true positives that are matched after the fusion [PITH_FULL_IMAGE:figures/full_fig_p012_9.png]
Figure 10
Figure 10. Figure 10: Loop closure visualization of Hydra and HLoc at a sampled query frame. On the left, 3D maps from the two agents are rendered, along with the poses of the query frame and the loop frames. Additionally, the semantic objects used by Hydra are rendered on the 3D maps, whi…
Figure 11
Figure 11. Figure 11: Registration visualization in an office scenario. The first row shows the original results, while the second row shows [PITH_FULL_IMAGE:figures/full_fig_p015_11.png]
Figure 12
Figure 12. Figure 12: The Loop closure success rate over the sequence [PITH_FULL_IMAGE:figures/full_fig_p016_12.png]
Figure 13

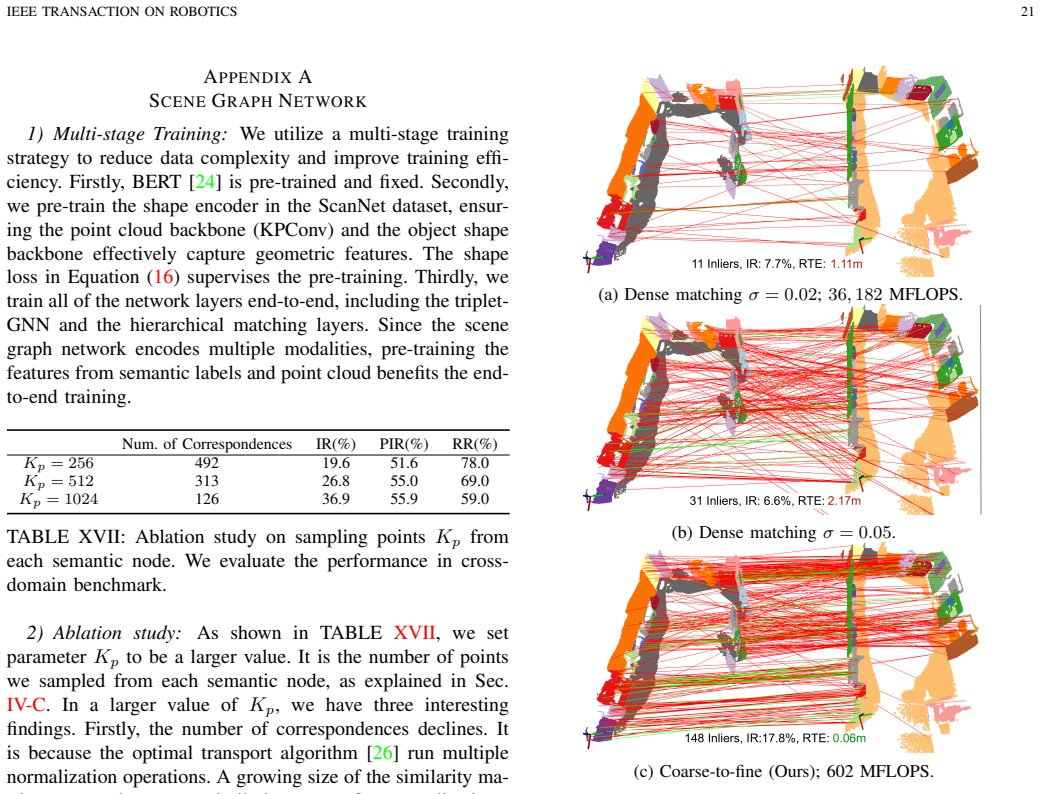

Figure 13. Figure 13: Dense match points and coarse-to-fine match points. each frame, the pose estimator uses the centers of matched semantic nodes to align the scenes. While coarse messages enable successful registration in some high-overlap scenes, they are likely to fail in low-overlap …
Figure 14
Figure 14. Figure 14: The matching results at a low-overlap scene and a [PITH_FULL_IMAGE:figures/full_fig_p021_14.png]
Figure 15
Figure 15. Figure 15: Computational profile of maximum clique-based [PITH_FULL_IMAGE:figures/full_fig_p022_15.png]
Figure 16
Figure 16. Figure 16: Two successful registration with semantic noise. In the semantic scene graph, we highlight a few of the nodes that [PITH_FULL_IMAGE:figures/full_fig_p023_16.png]
Figure 17
Figure 17. Figure 17: Failure registration. In the middle column, we highlight a few significant semantic noise. In the right column, we [PITH_FULL_IMAGE:figures/full_fig_p023_17.png]
