DRO: Doppler-Aware Direct Radar Odometry

T0 review · 5 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Radar odometry can run directly on the full intensity image, with Doppler and motion distortion corrected inside the optimization, and this beats point-based radar odometry.

desk verdict Genuine advance in direct radar odometry with a clean Doppler-aware formulation; the main claims hold, but the headline tunnel/skyway result rests on a Doppler bias correction that needs more evidence. read the letter →

arxiv 2504.20339 v1 pith:XXJY76SX submitted 2025-04-29 cs.RO cs.CV

Cedric Le Gentil , Leonardo Brizi , Daniil Lisus , Xinyuan Qiao , Giorgio Grisetti , Timothy D. Barfoot This is my paper · ORCID
classification cs.ROcs.CV
keywords radarodometrydirectregistrationDopplerdistortionmotioncontinuous-timetrajectoryFMCWGaussianprocessinfillgyroscopepreintegration
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper proposes a new way to estimate a robot's motion from a spinning millimetre-wave radar. Instead of extracting sparse points or features, the method registers the full radar intensity image directly against a local map, while correcting Doppler and motion distortion inside a continuous-time trajectory estimate. With a triangular frequency modulation that makes radial Doppler velocities observable, an additional Doppler objective lets the system estimate velocity even in geometrically featureless tunnels. The reported evidence is over 250 km of on-road data plus off-road runs, with an average relative translation error of 0.26% on the Boreas leaderboard when a gyroscope is used, falling to 0.18% when the Doppler constraint is active. If correct, the direct use of all radar information is not only simpler than point-based radar odometry but more accurate in exactly the geometries where points run out.

What carries the argument

The load-bearing object is a pair of objective functions optimized by gradient ascent. The first, $\mathcal{O}_\psi$, is the summed product of measured intensity $\psi_{nm}$ and local-map intensity queried at the motion- and Doppler-corrected position of each range cell. The second, $\mathcal{O}_d$, applies the range shift $\Delta r_n = \beta\,[\cos\alpha_n,\ \sin\alpha_n]^\top R^\top v$ to the Gaussian-process-infilled up-chirp image and correlates it with the down-chirp image, so that maximizing it recovers the body-centric velocity. The continuous trajectory connects the two objectives: orientation comes from gyroscope preintegration (or a constant angular rate), and translation comes from a constant body-centric velocity model integrated over the scan. The Gaussian process infill for interleaved chirp directions is what makes the Doppler comparison valid without assuming consecutive beams see the same object.

What would settle it

Drive a car with centimetre-level ground truth suddenly from an open road into a long featureless tunnel using Doppler-only estimation. If the estimated sideways velocity jumps or drifts faster than the paper's low-pass filter can follow it, and the odometry error grows sharply, the single-row/single-instant radar model is the weak link.

Watch

Extended reading notes

Core claim

The central claim is that radar odometry can be formulated as a continuous, gradient-based optimization over the full radar intensity image, with both motion distortion and Doppler-induced range shifts corrected inside the cost rather than in a pre-processing step. The paper introduces two cross-correlation objectives: direct scan-to-local-map intensity registration, and, for triangular-chirp radars, a Doppler velocity constraint that compares Gaussian-process-infilled up-chirp and down-chirp images shifted by the range shift $\Delta r_n = \beta\,[\cos\alpha_n,\ \sin\alpha_n]^\top R^\top v$. This makes DRO, in the authors' words, the first direct method that accounts in a principled way for both distortions, and it is what lets the system estimate velocity purely from Doppler information in environments where geometry gives almost no constraint, such as a featureless tunnel. The supporting evidence is a set of benchmarks over more than 250 km of driving plus off-road runs, with headline numbers of 0.26% relative translation error on Boreas and 0.18% when the Doppler constraint is available.

Load-bearing premise

The load-bearing premise is that each row of radar data corresponds to one beam direction at one instant, and that the interpolated up-chirp and down-chirp views show the same scene; because a real spinning radar sweeps continuously, this mismatch shows up as a velocity bias that the online correction may not track quickly enough.

Editorial extensions

If this is right

  • On commercial sawtooth-pattern radars, direct registration alone reaches 0.26% average relative translation error on the Boreas odometry leaderboard, ahead of point-extraction methods.
  • When the radar emits triangular chirps, the Doppler objective keeps relative translation error at about 0.34% in a featureless tunnel where continuous-time point-based radar registration fails at roughly 35%.
  • Orientation from gyroscope integration stays accurate even where radar returns are weak, and the paper reports that adding radar constraints to inertial methods can actually worsen rotation estimates.
  • The full Doppler-aided pipeline runs in about 89 ms per 250 ms radar frame on a laptop GPU, so the extra processing does not prevent real-time use.
  • Because the method uses all intensity information, it avoids feature extraction, data association, and hand-tuned discretization of the search space.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: the Gaussian-process infill trick that makes interleaved up-chirp and down-chirp rows comparable is a general mechanism; any sensor with two interleaved measurement patterns could use it to recover a velocity-dependent shift without explicit data association.
  • Editorial inference: the observation that radar-based orientation constraints degrade rotation estimates relative to pure gyroscope integration suggests that, for low-resolution spinning radars, orientation is best left to the inertial sensor while radar constrains translation and velocity only.
  • Editorial inference: a testable extension is applying the direct Doppler objective to 3D FMCW radars with dense beams; if the single-azimuth-per-row assumption is the main source of the residual velocity bias, per-beam timing in 3D data should reduce that bias.
  • Editorial inference: the environment-dependent lateral velocity bias, only partially corrected by a low-pass filter, is the most likely bottleneck; replacing it with a model-based or consistency-based correction could push the reported error below the 0.18% level.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes DRO, a direct SE(2) radar odometry method for spinning FMCW radars. Instead of extracting features or point clouds, DRO registers the full radar intensity image against an on-the-fly local map, using a locally continuous trajectory model that corrects both motion distortion and Doppler-induced range shifts. A second objective function (Od, Eq. 13) exploits triangular frequency modulation by GP-infilling alternating up- and down-chirp azimuths and cross-correlating the two images after a velocity-dependent Doppler shift. Orientation is obtained either from a constant angular velocity model or from gyroscope preintegration. The method is evaluated on a new automotive dataset (Suburbs, Highway, Tunnel, Skyway), on the Boreas and MulRan public benchmarks, and on an off-road dataset, with ablations and timing results. The paper reports state-of-the-art performance, including 0.26% average translation error on the Boreas leaderboard when aided by a gyroscope, and claims that the Doppler constraint enables odometry in feature-deprived tunnels and skyways.

Significance. If the reported results hold, this is a significant contribution to radar odometry. The direct, feature-free formulation with continuous-time motion and Doppler distortion correction is a principled departure from point-cloud-based methods, and the Doppler velocity objective (Eqs. 5-13) is derived clearly and without assuming that consecutive radar beams observe identical objects. The paper also provides substantial experimental evidence: more than 250 km of on-road data, public benchmarks, off-road validation, ablation studies, sensitivity analysis, and a real-time GPU implementation with public code. These strengths are real: the work addresses a known weakness of radar odometry in geometrically degenerate environments, and the evaluation is broader than in most related papers. However, several load-bearing points need attention before the claims can be fully accepted, in particular the consistency of the headline 0.18% number, the correctness of the printed gyroscope preintegration formula, and the validation of the online Doppler-bias correction in exactly the Tunnel/Skyway regimes where the Doppler objective carries the solution.

major comments (5)
  1. [Abstract and Table I] The abstract states that when using data with the Doppler-enabling frequency modulation, the translation error is reduced to 0.18% in similar environments. This number does not appear in Table I for any DRO-GD configuration: the DRO-GD entries are 0.19% (Suburbs), 0.24% (Highway), 0.34% (Tunnel), and 0.40% (Skyway). The only 0.18% entry in Table I is DRO-G in Suburbs, which does not use the Doppler objective Od. Please reconcile the abstract with the reported results, or state explicitly which sequences and configuration produce the 0.18% value.
  2. [Eq. (15), Section IV-D2] The gyroscope preintegration formula appears incorrect as written. For a constant angular accel? Actually linearly interpolated angular rate ω(s) between ω_i and ω_{i+1}, the exact integral from t_i to t is θ_i + ω_i (t-t_i) + (ω_{i+1}-ω_i)(t-t_i)^2/(2(t_{i+1}-t_i)). The printed expression θ(t_i) + (ω_{i+1}+ω_i)(t-t_i)/(2(t_{i+1}-t_i)) + ω_i(t-t_i) is dimensionally inconsistent: the first term has units of angular rate, not angle, and it does not evaluate to the trapezoidal integral at t=t_{i+1}. Since orientation integration is a central component of the gyro-aided results, please correct Eq. (15) and confirm that the implementation matches the corrected formula.
  3. [Section V-A4 and Appendix B] The claim that DRO-GD enables odometry in feature-deprived Tunnel and Skyway scenarios rests on the Doppler objective Od, because DRO-G alone fails there (Table I: 7.12% and 45.76%). The paper acknowledges a residual Doppler velocity bias 'partly explained by the disparity between the actual measurement process and the simple measurement model that assumes the information contained in a row of the radar data corresponds to a single azimuth/timestamp' and shows in Appendix B that the bias is environment-dependent. Only the lateral component is corrected, by a low-pass filter with no stated time constant or convergence guarantee, and the ablation study in Table II excludes Skyway and reports velocity RMSE rather than bias residual. Please provide evidence that the bias correction converges and tracks the environment-dependent bias in Tunnel/Skyway (e.g., bias residual against ground-truth velocity, sensitivity to the filter time constant, or a bound on the resulting error in Eq. (13)), or discuss why the remaining bias cannot corrupt the registration that supports the headline claim.
  4. [Section IV-C] The Doppler objective assumes that, after GP infilling, the up-chirp and down-chirp images observe exactly the same geometry. This is a modeling simplification: the infilled rows are constructed from measurements taken at different azimuths and timestamps, and the mismatch will grow with radar rotation rate, range, and vehicle speed. The paper acknowledges a related limitation in Section V-A4 but does not analyze how the interpolation error affects Od or the estimated velocity. A simulation or synthetic-shift experiment varying the infill neighborhood (U x V), rotation rate, and velocity would make the validity domain of this assumption explicit.
  5. [Section V-D2, MulRan] The MulRan evaluation applies post-hoc corrections: a 50 ms IMU timestamp offset removed from all sequences and a 0.172 deg radar heading adjustment. The text reports that without the heading correction DRO-G gives 1.46% and 0.38 deg/100m, while with the correction the table shows 1.45% and 0.38 deg/100m. It is not stated whether these corrections were selected on the test sequences themselves or on held-out calibration data. Please state the selection protocol explicitly; if the corrections were tuned on the evaluation sequences, the comparison to CFEAR is not fully apples-to-apples and the interpretation of the MulRan results should be softened accordingly.
minor comments (5)
  1. [Table I caption] The caption says the best radar-based method is in bold, but no bold entries appear in the table as rendered; please add the emphasis or remove the statement.
  2. [Section V-C4 and Fig. 8] The ablation study states that Skyway sequences were left out due to their extreme challenge, yet Fig. 8 (sensitivity to gamma) includes a Skyway curve. Please clarify whether Skyway was included in the sensitivity analysis or adjust the text.
  3. [Eq. (18)] The robust weighting formula rho = (|psi - Gamma| - 1)^6 gives weight 1 for exact agreement, zero near absolute difference 1, and large weights again for differences greater than 1 (which can occur if intensities are not strictly normalized). Please clarify the intended behavior and, if intensities are normalized to [0,1], state this explicitly or correct the formula.
  4. [Table II] The 'No local map' ablation shows a lower velocity RMSE (0.107 m/s) than the full DRO-GD (0.119 m/s), which is counterintuitive; a one-sentence explanation would help the reader interpret the ablation.
  5. [Section V-A4] The low-pass filter used for lateral velocity bias estimation is described qualitatively; please report its time constant or update rule and the velocity threshold value used in the release.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the two objective functions are cross-correlations against raw sensor data, the Doppler scale comes from sensor parameters, and the online bias filters are disclosed calibration aids rather than fitted predictions.

full rationale

The paper's derivation chain is self-contained and does not reduce to its own inputs. The direct intensity objective Oψ (Eq. 11) is a cross-correlation between Doppler- and motion-corrected radar intensities and a local map built from past radar data; no fitted constant is renamed as a prediction. The Doppler objective Od (Eq. 13) uses the range shift Δr_n from Eq. 10, whose scale β is derived in Eq. 7 from the physical FMCW parameters (chirp slope, wavelength, speed of light), not estimated from the data. The GP infill step is a preprocessing interpolation, and the assumption that I↑ and I↓ observe the same geometry is an explicit modeling choice, not an equation that presupposes the velocity output. The reported lateral-velocity bias filter and gyroscope-bias heuristic (Sections V-A4 and IV-D2) are disclosed online calibration mechanisms, ablation-tested, and not presented as derived predictions. Comparisons on Boreas and MulRan are external benchmarks, and the central claim does not rest on a self-citation chain; the citations to [49] for row filtering and for empirically observing a velocity bias are non-load-bearing. No equation in the paper is equivalent by construction to a fitted parameter or to the claimed result.

Assumptions & free parameters 5 free parameters · 6 assumptions · 0 invented entities

The method rests on standard GP regression, a simplified radar Doppler model, a constant body-centric velocity motion model over each 250 ms scan, gyroscope integration for orientation, and two ad-hoc mechanisms: the non-slip-based online lateral velocity bias filter and the rare-frame robust reweighting. Free parameters are limited to user-chosen gains and thresholds; no new physical entities are introduced.

free parameters (5)
  • Local map update gain gamma = 0.1
    User-defined in Eq. (12); sensitivity analysis (Fig. 8) shows low sensitivity, but it is still a hand-chosen parameter affecting the map update.
  • Gradient ascent step c = 0.1 initial, halved on non-ascent
    Eq. (17) optimization hyperparameter; no automatic schedule other than halving.
  • Gyro bias velocity threshold = 5 cm/s
    Threshold under which gyro measurements are averaged and low-pass filtered to estimate bias (Section IV-D2).
  • Robust weighting parameters = rho = (|psi - Gamma| - 1)^6
    Ad-hoc weighting function in Eq. (18) used only on rare outlier frames; the exponent and offset are chosen by hand.
  • GP inference neighborhood (U x V) and kernel hyperparameters = not specified
    Section V-A1 mentions a UxV neighborhood for efficient GP regression but does not state U, V, or the kernel length scale and signal variance; these affect the infilled images.
assumptions (6)
  • standard math Gaussian process regression formulas (Eqs. 1-2) from Rasmussen and Williams
    Background interpolation method used to infill up-chirp and down-chirp radar rows.
  • domain assumption Doppler range-shift model (Eq. 7) with constant beta for triangular FMCW
    Assumes ideal linear up and down chirps; the velocity bias section shows real-world deviations from this model.
  • domain assumption Constant body-centric velocity during a radar scan (Section IV-D3)
    Motion model used to compute position from velocity; reasonable for 250 ms scans but violated in rapid maneuvers.
  • domain assumption Gyroscope integration provides orientation; bias estimation via static periods (Section IV-D2)
    The method's orientation relies on gyro integration; the limitations section states catastrophic failure if gyro degrades.
  • ad hoc to paper Up-chirp and down-chirp images after GP infill observe the same geometry (Section IV-C)
    This enables the Doppler objective; not guaranteed in environments with high-frequency reflectivity variation.
  • ad hoc to paper Online lateral velocity bias filter uses non-slip kinematics (Section V-A4)
    The non-slip assumption is used to estimate and correct bias; authors note it is not strictly enforced due to the low-pass filter.

how reviews work

0 comments
Cite this review

Pith. "Pith review of DRO: Doppler-Aware Direct Radar Odometry." pith.science (2026). https://pith.science/paper/XXJY76SX

@misc{pith2026250420339,
  author       = {Pith},
  title        = {Pith review of: DRO: Doppler-Aware Direct Radar Odometry},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XXJY76SX}},
  note         = {Machine review of arXiv:2504.20339}
}
read the original abstract

A renaissance in radar-based sensing for mobile robotic applications is underway. Compared to cameras or lidars, millimetre-wave radars have the ability to `see' through thin walls, vegetation, and adversarial weather conditions such as heavy rain, fog, snow, and dust. In this paper, we propose a novel SE(2) odometry approach for spinning frequency-modulated continuous-wave radars. Our method performs scan-to-local-map registration of the incoming radar data in a direct manner using all the radar intensity information without the need for feature or point cloud extraction. The method performs locally continuous trajectory estimation and accounts for both motion and Doppler distortion of the radar scans. If the radar possesses a specific frequency modulation pattern that makes radial Doppler velocities observable, an additional Doppler-based constraint is formulated to improve the velocity estimate and enable odometry in geometrically feature-deprived scenarios (e.g., featureless tunnels). Our method has been validated on over 250km of on-road data sourced from public datasets (Boreas and MulRan) and collected using our automotive platform. With the aid of a gyroscope, it outperforms state-of-the-art methods and achieves an average relative translation error of 0.26% on the Boreas leaderboard. When using data with the appropriate Doppler-enabling frequency modulation pattern, the translation error is reduced to 0.18% in similar environments. We also benchmarked our algorithm using 1.5 hours of data collected with a mobile robot in off-road environments with various levels of structure to demonstrate its versatility. Our real-time implementation is publicly available: https://github.com/utiasASRL/dro.

Figures

Figures reproduced from arXiv: 2504.20339 by the authors.

Figure 1
Figure 1. This paper presents a Direct Radar Odometry (DRO) method [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Impact of different frequency modulation patterns (top) and Doppler [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Overview diagram of the proposed direct radar odometry method. To leverage the Doppler-based velocity constraint, the radar must use a triangular [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4

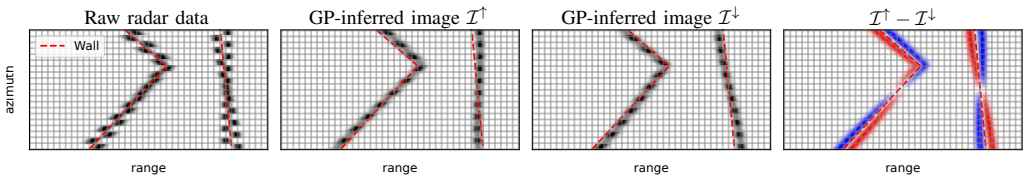

Figure 4. Figure 4: Illustration of the proposed infilling. The raw Doppler distorted radar data (left) is split between up and down-chirp azimuths. Gaussian Process (GP) [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Illustration of the GP-based infill highlighting the Doppler effect on [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Illustration of a challenging situation with a line of vehicles coming [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Trajectory estimate samples for the different sequence types. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
Figure 8
Figure 8. Figure 8: Sensitivity analysis of DRO-GD with respect to the local map update [PITH_FULL_IMAGE:figures/full_fig_p010_8.png]
Figure 9
Figure 9. Figure 9: Visualization of trajectory estimates in the off-road scenarios (aligned with the ground-truth for visualization using the first 20% of the trajectory). [PITH_FULL_IMAGE:figures/full_fig_p013_9.png]
Figure 10
Figure 10. Figure 10: Lateral velocity bias estimate obtained by running DRO-GD on [PITH_FULL_IMAGE:figures/full_fig_p016_10.png]
