Overcoming Quadratic Hardware Scaling for a Fully Connected Digital Oscillatory Neural Network

T0 review · 3 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Serialized couplings make digital oscillator networks scale nearly linearly

desk verdict A real 10.5x scaling demo for ONN arithmetic logic, but the 'quadratic hardware scaling' claim overreaches because weight memory and DSP are still the limiting resources. read the letter →

arxiv 2504.20680 v1 pith:2ZNU7TRY submitted 2025-04-29 cs.AR

Bram Haverkort , Aida Todri-Sanial This is my paper · ORCID
classification cs.AR
keywords oscillatoryneuralnetworksdigitalimplementationFPGAprototypinghardwarescalingserializationpatternretrievalIsingmachinemultiply-accumulate
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that the quadratic growth in coupling hardware that limits fully connected digital oscillatory neural networks can be broken by serializing the weighted-sum computation. It introduces a hybrid architecture that keeps one oscillator per node but replaces the per-connection adder trees with a single time-multiplexed multiply-accumulate unit per oscillator. On a Zynq-7020 FPGA, the same 5-bit weights and 4-bit phases that supported 48 oscillators in the recurrent baseline support 506 oscillators, a 10.5x increase, with LUT and FF usage scaling with exponents around 1.22 and 1.11 instead of roughly 2.1 and 2.4. Pattern retrieval accuracy and settling time match the baseline, so the serialization does not appear to change the network's dynamics.

What carries the argument

The load-bearing mechanism is time-multiplexed serial accumulation of the weighted sum. For each oscillator, instead of a combinatorial tree of $N-1$ adders, one adder with feedback accumulates the products of the $N$ stored weights with the time-multiplexed oscillator amplitudes over $N$ fast-clock cycles; a counter selects the memory address and the multiplexer, and the final sum is latched in time for the next phase update on the slow clock. The multiply-accumulate maps onto DSP slices and the weight matrix onto block RAM, trading arithmetic logic for memory and a faster clock domain. Its cost is the requirement that the fast clock run at least $N$ times the phase clock, which is the trade that limits the largest demonstrable network.

What would settle it

Synthesize the hybrid architecture at 1024 oscillators on an FPGA with enough BRAM and DSP slices and measure the LUT/FF counts and the achievable fast-clock frequency. If the resource counts leave the fitted near-1.2 exponent, or if the fast clock cannot run at least $N$ times the phase clock while meeting timing, the near-linear scaling claim fails; similarly, the claim weakens if pattern retrieval accuracy degrades materially when the design is actually run at that size.

Watch

Extended reading notes

Core claim

The central discovery is that a fully connected digital ONN does not need $N^2$ arithmetic circuits. By storing the $N \times N$ coupling matrix in block RAM and feeding oscillator amplitudes through a multiplexer into one accumulator per oscillator, the hardware cost of the couplings drops from quadratic to near-linear: measured LUT scaling order 1.2231, FF scaling order 1.1092, versus 2.0770 and 2.3859 for the recurrent architecture. This raises the maximum fully connected network on the test FPGA from 48 to 506 oscillators at the same precision, at the price of an oscillation frequency that falls with order about -1.35 in network size. The paper verifies that the serialized arithmetic reproduces the dynamics of the recurrent design on pattern retrieval tasks at multiple corruption levels.

Load-bearing premise

The serialized design must finish all $N$ weighted additions inside one phase-update period, which requires a fast clock at least $N$ times the phase clock and all $N^2$ weights resident in on-chip memory; the paper demonstrates this only up to 506 oscillators, where BRAM and DSP slices are already at 100% utilization.

Editorial extensions

If this is right

  • At 5-bit weights and 4-bit phases, the hybrid architecture runs 506 fully connected oscillators on a Zynq-7020, 10.5x the recurrent baseline's 48, and is the largest fully connected digital ONN reported in the paper.
  • Hardware usage for the coupling logic scales approximately linearly: LUTs at exponent about 1.22 and flip-flops at about 1.11, versus about 2.08 and 2.39 for the recurrent architecture.
  • The hybrid architecture matches the recurrent architecture in pattern retrieval accuracy and settling time on small patterns, and retains near-100% accuracy on 10x10 and 22x22 patterns at 10% and 25% corruption.
  • Scaling comes at the cost of oscillation frequency, which drops with exponent about -1.35 in network size, so applications that need fast oscillation must use fewer oscillators.
  • Because the network remains all-to-all, problems that need dense embedding, such as graph max-cut, do not require sparse-topology mapping tricks.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same accumulator-per-node serialization could be applied to other fully connected recurrent FPGA designs, and the measured exponents suggest that the practical ceiling will move from logic cells to on-chip memory and DSP capacity.
  • The 100% BRAM and 100% DSP utilization at 506 oscillators implies that the architecture could likely exceed 506 nodes on a larger FPGA or with external memory, but the paper's near-linear scaling claim is only demonstrated up to that size.
  • A natural testable extension is to run combinatorial optimization benchmarks, such as max-cut or MaxSAT, at the newly reachable all-to-all scale; the paper leaves this to future work.
  • The frequency penalty could be reduced by processing several oscillators' weighted sums concurrently when spare DSP slices exist, giving a tunable parallelism-versus-serialization tradeoff that the paper does not explore.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a hybrid architecture for digital oscillatory neural networks (ONNs) in which the coupling arithmetic is partially serialized: rather than using N parallel adders per oscillator, a single multiply-accumulate unit per oscillator is time-multiplexed across all N weights, operating on a faster clock domain. The authors compare this against a previously reported recurrent digital ONN on a Zynq-7020 FPGA, reporting LUT/FF scaling exponents of about 1.2 for the hybrid architecture versus about 2.0–2.4 for the recurrent baseline, and a 10.5× increase in maximum oscillator count (48 to 506) at 5-bit weights and 4-bit phases. They also report pattern-retrieval benchmarks showing similar retrieval accuracy and settling time between the two architectures, and high accuracy on larger patterns up to 22×22. The central claim is that the hybrid architecture overcomes quadratic hardware scaling.

Significance. If properly qualified, this is a useful engineering contribution: it demonstrates the largest fully connected digital ONN implemented on an FPGA to date, and it shows that the dominant logic cost of the coupling network can be reduced from O(N^2) adders to O(N) adders by time-multiplexing, with measured resource usage fitting the claimed near-linear trend (R² above 0.99 for LUTs and FFs). The use of an external learning rule (Diederich-Opper) and standard corruption benchmarks strengthens the functional validation. The strength of the paper is the concrete FPGA synthesis data across network sizes, not just a conceptual proposal. However, the significance is limited by the fact that the near-linear scaling applies only to LUT/FF logic, while on-chip weight storage and DSP usage remain quadratic and are the actual binding constraints at the maximum demonstrated size.

major comments (3)
  1. [§2.1 and Table 4] The headline claim of 'overcoming quadratic hardware scaling' is contradicted by the paper's own account: §2.1 states that the number of memory cells for weights cannot be reduced and remains O(N²), and Table 4 shows that at 506 oscillators the hybrid design uses 100% of BRAM and 100% of DSP slices, while LUTs are at 78% and FFs at 42%. Thus the binding resource constraints at the maximum demonstrated size are the quadratic weight memory and the DSP count, not the LUT/FF logic whose exponent is fitted as 1.2. The paper should qualify the claim as near-linear scaling of the coupling arithmetic logic (LUTs/FFs), and should explicitly state that total resource scaling, including on-chip storage, remains quadratic.
  2. [§4.2] The scaling analysis is incomplete because it excludes BRAM and DSP utilization. The methodology states that only LUTs and FFs were recorded because 'these are the two components determining the amount of logic hardware', but BRAM and DSP are also hardware resources and they saturate at the maximum network size. To support the claim of near-linear hardware scaling, the authors should report BRAM and DSP usage per network size, and either fit scaling exponents for those resources or justify their exclusion with a clear argument that they are not part of the architecture's scaling bottleneck. Without this, the paper's conclusion that 'hardware resource usage scales nearly linear' is only demonstrated for a subset of the resources.
  3. [§5.2 and Figure 11] The frequency trade-off is not incorporated into the scaling claim. Figure 11 and the text report that the hybrid architecture's oscillation frequency scales as N^(-1.35), which is slightly faster than inversely linear. Because the serialized arithmetic requires at least N fast-clock cycles per phase update, the phase clock must be slowed down by a factor of N; at N=506 with a 50 MHz fast clock the oscillation frequency is already only 6.1 kHz. For larger N, the required fast clock becomes increasingly impractical or the oscillation frequency falls to levels that undermine the utility of the architecture. This is acknowledged in the discussion but is not reflected in the title or the 'near-linear hardware scaling' framing; the paper should present the result as an area-time trade-off rather than as a wholesale overcoming of quadratic scaling.
minor comments (5)
  1. [§5.2] The flip-flop data point for the recurrent architecture at 16 oscillators is acknowledged as a possible outlier, but the fit is still reported without a sensitivity analysis. A short robustness note (e.g., refitting without that point) would make the scaling exponent more credible.
  2. [§5.3] The paper states in one paragraph that 'the oscillator dynamics of the hybrid architecture are the same as the recurrent architecture', while the immediately preceding discussion of the 3×3/50% anomaly hypothesizes that 'the additional synchronization required in the hybrid architecture slightly changes the system dynamics'. These statements are in tension and should be reconciled, for example by saying the dynamics are approximately equivalent for practical purposes with a possible small deviation at small sizes and high noise.
  3. [Table 2] The footnotes containing '⁄pilcrow' and '§' are rendered cryptically (e.g., '1008⁄pilcrow'); the table should use standard footnote symbols or superscript numbers that are clearly explained in the caption.
  4. [§4.3] The benchmark section explicitly states that 'exhaustive benchmarking is not required' and that only functionality is verified. This is fine, but the conclusion that the architectures have 'similar dynamics' would be strengthened by reporting the standard deviation or confidence intervals of the retrieval accuracy across the 1000 runs, rather than only the mean.
  5. [§5.2 and Figure 12] The 'maximum frequency (100%)≈ 325KHz' annotation in Figure 12 refers only to the hybrid architecture, but the figure caption does not make this explicit; the text should clarify that the frequency axis is relative to the hybrid architecture's own maximum.

Circularity Check

0 steps flagged · score 2.0 of 10

No circular step found: scaling exponents are descriptive fits, and the only self-citations are non-load-bearing baselines.

full rationale

The paper's central claims are empirical characterizations, not predictions derived from fitted parameters. The near-linear hardware scaling exponents (1.22 for LUTs, 1.11 for FFs) are obtained by 'a standard linear regression ... fitted on the base 10 logarithm of the data points ... the slope ... equals the order of scaling'; they are descriptive outputs of the authors' own synthesis measurements, not parameters injected to force the conclusion. The pattern-retrieval validation uses the external Diederich-Opper learning rule and independent pixel-corruption benchmarks, and the hybrid architecture is compared against the recurrent design as a baseline rather than as evidence for the new architecture's scaling. The recurrent baseline and the 5-bit/4-bit precision choice are cited from the authors' prior work, but these are design choices and comparison points, not load-bearing justifications; no uniqueness theorem or ansatz is imported from those citations. The paper itself states that 'the number of memory cells cannot be reduced' and Table 4 shows BRAM and DSP slices at 100% utilization at 506 oscillators, so the 'overcoming quadratic hardware scaling' headline is limited to LUT/FF arithmetic logic rather than total resources. That limitation is a scope/overstatement concern, not a circularity: the claimed LUT/FF exponent is a fit to data and is not equivalent to the architecture's inputs by construction. No circular step can be quoted.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

No invented physical entities. The main free parameters are the fitted scaling exponents that define the paper's central scaling claim. The axioms include the standard ONN dynamics model, the timing constraint for serialized MAC, the unverified equivalence of dynamics, and the on-chip N^2 weight storage that limits the demonstrated scaling.

free parameters (4)
  • LUT scaling exponent (recurrent architecture) = 2.08
    Slope of log-log regression of LUT usage vs oscillator count (Figure 9), cited as evidence of quadratic scaling.
  • LUT scaling exponent (hybrid architecture) = 1.22
    Slope of log-log regression of LUT usage vs oscillator count (Figure 9), cited as evidence of near-linear scaling.
  • FF scaling exponent (hybrid architecture) = 1.11
    Slope of log-log regression of FF usage vs oscillator count (Figure 10), supporting the near-linear scaling claim.
  • Oscillation frequency scaling exponent (hybrid architecture) = -1.35
    Slope of log-log regression of oscillation frequency vs oscillator count (Figure 11), used to quantify the speed cost of serialization.
assumptions (5)
  • domain assumption The network minimizes the Ising Hamiltonian H = -sum J_ij sigma_i sigma_j - mu sum h_i sigma_i (Eq. 1), and oscillator phases evolve according to the Hoppensteadt-Izhikevich dynamics (Eq. 2).
    Standard model for ONNs, inherited from Hopfield/Ising literature.
  • domain assumption The weighted sum for each oscillator must be computed and applied within one phase-update period, i.e., before the next clock edge that updates the phase.
    Stated in Section 3 as the timing constraint that motivates the faster clock domain.
  • ad hoc to paper The fast clock domain can be made at least N times faster than the phase-update clock for all network sizes considered, and this remains feasible beyond 506 oscillators.
    Load-bearing premise for near-linear scaling; the paper demonstrates it only up to 506 oscillators at 50 MHz, and the frequency exponent -1.35 already shows degradation.
  • ad hoc to paper The oscillator dynamics of the hybrid architecture are equivalent to the recurrent architecture (same phase evolution for the same inputs), apart from minor synchronization jitter.
    Section 5.3 states exhaustive benchmarking is not required and leaves it to future work; the equivalence is inferred from similar retrieval accuracies on small patterns, with unexplained differences at high corruption.
  • domain assumption All N^2 coupling weights are stored on-chip in block RAM.
    Section 2.1 notes memory cells cannot be reduced below N^2; at 506 oscillators BRAM is 100% utilized, so this assumption caps the demonstrated scaling.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Overcoming Quadratic Hardware Scaling for a Fully Connected Digital Oscillatory Neural Network." pith.science (2026). https://pith.science/paper/2ZNU7TRY

@misc{pith2026250420680,
  author       = {Pith},
  title        = {Pith review of: Overcoming Quadratic Hardware Scaling for a Fully Connected Digital Oscillatory Neural Network},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2ZNU7TRY}},
  note         = {Machine review of arXiv:2504.20680}
}
abstract

Computing with coupled oscillators or oscillatory neural networks (ONNs) has recently attracted a lot of interest due to their potential for massive parallelism and energy-efficient computing. However, to date, ONNs have primarily been explored either analytically or through analog circuit implementations. This paper shifts the focus to the digital implementation of ONNs, examining various design architectures. We first report on an existing digital ONN design based on a recurrent architecture. The major challenge for scaling such recurrent architectures is the quadratic increase in coupling hardware with the network size. To overcome this challenge, we introduce a novel hybrid architecture that balances serialization and parallelism in the coupling elements that shows near-linear hardware scaling, on the order of about 1.2 with the network size. Furthermore, we evaluate the benefits and costs of these different digital ONN architectures in terms time to solution and resource usage on FPGA emulation. The proposed hybrid architecture allows for a 10.5$\times$ increase in the number of oscillators while using 5-bits to represent the coupling weights and 4-bits to represent the oscillator phase on a Zynq-7020 FPGA board. The near-linear scaling is a major step towards implementing large scale ONN architectures. To the best of our knowledge, this work presents the largest fully connected digital ONN architecture implemented thus far with a total of 506 fully connected oscillators.

Figures

Figures reproduced from arXiv: 2504.20680 by the authors.

Figure 1
Figure 1. Illustration of oscillatory neural network for pat [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Global architecture overview for the digital ONN. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Phase controlled oscillator architecture. A circular [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (7 more)
Figure 5
Figure 5. Figure 5: Serial arithmetic circuit implementation for hybrid [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6

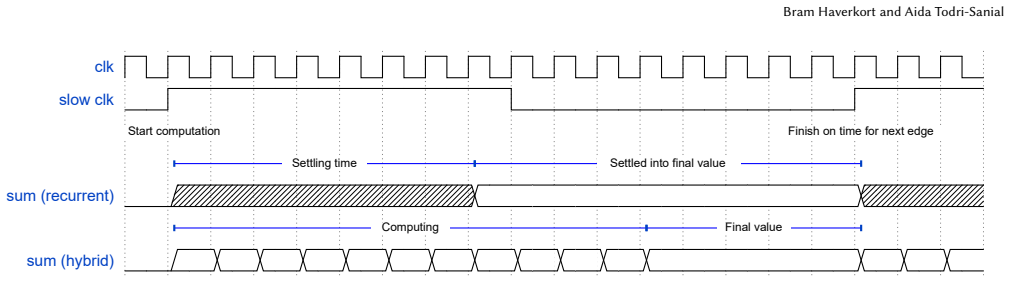

Figure 6. Figure 6: Timing diagram for the computation of a weighted sum for the phase update of one oscillator. The timing for both [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: Test setup showing the demonstration user interface and the PYNQ-Z2 performing pattern retrieval using the hybrid [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Example of pattern retrieval. In the left column the [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: Lookup table (LUT) usage at different network sizes [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 10
Figure 10. Figure 10: Flip-flop (FF) usage at different network sizes for [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 12
Figure 12. Figure 12: Area utilization and percentage of maximum fre [PITH_FULL_IMAGE:figures/full_fig_p009_12.png]
