Rapid, Broadband, Optical Spectroscopy of Cold Radicals

T0 review · 3 major / 4 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Combining a supercontinuum laser with a cryogenic buffer gas cell and a VIPA spectrometer records 15 nm of optical absorption at 0.56 pm resolution, enough to assign hundreds of lines and 15 bands of CaF—including a 2% isotopologue—in a…

desk verdict A genuinely useful broadband high-res absorption method for cold refractory radicals, with a solid CaF demonstration; the calibration reporting and a few minor inconsistencies need fixing. read the letter →

arxiv 2505.03650 v1 pith:T7EI7LBZ submitted 2025-05-06 physics.chem-ph physics.ins-det

Ashay N. Patel , Madison I. Howard , Timothy C. Steimle , Nicholas R. Hutzler This is my paper · ORCID
classification physics.chem-phphysics.ins-det
keywords broadbandopticalspectroscopycryogenicbuffergascellsupercontinuumlaserVIPAspectrometercoldradicalscalciummonofluorideisotopologuemolecularconstants
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Molecular radicals are central to quantum science and precision measurement, but their spectra are notoriously slow to take: mapping the quantum structure of one molecule can consume years of scanning a narrow-band laser. This paper claims to compress that timescale from years to hours by combining a supercontinuum white-light laser with a cryogenic buffer gas cell and a commercial VIPA-based spectrometer. The method captures 15 nm of spectrum in a single exposure at 0.56 pm (about 0.5 GHz) resolution with near-shot-noise sensitivity, so one molecular pulse can already reveal an entire band. The demonstration on CaF yields hundreds of assigned lines and dozens of molecular constants from 15 vibrational bands, including the low-abundance $^{44}$CaF isotopologue, in roughly three hours of data taking. If the approach transfers to other radicals, it would remove one of the main bottlenecks in preparing and controlling molecules for quantum science.

What carries the argument

The load-bearing element is the VIPA-based spectrometer: a virtually imaged phased array etalon provides large angular dispersion, an orthogonal diffraction grating separates the degenerate VIPA orders, and a large-area sCMOS camera records the two-dimensional pattern which software unwraps into a one-dimensional spectrum. Around it, three components do the rest: a supercontinuum laser delivers about 0.3 mW/nm of white light through a single-mode fiber; a cryogenic buffer gas cell produces 5 K refractory radicals (here CaF) by laser ablation of a solid CaF$_2$ target; and an iodine-vapor spectrum, compared to a published reference spectrum, supplies an absolute calibration via a linear transformation of the instrument wavenumber axis. Data analysis pairs each molecular pulse with a no-molecule background shot, subtracts slow polynomial and robust-spline backgrounds, and models VIPA-order crosstalk (about 1.5% per order) before averaging, which improves sensitivity as $N^{-1/2}$ down to $7.3\times 10^{-5}$ fractional absorption.

What would settle it

Take a series of molecular transitions whose frequencies are known to better than $0.001$ cm$^{-1}$ from an independent comb or saturated-absorption measurement at both edges and the middle of the 15 nm window, and compare them with the paper's linear calibration; disagreement at the edges beyond the claimed precision would break the linearity assumption. A simpler internal variant: refit the iodine calibration allowing a quadratic term in the wavenumber mapping and check whether the residual improves by more than the noise.

Watch

Extended reading notes

Core claim

The central discovery is a spectrometer architecture—supercontinuum source, cryogenic buffer gas cell, and a virtually imaged phased array (VIPA) crossed with a diffraction grating—that simultaneously provides broad spectral coverage, sub-picometer resolution, and near-shot-noise-limited sensitivity on transient, refractory molecules. The paper demonstrates this on the $B^2\Sigma^+$–$X^2\Sigma^+$ system of CaF near 531 nm: a single shot resolves the $(0,0)$ band, and about 13,000 averaged pulses taken over roughly three hours yield 386 assigned features covering the $(0,0)$ through $(14,14)$ bands. From these lines the authors extract rotational ($B$), spin-rotation ($\gamma$), and band-origin ($T$) constants in both electronic states for 15 vibrational levels, with fit standard deviations near $0.001$ cm$^{-1}$ (about 50 MHz), and show them to be consistent with prior high-temperature emission measurements. The spectra also resolve the $^{44}$CaF isotopologue at 2% natural abundance: its origin is shifted by $-0.1176$ cm$^{-1}$ and its $B$ values follow the expected reduced-mass scaling. Measured line intensities across bands give an internal vibrational temperature of roughly 2,240 K for the higher levels.

Load-bearing premise

The load-bearing assumption is that the instrument's wavenumber axis is linear across the entire 15 nm window after a two-parameter calibration anchored to an iodine spectrum and checked against two known CaF lines; if any curvature in the VIPA dispersion remains, every derived rotational, spin-rotation, and isotopologue constant would be systematically biased.

Editorial extensions

If this is right

  • Spectroscopy that previously demanded years of scanning narrow-band lasers can be completed in hours, enabling rapid determination of the rovibronic structure needed for laser cooling, trapping, and state control of new molecules.
  • Because the full 15 nm window is recorded on every pulse, many vibrational bands and multiple isotopologues are observed simultaneously; the CaF demonstration recovers the $^{44}$CaF spectrum at 2% natural abundance in the same run as the main isotopic species.
  • The simultaneous measurement of line intensities across vibrational bands gives direct internal-state thermometry; for CaF the fit yields a vibrational temperature of about 2,240 K for levels above $v = 3$.
  • Near-shot-noise single-pulse sensitivity (0.009 fractional absorption) means a single pulse can already reveal spectral structure, and averaging follows $N^{-1/2}$, so features down to about $7\times 10^{-5}$ absorption are reachable with a few hours of integration.
  • The same spectrometer used in absorption can be pointed at dispersed laser-induced fluorescence, and with a tunable-range version of the instrument the approach extends across the visible and near-IR where many quantum-science molecules have their transitions.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Averaging many thousands of shots at $N^{-1/2}$ makes the method a candidate for routine isotopic abundance measurements: with several bands in a 15 nm window, the CaF approach could in principle report relative calcium isotope ratios from one night of data, a direction the authors mention but do not develop.
  • Because the CBGC source is species-agnostic and the detection is broadband, the architecture should transfer directly to other refractory radicals and to molecules produced by laser ablation of mixed or doped targets, with no change beyond the precursor and wavelength window.
  • The single-shot signal could be exploited for source diagnostics and time-resolved chemistry: a single molecular pulse already carries enough information to extract a band spectrum, so shot-to-shot variation of ablation and thermalization could be studied with zero additional averaging.
  • If the spectrometer's range is extended across the visible and near-IR, the method pairs naturally with laser-cooled molecules that need a dozen or more vibronic transitions spanning hundreds of nanometers—one broadband sweep would capture them all, whereas the original scanning approach would need many separate campaigns.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The manuscript reports a broadband, high-resolution absorption spectroscopy method for cold, refractory molecular radicals. The apparatus combines a supercontinuum laser, a cryogenic buffer gas cell (CBGC), and a commercial VIPA-based spectrometer, achieving 15 nm of simultaneous bandwidth, 0.56 pm (≈0.5 GHz) resolution, and single-shot absorption noise of ≈0.009 that averages down to 7.3e-5. As a demonstration, the authors record the Δv=0 bands of the B2Σ+–X2Σ+ system of CaF around 531 nm, assign 386 spectral features across 15 vibrational bands, extract rotational, spin-rotation, and band-origin constants, and identify spectral lines of the low-abundance 44CaF isotopologue, with the identification checked against mass-scaled predictions.

Significance. If the central claims hold, this is a substantial methodological advance: it addresses a real bottleneck in cold-molecule and precision-measurement experiments, where high-resolution spectra of short-lived, refractory species are typically acquired line-by-line over long periods. The paper's strengths include the use of an external iodine calibration, explicit comparison of derived constants with independent previous values, a documented noise-scaling analysis with Gaussian single-shot noise, and a mass-scaling check for the 44CaF assignment. The demonstration of 15 bands and dozens of constants in a few hours is compelling, and the method appears simple and robust enough to be adopted by other groups. The main weakness is the presentation and validation of the frequency calibration, which is the quantitative backbone of every derived constant.

major comments (3)
  1. [Section II F / Table I] The linear calibration as reported is internally inconsistent. The text defines the calibration as ν̃_cal = m ν̃_inst + b, but the tabulated values are not mutually consistent under this definition. Taking the instrument window as 525–540 nm (≈529 cm−1 wide) and the quoted end shifts Δν̃_red ≈ −0.208 cm−1 and Δν̃_blue ≈ −0.119 cm−1, the implied slope is (Δν̃_blue − Δν̃_red)/(ν̃_blue − ν̃_red) ≈ 1.7×10−4, i.e. m ≈ 1.00017, not 1.0002, and the implied intercept on the (wavenumber − 18000) axis is approximately −0.295 cm−1, not the tabulated b ≈ −0.1635 cm−1. The tabulated b appears to be the simple average of the two end shifts, i.e. an offset at mid-window, rather than the intercept of the stated transformation. Please clarify the coordinate convention, define b precisely, and give the residual statistics of the iodine fit. Because every absolute line position, band origin, and the 44CaF isotope shift inherit this calibration, the inconsistency must be resolved before the quantitative claims can be assessed.
  2. [Section II F] No residual analysis is provided for the iodine calibration. The text states that the fit agrees 'well within the instrument resolution across the entire range,' but this is not quantified. Given that a single linear term is assumed to hold over the full 15 nm window, the manuscript should show residuals versus wavenumber across the entire window, the RMS or peak residual, and ideally a test of nonlinearity (for example, whether a quadratic term improves the fit or whether multiple iodine lines spanning the window are reproduced within uncertainties). Without this, the systematic error in the absolute frequency axis—and hence in T_vv and the isotope shift—is unknown.
  3. [Section II H] The crosstalk model used to identify weak 44CaF features is fitted with several free parameters (FSR and four amplitude ratios) but no uncertainties are reported. Since the 44CaF lines are at the few-percent abundance level and the fitted crosstalk replicas are at the 0.2–2.2% level, the subtraction of fitted crosstalk could in principle create or remove weak features. The manuscript should justify that the observed 44CaF features are not artifacts of the crosstalk subtraction, for example by showing the spectrum before and after crosstalk removal and demonstrating that the 44CaF positions match mass-scaled predictions independently of the fitted amplitudes.
minor comments (4)
  1. [Table V] There are several obvious digit typos in Table V, including '8766.0039', '8748.2832', and '8581.5830', which should be corrected to '766.0039', '748.2832', and '581.5830' or similar.
  2. [Section II F / Table I] The table caption and text should state explicitly which wavenumber coordinate is used for the calibration (absolute wavenumber or wavenumber minus 18000 cm−1), and the statement that 'the instrument has an offset of (−0.164±0.001) cm−1' should be reconciled with the definition of b in the calibration equation.
  3. [Section II F] The claim that 'the linearity m appears to be stable within our ability to measure it over the course of several hours' would be more informative if the scatter of the four fitted m values were reported.
  4. [Figure 9] The band labels in Figure 9 are crowded and some labels overlap (e.g., '5 4' and '16 15 14' in the inset); labeling every other band or adding a table of band-head positions would improve readability.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: calibration and derived constants are anchored to external standards and independent comparisons.

full rationale

This is an experimental demonstration with an external calibration chain, not a derivation that reduces to its inputs. The only load-bearing external inputs are (i) the iodine atlas IOSpec5, used to define the linear frequency transformation in Sec. II F, and (ii) previously measured CaF line positions used both for drift correction (Sec. II E) and as a check (Sec. II F). Neither is an output of the paper: the iodine spectrum is an independent reference, and the CaF constants are derived by fitting hundreds of listed transition frequencies (Table V) rather than by imposing the two reference lines as constraints. The resulting B and gamma values agree with an independent combined analysis of hollow-cathode emission and LIF spectra (Ref. 30). The 44CaF band is identified by comparing observed features with mass-scaled predictions of B', B'', and T00, not by fitting the isotopologue constants, and the observed 40Ca/44Ca intensity ratio is compared with natural abundance. The self-citation to a previous CBGC source description [12] is descriptive and not load-bearing for the central claims. The skeptical concern about the internal consistency of the calibration parameters in Table I is a potential systematic error in the absolute frequency scale, not a circularity: an incorrect or miscalibrated standard does not make the derivation self-referential.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

No new physical entities, forces, or dimensions are introduced. The fitted parameters are instrumental calibration and background-model parameters, not free physical constants. The molecular constants derived for CaF are outputs of the analysis, not inputs.

free parameters (4)
  • Crosstalk suppression amplitudes and free spectral range = 2.20%, 0.93%, 0.21%, 0.30%; FSR = 0.997 cm-1
    Parameters of the VIPA crosstalk model in Section II H, determined by fitting the observed spectrum. They are needed to identify weak 44CaF features but do not affect the main bandwidth or resolution claim.
  • Background polynomial coefficients = Sextic and eighth-order polynomial coefficients per spectrum
    Subtracted from each absorption spectrum (Sections II E and II H). These are data-dependent fits; if the background model absorbs real spectral features, weak lines could be missed.
  • Robust spline threshold = 2e-4 fractional absorption
    Chosen threshold above which points are ignored in the fast-background fit (Section II E). It is a hand-set parameter that could affect weak-line recovery.
  • Frequency calibration m and b = m = 1.0002, b about -0.163 cm-1
    Linear transformation determined by fitting iodine spectra (Section II F). It anchors the absolute frequency scale and is assumed to hold across the 15 nm window.
assumptions (5)
  • domain assumption The effective Hamiltonian for a 2Sigma molecule (rotational constant B and spin-rotation constant gamma) adequately describes the B2Sigma+-X2Sigma+ spectrum of CaF.
    Used to fit and assign lines (Section II H and Appendix A). This is standard for 2Sigma states.
  • domain assumption The absorption follows the Beer-Lambert law and the fractional absorption a' = (cb - cs)/cb is proportional to column density in the optically thin limit.
    Section II E, Eq. 1. For the observed absorptions up to about 10^-1, the optically thin assumption is reasonable but not explicitly justified.
  • domain assumption The iodine line positions from IOSpec5 are taken as true for calibration.
    Section II F uses the IOSpec5 prediction as reference. This is an external standard from prior literature.
  • ad hoc to paper The VIPA crosstalk can be modeled as shifted copies of the spectrum with fixed amplitude ratios.
    Section II H: the model uses fitted parameters. It is not derived from first principles and could affect feature identification.
  • domain assumption The frequency drift of the instrument is slow and can be corrected by shifting single-shot spectra to known lines.
    Section II E. Validated by observed drift of about 0.01 cm-1/hour and multiple calibration runs.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Rapid, Broadband, Optical Spectroscopy of Cold Radicals." pith.science (2026). https://pith.science/paper/T7EI7LBZ

@misc{pith2026250503650,
  author       = {Pith},
  title        = {Pith review of: Rapid, Broadband, Optical Spectroscopy of Cold Radicals},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/T7EI7LBZ}},
  note         = {Machine review of arXiv:2505.03650}
}
abstract

Optical spectroscopy of molecular radicals is an important tool in physical chemistry, and is a prerequisite for many experiments which use molecules for quantum science and precision measurement. However, even the simplest molecules have complex spectra which can be very time consuming to measure. Here we present an approach which offers the ability to measure the optical spectra of cryogenically-cooled molecular radicals with much greater efficiency. By combining a supercontinuum laser with a cryogenic buffer gas molecular source and a commercial optical spectrometer, we realize 15 nm of simultaneous bandwidth with 0.56 pm $(\approx 0.5$ GHz) resolution and high sensitivity. As a demonstration we measure and assign hundreds of lines and dozens of molecular constants from 15 bands in the $B^2\Sigma^+-X^2\Sigma^+$ system of CaF, including a low-abundance isotopologue, in a few hours. The setup is robust, simple, and should enable spectroscopy of molecular radicals with much higher throughput.

Figures

Figures reproduced from arXiv: 2505.03650 by the authors.

Figure 1
Figure 1. FIG. 1. Schematic overview of the experimental setup. Molecules [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

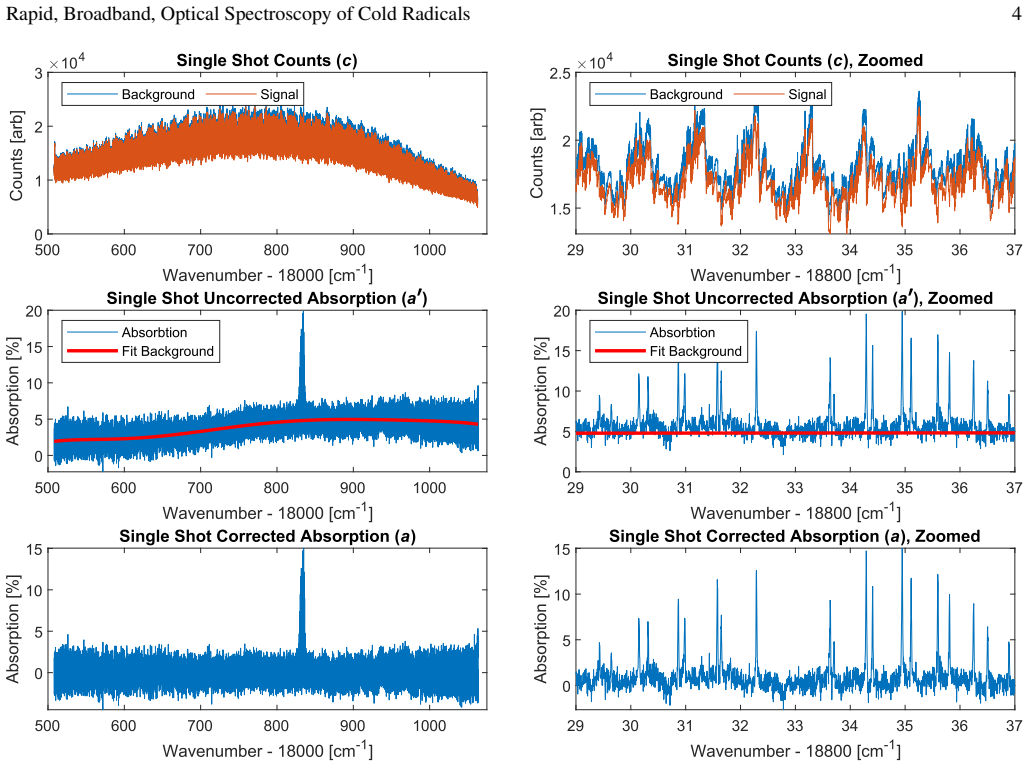

Figure 2. FIG. 2. The procedure for going from counts to absorption. All plots on the right are zoomed-in versions of the plots on the left. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 5
Figure 5. FIG. 5. Single-shot calibration with molecular iodine showing the [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figures from the paper (5 more)
Figure 6
Figure 6. Figure 6: FIG. 6. Histogram of absorption fraction occurrences for a single [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7. Noise vs. number of averages [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 9
Figure 9. Figure 9: FIG. 9. A broad absorption spectrum in the region of [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 11
Figure 11. Figure 11: FIG. 11. A plot of the [PITH_FULL_IMAGE:figures/full_fig_p007_11.png]
Figure 10
Figure 10. Figure 10: FIG. 10 [PITH_FULL_IMAGE:figures/full_fig_p007_10.png]
