arxiv: 2505.12136 · v1 · submitted 2025-05-17 · 💻 cs.AI

Lightweight Spatio-Temporal Attention Network with Graph Embedding and Rotational Position Encoding for Traffic Forecasting

Xiao Wang , Shun-Ren Yang This is my paper

Pith reviewed 2026-05-22 14:17 UTC · model grok-4.3

classification 💻 cs.AI
keywords traffic forecastingspatio-temporal attentiongraph embeddingrotational position encodinggraph neural networksPeMS datasetsintelligent transportation systemslightweight neural networks
0
0 comments X

The pith

A lightweight attention network with graph embeddings and grid-optimized rotational position encodings forecasts traffic flows more accurately on standard real-world datasets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces LSTAN-GERPE, a model that pairs temporal and spatial attention mechanisms to capture long-range dependencies in traffic data, going beyond the short-range focus typical of graph neural networks. It incorporates graph embeddings drawn from geographical location maps and tunes the frequency of rotational position encodings separately for space and time through grid search. This combination lets the model represent complex traffic patterns without requiring extensive manual feature engineering. A reader would care because accurate, low-effort forecasts directly support better routing, congestion management, and planning in transportation networks.

Core claim

The central claim is that by embedding geographical location information into spatio-temporal features and determining the optimal frequency for rotational position encoding via grid search within both the spatial and temporal attention modules, the LSTAN-GERPE architecture can capture long-range traffic dynamics and deliver advanced forecasting accuracy on the PeMS04 and PeMS08 datasets without heavy feature engineering.

What carries the argument

The LSTAN-GERPE architecture that combines spatio-temporal attention with graph embedding and grid-searched rotational position encoding to represent long-range traffic relations.

If this is right

  • Attention mechanisms can replace or supplement graph neural networks when modeling long-range spatial and temporal dependencies in traffic sequences.
  • Grid search for rotational encoding frequency provides a systematic way to tune position representations for better pattern capture.
  • Geographical location maps can be directly folded into embeddings to strengthen feature representation without extra engineering.
  • The resulting accuracy on PeMS04 and PeMS08 shows that lightweight models can reach competitive performance on established traffic benchmarks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same attention-plus-tuned-encoding design could be tested on other spatio-temporal forecasting problems such as crowd movement or energy demand.
  • If the optimal frequency proves stable across cities, deployment pipelines for new traffic networks could skip repeated grid searches.
  • Reducing the need for feature engineering may allow faster iteration when adapting the model to changing road networks or sensor placements.

Load-bearing premise

The grid-searched optimal frequency for rotational position encoding in the spatial and temporal attention mechanisms will reliably capture complex traffic patterns across different datasets and conditions.

What would settle it

Apply the model to a fresh traffic dataset from another city or time period, using the same grid-searched frequency without re-optimization, and check whether prediction error remains low or rises sharply compared with the PeMS results.

Figures

Figures reproduced from arXiv: 2505.12136 by Shun-Ren Yang, Xiao Wang.

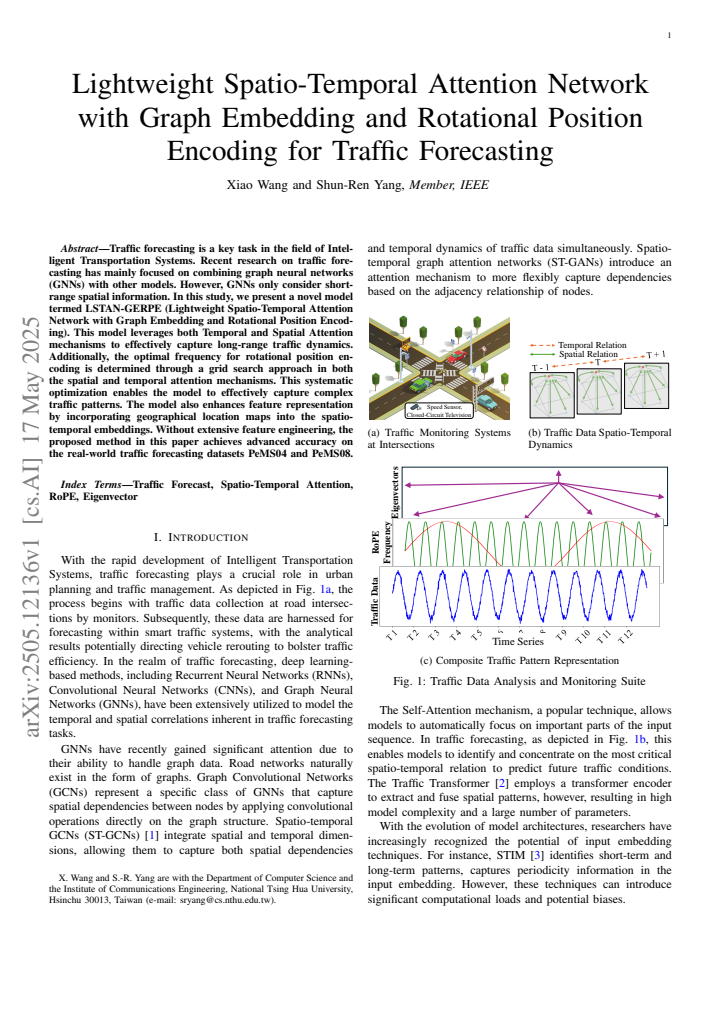

Figure 1
Figure 1. Figure 1: Traffic Data Analysis and Monitoring Suite [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

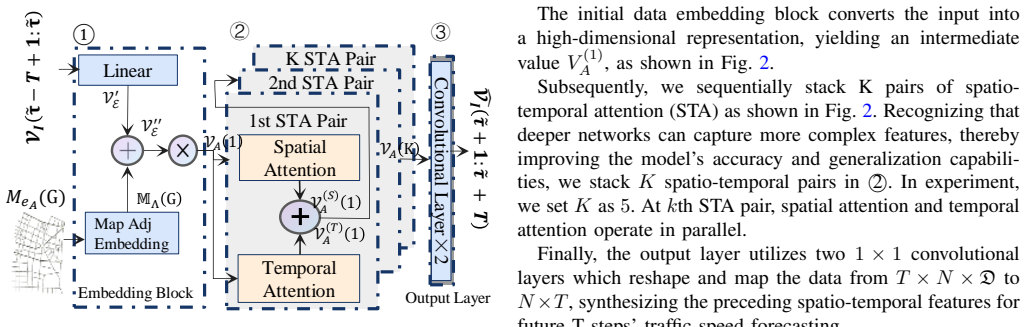

Figure 2
Figure 2. Figure 2: Model Architecture where xm, xn represent embeddings of items in the sequence. RoPE design the function f as: f{q,k}(xm, m) = R d Θ,mW{q,k}xm (4) where R d Θ,m =   cos mθ0 − sin mθ0 0 0 · · · 0 sin mθ0 cos mθ0 0 0 · · · 0 0 0 cos mθ1 − sin mθ1 · · · 0 0 0 sin mθ1 cos mθ1 · · · 0 . . . . . . . . . . . . . . . . . . 0 0 0 0 · · · cos mθd/2−1 0 0 0 0 · · · sin mθd/2−1   (5) where Θ is the pr… view at source ↗

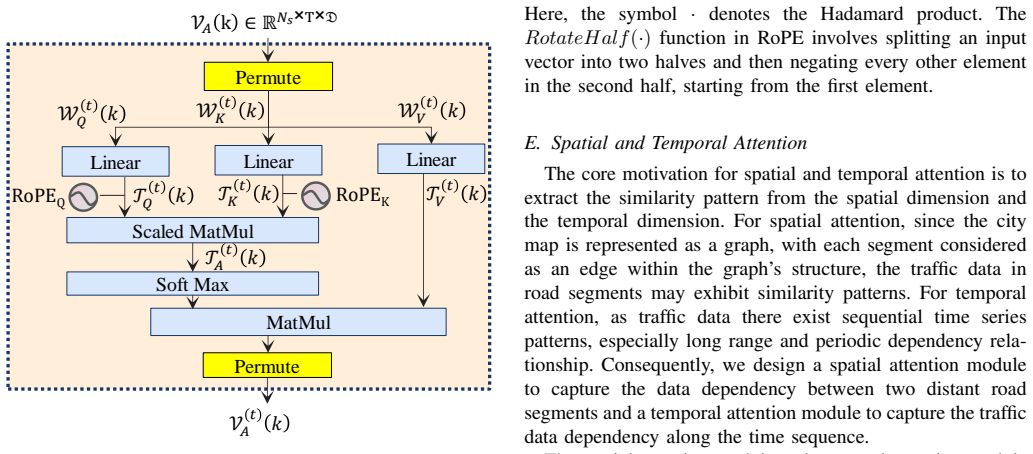

Figure 3
Figure 3. Figure 3: Spatial / Temporal Attention D. Rotary Positional Encoding To differentiate between spatial and temporal attention mod￾ules, we introduce the variable t ∈ (S, T). Building upon the foundational concepts introduced in Section II-D, we first ini￾tiate the process by constructing a unified frequency sequence F (t) , where the variable Θ(t) serves as a hyperparameter that controls the maximum frequency of the … view at source ↗

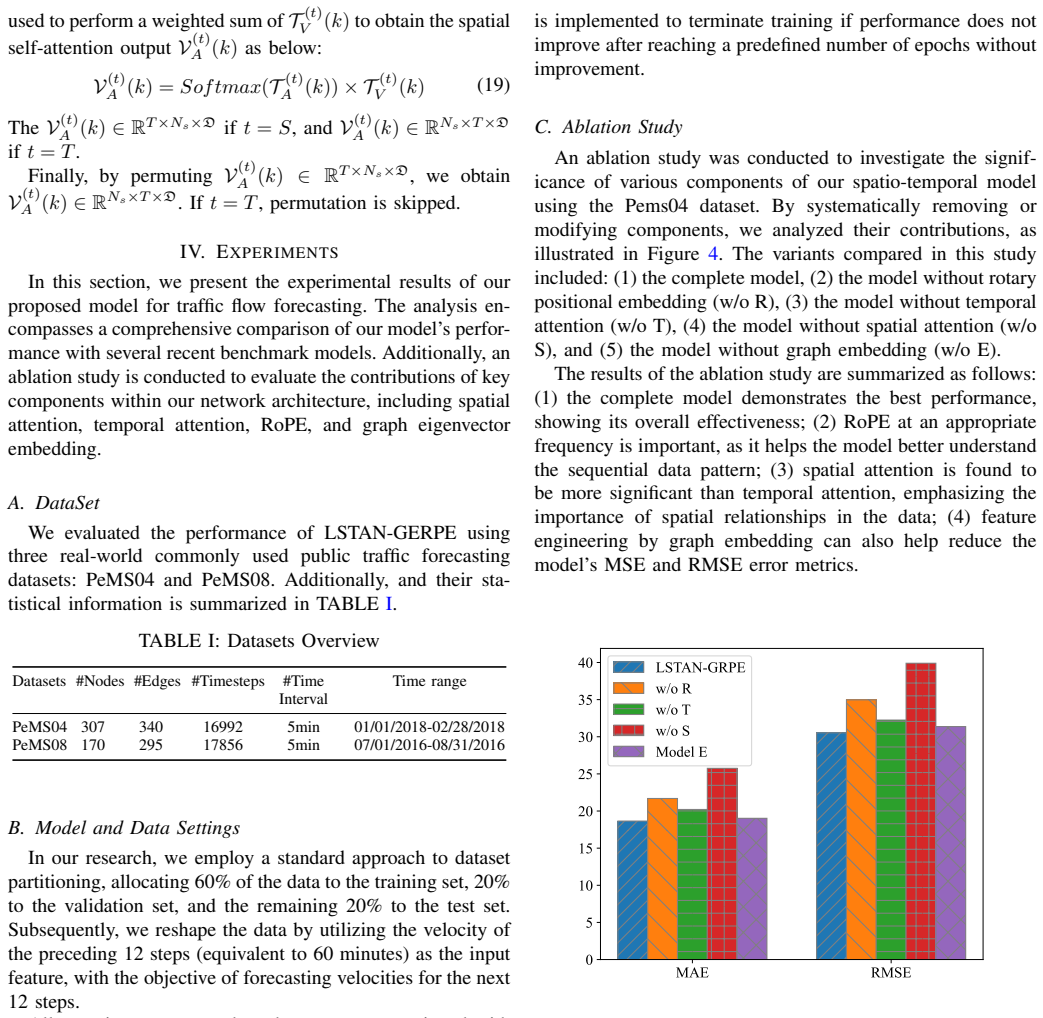

Figure 4
Figure 4. Figure 4: Ablation Study on Pems04 D. Performance Comparison In our comparative analysis, LSTAN-GRPE was bench￾marked against twelve baseline models, which can be cate￾gorized into three distinct classes. Firstly, within the domain of traditional time series methods, the Vector Autoregression (VAR) model [13] was included as a representative. Secondly, among Graph Neural Network (GNN)-based models, we evaluated the … view at source ↗
read the original abstract

Traffic forecasting is a key task in the field of Intelligent Transportation Systems. Recent research on traffic forecasting has mainly focused on combining graph neural networks (GNNs) with other models. However, GNNs only consider short-range spatial information. In this study, we present a novel model termed LSTAN-GERPE (Lightweight Spatio-Temporal Attention Network with Graph Embedding and Rotational Position Encoding). This model leverages both Temporal and Spatial Attention mechanisms to effectively capture long-range traffic dynamics. Additionally, the optimal frequency for rotational position encoding is determined through a grid search approach in both the spatial and temporal attention mechanisms. This systematic optimization enables the model to effectively capture complex traffic patterns. The model also enhances feature representation by incorporating geographical location maps into the spatio-temporal embeddings. Without extensive feature engineering, the proposed method in this paper achieves advanced accuracy on the real-world traffic forecasting datasets PeMS04 and PeMS08.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes LSTAN-GERPE, a lightweight spatio-temporal attention network that augments graph embeddings with rotational position encoding (RoPE) applied separately in spatial and temporal attention modules. The central claims are that (1) long-range traffic dynamics are captured more effectively than with standard GNNs, (2) grid-search optimization of the RoPE frequency in both attention mechanisms enables the model to capture complex patterns, and (3) the resulting architecture achieves advanced accuracy on the public PeMS04 and PeMS08 benchmarks without extensive feature engineering.

Significance. If the reported gains are shown to be robust, the work would offer a practical, lightweight alternative to heavier spatio-temporal GNNs for traffic forecasting. The explicit use of public benchmark datasets and the attempt to replace hand-crafted features with learned positional encodings are strengths that support reproducibility and applicability in intelligent transportation systems.

major comments (2)
  1. [Abstract and §4 (Experiments)] Abstract and §4 (Experiments): the central accuracy claim on PeMS04/PeMS08 is presented as resulting from the grid-searched RoPE frequencies in both spatial and temporal attention. No ablation with fixed/default RoPE frequencies (e.g., the original base of 10000) or cross-dataset frequency transfer is reported. Without these controls it is impossible to determine whether the gains derive from the proposed architecture or from per-dataset hyperparameter fitting, which directly undermines the claim that the optimization 'enables the model to effectively capture complex traffic patterns.'
  2. [§3.2 (Rotational Position Encoding)] §3.2 (Rotational Position Encoding): the integration of the grid-searched frequency into the spatial attention (graph embedding) and temporal attention is described at a high level but lacks the explicit formulation showing how the frequency modulates the rotary embeddings differently in each branch. This detail is load-bearing for reproducing the claimed long-range dependency capture.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'advanced accuracy' is vague; quantitative metrics (MAE, RMSE, MAPE) together with baseline names and at least one table reference should appear in the abstract.
  2. [§3] Notation: the distinction between the spatial graph embedding and the spatio-temporal embedding after RoPE is not always clear in the equations; consistent subscripting (e.g., E_s vs. E_st) would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and agree that the suggested additions will strengthen the manuscript. We will revise the paper to incorporate the requested ablations, explicit formulations, and clarifications.

read point-by-point responses

  1. Referee: [Abstract and §4 (Experiments)] Abstract and §4 (Experiments): the central accuracy claim on PeMS04/PeMS08 is presented as resulting from the grid-searched RoPE frequencies in both spatial and temporal attention. No ablation with fixed/default RoPE frequencies (e.g., the original base of 10000) or cross-dataset frequency transfer is reported. Without these controls it is impossible to determine whether the gains derive from the proposed architecture or from per-dataset hyperparameter fitting, which directly undermines the claim that the optimization 'enables the model to effectively capture complex traffic patterns.'

    Authors: We acknowledge this is a valid concern. In the revised manuscript we will add ablation experiments on both PeMS04 and PeMS08 that compare the grid-searched RoPE frequencies against fixed default values (base 10000) and against a version without per-dataset optimization. We will also report results for cross-dataset frequency transfer (training frequencies on one dataset and evaluating on the other) to demonstrate that the performance gains arise from the architecture's ability to leverage optimized RoPE rather than from dataset-specific fitting alone. These results will be presented in a new subsection of §4. revision: yes

  2. Referee: [§3.2 (Rotational Position Encoding)] §3.2 (Rotational Position Encoding): the integration of the grid-searched frequency into the spatial attention (graph embedding) and temporal attention is described at a high level but lacks the explicit formulation showing how the frequency modulates the rotary embeddings differently in each branch. This detail is load-bearing for reproducing the claimed long-range dependency capture.

    Authors: We agree that the current description is insufficient for full reproducibility. In the revised §3.2 we will add the explicit mathematical formulations. Specifically, we will define the rotary embedding for the spatial branch as R_spatial(θ_s) applied to the graph embedding vectors and for the temporal branch as R_temporal(θ_t) applied to the time-series features, where θ_s and θ_t are the independently grid-searched frequencies. The rotation matrices and the element-wise modulation will be written out in full, clarifying how the two branches use distinct frequencies to capture long-range spatial versus temporal dependencies. revision: yes

Circularity Check

0 steps flagged

No significant circularity in architecture proposal or empirical claims

full rationale

The paper proposes the LSTAN-GERPE architecture combining temporal/spatial attention, graph embedding, and rotational position encoding, with frequencies selected via grid search as an explicit optimization step. Accuracy results on public PeMS04/PeMS08 benchmarks are presented as empirical outcomes after this tuning and without extensive feature engineering. No equations reduce reported performance to inputs by construction, no load-bearing self-citations or uniqueness theorems are invoked, and no ansatz is smuggled via prior work. The derivation and evaluation remain self-contained against external datasets.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that GNNs are limited to short-range spatial information and on the empirical choice of rotational frequencies via grid search; no new physical entities are postulated and the free parameter is the frequency value itself.

free parameters (1)
  • optimal frequency for rotational position encoding
    Chosen via grid search inside both spatial and temporal attention blocks to capture complex traffic patterns; the specific numeric value is not reported in the abstract.
axioms (1)
  • domain assumption GNNs only consider short-range spatial information
    Invoked in the abstract as the motivation for adding long-range attention mechanisms.

pith-pipeline@v0.9.0 · 5686 in / 1408 out tokens · 48878 ms · 2026-05-22T14:17:45.023594+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

23 extracted references · 23 canonical work pages · 1 internal anchor

  1. [1]

    Spatio-temporal graph convolutional networks: A deep learning framework for traffic forecasting,

    B. Yu, H. Yin, and Z. Zhu, “Spatio-temporal graph convolutional networks: A deep learning framework for traffic forecasting,” in Pro- ceedings of the Twenty-Seventh International Joint Conference on Ar- tificial Intelligence, pp. 3634–3640, International Joint Conferences on Artificial Intelligence Organization, 2018

    work page 2018

  2. [2]

    Learning dynamic and hierarchical traffic spatiotemporal features with transformer,

    H. Yan, X. Ma, and Z. Pu, “Learning dynamic and hierarchical traffic spatiotemporal features with transformer,” IEEE Transactions on Intel- ligent Transportation Systems, vol. 23, no. 11, pp. 22386–22399, 2021

    work page 2021

  3. [3]

    High-performance spatio-temporal information mixer for traffic forecasting,

    Y . Huang and N. Xiao, “High-performance spatio-temporal information mixer for traffic forecasting,” in 2024 International Joint Conference on Neural Networks (IJCNN) , pp. 1–8, IEEE, 2024

    work page 2024

  4. [4]

    Roformer: En- hanced transformer with rotary position embedding,

    J. Su, M. Ahmed, Y . Lu, S. Pan, W. Bo, and Y . Liu, “Roformer: En- hanced transformer with rotary position embedding,” Neurocomputing, vol. 568, p. 127063, 2024

    work page 2024

  5. [5]

    A novel spatio- temporal model for city-scale traffic speed prediction,

    K. Niu, H. Zhang, T. Zhou, C. Cheng, and C. Wang, “A novel spatio- temporal model for city-scale traffic speed prediction,” IEEE Access , vol. 7, pp. 30050–30057, 2019

    work page 2019

  6. [6]

    A comprehensive survey on graph neural networks,

    Z. Wu, S. Pan, F. Chen, G. Long, C. Zhang, and S. Y . Philip, “A comprehensive survey on graph neural networks,” IEEE transactions on neural networks and learning systems , vol. 32, no. 1, pp. 4–24, 2020

    work page 2020

  7. [7]

    Attention is all you need,

    A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin, “Attention is all you need,” Advances in neural information processing systems , vol. 30, 2017

    work page 2017

  8. [8]

    A novel hybrid time-varying graph neural network for traffic flow forecasting,

    B.-A. Dai, B.-L. Ye, and L. Li, “A novel hybrid time-varying graph neural network for traffic flow forecasting,” arXiv preprint arXiv:2401.10155, 2024

    work page arXiv 2024

  9. [9]

    Dynamic trend fusion module for traffic flow prediction,

    J. Chen, H. Ye, Z. Ying, Y . Sun, and W. Xu, “Dynamic trend fusion module for traffic flow prediction,” arXiv preprint arXiv:2501.10796 , 2025

    work page arXiv 2025

  10. [10]

    Spatio-temporal adaptive embedding makes vanilla transformer sota for traffic forecasting,

    H. Liu, Z. Dong, R. Jiang, J. Deng, J. Deng, Q. Chen, and X. Song, “Spatio-temporal adaptive embedding makes vanilla transformer sota for traffic forecasting,” in Proceedings of the 32nd ACM international conference on information and knowledge management , pp. 4125–4129, 2023

    work page 2023

  11. [11]

    Pdformer: Propagation delay-aware dynamic long-range transformer for traffic flow prediction,

    J. Jiang, C. Han, W. X. Zhao, and J. Wang, “Pdformer: Propagation delay-aware dynamic long-range transformer for traffic flow prediction,” in Proceedings of the AAAI conference on artificial intelligence, vol. 37, pp. 4365–4373, 2023

    work page 2023

  12. [12]

    Self-Attention with Relative Position Representations

    P. Shaw, J. Uszkoreit, and A. Vaswani, “Self-attention with relative position representations,” arXiv preprint arXiv:1803.02155 , 2018

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  13. [13]

    Integrating granger causality and vector auto-regression for traffic prediction of large-scale wlans.,

    Z. Lu, C. Zhou, J. Wu, H. Jiang, and S. Cui, “Integrating granger causality and vector auto-regression for traffic prediction of large-scale wlans.,” KSII Transactions on Internet & Information Systems , vol. 10, no. 1, 2016

    work page 2016

  14. [14]

    Diffusion convolutional recurrent neural network: Data-driven traffic forecasting,

    Y . Li, R. Yu, C. Shahabi, and Y . Liu, “Diffusion convolutional recurrent neural network: Data-driven traffic forecasting,” in 6th International Conference on Learning Representations, ICLR 2018, Vancouver, BC, Canada, April 30 - May 3, 2018, Conference Track Proceedings , OpenReview.net, 2018

    work page 2018

  15. [15]

    Spatial-temporal synchronous graph convolutional networks: A new framework for spatial-temporal network data forecasting,

    C. Song, Y . Lin, S. Guo, and H. Wan, “Spatial-temporal synchronous graph convolutional networks: A new framework for spatial-temporal network data forecasting,” in Proceedings of the AAAI conference on artificial intelligence, vol. 34, pp. 914–921, 2020

    work page 2020

  16. [16]

    Spatial-temporal graph ode networks for traffic flow forecasting,

    Z. Fang, Q. Long, G. Song, and K. Xie, “Spatial-temporal graph ode networks for traffic flow forecasting,” in Proceedings of the 27th ACM SIGKDD conference on knowledge discovery & data mining , pp. 364– 373, 2021

    work page 2021

  17. [17]

    Evaluations of multi-step traffic flow prediction models based on graph neural networks,

    Y . Xie and C. Jin, “Evaluations of multi-step traffic flow prediction models based on graph neural networks,” in 2024 6th International Conference on Communications, Information System and Computer Engineering (CISCE), pp. 1100–1104, IEEE, 2024

    work page 2024

  18. [18]

    A hybrid transformer-based spatial-temporal network for traffic flow prediction,

    G. Tian and D. Li, “A hybrid transformer-based spatial-temporal network for traffic flow prediction,” in 2024 IEEE 19th Conference on Industrial Electronics and Applications (ICIEA) , pp. 1–8, IEEE, 2024

    work page 2024

  19. [19]

    Llgformer: Learnable long-range graph transformer for traffic flow prediction,

    D. Jin, C. Huo, D. He, J. Wei, P. S. Yu, et al. , “Llgformer: Learnable long-range graph transformer for traffic flow prediction,” in THE WEB CONFERENCE 2025

    work page 2025

  20. [20]

    Traffic flow prediction based on transformer and multi-graph fusion convolution,

    Y . Liu, W. Ye, et al., “Traffic flow prediction based on transformer and multi-graph fusion convolution,” 2024

    work page 2024

  21. [21]

    Adaptive graph convolutional recurrent network with transformer and whale optimization algorithm for traffic flow prediction,

    C. Zhang, Y . Wu, Y . Shen, S. Wang, X. Zhu, and W. Shen, “Adaptive graph convolutional recurrent network with transformer and whale optimization algorithm for traffic flow prediction,”Mathematics, vol. 12, no. 10, p. 1493, 2024

    work page 2024

  22. [22]

    Unifying spatiotemporal and frequential attention for traffic prediction,

    Q. Guo, Q. Tan, J. Tang, and B. Shi, “Unifying spatiotemporal and frequential attention for traffic prediction,” Scientific Reports, vol. 15, no. 1, p. 953, 2025

    work page 2025

  23. [23]

    Enhancing spatial-temporal awareness via graph convolutional networks and transformers for traffic flow forecasting,

    D. Lu, “Enhancing spatial-temporal awareness via graph convolutional networks and transformers for traffic flow forecasting,” in 2024 Inter- national Joint Conference on Neural Networks (IJCNN) , pp. 1–8, IEEE, 2024. 2025/5/20 6

    work page 2024
