FMEnets: Flow, Material, and Energy networks for non-ideal plug flow reactor design

T0 review · 2 major / 5 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Three coupled physics networks predict reactor fields from inlet-outlet data and infer activation energy to within 2.5 percent.

desk verdict A useful sequential multi-network architecture for reactor design, undermined by a written FEM weak form that is inconsistent with the strong form, so the reported error numbers lack a trustworthy reference. read the letter →

arxiv 2505.20300 v1 pith:K2GQL3ZF submitted 2025-05-10 cs.LG physics.flu-dyn

Chenxi Wu , Juan Diego Toscano , Khemraj Shukla , Yingjie Chen , Ali Shahmohammadi , Edward Raymond , Thomas Toupy , Neda Nazemifard
show 2 more authors
Charles Papageorgiou George Em Karniadakis
This is my paper · ORCID
classification cs.LGphysics.flu-dyn MSC 68T0780A32
keywords physics-informedneuralnetworksKolmogorov-Arnoldsparsedatastiffequationsconservationlawsinversemulti-physicsproblemsplugflowreactordesignactivationenergyinference
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

FMEnets is a physics-informed machine learning framework that splits a non-ideal plug flow reactor's governing physics across three sequentially trained sub-networks: one solves the Navier–Stokes equations for the velocity field, one enforces the material balance for species concentrations, and one enforces the energy balance for temperature. The paper's claim is that this decoupled sequencing is what lets the model predict velocity, pressure, concentration, and temperature from inlet and outlet data alone, and, in inverse mode, recover an unknown activation energy from sparse multi-residence-time measurements with relative errors under 2.5 percent. A sympathetic reader cares because conventional reactor design relies on ideal-reactor assumptions and costly finite element solves, whereas FMEnets promises a fast surrogate that also extracts kinetic parameters from the sparse, noisy data typical of pharmaceutical process development.

What carries the argument

The load-bearing object is the FMEnets architecture itself: three neural networks chained in sequence, in which NN1 solves the axisymmetric steady Navier–Stokes equations for the velocity field, NN2 uses that velocity to enforce the material balance for each species concentration, and NN3 uses both to enforce the energy balance for temperature. Training runs in two stages, with NN1 trained alone for 30,000 iterations and then frozen while NN2 and NN3 train, so coupling variables propagate downstream only after the flow is learned. Each sub-network may be a multilayer perceptron (FME-PINNs) or a Chebyshev Kolmogorov–Arnold network (FME-KANs), and the equations are non-dimensionalized through Reynolds, mass-transfer Péclet, and thermal Péclet numbers. Supporting mechanisms include exact Dirichlet boundary conditions via approximate distance functions, weight normalization, and residual-based attention weights that balance per-point loss contributions; the ablation study singles out the FME structure and the attention weights as the components whose removal most damages accuracy.

What would settle it

Measure outlet concentrations and temperatures from a physical isothermal-bath plug flow reactor whose activation energy is independently known, run the inverse FMEnets on those data, and compare the inferred activation energy to the known value; if the deviation exceeds the reported roughly 2.5 percent, or if retesting against a substantially finer finite element mesh changes the reported errors, the claimed accuracy is an artifact of training and testing on the same simulated solver.

Watch

Extended reading notes

Core claim

The central claim, stated on the paper's own terms, is that coupling the Navier–Stokes, material balance, and energy balance equations through three interconnected sub-networks with independent optimizers is the decisive design choice: a single network trained on all residuals at once fails, while the sequential FME structure succeeds. In forward mode, trained on only inlet and outlet information, FME-PINNs reproduce velocity and pressure to within about 1 percent relative error, species concentrations to within 0.99–7.95 percent, and temperature to within 1.7 percent across a two-component, a three-component sequential, and a six-component parallel reaction system. In inverse mode, outlet data from quarter-, half-, and full-length reactors let the same architecture infer unknown activation energies with relative errors under 2.5 percent while simultaneously predicting concentration and temperature fields. The paper further claims that the FME-KAN variant matches FME-PINN accuracy while tolerating injected measurement noise better, holding state-variable errors below about 6 percent even at 10 percent noise. The ablation study is offered as proof of the architecture's necessity: removing the FME structure entirely raises concentration errors to hundreds of percent, and removing residual-based attention weighting also degrades accuracy substantially.

Load-bearing premise

The load-bearing premise is that the finite element simulations used as ground truth represent the real reactor: all reported errors are measured against FEniCS solutions of the same PDE system, and Section 3.4 states that simulated data stand in for experimental data in this proof-of-concept, so if the governing equations or discretization diverge from physical reality, every accuracy number in the paper would fail to reflect real reactor behavior.

Editorial extensions

If this is right

  • Forward reactor design problems could be solved from inlet and outlet measurements alone, replacing repeated finite element solves with a trained surrogate for rapid iteration and optimization.
  • Unknown kinetic parameters, particularly activation energy, could be estimated from sparse multi-residence-time outlet measurements, addressing reactions whose kinetics are not yet established, a common situation in pharmaceutical process development.
  • Process data carrying up to 10 percent measurement noise would favor the KAN implementation, which holds state-variable errors below about 6 percent while the MLP variant degrades more sharply.
  • Because each physical sub-problem is trained and frozen separately, adding new species or reactions means extending the material-balance sub-network while leaving the flow solver untouched.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: every accuracy number is measured against finite element solutions of the same PDE model, so the reported errors certify how faithfully the network fits that model, not how faithfully the model describes a physical reactor; agreement with real experimental data is the untested next step.
  • Editorial inference: the frozen-network sequencing implies each block could be swapped independently, say replacing the flow sub-network with an empirical pressure-drop correlation or a different surrogate, without retraining the full stack, a modularity the paper gestures at but does not demonstrate.
  • Editorial inference: using quarter-, half-, and full-length reactor outlets as surrogate interior data is a general recipe that should transfer to other tubular equipment, such as fixed-bed or monolithic reactors, whenever a residence-time series can be sampled.
  • Editorial inference: a direct test of the 2.5 percent inverse-error claim would push beyond the tested configurations, with fewer measurement locations, higher noise, or a six-component inverse problem, to see where the error begins to climb.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. This manuscript proposes FMEnets, a modular physics-informed machine-learning framework for steady-state non-adiabatic plug-flow reactors. Three sequentially trained subnetworks enforce the Navier-Stokes, species material-balance, and energy-balance equations in an axisymmetric (r,z) domain; each subnetwork can be an MLP (FME-PINNs) or a Chebyshev KAN (FME-KANs). In forward mode the model is trained with PDE residuals, boundary conditions, and sparse inlet/outlet concentration data; in inverse mode it additionally uses sparse simulated multi-residence-time outlet measurements to infer the activation energy Ea. Results are reported for three reaction systems against FEniCS finite-element solutions, together with noise-robustness experiments and ablations. The central quantitative claim is that relative L2 errors for state variables are mostly a few percent and that inferred Ea errors remain below 2.5%.

Significance. If the results hold, the sequential decomposition into flow, material, and energy subnetworks is a practically useful surrogate for reactor CFD and a plausible template for kinetic-parameter inference from sparse measurements. The ablation study (Table 4) gives useful evidence that the multi-network decomposition, rather than the PINN or KAN representation alone, is responsible for accuracy, and the noise-robustness comparison in Figure 8 is a valuable datapoint for practitioners. A notable strength is that the paper explicitly acknowledges the proof-of-concept nature of using simulated data instead of experiment. However, every reported accuracy number depends on the FEniCS reference solutions reproducing the written governing equations, and the manuscript provides no code or data; the validation is therefore only as strong as the written numerical formulation.

major comments (2)
  1. [Section 3.5, Eqs. (16)-(18)] The weak form written in Eqs. (16)-(18) is not the weak form of the strong form in Eq. (4). In Eq. (4) the radial term (1/r)∂C/∂r appears only as part of the axisymmetric Laplacian multiplied by -1/Pe, whereas Eq. (16) adds a separate term ∫Ω (1/r)(∂C/∂r)φ dΩ with coefficient +1 alongside -(1/Pe)∫Ω ΔC φ dΩ. If ΔC denotes the Cartesian Laplacian ∂²C/∂r²+∂²C/∂z², the diffusive operator in the weak form becomes -(1/Pe)(∂²C/∂r²+∂²C/∂z²)+(1/r)∂C/∂r, which is not the operator in Eq. (4); if ΔC denotes the cylindrical Laplacian, the term (1/r)∂C/∂r is counted twice with inconsistent coefficients. The integration by parts in Eq. (17) leaves this term untouched, so the form is not a valid variational formulation under either the Cartesian measure dΩ=dr dz or the cylindrical measure r dr dz. Because every L2 error in Tables 1-3 and every Ea error is evaluated against FEniCS solutions obtained from Eq. (18), the central accuracy claim is unsupported unless the FEniCS implementation differs from the written form; the authors must either provide the corrected weak form or release the actual code so the reference solver can be verified.
  2. [Section 3.1.2, Chebyshev KAN recurrence] The Chebyshev recurrence is stated as T_n(ζ)=2ζT_{n-1}(ζ)+T_{n-2}(ζ), but the standard three-term recurrence is T_n(ζ)=2ζT_{n-1}(ζ)-T_{n-2}(ζ). With the plus sign, T_2(ζ)=2ζ²+1, which is not a Chebyshev polynomial. Since FME-KANs are a central contribution and the paper claims that cKANs are numerically stable, this written definition must be corrected or the implementation clarified for the KAN results to be reproducible.
minor comments (5)
  1. [Abstract and Section 1] The phrase 'using only inlet and outlet information' overstates the forward setup: the forward model also enforces PDE residuals and boundary conditions throughout the domain, with inlet/outlet data as an additional constraint; please rephrase to avoid implying a data-only input-output map.
  2. [Section 3.1.1, Eq. (8)] The residual eα(x_i,θ)=|αhat(x_i)-α(x_i,θ)| is a sensible definition for boundary and data losses, but for PDE residuals the target αhat is zero; this convention should be stated explicitly, since Eq. (8) currently reads as if every loss term has a nonzero target field.
  3. [Section 3.4] The claim that this is the 'first attempt to recover kinetic parameters in reactive flow systems using the physics-informed machine learning model' is too strong given the existing inverse-PINN literature on reacting flows cited in Section 1.1; please moderate the novelty claim.
  4. [Table 4 caption] The caption 'single-component ablation study of the three-component reaction system' is confusing; the table reports ablations on the three-component system, not a single-component system, and should be reworded.
  5. [Section 3.5, Eq. (16)] The symbol r is used both for the radial coordinate and for the reaction-rate term in Eq. (16), making the last integral ambiguous; use a distinct symbol such as R_i for the reaction contribution.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity in the FMEnets derivation: the inverse Ea is a parameter-recovery benchmark, the forward residuals are trained against standard PDEs plus boundary data, and the FEM comparison is an independent (though possibly flawed) numerical reference.

full rationale

No load-bearing step in the paper reduces to its own input. The forward problem trains separate networks on residuals of the non-dimensional Navier-Stokes, material-balance, and energy-balance equations (Eqs. 1-5) together with inlet/outlet boundary data, then compares against FEniCS solutions; this is a normal surrogate-validation setup, not a derivation of the answer from the answer. The inverse 'prediction' of Ea is presented as inference from sparse multi-residence-time data (Section 3.4: 'we use simulated data instead of experimental data to conduct a proof-of-concept'), so the <2.5% error is a standard parameter-recovery result on a synthetic benchmark, not a fitted input renamed as a prediction. Self-citations to prior group work (e.g., [51] for Chebyshev KANs, [56] for RBA, [77] for sequential training) supply implementation building blocks and are not load-bearing for the central FMEnets claim. One correctness risk, distinct from circularity: the written FEM weak form in Section 3.5, Eqs. (16)-(18), is inconsistent with the strong form Eq. (4): the (1/r)∂C/∂r term appears with the wrong coefficient/sign, and the claimed integration by parts leaves that term unchanged ('We now perform integration by parts to the third term of Equation 16 and obtain ... + ∫_Ω (1/r) ∂C_h/∂r φ dΩ'), so the FEniCS reference is only trustworthy if the implemented code corrects this; the manuscript does not provide the code or a corrected derivation. This weakens the support for the error tables but does not constitute circularity.

Assumptions & free parameters 1 free parameters · 5 assumptions · 0 invented entities

The central results rest on the PDE model, the FEM reference, and the sufficiency of the data configuration; these are domain assumptions rather than fitted constants.

free parameters (1)
  • activation energy E_a = ground truth 40230 J/mol; inferred with 1.198% and 2.112% relative error in inverse cases
    In inverse FMEnets, E_a is learned from sparse simulated measurements by minimizing the combined loss. It is the target of inference, but it is a numeric value obtained by fitting to data, analogous to a fitted kinetic parameter.
assumptions (5)
  • domain assumption The reactor is axisymmetric with fully developed steady laminar Newtonian flow; fluid properties are constant and species are dilute.
    Section 2.2 states these assumptions before deriving the non-dimensionalized governing equations. If violated, the PDEs used by FMEnets and FEM would not describe the reactor.
  • domain assumption Arrhenius kinetics with known pre-exponential factors and unknown activation energy govern all reactions.
    Section 2.3 and Appendix A.6 define k0 and E_a values for each case; the inverse problem learns E_a while k0 remains fixed.
  • domain assumption Finite element solutions with 120,000 quadratic elements and tight solver tolerances are accurate references.
    Section 3.5 uses FEniCS with 120,000 elements, polynomial degree 2, SNES and MUMPS, tolerance 1e-10; all reported errors are measured against these solutions.
  • domain assumption Multi-residence-time outlet measurements at quarter, half, and full reactor lengths suffice to identify E_a.
    Section 3.4 uses these as a surrogate for interior measurements but does not provide an identifiability analysis; the inverse results depend on this assumption.
  • standard math Kolmogorov-Arnold representation theorem and universal approximation guarantee network expressiveness.
    Section 3.1.2 relies on these to justify MLP and KAN representations.

how reviews work

0 comments
Cite this review

Pith. "Pith review of FMEnets: Flow, Material, and Energy networks for non-ideal plug flow reactor design." pith.science (2026). https://pith.science/paper/K2GQL3ZF

@misc{pith2026250520300,
  author       = {Pith},
  title        = {Pith review of: FMEnets: Flow, Material, and Energy networks for non-ideal plug flow reactor design},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/K2GQL3ZF}},
  note         = {Machine review of arXiv:2505.20300}
}
read the original abstract

We propose FMEnets, a physics-informed machine learning framework for the design and analysis of non-ideal plug flow reactors. FMEnets integrates the fundamental governing equations (Navier-Stokes for fluid flow, material balance for reactive species transport, and energy balance for temperature distribution) into a unified multi-scale network model. The framework is composed of three interconnected sub-networks with independent optimizers that enable both forward and inverse problem-solving. In the forward mode, FMEnets predicts velocity, pressure, species concentrations, and temperature profiles using only inlet and outlet information. In the inverse mode, FMEnets utilizes sparse multi-residence-time measurements to simultaneously infer unknown kinetic parameters and states. FMEnets can be implemented either as FME-PINNs, which employ conventional multilayer perceptrons, or as FME-KANs, based on Kolmogorov-Arnold Networks. Comprehensive ablation studies highlight the critical role of the FMEnets architecture in achieving accurate predictions. Specifically, FME-KANs are more robust to noise than FME-PINNs, although both representations are comparable in accuracy and speed in noise-free conditions. The proposed framework is applied to three different sets of reaction scenarios and is compared with finite element simulations. FMEnets effectively captures the complex interactions, achieving relative errors less than 2.5% for the unknown kinetic parameters. The new network framework not only provides a computationally efficient alternative for reactor design and optimization, but also opens new avenues for integrating empirical correlations, limited and noisy experimental data, and fundamental physical equations to guide reactor design.

Figures

Figures reproduced from arXiv: 2505.20300 by the authors.

Figure 1

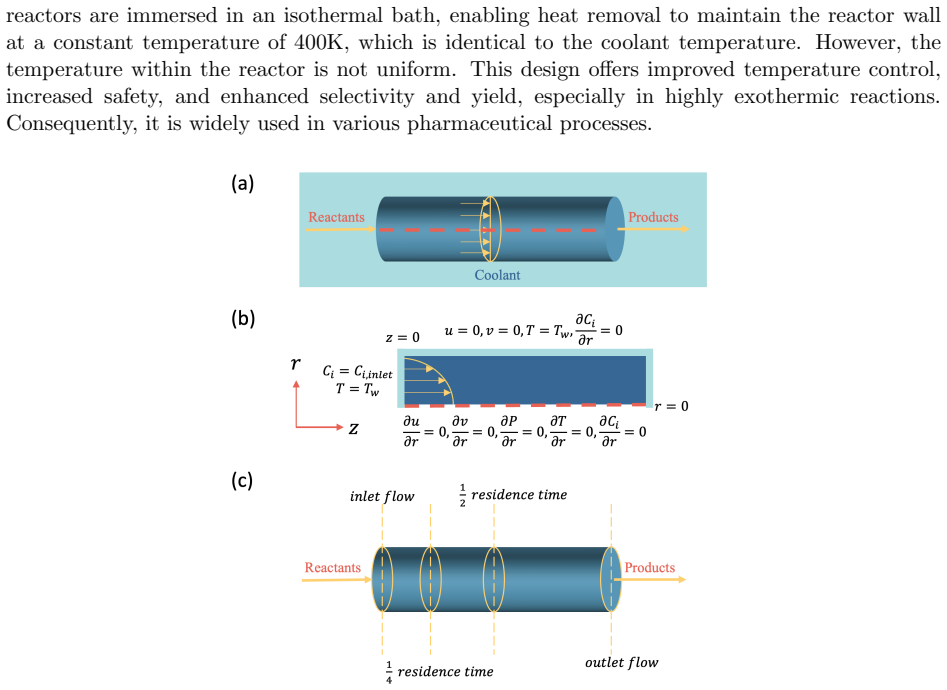

Figure 1. (a) Schematic of the tubular reactor with external coolant; (b) Modeled domain and [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Schematic of the FMEnets architecture for solving the forward problem. Three neural [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. Schematic of the FMEnets architecture for the inverse problem with a two-step procedure. [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Distribution of 6-point Gauss quadrature points on a reference triangle and exact inte [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 5
Figure 5. Figure 5: Visualization of the accuracy of the FME-PINNs against Finite Element Method (FEM) [PITH_FULL_IMAGE:figures/full_fig_p016_5.png]
Figure 6
Figure 6. Figure 6: Visualization of the accuracy of the FME-PINNs against Finite Element Method (FEM) [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]
Figure 7

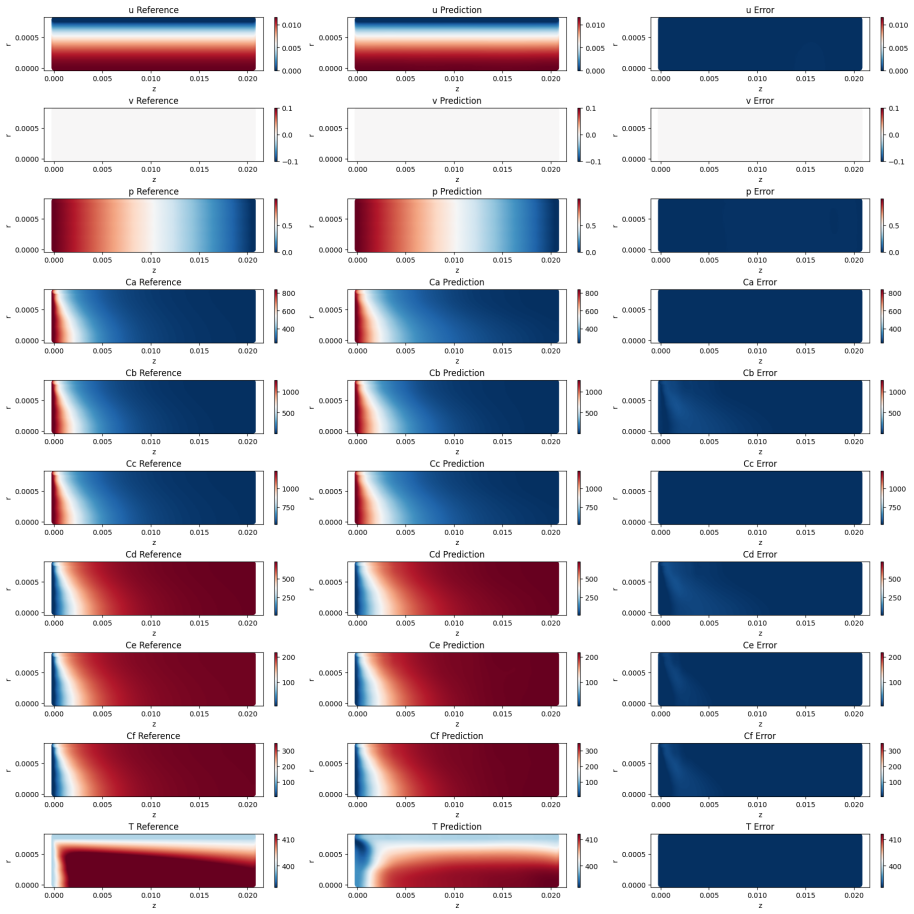

Figure 7. Figure 7: Visualization of the accuracy of the FME-PINNs against Finite Element Method (FEM) [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]
Figure 8
Figure 8. Figure 8: Violin plots of the L 2 relative error for FME-KANs (dark blue) and FME-PINNs (light blue) across three noise levels (1%, 5%, and 10%) at different locations (inlet flow (INLET), outlet flow (OUTLET), and both inlet and outlet flow (BOTH)). Each violin illustrates the …

Discussion (0). Continue with ORCID to comment.
