arxiv: 2506.06107 · v3 · submitted 2025-06-06 · 🪐 quant-ph

Optimal absorption and emission of itinerant fields into a spin ensemble memory

Linda Greggio , Tristan Lorriaux , Alexandru Petrescu , Mazyar Mirrahimi , Audrey Bienfait This is my paper

Pith reviewed 2026-05-19 10:48 UTC · model grok-4.3

classification 🪐 quant-ph
keywords spin ensemblequantum memorycavity linewidth modulationabsorption efficiencyitinerant fieldssuperconducting processorsmodular quantum computing
0
0 comments X

The pith

Optimal time-dependent cavity linewidth modulation maximizes storage and retrieval efficiency in spin ensemble quantum memories, reaching an upper bound in the narrow bandwidth regime.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a mean-field model treating spin ensembles in cavities as effective communication channels for storing itinerant electromagnetic fields. It uses cascaded quantum models to derive the best time-varying adjustments to the cavity's decay rate for absorbing and emitting fast pulses with high efficiency. A key result is an upper limit on how efficient this process can be, which is achievable when the pulse bandwidth is narrow enough, but efficiency plummets past a critical bandwidth threshold. This approach is particularly relevant for connecting spin-based memories to superconducting quantum processors in larger modular quantum computing setups.

Core claim

By modeling the spin ensemble as a communication channel under a mean-field approximation and applying cascaded quantum optics, the authors derive optimal modulations of the cavity linewidth. These controls enable absorption and emission processes to approach a theoretical upper bound on efficiency for narrow-bandwidth incoming pulses, while revealing a sharp drop in performance above a critical bandwidth.

What carries the argument

Mean-field spin communication channel model with cascaded quantum description of absorption and emission, optimized via time-dependent cavity linewidth modulation.

Load-bearing premise

The mean-field framework accurately captures the ensemble dynamics without significant corrections from collective effects or inhomogeneities.

What would settle it

An experiment measuring storage efficiency as a function of pulse bandwidth in a spin ensemble cavity system, showing a sharp drop at the predicted critical bandwidth, would test the central claims.

Figures

Figures reproduced from arXiv: 2506.06107 by Alexandru Petrescu, Audrey Bienfait, Linda Greggio, Mazyar Mirrahimi, Tristan Lorriaux.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

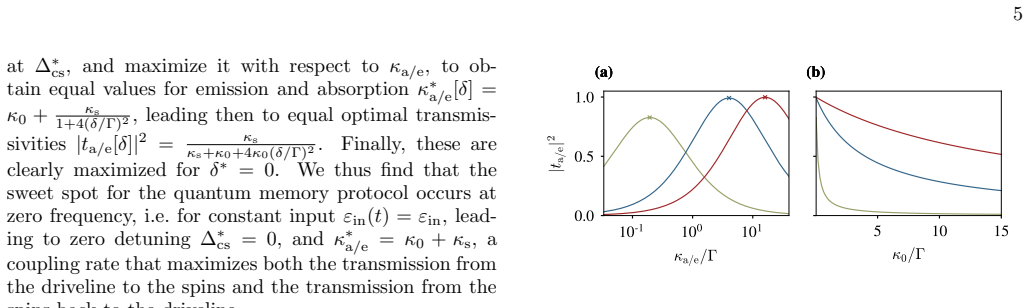

Figure 2
Figure 2. Figure 2: FIG. 2. Transmissivity in the continuous-drive limit, when [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

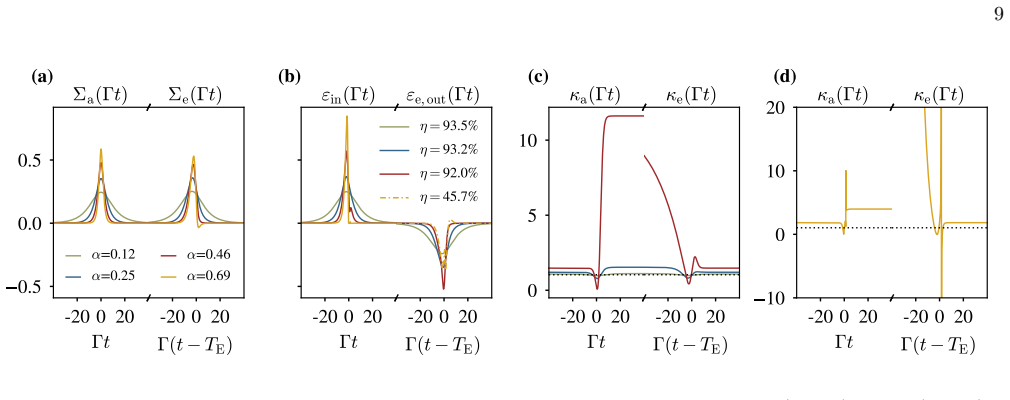

Figure 3
Figure 3. Figure 3: FIG. 3. Numerical simulations results for a hyperbolic secant pulse, with system parameters [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Absorption efficiency analysis as a function of the pulse speed [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Same plots as in Fig. 3, but for a Lorentzian pulse. In [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗

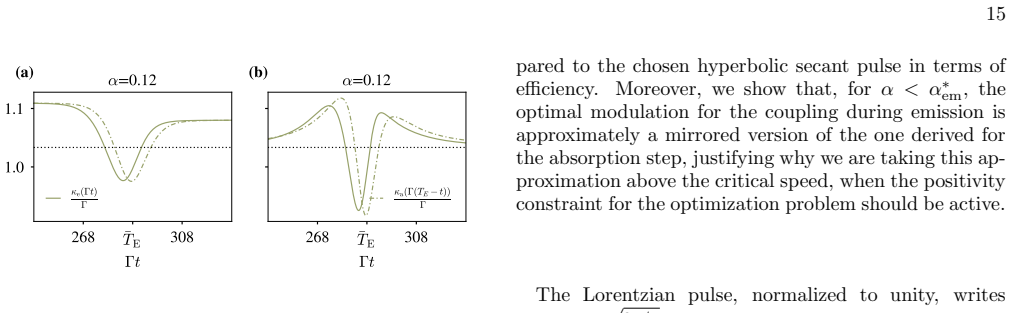

Figure 7
Figure 7. Figure 7: FIG. 7. Same conventions as in of Fig. 3. Optimal shape for [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
read the original abstract

Quantum memories integrated in a modular quantum processing architecture can rationalize the resources required for quantum computation. This work focuses on spin-based quantum memories, where itinerant electromagnetic fields are stored in large ensembles of effective two-level systems, such as atomic or solid-state spin ensembles, embedded in a cavity. Using a mean-field framework, we model the ensemble as an effective spin communication channel and describe both absorption and emission processes using a cascaded quantum model. We derive optimal time-dependent modulations of the cavity linewidth that maximize storage and retrieval efficiency for fast incoming pulses. Our analysis yields an upper bound on efficiency, which can be met in the narrow bandwidth regime. It also shows the existence of a critical bandwidth above which the efficiency severely decreases. Numerical simulations are presented in the context of microwave-frequency quantum memories interfaced with superconducting quantum processors, highlighting the protocol's relevance for modular quantum architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript develops a mean-field cascaded quantum optics model for a spin ensemble embedded in a cavity, treating the ensemble as an effective spin communication channel. It derives optimal time-dependent modulations of the cavity linewidth to maximize absorption and emission efficiency for fast itinerant pulses, obtains an upper bound on efficiency that is achievable in the narrow-bandwidth regime, and identifies a critical bandwidth above which efficiency drops sharply. Numerical simulations are presented for microwave-frequency quantum memories interfaced with superconducting processors.

Significance. If the mean-field approximation holds with the stated accuracy, the work supplies a concrete protocol and design guideline for high-efficiency spin-ensemble memories in modular quantum architectures. Credit is given for the explicit derivation of optimal modulations and the identification of a falsifiable critical-bandwidth threshold supported by numerical simulations. These elements would be useful for experimental groups working on cavity-coupled spin ensembles.

major comments (2)
  1. [§3] §3 (Mean-field framework and effective channel mapping): The upper bound on efficiency and its attainability in the narrow-bandwidth regime rest on the cascaded mean-field model. No quantitative estimate or perturbative bound is supplied for the size of neglected collective corrections (superradiance, dipole-dipole shifts, or inhomogeneity-induced dephasing) precisely in the regime where the bound is claimed to be saturated. This assumption is load-bearing for the central claim.
  2. [§4.2, Eq. (18)] §4.2, Eq. (18) and surrounding numerics: The reported critical bandwidth and the sharp efficiency drop above it are obtained from the mean-field dynamics. Without a direct comparison to an exact treatment (e.g., small-N diagonalization) or an error estimate on the mean-field truncation, it is unclear whether the critical value remains robust once collective effects are restored.
minor comments (3)
  1. [Abstract] Abstract: the phrase 'fast incoming pulses' is used without specifying the temporal shape or bandwidth relative to the cavity; a brief clarification would improve accessibility.
  2. [Figure 4] Figure 4 (efficiency vs. bandwidth): overlaying the analytic upper bound as a dashed reference line would make the saturation claim visually immediate.
  3. Notation: the time-dependent cavity decay rate is denoted both as κ(t) and Γ(t) in different sections; consistent symbols would reduce reader confusion.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the importance of justifying the mean-field approximation. We address the two major comments point by point below, providing the strongest clarification consistent with the existing derivations while indicating revisions that will be incorporated.

read point-by-point responses

  1. Referee: §3 (Mean-field framework and effective channel mapping): The upper bound on efficiency and its attainability in the narrow-bandwidth regime rest on the cascaded mean-field model. No quantitative estimate or perturbative bound is supplied for the size of neglected collective corrections (superradiance, dipole-dipole shifts, or inhomogeneity-induced dephasing) precisely in the regime where the bound is claimed to be saturated. This assumption is load-bearing for the central claim.

    Authors: The cascaded mean-field model is the framework in which the optimal modulations, upper bound, and narrow-bandwidth attainability are derived; collective corrections beyond mean-field are neglected by construction. In the thermodynamic limit N → ∞ that underlies the effective spin-channel mapping, these corrections (superradiance, dipole-dipole shifts, inhomogeneity dephasing) enter at relative order 1/N or smaller and do not alter the leading-order absorption/emission dynamics or the derived bound. For the microwave spin-ensemble parameters used in the numerics, typical experimental N ≳ 10^6 renders the corrections negligible compared with the cavity decay rates under consideration. We will add a concise paragraph to §3 that supplies these scaling arguments together with order-of-magnitude estimates based on standard experimental values, thereby making the regime of validity explicit. revision: yes

  2. Referee: §4.2, Eq. (18) and surrounding numerics: The reported critical bandwidth and the sharp efficiency drop above it are obtained from the mean-field dynamics. Without a direct comparison to an exact treatment (e.g., small-N diagonalization) or an error estimate on the mean-field truncation, it is unclear whether the critical value remains robust once collective effects are restored.

    Authors: The critical bandwidth threshold and the associated sharp drop are intrinsic features of the mean-field cascaded equations; they arise because the time-dependent linewidth modulation cannot compensate spectral mismatch once the pulse bandwidth exceeds the effective collective decay rate set by the cavity. Exact diagonalization is feasible only for N ≲ 20 and therefore cannot probe the large-N regime for which the protocol is intended. We will nevertheless strengthen §4.2 by adding a finite-N error estimate obtained from a perturbative expansion of the two-body correlation terms around the mean-field solution, demonstrating that the location of the critical bandwidth shifts by at most O(1/N) and remains stable for the ensemble sizes relevant to the targeted superconducting-processor interfaces. This provides a quantitative robustness check within the same computational framework used for the original numerics. revision: partial

Circularity Check

0 steps flagged

Derivation self-contained in standard cascaded mean-field model

full rationale

The paper models the spin ensemble via a mean-field cascaded quantum optics framework and derives optimal cavity-linewidth modulations by solving the resulting time-dependent equations for absorption and emission. No step reduces a claimed prediction or bound to a fitted parameter or self-citation by construction; the upper-bound efficiency and critical-bandwidth result follow directly from the differential equations under the stated approximations, which are externally falsifiable and not defined in terms of the target quantities.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on the mean-field treatment of the spin ensemble and the validity of the cascaded quantum model for absorption/emission; no explicit free parameters or new entities are introduced in the abstract.

axioms (2)
  • domain assumption Mean-field approximation for large spin ensembles in a cavity
    Used to reduce the ensemble to an effective communication channel for absorption and emission processes.
  • domain assumption Cascaded quantum model accurately describes itinerant field interactions
    Invoked to model both storage and retrieval dynamics.

pith-pipeline@v0.9.0 · 5690 in / 1167 out tokens · 28454 ms · 2026-05-19T10:48:51.905977+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
