arxiv: 2506.08412 · v1 · submitted 2025-06-10 · 💻 cs.LG

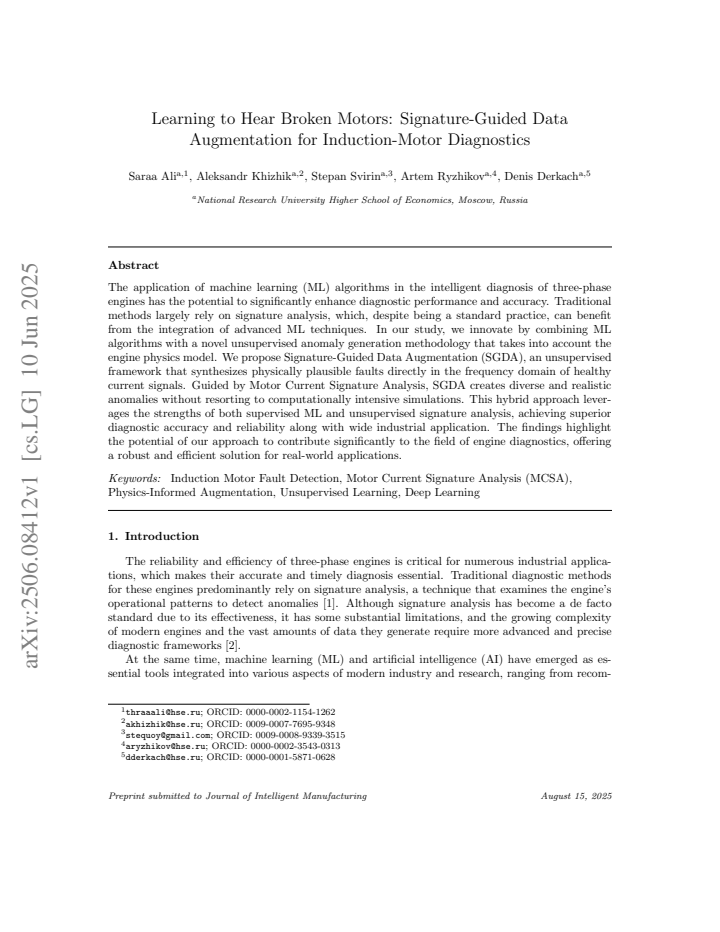

Learning to Hear Broken Motors: Signature-Guided Data Augmentation for Induction-Motor Diagnostics

Saraa Ali , Aleksandr Khizhik , Stepan Svirin , Artem Ryzhikov , Denis Derkach This is my paper

Pith reviewed 2026-05-19 11:14 UTC · model grok-4.3

classification 💻 cs.LG
keywords induction motor diagnosticsdata augmentationmotor current signature analysisfault detectionmachine learningfrequency domain synthesisanomaly generation
0
0 comments X

The pith

Signature-guided synthesis creates realistic motor faults in the frequency domain to train better diagnostic models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Signature-Guided Data Augmentation, a method that starts with healthy motor current signals and adds synthetic anomalies directly in the frequency domain. These anomalies are shaped by the known patterns from Motor Current Signature Analysis so they match the physics of real faults like broken rotor bars or bearing issues. The resulting dataset trains supervised machine learning models without needing large collections of actual faulty motors or full physics simulations. A sympathetic reader cares because real industrial motors rarely provide enough labeled fault examples, making pure data-driven approaches unreliable in practice. If the method holds, it lets diagnostic systems combine the physical grounding of signature analysis with the flexibility of modern ML classifiers.

Core claim

An unsupervised framework called Signature-Guided Data Augmentation synthesizes physically plausible faults directly in the frequency domain of healthy current signals, guided by Motor Current Signature Analysis, thereby enabling hybrid supervised ML models that achieve superior diagnostic accuracy and reliability for three-phase induction motors without computationally intensive simulations.

What carries the argument

Signature-Guided Data Augmentation (SGDA), which injects frequency-domain anomalies into healthy signals according to motor physics signatures to generate training examples.

If this is right

  • Diagnostic models trained this way generalize across varying motor loads and speeds without additional real-fault data.
  • The approach reduces reliance on expensive field data collection or time-domain simulations for building training sets.
  • Hybrid systems gain both the interpretability of signature analysis and the pattern-recognition power of supervised classifiers.
  • Industrial applications become feasible because the method works from readily available healthy signals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same frequency-domain injection idea might transfer to other vibration-based diagnostics for pumps or gearboxes.
  • Online systems could periodically refresh the synthetic fault set using the latest healthy baseline to track gradual degradation.
  • If the signatures prove robust, the technique could lower the barrier for deploying ML diagnostics in smaller facilities that lack fault archives.

Load-bearing premise

The frequency-domain anomalies created from healthy signals match the patterns that appear when real motors develop faults in the field.

What would settle it

Train a model on SGDA-augmented healthy data, then test it on a held-out set of real motor currents recorded from motors with documented faults and check whether classification accuracy matches or exceeds models trained directly on those real faulty recordings.

Figures

Figures reproduced from arXiv: 2506.08412 by Aleksandr Khizhik, Artem Ryzhikov, Denis Derkach, Saraa Ali, Stepan Svirin.

Figure 1
Figure 1. Figure 1: Overview of the SGDA framework. During training (left), only current signals from healthy motors are [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2

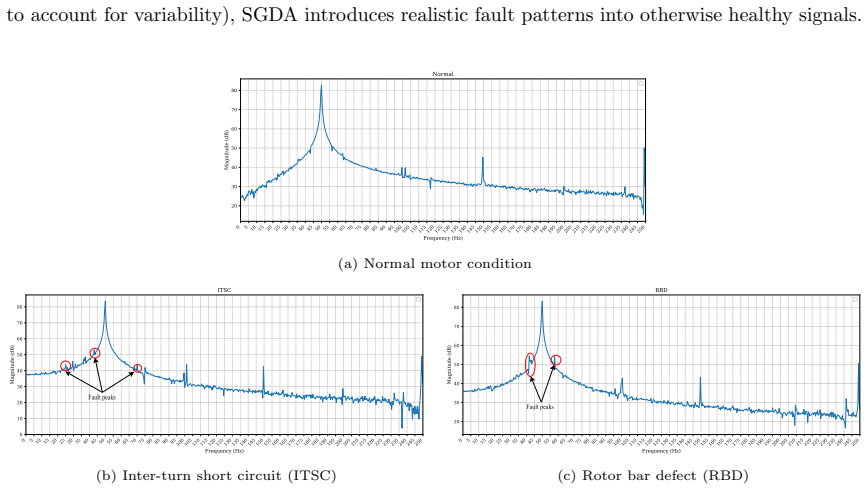

Figure 2. Figure 2: FFT spectra of motor current signals. (a) Normal condition with only base harmonics. (b) ITSC fault [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of SGDA augmentation. Left: original FFT spectrum of a healthy signal. Middle: augmented [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Binary classification performance with and without majority voting across load and phase. Majority voting [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Confusion matrices for ResNet18: (left) binary classification, (right) multiclass classification. Results [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: F1 mean ± std for full training across all phases and load levels. Experiment 2 – Training on Phase 1 at 100% Load Only. Here, the classifier was trained using a highly constrained configuration: Phase 1 at 100% load. Testing, however, was performed across all other loads and phases to evaluate the model’s generalization under minimal training diversity. As shown in [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7

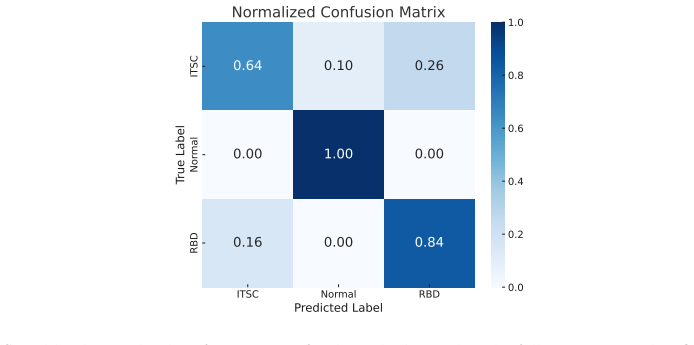

Figure 7. Figure 7: Signal-level normalized confusion matrix for the multiclass task under full training. Misclassification occurs [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8

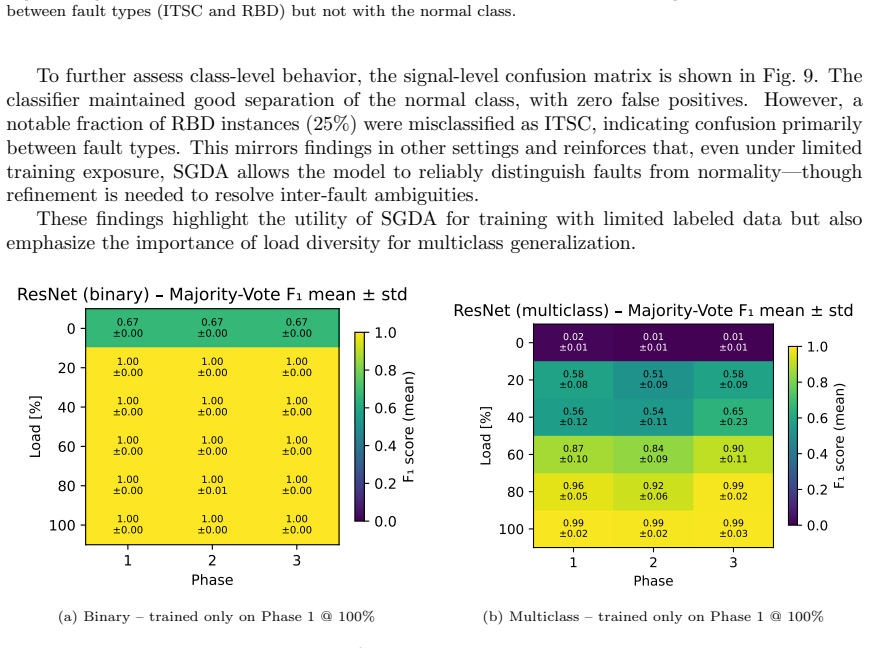

Figure 8. Figure 8: F1 mean ± std for limited training on one phase and one load. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Signal-level normalized confusion matrix for the multiclass task trained only on Phase 1 @ 100% load. [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Normalized confusion matrices for segment-level classification on the second motor. Left: Binary classifi [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
read the original abstract

The application of machine learning (ML) algorithms in the intelligent diagnosis of three-phase engines has the potential to significantly enhance diagnostic performance and accuracy. Traditional methods largely rely on signature analysis, which, despite being a standard practice, can benefit from the integration of advanced ML techniques. In our study, we innovate by combining ML algorithms with a novel unsupervised anomaly generation methodology that takes into account the engine physics model. We propose Signature-Guided Data Augmentation (SGDA), an unsupervised framework that synthesizes physically plausible faults directly in the frequency domain of healthy current signals. Guided by Motor Current Signature Analysis, SGDA creates diverse and realistic anomalies without resorting to computationally intensive simulations. This hybrid approach leverages the strengths of both supervised ML and unsupervised signature analysis, achieving superior diagnostic accuracy and reliability along with wide industrial application. The findings highlight the potential of our approach to contribute significantly to the field of engine diagnostics, offering a robust and efficient solution for real-world applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes Signature-Guided Data Augmentation (SGDA), an unsupervised framework that synthesizes physically plausible faults by perturbing frequency components of healthy induction-motor current signals according to Motor Current Signature Analysis (MCSA) rules. The augmented data is used to train supervised ML classifiers for fault diagnosis, with the central claim that this hybrid physics-ML approach yields superior diagnostic accuracy, reliability, and broad industrial applicability compared to traditional signature analysis or purely data-driven methods.

Significance. If the synthetic anomalies prove representative of real faults, the method could mitigate data scarcity in industrial motor diagnostics by generating diverse, physics-constrained training examples without expensive simulations, thereby improving generalization of ML models to field conditions. The explicit use of MCSA domain knowledge to guide augmentation is a clear strength that distinguishes it from generic data-augmentation techniques.

major comments (2)
  1. [Abstract] Abstract: the assertion of 'superior diagnostic accuracy and reliability' is unsupported by any reported metrics, baselines, cross-validation protocol, or real-fault test-set description, so the central performance claim cannot be assessed from the manuscript as written.
  2. [Method] SGDA method description (likely §3 or §4): the frequency-domain perturbation rules are defined from MCSA physics, yet no quantitative distributional comparison (e.g., Wasserstein distance on selected harmonic bins, sideband amplitudes, or phase statistics) between the generated anomalies and actual field-collected fault signatures is provided; without this, the generalization claim that models trained on SGDA-augmented data will perform on real motors rests on an unverified assumption.
minor comments (2)
  1. [Method] Add explicit parameter values or pseudocode for the frequency perturbation step to support reproducibility.
  2. [Results] Include side-by-side spectral plots of healthy, SGDA-synthetic, and real-fault signals with clear labeling of the perturbed components.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. The comments highlight important areas for improving clarity and validation. We respond to each major comment below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the assertion of 'superior diagnostic accuracy and reliability' is unsupported by any reported metrics, baselines, cross-validation protocol, or real-fault test-set description, so the central performance claim cannot be assessed from the manuscript as written.

    Authors: We agree that the abstract states the performance claim without sufficient supporting detail. The body of the manuscript reports accuracy improvements from SGDA-augmented classifiers versus baselines, using repeated k-fold cross-validation on a combination of augmented healthy signals and held-out real fault recordings. To address the concern, we will revise the abstract to include concise references to the key metrics, baseline comparisons, and evaluation protocol. revision: yes

  2. Referee: [Method] SGDA method description (likely §3 or §4): the frequency-domain perturbation rules are defined from MCSA physics, yet no quantitative distributional comparison (e.g., Wasserstein distance on selected harmonic bins, sideband amplitudes, or phase statistics) between the generated anomalies and actual field-collected fault signatures is provided; without this, the generalization claim that models trained on SGDA-augmented data will perform on real motors rests on an unverified assumption.

    Authors: The referee correctly notes the absence of quantitative distributional metrics. Our current validation relies on qualitative spectral alignment with MCSA-predicted fault harmonics and sidebands, together with downstream classifier performance on real test data. We will add a quantitative comparison section that reports Wasserstein distances and statistics on harmonic amplitudes and phase distributions between SGDA-generated signatures and field-collected fault examples. revision: yes

Circularity Check

0 steps flagged

No circularity: augmentation guided by external MCSA domain knowledge

full rationale

The paper defines SGDA as synthesizing frequency-domain anomalies in healthy signals using established Motor Current Signature Analysis physics rules. This is an input from external domain knowledge rather than a self-referential definition or a fitted parameter renamed as a prediction. No equations or steps in the abstract reduce the claimed diagnostic gains to quantities defined by the method's own outputs. The hybrid supervised-unsupervised claim rests on empirical evaluation against real faults, not on internal consistency alone. This is the common case of a self-contained method against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that frequency signatures derived from the motor physics model can be used to synthesize representative faults without further empirical validation.

axioms (1)
  • domain assumption Motor Current Signature Analysis supplies reliable frequency patterns that can be added to healthy signals to produce physically plausible faults.
    Invoked when the method states that SGDA is guided by Motor Current Signature Analysis to create realistic anomalies.
