Characteristic Imsets for Cyclic Linear Causal Models and the Chickering Ideal

T0 review · 4 major / 5 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Two directed graphs that share a characteristic imset vector are covariance equivalent: their cyclic linear SEMs generate the same covariance matrices up to Lebesgue-null sets and Euclidean closure.

desk verdict New algebraic refinement of covariance equivalence for cyclic SEMs; the main theorem is plausible but the proof of the geometric step is not yet written. read the letter →

arxiv 2506.13407 v1 pith:TOM5NFKL submitted 2025-06-16 math.ST math.AGmath.COstat.TH

Joseph Johnson , Pardis Semnani This is my paper · ORCID
classification math.STmath.AGmath.COstat.TH MSC 62H2213F6562E1013P2562D20
keywords characteristicimsetvectorfamilyvariablecovarianceequivalencecycliclinearstructuralequationmodelstoricidealscoverededgeflipscyclereversalcausaldiscovery
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper extends the characteristic imset vector, a standard representative of Markov equivalence for acyclic causal models, to directed graphs that contain cycles, and proves that graphs with the same vector are covariance equivalent. In cyclic linear SEMs, covariance equivalence was previously characterized only through sequences of local graph transformations; this result supplies a static, vector-valued certificate. The theorem matters because imset vectors are computable from the graph's parent sets and form a smaller search space for greedy causal discovery when feedback loops are allowed. The proof proceeds through an associated toric ideal, the Chickering ideal, whose binomial moves correspond to orthogonal transformations of the factor matrix that parameterizes precision matrices.

What carries the argument

The characteristic imset vector c_G(A)=#{a∈A : A\{a}⊆pa_G(a)} is the finite-dimensional signature at the center of the argument; the family variable vector v_G records, for every possible child b and candidate parent set A, whether pa_G(b)=A. The linear map φ_n sends v_G to c_G, and its kernel is generated by vectors of the form e_{A→b}+e_{A∪b→c}−e_{A→c}−e_{A∪c→b}, exactly the algebraic footprint of covered edge flips. The Chickering ideal C_n is the toric ideal of φ_n's integer matrix, and its doubled version C'_n, with extra invertible variables, is radical and can be eliminated to recover C_n. The final link to covariance equivalence is the proper Givens transformation, imported from the known transformational characterization, which realizes a covered edge flip as an orthogonal change of the factor matrix Q while generically preserving the sparsity pattern of its columns.

What would settle it

An explicit pair of directed graphs with identical characteristic imset vectors but different Euclidean closures of their precision-matrix sets would refute Theorem 4.1. A practical search would enumerate all directed graphs on n=5 or 6 vertices, group them by c_G, and compare, for each fiber, numerically sampled precision matrices from the two parameterizations to see whether the closures differ.

Watch

Extended reading notes

Core claim

The central claim is Theorem 4.1: if G and H are directed graphs on the same vertex set and c_G = c_H, then G and H are covariance equivalent, meaning their sets of precision matrices have the same Euclidean closure. The vector c_G(A) counts, for each nonempty set A, how many elements a of A have A\{a} contained in the parent set of a; this is the same definition as in the acyclic case, but now the vector need not be a 0/1-vector because cycles can force a node to receive multiple parent sets. The authors prove the claim by mapping family variable vectors v_G, which record each node's parent set, through a linear map φ_n whose kernel defines the Chickering ideal, showing that the ideal is a saturation of covered-edge-flip binomials, and then demonstrating that each relevant binomial in the doubled Chickering ideal moves the factor matrix Q along orthogonal transformations that generically preserve its column sparsity. Equality of imset vectors therefore forces a path of sparsity-preserving orthogonal transformations joining the two models, so their precision matrices share the same Euclidean closure.

Load-bearing premise

The theorem depends on the claim that the algebraic binomial moves connecting two graphs with the same imset vector can be ordered and the Givens rotations chosen generically so that at every intermediate step the current matrix has exactly the zero pattern that its column labels describe; the paper asserts this translation from algebra to geometry but does not prove the ordering or the genericity.

Editorial extensions

If this is right

  • If two cyclic directed graphs share a characteristic imset vector, they cannot be told apart by covariance data alone: their precision matrices fill the same Euclidean closure, so any covariance-based scoring criterion assigns both graphs the same value.
  • Searching over standard imset vectors instead of over all directed graphs avoids scoring multiple graphs inside one imset equivalence class, shrinking the search space for greedy causal discovery in the cyclic setting.
  • For Gaussian noise, covariance equivalence coincides with model equivalence, so equal imset vectors imply agreement of the full set of distributions, not merely of covariance matrices.
  • The Chickering ideal encodes the imset-equivalence relation: its binomials connect graphs with identical imset vectors, and these binomials translate into orthogonal transformations of the factor matrix Q.
  • Imset equivalence refines covariance equivalence but is strictly finer even among graphs with the same skeleton; the paper exhibits a pair that is covariance equivalent yet imset-distinct, showing the two relations do not coincide in general.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Reading beyond the paper, the failure of the converse in Example 4.4 suggests that a complete algebraic characterization of cyclic covariance equivalence will need invariants beyond the characteristic imset, possibly tracking 3-cycles or other local structures that the imset vector cannot see.
  • If the fibers of the Chickering ideal admit Markov bases, causal discovery over cyclic models could be implemented as walks along these binomial moves, making the algebraic path constructive rather than existential.
  • The proof strategy indicates a quantitative route toward a converse: one could look for classes of graphs where every binomial in the Chickering ideal is realizable by sparsity-preserving Givens rotations; for such classes, imset equivalence and covariance equivalence might coincide.
  • Because imset equivalence is finer than covariance equivalence, a search space of imset vectors may contain multiple representatives of a single covariance class; the size of the resulting redundancy is an open geometric question about the Chickering variety.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper studies characteristic imset vectors for directed graphs that may contain directed cycles. It defines the Chickering ideal, a toric ideal associated with the linear map from family variable vectors to characteristic imset vectors, and introduces a 'doubled' version in which extra y-variables are added. The algebraic heart of the paper is Theorem 3.16, which identifies the Chickering ideal with the intersection of the doubled ideal with the polynomial ring in the z-variables. The main statistical result, Theorem 4.1, asserts that two directed graphs with the same characteristic imset vector are covariance equivalent. The proof proceeds by writing the difference of the two graph monomials as a sum of binomials in the doubled ideal and claiming that each binomial induces an orthogonal transformation of the matrix Q from Proposition 2.5, ultimately showing that the covariance/precision set of G is contained in the Euclidean closure of that of H.

Significance. If Theorem 4.1 is correct, it is a meaningful structural contribution to the theory of cyclic linear SEMs: characteristic imset vectors would provide a vector-valued representative that refines the covariance equivalence relation, and the smaller search space of imsets could be used in score-based or greedy causal discovery. The paper's algebraic development is extensive and largely convincing: Proposition 3.4, the primary decomposition in Proposition 3.12, and the proof of Theorem 3.16 are worked out in detail and appear internally sound. The paper also gives useful examples, including a pair of covariance-equivalent graphs that are not imset-equivalent, clarifying that the implication in Theorem 4.1 is not reversible. The main weakness is that the proof of Theorem 4.1 contains a substantial gap: the translation from a binomial representation in the doubled ideal to a valid sequence of sparsity-preserving orthogonal transformations on the matrix Q is asserted rather than proved. This gap is load-bearing, because the central claim of the paper rests on exactly this geometric realization of the algebraic path.

major comments (4)
  1. [Section 4, Eq. (6)] The proof of Theorem 4.1 asserts that a representation z_G - z_H = sum_i z^{p_i} y^{q_i}(z^{u_i^+} - z^{u_i^-} y^{v_i}) in the doubled Chickering ideal yields a sequence of moves acting on the matrix Q. This requires that each partial sum corresponds to a valid graph monomial, i.e. a z-monomial in which, for every vertex, exactly one family A -> b with b in A appears. The text does not prove that the binomial representation can be ordered so that every intermediate monomial has this property. A general binomial representation can pass through monomials with repeated families or with multiple families for the same vertex, and for such monomials no matrix Q with the corresponding column-supports exists. Without an explicit induction showing that the sequence of binomials can be chosen to stay in the set of graph monomials, the claimed action on Q is not well-defined.
  2. [Section 4, paragraph on second-form binomials] The second-form binomial z_{A cup b -> c} - (y_{A -> c}/y_{A -> b}) z_{A cup c -> b} is said to 'relabel' the column labeled A cup b -> c as A cup c -> b. While the two families have the same support, they have different distinguished children, and the column labels of Q are tied to the row indexing of the matrix through the families fa_G(i). The proof does not track how the row indices of Q are permuted when the distinguished child changes. A rigorous argument needs a bookkeeping lemma that fixes the row labels of Q and shows that after relabeling, the column sparsity still matches the active graph monomial. As written, the claimed preservation of 'column labels agree with sparsity' is simply asserted.
  3. [Section 4, third-form binomials] The third-form binomial z_{A -> b} z_{A cup b -> c} - z_{A -> c} z_{A cup c -> b} is implemented by a 'proper Givens transformation' cited from [12, Definition 6 and Proposition 3]. That result supplies a Givens rotation realizing a single covered edge flip, starting from a matrix whose sparsity is the initial graph and, generically, preserving the column sparsity pattern. In the present proof, however, the third-form move must be applied to arbitrary intermediate states created by the partial sums of Eq. (6), and those states may not have the property that the relevant edge is covered in the sense required by [12]. The paper gives no argument that the intermediate graph monomials produced by the algebraic path correspond to graphs in which the next covered-edge flip is actually available, nor that the genericity of the Givens rotation can be maintained simultaneously over all steps. This is a second load-bearing gap: without it, the conclusion that Q Q^T lies in the Euclidean closure of M(H) does not follow from the written argument.
  4. [Theorem 3.16 and Section 4 transition] The algebraic part of the paper is careful about the distinction between the Chickering ideal C_n and the doubled ideal C'_n, and Theorem 3.16 is proved in detail. However, the passage from 'z_G - z_H belongs to C'_n' to 'the binomials in Eq. (5) can be applied sequentially to z_G to obtain z_H' requires that the representation in Eq. (6) be a Markov-basis-style path that respects the monomial partial order at every step. The proof does not provide such a path; it only states that z_G can be transformed 'via the binomials' and then immediately interprets each binomial as a geometric operation on Q. Even if every individual binomial can be realized geometrically in favorable situations, the global sequencing and compatibility of those realizations is the core of the theorem and is not established.
minor comments (5)
  1. [Throughout] The word 'indeterminants' should be 'indeterminates' in several places, including Section 3 before Definition 3.1.
  2. [Example 3.5 and Remark 3.6] The generators of C_3 are displayed in a format that may confuse readers: the two rows in the displayed list are part of the same list, and the first row consists of the six covered edge flip binomials while the second row contains three additional generators. A short sentence making the grouping explicit would improve readability.
  3. [Figure 6] The caption says 'Boxed stars represent the distinguished child in the family that indexes the column.' This is helpful, but the figure itself is not referenced in the main text immediately before or after the proof of Theorem 4.1; adding an explicit reference in Example 4.2 would make the relationship between the algebra and the matrix clearer.
  4. [Definition 2.15 and Remark 3.2] The paper notes that singleton coordinates are included for algebraic reasons. This is a useful remark, but it would be even clearer to state explicitly in Definition 2.15 that the vector is indexed by all nonempty subsets including singletons, and that the singleton coordinates are identically 1 for every graph. This sentence is already present in the text, so the issue is only one of placement and emphasis.
  5. [Section 5.1] The paper says that greedy search can search over standard imset vectors instead of directed graphs, but notes that one needs a way to recover a graph in the fiber. This is an honest statement of the limitation, but it may be worth adding a sentence on whether the recovery problem is known to be computationally hard for the cyclic case or whether it is open.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the imset-to-covariance implication is genuinely derived, with its main external input coming from non-overlapping prior work.

full rationale

The derivation chain of Theorem 4.1 starts from c_G = c_H, passes through the algebraic containment z_G - z_H in the doubled Chickering ideal (Definition 3.7 and Theorem 3.16), and then interprets each binomial in the representation (6) as a matrix operation on Q: a monomial rescaling, a column relabeling, or a proper Givens rotation imported from [12, Proposition 3]. None of these steps defines characteristic imsets in terms of covariance equivalence, nor does the proof fit a parameter and then rename it as a prediction. The characteristic imset vector is defined independently in Definition 2.15, the Chickering ideal is defined algebraically in Definition 3.1, and the geometric input from [12] concerns covered edge flips and Givens transformations, which are prior results by a non-overlapping set of authors. The cited prior work by the present authors, e.g., [30] and [16], appears only in contextual or future-direction remarks and is not load-bearing. The proof does contain an under-justified invariant: the ordering of the binomial moves in (6) is asserted to keep every intermediate exponent vector a graph monomial and to keep the column labels of Q in agreement with its sparsity at every step, while [12, Proposition 3] is quoted for a single covered edge flip rather than for arbitrary intermediate states. That is a completeness or correctness gap in the written argument, not a circularity, because the missing invariant is neither the conclusion of Theorem 4.1 nor an input built into the definitions. Therefore the central claim is a substantive implication rather than an equivalent restatement of its assumptions.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

The paper introduces no fitted parameters and no new physical entities. The Chickering ideal and the doubled ideal are explicit mathematical constructions, not ad hoc postulates; they are defined by the model map and carry no independent empirical handle. The load-bearing external assumptions are the Givens sparsity lemma from [12] and the standard binomial ideal toolkit.

assumptions (3)
  • domain assumption Precision matrices of a linear SEM for a graph G are parameterized by Q Q^T, where the sparsity of column j of Q is the family fa_G(j) (Proposition 2.5 in this paper, based on [12]).
    This is the model assumption underlying the definition of covariance equivalence; the proof of Theorem 4.1 uses this parameterization to pass from graph sparsity to precision matrices.
  • domain assumption A covered edge flip is realized by a proper Givens transformation that generically preserves column sparsity ([12, Proposition 3]).
    This is the key geometric ingredient in the proof of Theorem 4.1; the paper cites it without proof, and the main theorem's conclusion depends on it.
  • standard math Standard binomial ideal results, including the Eisenbud-Sturmfels theorem on binomial ideals [9, Theorem 2.1], used to identify the Chickering ideal with a saturation and to compute primary decompositions.
    Used in Propositions 3.4 and 3.12; these are established mathematical results, not specific to this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Characteristic Imsets for Cyclic Linear Causal Models and the Chickering Ideal." pith.science (2026). https://pith.science/paper/TOM5NFKL

@misc{pith2026250613407,
  author       = {Pith},
  title        = {Pith review of: Characteristic Imsets for Cyclic Linear Causal Models and the Chickering Ideal},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/TOM5NFKL}},
  note         = {Machine review of arXiv:2506.13407}
}
read the original abstract

Two directed graphs are called covariance equivalent if they induce the same set of covariance matrices, up to a Lebesgue measure zero set, on the random variables of their associated linear structural equation models. For acyclic graphs, covariance equivalence is characterized both structurally, via essential graphs and characteristic imsets, and transformationally, through sequences of covered edge flips. However, when cycles are allowed, only a transformational characterization of covariance equivalence has been discovered. We consider a linear map whose fibers correspond to the sets of graphs with identical characteristic imset vectors, and study the toric ideal associated to its integer matrix. Using properties of this ideal we show that directed graphs with the same characteristic imset vectors are covariance equivalent. In applications, imsets form a smaller search space for solving causal discovery via greedy search.

Figures

Figures reproduced from arXiv: 2506.13407 by the authors.

Figure 1
Figure 1. Two graphs which are covariance equivalent, but have different skeletons. These graphs are related by reversing the cycle 2 → 3 → 4 → 2 in the sense of [12]. For the random vector X satisfying the linear SEM in Equation (1), assume Var(εi) = ωi for all i ∈ [n], and define the matrix Λ ∈ R n×n with Λij = ( λij if j → i ∈ E(G), 0 otherwise. Then if I − Λ is invertible, the covariance matrix of X is equal to (I − Λ)−1Ω… view at source ↗
Figure 2

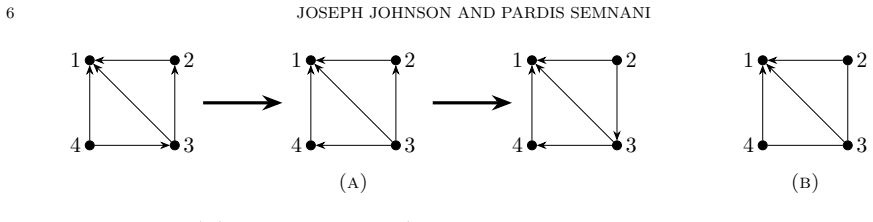

Figure 2. (A) Three covariance/Markov equivalent DAGs, which are related by flipping the covered edges 4 → 3 and then 3 → 2, (B) along with their corresponding essential graph. 2.2. Imsets and the Family Variable Vectors. Another representative of covariance equiva￾lence for acyclic graphs arises in the form of characteristic imset vectors, which are 0/1 vectors that record structural features of graphs. In this section we re… view at source ↗
Figure 3
Figure 3. The leftmost graph G and the rightmost graph H are covariance equiva￾lent. They are related by reversing the cycle 1 → 2 → 3 → 4 → 1, then exchanging the parents of nodes 1, 2, and finally exchanging the parents of nodes 2, 3. These operations are done in the sense of [12], and result in the above graphs respectively. Hence, using the M¨obius Inversion formula, for all nonempty subsets B ⊆ [n], sG(B) = X A:B⊆A⊆[n] (… view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: The binomial zA→bzA∪b→c−zA→czA∪c→b corresponds to this visual trans￾formation of the graph. always non-invertible. Associated to each set A ⊆ [n] we have an invertible indeterminant tA. We have the following toric ideal. Definition 3.1. The Chickering ideal Cn is the k…
Figure 5
Figure 5. Figure 5: An imset equivalence class of size 2. This class corresponds to the minimal generator z24→1z35→2z15→3z25→4z14→5 −z35→1z14→2z25→3z15→4z24→5 ∈ C5. The graphs are related by reversing all edges except for the red one. Definition 3.7. The doubled Chickering ideal C ′ n ⊆ C…
Figure 6
Figure 6. Figure 6: Two covariance equivalent graphs related by reversing a cycle. Boxed stars represent the distinguished child in the family that indexes the column. Example 4.2. Consider the directed cycles G and H in [PITH_FULL_IMAGE:figures/full_fig_p018_6.png]
Figure 7
Figure 7. Figure 7: Two covariance equivalent, 2-cycle free graphs with different character￾istic imset vectors. 5.1. Causal Discovery Algorithm. Theorem 4.1 states that two graphs with the same charac￾teristic (or standard) imset vector are covariance equivalent, and therefore, model equ…
