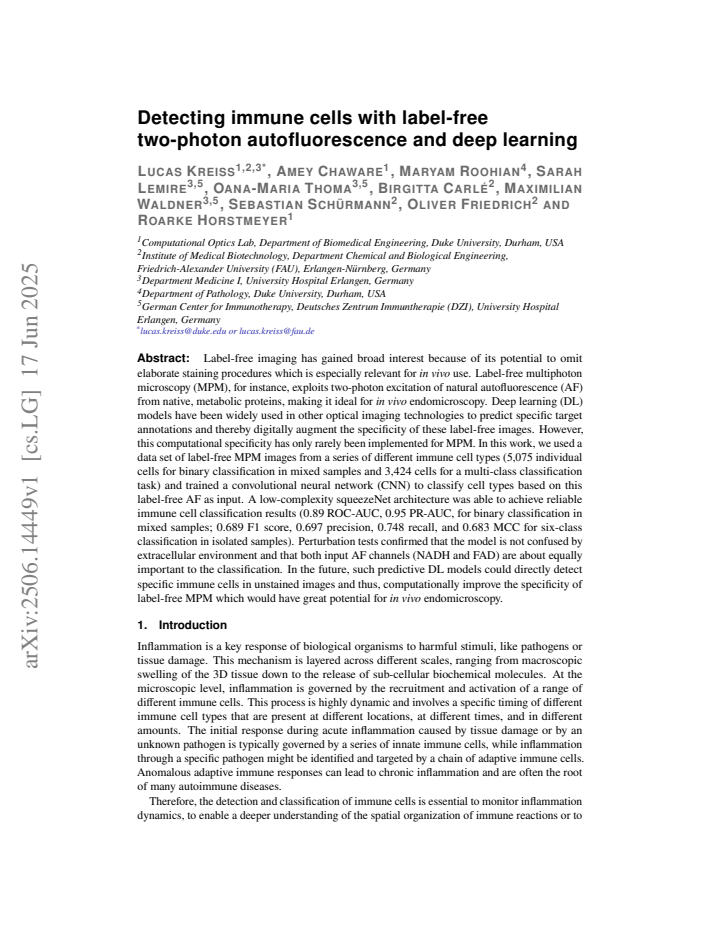

Detecting immune cells with label-free two-photon autofluorescence and deep learning

Lucas Kreiss , Amey Chaware , Maryam Roohian , Sarah Lemire , Oana-Maria Thoma , Birgitta Carl\'e , Maximilian Waldner , Sebastian Sch\"urmann
show 2 more authors
Oliver Friedrich Roarke Horstmeyer
This is my paper

Pith reviewed 2026-05-19 09:19 UTC · model grok-4.3

classification 💻 cs.LG physics.optics
keywords label-free imagingmultiphoton microscopyautofluorescenceimmune cellsdeep learningconvolutional neural networkSqueezeNetcell classification
0
0 comments X

The pith

A convolutional neural network classifies immune cell types from label-free two-photon autofluorescence images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper trains a convolutional neural network on images of immune cells captured by multiphoton microscopy that records only their natural autofluorescence. This matters for applications where adding stains would interfere with live imaging inside the body. Using thousands of cells from NADH and FAD channels, a low-complexity SqueezeNet reaches 0.89 ROC-AUC for binary distinction in mixed populations and 0.689 F1 score for six-class separation of isolated cells. Perturbation tests establish that the network draws equally from both fluorescence channels and is not distracted by material outside the cells.

Core claim

The authors trained a SqueezeNet convolutional neural network on label-free multiphoton microscopy images of immune cells and showed that it can classify cell types based on their autofluorescence from metabolic proteins. For binary classification in mixed samples using 5,075 cells, the model reached 0.89 ROC-AUC and 0.95 PR-AUC. For six-class classification on 3,424 isolated cells, it achieved an F1 score of 0.689. Tests showed the predictions depend equally on the NADH and FAD channels and are not misled by extracellular material.

What carries the argument

A low-complexity SqueezeNet CNN that takes two-channel autofluorescence images from NADH and FAD as input and outputs cell type classifications.

If this is right

  • Such models could enable direct detection of specific immune cells in unstained images during in vivo endomicroscopy.
  • The approach computationally augments the specificity of label-free multiphoton microscopy.
  • Both autofluorescence channels contribute similarly to accurate classification.
  • The model maintains performance in mixed cell samples, suggesting it handles realistic imaging conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending the training data to include cells from more donors or disease states could test broader applicability.
  • Integrating this classification into real-time imaging systems might allow immediate feedback during procedures.
  • Similar deep learning augmentation could be applied to other label-free optical techniques beyond multiphoton microscopy.

Load-bearing premise

The autofluorescence signals from different immune cell types are distinct and consistent enough that a neural network can learn reliable patterns for classification on unseen samples.

What would settle it

Retraining and testing the same architecture on a completely new dataset of immune cells imaged under different conditions or from different subjects, and finding performance drops to near-random levels, would falsify the claim.

Figures

Figures reproduced from arXiv: 2506.14449 by Amey Chaware, Birgitta Carl\'e, Lucas Kreiss, Maryam Roohian, Maximilian Waldner, Oana-Maria Thoma, Oliver Friedrich, Roarke Horstmeyer, Sarah Lemire, Sebastian Sch\"urmann.

Figure 1
Figure 1. Figure 1: Automated immune cell identification based on label-free 2-Photon autofluorescence and deep learning. A scanning multiphoton microscope is used to generate label-free image data from immune cells on a substrate. A 810 nm, ultra-short-pulsed laser is used to excite autofluorescence from NADH and FAD, while gradient Dodt contrast images are collected in transmission mode. Label-free images from various immun… view at source ↗
Figure 2

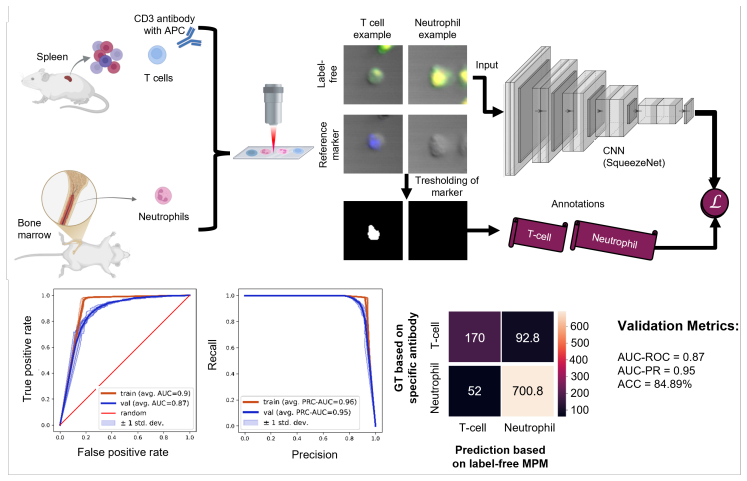

Figure 2. Figure 2: Classification results from unstained neutrophils and stained T cells in mixture. T cells were isolated, stained with an APC-labeled 𝛼-CD3 marker and mixed with unstained neutrophils, before imaging. The two label-free channels of NADH and FAD were used as input to a deep learning model, while the fluorescence channel of the specific marker was used to derive ground truth annotations for the training. Rece… view at source ↗
Figure 3
Figure 3. Figure 3: Classification results from six different immune cells. Each cell type was isolated and imaged separately, resulting in a separate data set for each cell type, so that ground truth annotations were available through that experimental design. Again, a deep CNN model was trained with label-free AF images as input to predict cell type. Multi-class classification results are evaluated by the 5-fold cross-valid… view at source ↗
Figure 4

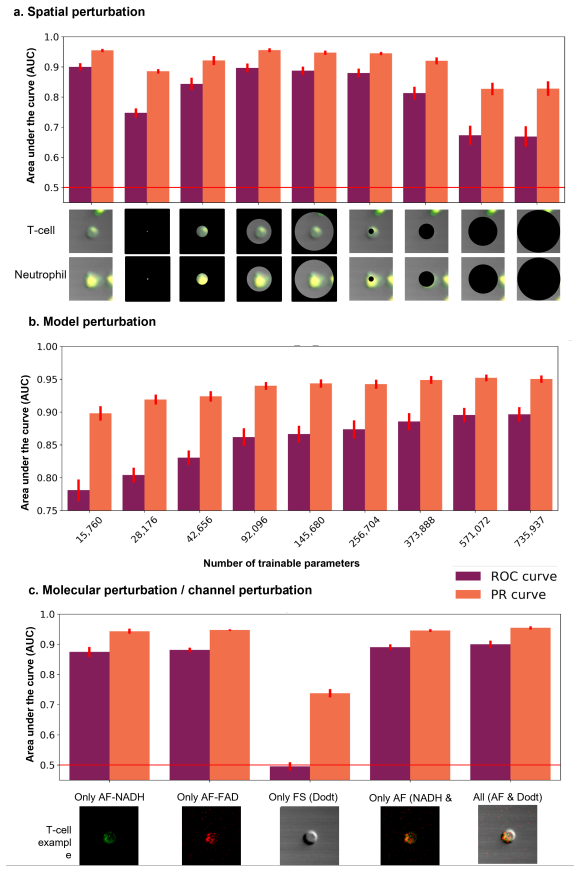

Figure 4. Figure 4: Perturbation experiments indicate that the model is learning the desired cellular autofluorescence pattern. (a) Circles of different diameters were used to mask center or edge pixels. Examples of perturbation data are shown below for both cell types. (b) Performance changes with varying numbers of trainable parameters in the model (see table 2). (c) Performance changes for different molecular imaging chann… view at source ↗
Figure 5

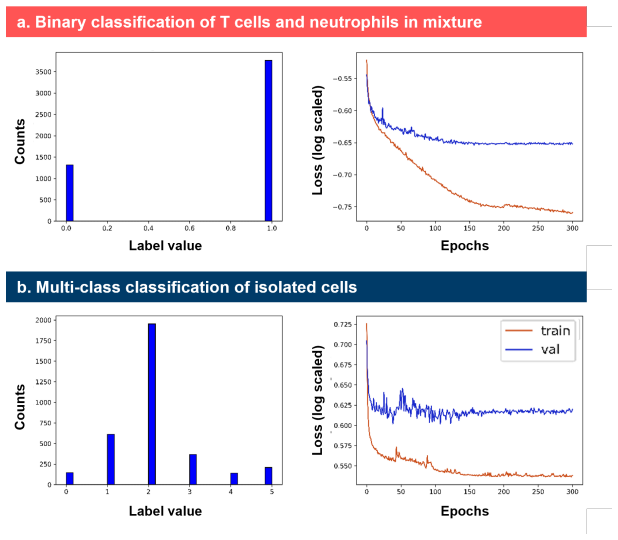

Figure 5. Figure 5: Histograms of class labels and learning curves from binary classification of [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
read the original abstract

Label-free imaging has gained broad interest because of its potential to omit elaborate staining procedures which is especially relevant for in vivo use. Label-free multiphoton microscopy (MPM), for instance, exploits two-photon excitation of natural autofluorescence (AF) from native, metabolic proteins, making it ideal for in vivo endomicroscopy. Deep learning (DL) models have been widely used in other optical imaging technologies to predict specific target annotations and thereby digitally augment the specificity of these label-free images. However, this computational specificity has only rarely been implemented for MPM. In this work, we used a data set of label-free MPM images from a series of different immune cell types (5,075 individual cells for binary classification in mixed samples and 3,424 cells for a multi-class classification task) and trained a convolutional neural network (CNN) to classify cell types based on this label-free AF as input. A low-complexity squeezeNet architecture was able to achieve reliable immune cell classification results (0.89 ROC-AUC, 0.95 PR-AUC, for binary classification in mixed samples; 0.689 F1 score, 0.697 precision, 0.748 recall, and 0.683 MCC for six-class classification in isolated samples). Perturbation tests confirmed that the model is not confused by extracellular environment and that both input AF channels (NADH and FAD) are about equally important to the classification. In the future, such predictive DL models could directly detect specific immune cells in unstained images and thus, computationally improve the specificity of label-free MPM which would have great potential for in vivo endomicroscopy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes training a low-complexity SqueezeNet CNN on label-free two-photon autofluorescence images (NADH and FAD channels) to classify immune cell types. It reports 0.89 ROC-AUC and 0.95 PR-AUC for binary classification on 5,075 cells in mixed samples, and 0.689 F1 score (0.697 precision, 0.748 recall, 0.683 MCC) for six-class classification on 3,424 cells in isolated samples, with perturbation tests confirming both channels contribute and the model is not driven by extracellular material.

Significance. If the autofluorescence signatures prove cell-type specific and stable, the work could advance label-free in vivo endomicroscopy by adding computational specificity without staining. The empirical design with concrete held-out metrics and explicit perturbation tests for channel importance and extracellular confusion is a positive feature that supports the central claim within the reported dataset.

major comments (2)
  1. [Results] The evaluation uses held-out cells but provides no donor-wise or preparation-wise cross-validation. This is load-bearing for the generalizability claim because isolation method, activation state, and donor variability could introduce batch-correlated features that the model exploits instead of intrinsic NADH/FAD metabolic patterns. A leave-one-donor-out protocol or equivalent would directly test whether the reported 0.89 ROC-AUC and 0.689 F1 generalize to new biological samples.
  2. [Results] The six-class F1 of 0.689 is only moderately above chance levels for six categories; without per-class precision/recall or a confusion matrix it is unclear which cell types drive the errors and whether the moderate aggregate score undermines the claim of reliable multi-class classification from AF alone.
minor comments (2)
  1. The abstract and summary would be strengthened by stating the number of donors or biological replicates and the exact train/validation/test split strategy (random cell-level vs. donor-stratified).
  2. Figure legends or methods should clarify image preprocessing steps (e.g., normalization, patch extraction) to allow reproduction of the input to SqueezeNet.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. We address each major comment point-by-point below and indicate the revisions we will make to the manuscript.

read point-by-point responses

  1. Referee: [Results] The evaluation uses held-out cells but provides no donor-wise or preparation-wise cross-validation. This is load-bearing for the generalizability claim because isolation method, activation state, and donor variability could introduce batch-correlated features that the model exploits instead of intrinsic NADH/FAD metabolic patterns. A leave-one-donor-out protocol or equivalent would directly test whether the reported 0.89 ROC-AUC and 0.689 F1 generalize to new biological samples.

    Authors: We agree that donor- and preparation-wise cross-validation would strengthen the generalizability claim. Our current results use random held-out cell splits across the pooled dataset of mixed and isolated samples. In the revised manuscript we will add a preparation-wise evaluation (training on mixed samples and testing on isolated samples, and vice versa) and report the resulting metrics. If donor identifiers are available in the underlying dataset we will also implement leave-one-donor-out cross-validation; otherwise we will explicitly note this as a limitation of the present study. revision: partial

  2. Referee: [Results] The six-class F1 of 0.689 is only moderately above chance levels for six categories; without per-class precision/recall or a confusion matrix it is unclear which cell types drive the errors and whether the moderate aggregate score undermines the claim of reliable multi-class classification from AF alone.

    Authors: We thank the referee for this observation. While an F1 of 0.689 is substantially higher than the random baseline of ~0.167 for six classes, we agree that aggregate metrics alone are insufficient. In the revised manuscript we will add a confusion matrix together with per-class precision, recall, and F1 scores for the six-class task so that readers can directly see which cell types are well classified and which contribute most to the errors. revision: yes

Circularity Check

0 steps flagged

No circularity: standard empirical ML evaluation on held-out cell images

full rationale

The manuscript describes collection of label-free two-photon autofluorescence images from immune cells, followed by supervised training of a SqueezeNet CNN and reporting of classification metrics (ROC-AUC, F1, etc.) on held-out test cells. No equations, first-principles derivations, or predictions are presented that reduce to fitted parameters or self-citations by construction. Performance numbers are direct empirical outputs from data splits and perturbation tests; the pipeline contains no load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on empirical training rather than analytic derivation. The key untested premise is that AF intensity patterns are stable enough across biological variation to generalize.

free parameters (1)
  • SqueezeNet model weights
    Weights are learned from the provided cell image dataset during supervised training.
axioms (1)
  • domain assumption Autofluorescence patterns from NADH and FAD are sufficiently distinct and consistent for different immune cell types to enable classification
    The entire classification pipeline depends on this holding in the collected data and in future samples.
