Acore-CIM: build accurate and reliable mixed-signal CIM cores with RISC-V controlled self-calibration

Omar Numan , Gaurav Singh , Kazybek Adam , Jelin Leslin , Aleksi Korsman , Otto Simola , Marko Kosunen , Jussi Ryyn\"anen
show 1 more author
Martin Andraud
This is my paper

Pith reviewed 2026-05-19 09:14 UTC · model grok-4.3

classification 💻 cs.AR
keywords compute-in-memorymixed-signal CIMRISC-V calibrationself-calibrationanalog variation compensationSNR improvement22 nm FDSOIresistive memory
0
0 comments X

The pith

RISC-V controlled on-chip calibration raises mixed-signal CIM compute SNR by 25 to 45 percent to reach 18-24 dB.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates a mixed-signal compute-in-memory accelerator fabricated in 22 nm FDSOI that stores weights in SRAM while performing multi-bit operations with linear resistors. An integrated RISC-V processor runs an automated calibration routine that compensates for analog variations across different columns. This compensation lifts signal-to-noise ratio enough to support reliable computation for AI workloads. The design also supplies an open-source interface for programming and testing the CIM system. The same calibration approach is shown to extend to newer high-density resistor technologies for higher performance.

Core claim

The central claim is that embedding a RISC-V core to drive on-chip self-calibration in a resistive mixed-signal CIM SoC compensates analog variations, improving compute SNR by 25 to 45 percent across columns and reaching 18-24 dB while combining SRAM density with multi-bit resistive computation in a single 22 nm FDSOI chip.

What carries the argument

RISC-V controlled on-chip calibration routine that identifies and compensates analog variations in the resistive CIM columns.

If this is right

  • SRAM-based weight storage paired with linear resistors enables both density and multi-bit accuracy in one CIM core.
  • Integration with an open-source RISC-V processor supplies a practical path to end-to-end AI acceleration on the SoC.
  • The calibration method supports extension to emerging high-density linear resistor technologies for improved energy or speed.
  • Reliable 18-24 dB SNR makes mixed-signal CIM cores more viable for production AI inference hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Production chips could ship with built-in calibration that removes the need for external test equipment at volume.
  • The same control loop might be reused to track aging or temperature drift during field operation.
  • Open-source programming interfaces could shorten the time for other groups to adopt similar calibrated CIM designs.

Load-bearing premise

The automated calibration routine driven by the RISC-V core can reliably detect and correct analog variations across columns without introducing new systematic errors or needing per-chip manual tuning.

What would settle it

Fabricate multiple chips, run the RISC-V calibration routine on each, measure compute SNR before and after on the same columns, and check whether the reported 25-45 percent gain appears consistently without extra off-chip adjustments.

Figures

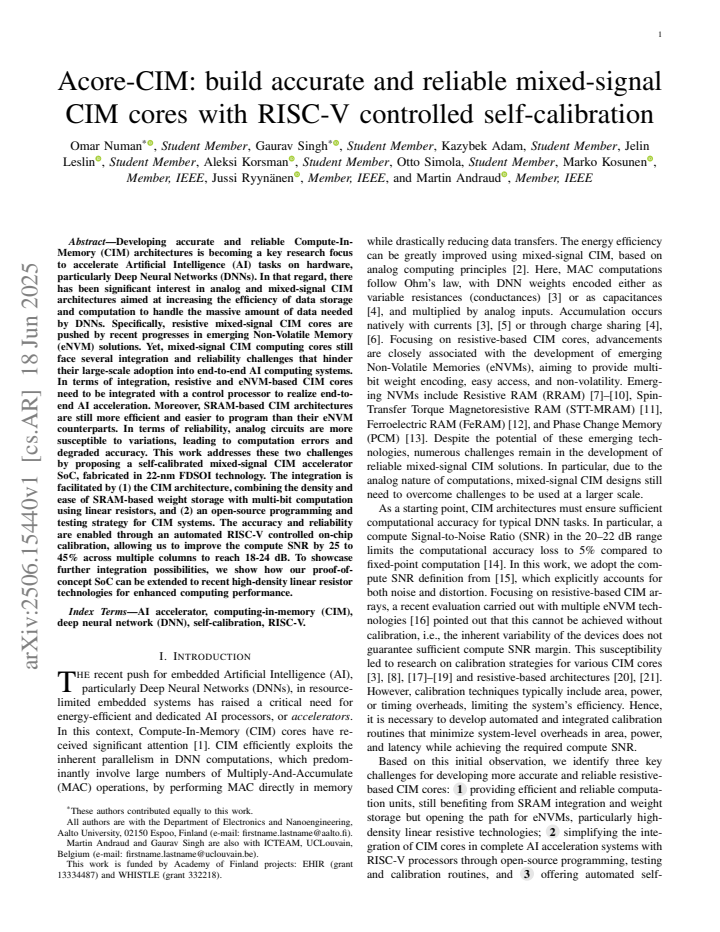

Figures reproduced from arXiv: 2506.15440 by Aleksi Korsman, Gaurav Singh, Jelin Leslin, Jussi Ryyn\"anen, Kazybek Adam, Marko Kosunen, Martin Andraud, Omar Numan, Otto Simola.
