Reducible Iterated Graph Systems: multiscale-freeness and multifractals

Nero Ziyu Li , Frank Xin Hu , Thomas Britz This is my paper

Pith reviewed 2026-05-19 08:08 UTC · model grok-4.3

classification 🧮 math.CO math-phmath.MP
keywords iterated graph systemsmultifractalitymultiscale-freenessfractal spectrumdegree spectrumreducible graphsfractal graphs
0
0 comments X

The pith

Reducible Iterated Graph Systems have finite discrete fractal and degree spectra under equivalent conditions for multifractality and multiscale-freeness

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends Edge Iterated Graph Systems from the primitive case to the reducible setting. It formulates rigorous definitions of multifractality and multiscale-freeness for fractal graphs and proves conditions equivalent to these phenomena. It further shows that the associated fractal spectrum and degree spectrum are always finite and discrete. This completes the foundational theory of Edge IGS by covering reducible constructions. A sympathetic reader would care because it supplies a uniform way to classify scaling behaviors across a broader family of iterative graph constructions.

Core claim

In the reducible setting of Edge Iterated Graph Systems, multifractality and multiscale-freeness occur precisely when certain equivalent conditions on the iteration rules hold; under those conditions the fractal spectrum (the set of distinct scaling dimensions realized by the graph) and the degree spectrum are both finite discrete sets. These results extend the earlier analysis of the primitive case and close the remaining gap in the basic theory.

What carries the argument

Reducible Iterated Graph Systems as the extension of primitive Edge IGS that carries the definitions of multifractality (multiple distinct scaling dimensions) and multiscale-freeness (absence of a single characteristic scale) along with the equivalence conditions and spectra.

Load-bearing premise

Reducible Iterated Graph Systems admit well-posed extensions of the primitive-case definitions and analysis techniques without introducing inconsistencies or requiring additional unstated constraints on the graph constructions.

What would settle it

A concrete reducible Iterated Graph System whose fractal spectrum is infinite or continuous would disprove the claim that the spectra are always finite and discrete.

Figures

Figures reproduced from arXiv: 2506.18073 by Frank Xin Hu, Nero Ziyu Li, Thomas Britz.

Figure 1

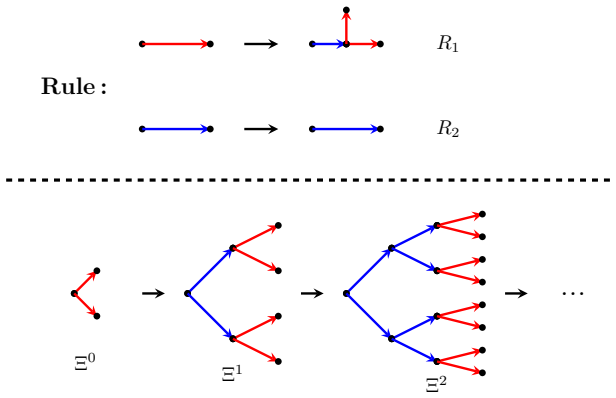

Figure 1. Figure 1: An example of reducible EIGS: the binary tree [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: A reducible EIGS: the Splendor diamond hierarchical lattice Example 1.2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: A reducible iterated graph system We now begin to analyse the growth rate of path lengths in an EIGS. When discussing metrics, we transform all directed graphs into their underlying undi￾rected graphs. Throughout this paper, distances are always defined with respect to these undirected graphs. That is, when considering distances, we will always ignore the direction of edges. Definition 2.5. In this paper, … view at source ↗
Figure 4
Figure 4. Figure 4: An illustration of block maps Write i ⇝X j if there exists N ∈ N such that (Xn)ij > 0. For a color ι ∈ [K], set rX(ι) := {i ∈ [K] : ι ⇝X i} . For blocks Bk, Bℓ we write Bk ⇝B Bℓ if some i ∈ Bk and j ∈ Bℓ satisfy i ⇝X j. Finally, for any color i ∈ [K] define the set of reachable blocks RX(i) :=  k ∈ [hX] : b(i) ⇝B k [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 3
Figure 3. Figure 3: The transition matrix M corresponding to this system is written into block form, with blocks B1 = {1}, B2 = {2, 3}, B3 = {4, 5, 6}. In this paper, we utilize a significant extension of the Perron-Frobenius The￾orem that is applicable to reducible non-negative matrices. We summarise the theorem, which appears relatively straightforward but has a non-trivial proof. We will present this result using the notat… view at source ↗
Figure 5
Figure 5. Figure 5: Numerics of the scale-freeness of Ξ7 1 , Ξ11 1 , and Ξ13 1 . disappears – a tendency already visible across the three panels—leaving only the red branch. The slopes of this surviving red branch are −1.85, −1.75, and −1.72, respectively, steadily approaching the theoretical value −1.5850. Definition 4.7. Let (G, degˆ G) be a degree-scaling limit and define the degree spectrum D(G) := ω- lim ℓ→0 log Pℓ(G) − … view at source ↗
Figure 6
Figure 6. Figure 6: The broken diamond hierarchical lattice is scale-free [PITH_FULL_IMAGE:figures/full_fig_p029_6.png] view at source ↗
Figure 7

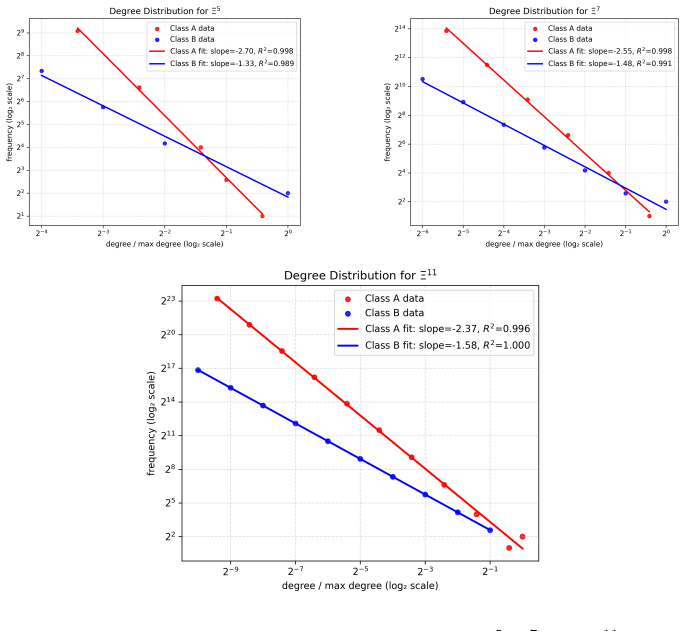

Figure 7. Figure 7: Numerics of the multiscale-freeness of Ξ [PITH_FULL_IMAGE:figures/full_fig_p030_7.png] view at source ↗
read the original abstract

Iterated Graph Systems (IGS) transplant ideas from fractal geometry into graph theory. Building on this framework, we extend Edge IGS from the primitive to the reducible setting. Within this broader context, we formulate rigorous definitions of multifractality and multiscale-freeness for fractal graphs, and we establish conditions that are equivalent to the occurrence of these two phenomena. We further determine the corresponding fractal and degree spectra, proving that both are finite and discrete. These results complete the foundational theory of Edge IGS by filling the gap left by the primitive case studied in [1, 2].

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper extends Edge Iterated Graph Systems (IGS) from the primitive case treated in prior works [1,2] to the reducible setting. It introduces rigorous definitions of multifractality and multiscale-freeness for fractal graphs, states conditions equivalent to the occurrence of these phenomena, and proves that the associated fractal and degree spectra are both finite and discrete. The results are presented as completing the foundational theory of Edge IGS.

Significance. If the derivations hold, the work supplies a complete framework for multifractal analysis of a wider class of graph constructions, including explicit spectra that are finite and discrete. This extends the primitive-case theory in a manner that preserves the same analytic techniques, potentially enabling systematic study of multiscale properties in reducible fractal graphs and related discrete models.

major comments (2)
  1. [§3, Theorem 3.4] §3, Theorem 3.4: the claimed equivalence between the reducible IGS satisfying the stated contraction conditions and the occurrence of multiscale-freeness relies on an extension of the primitive-case spectral radius argument; the manuscript should explicitly verify that the reduction map does not alter the eigenvalue bounds used in the primitive case (cf. [2, Lemma 4.2]).
  2. [§4.2, Definition 4.5 and Proposition 4.7] §4.2, Definition 4.5 and Proposition 4.7: the proof that the degree spectrum is discrete and finite appears to invoke a uniform bound on the number of distinct contraction ratios across reducible components; this bound is not stated as an explicit hypothesis on the IGS and should be added or derived from the reducibility assumption.
minor comments (3)
  1. [§2] Notation for the reduction operator R is introduced in §2 but used without re-statement in later sections; a brief reminder of its definition would improve readability.
  2. [Abstract and §4] The abstract refers to 'fractal and degree spectra' while the body distinguishes 'fractal spectrum' and 'degree spectrum'; consistent terminology across abstract and main text is recommended.
  3. [Figure 2] Figure 2 caption does not indicate whether the plotted spectra correspond to a primitive or reducible example; adding this clarification would help readers compare with the primitive-case figures in [1].

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of the manuscript and the constructive comments. We address each major comment below.

read point-by-point responses

  1. Referee: [§3, Theorem 3.4] §3, Theorem 3.4: the claimed equivalence between the reducible IGS satisfying the stated contraction conditions and the occurrence of multiscale-freeness relies on an extension of the primitive-case spectral radius argument; the manuscript should explicitly verify that the reduction map does not alter the eigenvalue bounds used in the primitive case (cf. [2, Lemma 4.2]).

    Authors: We thank the referee for highlighting this point. The proof of Theorem 3.4 extends the spectral radius argument by decomposing the reducible system into its irreducible blocks via the reduction map; each block inherits the eigenvalue bounds from the primitive case because the reduction is defined to preserve the contraction structure and the associated adjacency matrices without introducing extraneous eigenvalues. To make the argument fully explicit, we will add a short verification paragraph (or auxiliary lemma) immediately before Theorem 3.4 that directly confirms the bounds are unchanged under the reduction map, following the technique of [2, Lemma 4.2]. revision: yes

  2. Referee: [§4.2, Definition 4.5 and Proposition 4.7] §4.2, Definition 4.5 and Proposition 4.7: the proof that the degree spectrum is discrete and finite appears to invoke a uniform bound on the number of distinct contraction ratios across reducible components; this bound is not stated as an explicit hypothesis on the IGS and should be added or derived from the reducibility assumption.

    Authors: The referee is right that the discreteness and finiteness of the degree spectrum in Proposition 4.7 rest on the existence of only finitely many distinct contraction ratios. Because any IGS is defined by a finite collection of vertices, edges, and contraction mappings, the set of contraction ratios is finite by construction. We will add an explicit sentence to Definition 4.5 recording this finiteness and, in the proof of Proposition 4.7, derive the uniform bound across reducible components by observing that the reduction map partitions the system into components that all draw their contraction ratios from the same finite global set. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained with independent extensions

full rationale

The paper extends Edge IGS from the primitive case in prior references [1,2] to the reducible setting by introducing new rigorous definitions of multifractality and multiscale-freeness for fractal graphs, establishing equivalent conditions for these phenomena, and proving that the corresponding fractal and degree spectra are finite and discrete. These steps constitute original derivations and proofs that do not reduce by construction to the inputs or rely on self-citation as the sole justification for the central claims. The work explicitly states that the reducible case admits well-posed extensions of the primitive-case techniques without inconsistencies or additional unstated constraints, rendering the derivation chain self-contained against external benchmarks rather than circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review based on abstract only; no explicit free parameters, invented entities, or ad-hoc axioms are stated in the provided text. The framework relies on standard domain assumptions from fractal geometry and graph theory as transplanted in the IGS approach.

axioms (1)
  • domain assumption Standard mathematical assumptions of graph theory and fractal geometry suffice to define and extend Iterated Graph Systems to the reducible case.
    The abstract states that the work transplants ideas from fractal geometry into graph theory and extends the primitive framework.

pith-pipeline@v0.9.0 · 5632 in / 1279 out tokens · 37352 ms · 2026-05-19T08:08:55.136458+00:00 · methodology
