Two-Loop Turbulent Helical Magnetohydrodynamics: Large-Scale Dynamo and Energy Spectrum

T0 review · 3 major / 4 minor · reviewed 2026-08-06 · deepseek-v4-flash

Pith's one-line read Helical MHD turbulence generates its own large-scale magnetic field

desk verdict Solid two-loop technical extension, but the headline spectral slope has a factor-of-two mismatch between abstract and body and rests on a reverse-engineered coefficient, so treat the quantitative claims as provisional. read the letter →

arxiv 2506.20578 v1 pith:GOBES7NG submitted 2025-06-25 physics.plasm-ph cond-mat.stat-mechphysics.flu-dyn

classification physics.plasm-phcond-mat.stat-mechphysics.flu-dyn MSC 76W0576F0576F5582B28 PACS 52.30.Cv47.27.-i47.65.-d
keywords helicalmagnetohydrodynamicsturbulentdynamorenormalizationgrouptwo-loopcorrectionsenergyspectrumspontaneoussymmetrybreakingkinetichelicityequipartition
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that at two-loop order the field-theoretic renormalization group for helical, incompressible magnetohydrodynamic turbulence explains the turbulent dynamo as spontaneous symmetry breaking: the zero-field state $\langle b\rangle=0$ is destabilized by mass-like 'curl' loop corrections, and the system relaxes to a new ground state with a nonzero large-scale field $B$ whose magnitude is fixed by exactly cancelling those corrections. It also claims that in this dynamo regime the magnetic energy spectrum steepens relative to the Kolmogorov velocity spectrum, from a $k^{-11/3}$ form to $k^{-11/3+\gamma_{3*}}$ with $\gamma_{3*} = -0.319\epsilon + (0.0556 - 0.4202\rho^2)\epsilon^2$, where $\rho$ is the helicity degree; hence helicity controls the slope and kinetic-magnetic equipartition is broken. The result matters because it derives a dynamo and a spectral prediction from the MHD equations themselves rather than from phenomenological closures, and it gives a two-loop quantitative target for simulations and liquid-metal experiments.

What carries the argument

The load-bearing machinery is the shifted action (78) with the new propagator matrix (79), whose central object is the function $\xi(\omega,k) = -\omega^2 - i\omega(1+u)\nu_0 k^2 + u\nu_0^2 k^4 + (B_0\cdot k)^2$, the dispersion law of damped Alfv\'en waves. Loop diagrams are evaluated by frequency integration using the stable-polynomial pole structure (Hermite-Biehler), with 'dangerous poles' of the form $\omega_2 + \omega_1(p) - \omega_2(p-q)$ that the paper argues cancel in the full two-loop self-energy; tensor integrals are scalarized ad hoc by decomposing into the metric and the $B_0$ direction. The two-loop analysis enumerates 488 diagrams for $\Sigma_{b'b}$, classified into types F, IR, P, L, and S; the cancellation condition (96) fixing $B_0$, together with $\Lambda$-renormalization and the counterterm $\delta h = -2 J_S^{[\Lambda]}$, produces the renormalized field $B$. This machinery is what turns the presence of curl terms from an instability into a dynamical selection of $\langle b\rangle\neq 0$.

What would settle it

Evaluate one of the post-shift two-loop diagrams of $\Gamma_{v'v}$ or $\Gamma_{b'v}$ (e.g., one of the eleven $D_S$ diagrams in Fig. 7) by closing the frequency contour and checking whether the residue at the pole $\omega_2 + \omega_1(p) - \omega_2(p-q)$ leaves a step-function or $\sqrt{D(p)}$ contribution; if it does, the claimed cancellation fails and the two-loop field $B$ and spectral correction collapse.

Watch

Extended reading notes

Core claim

The paper's central claim is that a two-loop renormalized analysis of the model defined by the stochastic MHD action (10) yields a stable turbulent dynamo regime: after the shift $b\to b+B$, the dangerous linear-in-momentum 'curl' term $\rho\nu_0 h_0\, b'\cdot(\nabla\times b)$ in the magnetic response function can be cancelled order by order, and the renormalized magnitude of the spontaneously generated field is $B = 16\pi\sqrt{u}(1+u)\nu|h|/g$ times a two-loop factor given in Eq. (147). With $B$ fixed this way, no new instability appears: Goldstone-like corrections to Alfv\'en waves decay or grow only polynomially against an exponential damping. The magnetic two-point function then acquires a critical dimension different from the velocity field's, so the magnetic energy spectrum is predicted to scale as $E_b(k)\sim k^{-11/3+\gamma_{3*}}$ at $d=3$, $\epsilon=2$, with $\gamma_{3*} = -0.319\epsilon + (0.0556 - 0.4202\rho^2)\epsilon^2$; the abstract states this slope as $-11/3 + 2\gamma_{b\star}$ with $\gamma_{b\star} = -0.1039 - 0.4202\rho^2$. This breaks equipartition because the velocity spectrum retains the exact Kolmogorov slope $-11/3$.

Load-bearing premise

The calculation assumes that the 'dangerous poles' arising in two-loop frequency integrals cancel across all 488 diagrams of the shifted theory, even though the authors verified the cancellation directly only for the $\Gamma_{b'b}$ diagrams and state they believe it holds for all others.

Editorial extensions

If this is right

  • A nonzero mean magnetic field of the magnitude in Eq. (147) is a genuine prediction of the turbulent state, not an imposed boundary condition; its direction is arbitrary, signalling spontaneous breaking of $SO(3)$ to $SO(2)$.
  • The magnetic energy spectrum is predicted to be steeper than Kolmogorov by the helicity-dependent amount $\gamma_{3*}$; in 3D at $\epsilon=2$ the exponent correction is negative and grows with $|\rho|$, so stronger chirality means a steeper magnetic spectrum.
  • Kinetic and magnetic energy spectra no longer coincide in the dynamo regime, so equipartition is violated even at the level of critical scaling.
  • The linearized dynamics around the new ground state contains Goldstone-like corrections to Alfv\'en waves; at two-loop order these still decay exponentially (times polynomial factors) and introduce no additional instability.
  • Helicity alone, without magnetic noise in the forcing, is sufficient to drive the dynamo, and the two-loop correction to the field amplitude is small for the physically relevant inverse Prandtl numbers listed in Table IV.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the dangerous-pole cancellation holds generally, the same shifted-propagator technique could be applied to the $\alpha$-effect, computing the turbulent electromotive-force coefficient from the $\langle v\otimes b\rangle$ correlator at two loops, which the paper lists as future work.
  • The prediction is testable in numerical simulations and liquid-sodium experiments: measure the magnetic spectral slope relative to the kinetic slope for flows with controlled kinetic helicity; the slope difference should grow as $\rho^2$ with coefficient about $-1.68$ at $\epsilon=2$.
  • The dimension-dependence found in Eq. (111) suggests the stabilization-by-mean-field mechanism is special to $d=3$; in other dimensions the exotic term itself destabilizes, which could explain why the dynamo is observed in 3D geometry.
  • The factorization pattern of the frequency integrals (results independent of $\sqrt{D(p)}$) hints at a hidden algebraic structure in this class of non-Feynman integrals; proving it generally would reduce the computational cost of any higher-loop dynamo calculation.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper presents a two-loop field-theoretic renormalization-group analysis of incompressible, helical MHD turbulence, extending an earlier one-loop treatment of the turbulent dynamo regime. The central mechanism is an infrared-unstable, momentum-linear 'curl' term generated in the magnetic response function; the authors propose two ways to stabilize the theory: a kinematic-regime cancellation by a bare curl-like parameter, and a dynamo regime in which the magnetic field is shifted by a spontaneously generated large-scale mean field B. The main quantitative claims are a two-loop expression for B in Eq. (147), the absence of additional instabilities from the newly generated anisotropic terms, and a magnetic energy spectrum steeper than Kolmogorov, with a helicity-dependent slope quoted in the abstract. The manuscript contains a large diagrammatic calculation, including a classification of 488 two-loop self-energy diagrams, explicit frequency-integration techniques, tensor-reduction appendices, and numerical evaluation of two-loop coefficients.

Significance. If the central claims hold, this would be a substantial step beyond the one-loop treatment of the helical MHD dynamo: it would provide a two-loop renormalized mean-field amplitude, a concrete mechanism for the Goldstone-like corrections to Alfvén waves, and a quantitative prediction that helicity modifies the magnetic spectral slope and breaks energy equipartition. The paper is commendable for its explicit and detailed technical apparatus: the diagram classification in Sec. V B, the appendices with integrands and tensor reduction, the numerical Monte Carlo evaluation of the two-loop coefficients in Table IV, and the transparent enumeration of the regularization and renormalization steps. The significance is, however, conditional: the headline spectral prediction is internally inconsistent between the abstract and Sec. VI B, and it rests on a two-loop coefficient that is reverse-engineered from earlier work rather than derived here.

major comments (3)
  1. [Abstract; Sec. VI B; Eq. (56)] The abstract's advertised magnetic spectral slope is inconsistent with the derivation in Sec. VI B by a factor of two. Sec. VI B states that 2Δ_b = -11/3 + γ_3⋆, so with Eq. (56) at ε=2 the magnetic exponent is -11/3 - 0.4156 - 1.6808ρ². The abstract, however, quotes -11/3 + 2γ_b⋆ with γ_b⋆ = -0.1039 - 0.4202ρ², i.e. -11/3 - 0.2078 - 0.8404ρ². These two expressions differ by a factor of two, and the abstract's γ_b⋆ is not the γ_3⋆/2 introduced in Sec. VI B. The abstract and Sec. VI B must be reconciled before the quantitative prediction can be assessed.
  2. [Table III, footnote b; Eqs. (54) and (56)] The load-bearing two-loop coefficient z_21^(2)(u⋆,ρ) is not derived in this paper. Footnote b of Table III states that the value is 'reverse-engineered' from Table I of [167] because the appendix of [167] lacks the relevant data. This coefficient enters u⋆^(2) = 0.0138 + 0.0312ρ² in Eq. (54), and through Eq. (56) it produces the helicity-dependent term -0.4202ρ² ε² in γ_3⋆ that drives the abstract's spectral steepening and equipartition breaking. An undocumented inversion of published fixed-point data is not a substitute for a two-loop calculation; a sign error or a scheme-dependent mapping in this inversion would directly change the central result. The authors should either provide an independent derivation of z_21^(2) within the present framework or clearly and prominently label the ρ²-dependent slope as an unverified input from the literature.
  3. [Sec. IV B 1; Sec. V B] The paper explicitly states that the cancellation of the 'dangerous' poles of the form (84) was verified directly for the Γ^{b′b} diagrams and that the authors believe the property applies to all two-loop diagrams. Since the two-loop mean-field result in Eq. (147) is built from the 488 diagrams contributing to Σ^{b′b}, the exact scope of the verification matters: which of the Type F, IR, P, L, and S classes in Sec. V B were actually checked? If any sector remains unchecked, the diagrammatic technique and the central result for B are not fully established. The authors should either provide a direct check for all 488 diagrams or state precisely which diagrams remain unverified and why the cancellation is nevertheless expected to hold.
minor comments (4)
  1. [Sec. III B] The sentence 'to account for the emergence of the mean field B and its estimation in [155], and its estimation in [155]' contains a duplicated phrase and should be rewritten.
  2. [Sec. II D] Eq. (56) is presented as 'found to be [174]' without further derivation; given that this expression is a central input to the spectral prediction, the provenance and any assumptions behind it should be stated more prominently, perhaps in the introduction or the conclusion.
  3. [Sec. V C 1] The sentence 'Note that, by construction, h < 0 and h ∝ g' appears twice in the same paragraph; one occurrence should be deleted.
  4. [Table IV] The numerical entries for c_2^[B](u,0) are quoted to one significant digit without error estimates; since these values enter the two-loop correction in Eq. (147), a short statement of the numerical uncertainty or the precision of the VEGAS integration would be helpful.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the new two-loop mean-field calculation is self-contained, and the spectral-slope input from prior work is disclosed external support, not a self-referential reduction.

full rationale

The paper's principal new derivation is the two-loop correction to the spontaneously generated field B, Eq. (147). This is obtained from an explicit diagram-by-diagram calculation in the shifted theory (Sec. V): the 488 diagrams are classified (Types F, IR, P, L, S), the dangerous-pole cancellation is checked for Gamma_b'b diagrams, and the two-loop coefficient c2^[B](u,0) is evaluated numerically (Table IV). The stabilization condition (96) determines B by requiring the curl contribution to vanish; that is a standard self-consistency (tadpole) condition, not a definition of the predicted spectrum. The spectral exponent in the abstract is not derived in this paper: Eq. (56) for gamma_3* is explicitly quoted from [174], and gamma_b* = gamma_3*/2 enters through the standard RG relation (158)-(160). Reliance on a prior same-group result is self-citation, but it is not circular because the quoted coefficient is not produced by the present derivation and no equation here reduces to its own input. The reverse-engineered z_21^(2) in Table III is disclosed as such and is used as an input; the paper does not pretend to derive it. The unproven belief that dangerous poles cancel for all 488 diagrams is an explicitly flagged limitation, a correctness risk, not circularity. There is therefore no circular step meeting the standard of Eq. X = Eq. Y by construction.

Assumptions & free parameters 2 free parameters · 3 assumptions · 0 invented entities

The model uses standard MHD parameters plus the introduced curl coefficient h, whose finite value is not fixed by the dynamics. A key borrowed numerical input is z_21^(2). No new particles or forces are invented.

free parameters (2)
  • h (curl-term coefficient)
    The coefficient of the added curl operator rho nu h b' . (curl b) in (28)/(120) absorbs the Lambda-divergent curl terms; its finite part is not predicted by the dynamics and sets the scale of B via Eq. (147).
  • z_21^(2) (two-loop residue) = -2.25613e-5 + 3.40506e-7 rho^2 (from Table III)
    Presented as a known result, but reverse-engineered from prior papers (Table III footnote b); it directly enters gamma_3* and hence the headline slope.
assumptions (3)
  • domain assumption Standard perturbative RG and MS scheme are valid for fully developed turbulence.
    The whole two-loop calculation relies on the epsilon-expansion and the existence of an IR-stable kinetic fixed point, cited from prior work (Sec. II D).
  • domain assumption Cancellation of dangerous poles in two-loop frequency integrals holds for all diagrams.
    Verified only for Gamma_b'b; assumed for all 488 diagrams contributing to Sigma_b'b (Sec. IV B 1).
  • domain assumption K41 hypotheses apply to MHD turbulence.
    Stated in Sec. II A as a basic assumption for the inertial range behavior.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Two-Loop Turbulent Helical Magnetohydrodynamics: Large-Scale Dynamo and Energy Spectrum." pith.science (2026). https://pith.science/paper/GOBES7NG

@misc{pith2026250620578,
  author       = {Pith},
  title        = {Pith review of: Two-Loop Turbulent Helical Magnetohydrodynamics: Large-Scale Dynamo and Energy Spectrum},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GOBES7NG}},
  note         = {Machine review of arXiv:2506.20578}
}
abstract

We present a two-loop field-theoretic analysis of incompressible helical magnetohydrodynamics (MHD) in fully developed stationary turbulence. A key feature of helical MHD is the appearance of an infrared-unstable ``mass-like'' term in the loop diagrams of the magnetic response function. Physically, this term corresponds to the relevant perturbation of the Joule damping, proportional to $\boldsymbol{\nabla} \times \boldsymbol{b}$ ($\boldsymbol{b} =$ magnetic field). Its presence destabilizes the trivial ground state $\langle \boldsymbol{b} \rangle = 0$ and forces us to look for a mechanism for stabilizing the system. We show that such stabilization can be achieved in two ways: (i) by introducing into induction equation an external mass-like parameter that precisely cancels these dangerous loop corrections (kinematic regime), or (ii) via spontaneous breaking of the rotational symmetry, leading to a new ground state with nonzero large-scale magnetic field (turbulent dynamo regime). For the latter case, we study the two-loop correction to the spontaneously generated magnetic field and demonstrate that Goldstone-like corrections to Alfv\'en modes along with some other anisotropic structures arise. Our results also confirm that the emergent mean magnetic field leads to a steeper slope of the magnetic energy spectrum, $-11/3 + 2\gamma_{b\star}$ (with $\gamma_{b\star} = -0.1039 - 0.4202\rho^2$, for $|\rho| \leqslant 1$ as the degree of helicity), compared to the Kolmogorov velocity spectrum of $-11/3$, thereby breaking equipartition.

Figures

Figures reproduced from arXiv: 2506.20578 by the authors.

Figure 3
Figure 3. FIG. 3. Two-loop Γ [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. FIG. 4. Graphical representation of all independent propaga [PITH_FULL_IMAGE:figures/full_fig_p021_4.png] view at source ↗
Figure 5
Figure 5. FIG. 5. Behavior of [PITH_FULL_IMAGE:figures/full_fig_p022_5.png] view at source ↗
Figures from the paper (3 more)
Figure 6
Figure 6. Figure 6: FIG. 6. The general structure of the linear in external mo [PITH_FULL_IMAGE:figures/full_fig_p024_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7. Two-loop type S diagrams along with the [PITH_FULL_IMAGE:figures/full_fig_p029_7.png]
Figure 8

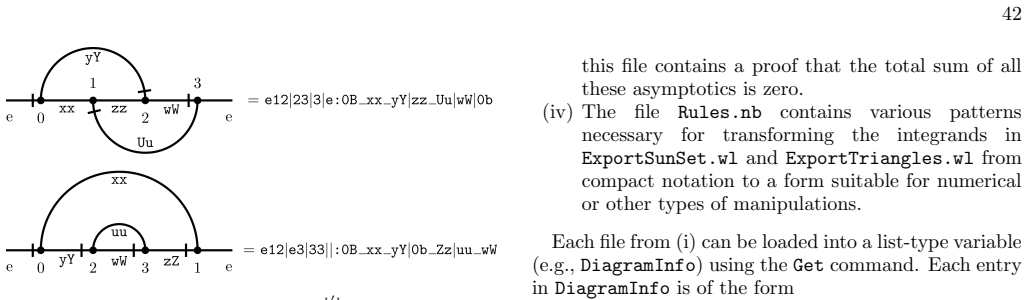

Figure 8. Figure 8: FIG. 8. Two topologies of two-loop Σ [PITH_FULL_IMAGE:figures/full_fig_p042_8.png]
