Engineering Precise and Robust Effective Hamiltonians

Jiahui Chen , David Cory This is my paper

Pith reviewed 2026-05-19 07:33 UTC · model grok-4.3

classification 🪐 quant-ph
keywords effective Hamiltonian engineeringquantum controltoggling framerobust controlzeroth-order approximationstate transfercumulant expansion
0
0 comments X

The pith

A framework identifies the minimal subspace of the toggling-frame Hamiltonian to determine every achievable zeroth-order effective Hamiltonian for quantum control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a general method for designing quantum controls that produce a chosen effective Hamiltonian at the lowest order of approximation. It does so by locating the smallest set of toggling-frame operators whose linear combinations can generate any target zeroth-order term. A sympathetic reader would care because this removes guesswork from control design and directly supports applications in quantum simulation, sensing, and computation where unwanted higher-order effects and systematic errors must be kept small. The same machinery also yields protocols for robust state transfer and handles parameter fluctuations through a cumulant expansion. Concrete examples in the work show how the identified subspace leads to controls that are both precise and robust.

Core claim

The control design identifies the minimal subspace of the toggling-frame Hamiltonian and the full set of achievable, zeroth-order, effective Hamiltonians. This identification enables the construction of controls that realize any desired zeroth-order term while minimizing higher-order contributions and improving robustness against systematic errors.

What carries the argument

The minimal subspace of the toggling-frame Hamiltonian, which spans all possible zeroth-order effective Hamiltonians that can be reached by control sequences.

Load-bearing premise

The toggling-frame description remains valid and higher-order terms can be suppressed independently of the chosen zeroth-order target without creating new restrictions on achievable controls or robustness.

What would settle it

An experiment that applies the designed control sequence, measures the resulting effective Hamiltonian through spectroscopy or process tomography, and checks whether the observed higher-order residuals stay below the level predicted by the subspace analysis or exceed it in a manner inconsistent with the framework.

Figures

Figures reproduced from arXiv: 2506.20730 by David Cory, Jiahui Chen.

Figure 1
Figure 1. Figure 1: FIG. 1: Illustration of a very simplified control system. The input s [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

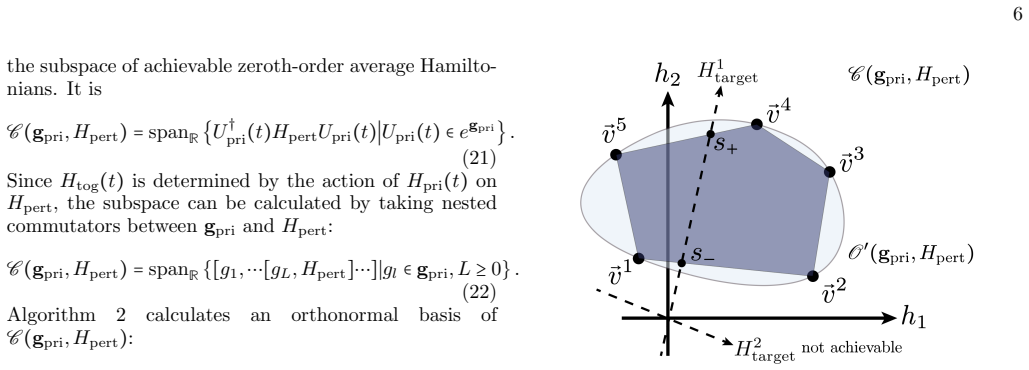

Figure 2. Figure 2: FIG. 2: Schematic for finding achievable scaling factors. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: (a) Control parameters of a Hadamard gate [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 5

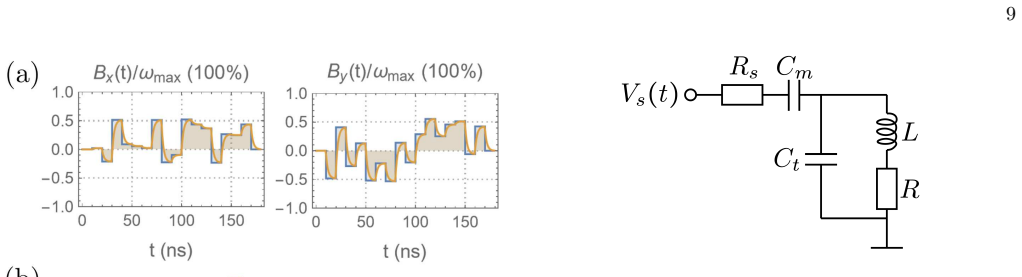

Figure 5. Figure 5: FIG. 5: A simple resonant circuit with [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 4

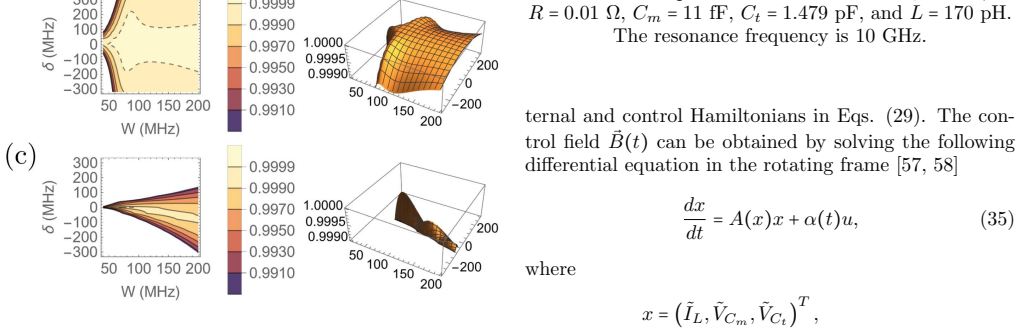

Figure 4. Figure 4: FIG. 4: (a) Control sequence for Hadamard gate that is [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: The control parameters (blue) and the relative [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 8

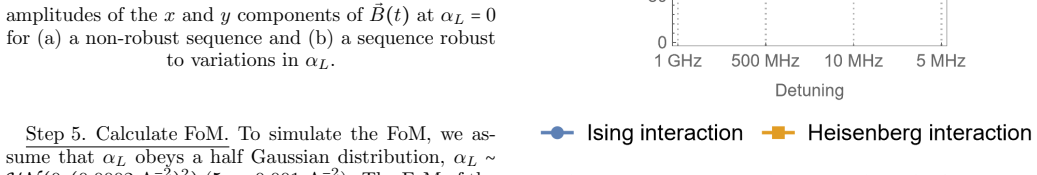

Figure 8. Figure 8: FIG. 8: Minimal length of sequence for a CNOT gate [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 7

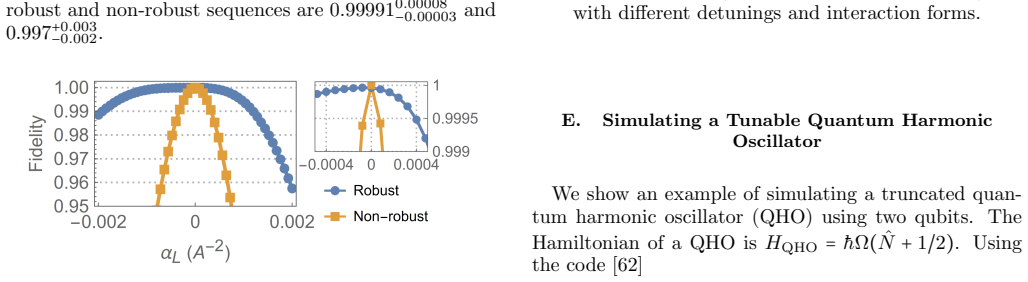

Figure 7. Figure 7: FIG. 7: Control landscapes of different sequences as a [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: Time-dependent control parameters of an [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10: (a) Control landscape of the sequence (Fig. 9) [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12: Control landscape of the sequence in Fig. 11. [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13: Simulated survival probabilities of the states [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
Figure 1
Figure 1. Figure 1: FIG. 1: A network of three clusters. Different clusters are controll [PITH_FULL_IMAGE:figures/full_fig_p019_1.png] view at source ↗
Figure 2

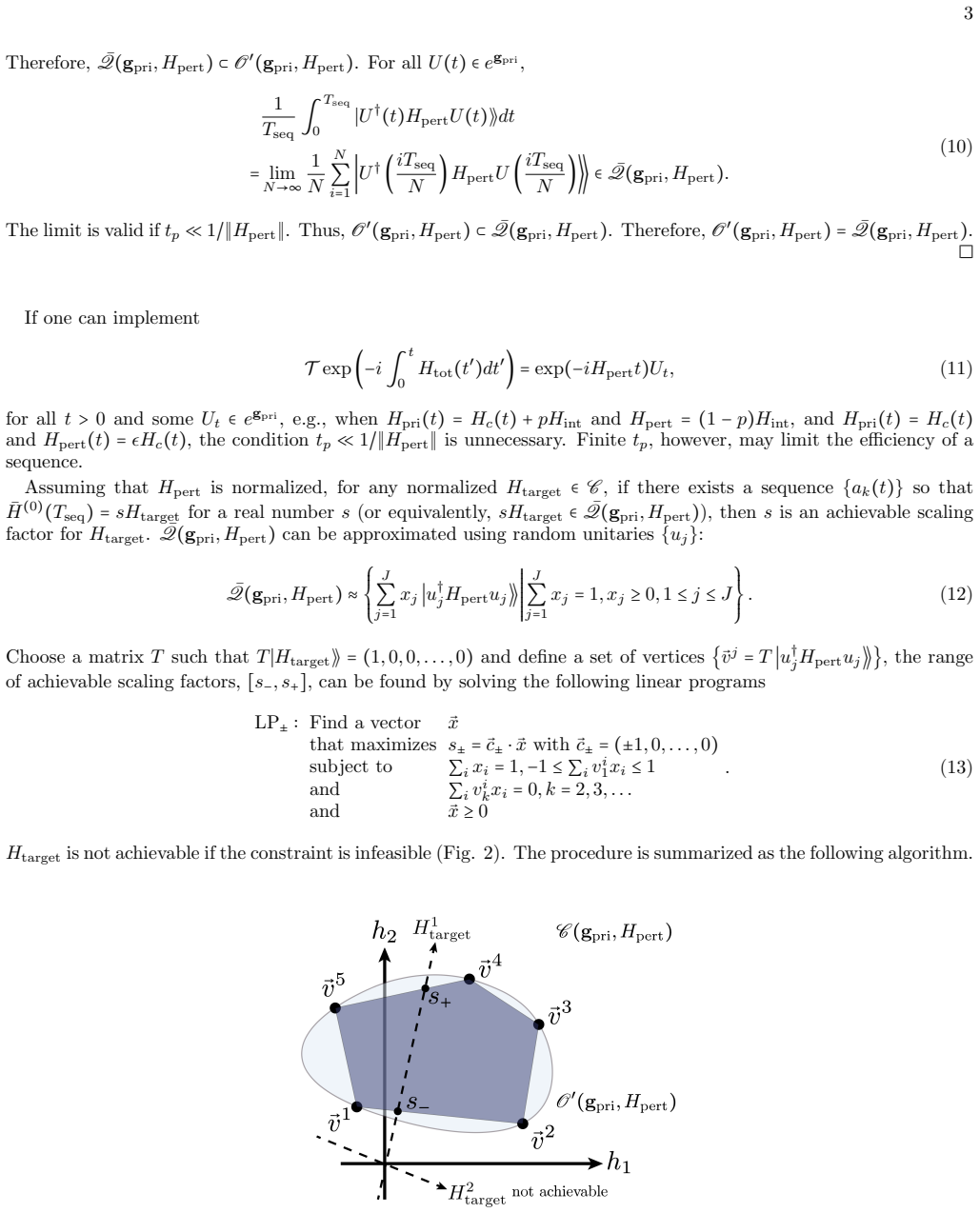

Figure 2. Figure 2: FIG. 2: Schematic for finding achievable scaling factors. The set of achi [PITH_FULL_IMAGE:figures/full_fig_p020_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Volume of the simulated [PITH_FULL_IMAGE:figures/full_fig_p022_3.png] view at source ↗
Figure 4

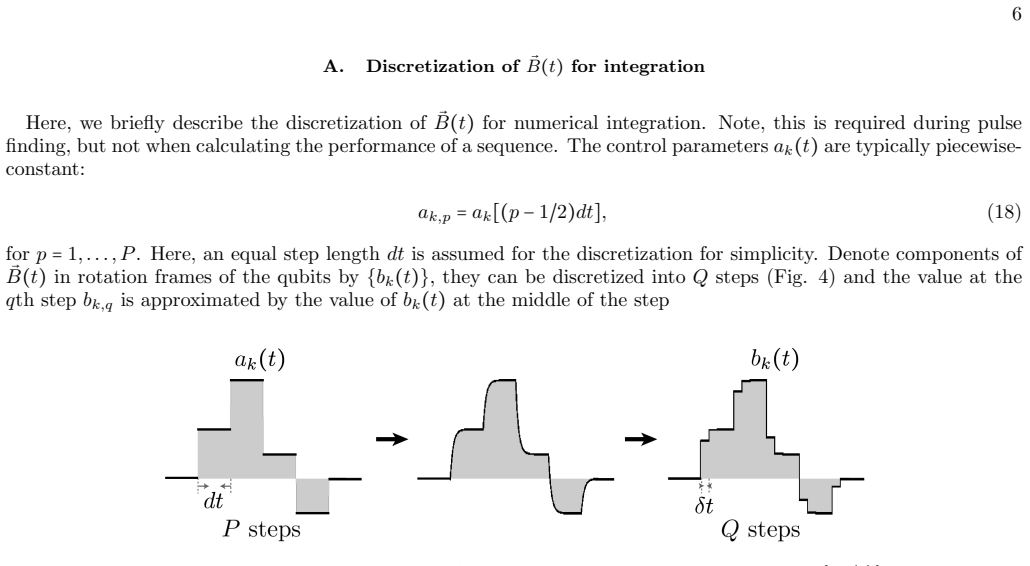

Figure 4. Figure 4: FIG. 4: Illustration of the discretization of output field parameters. T [PITH_FULL_IMAGE:figures/full_fig_p023_4.png] view at source ↗
Figure 5

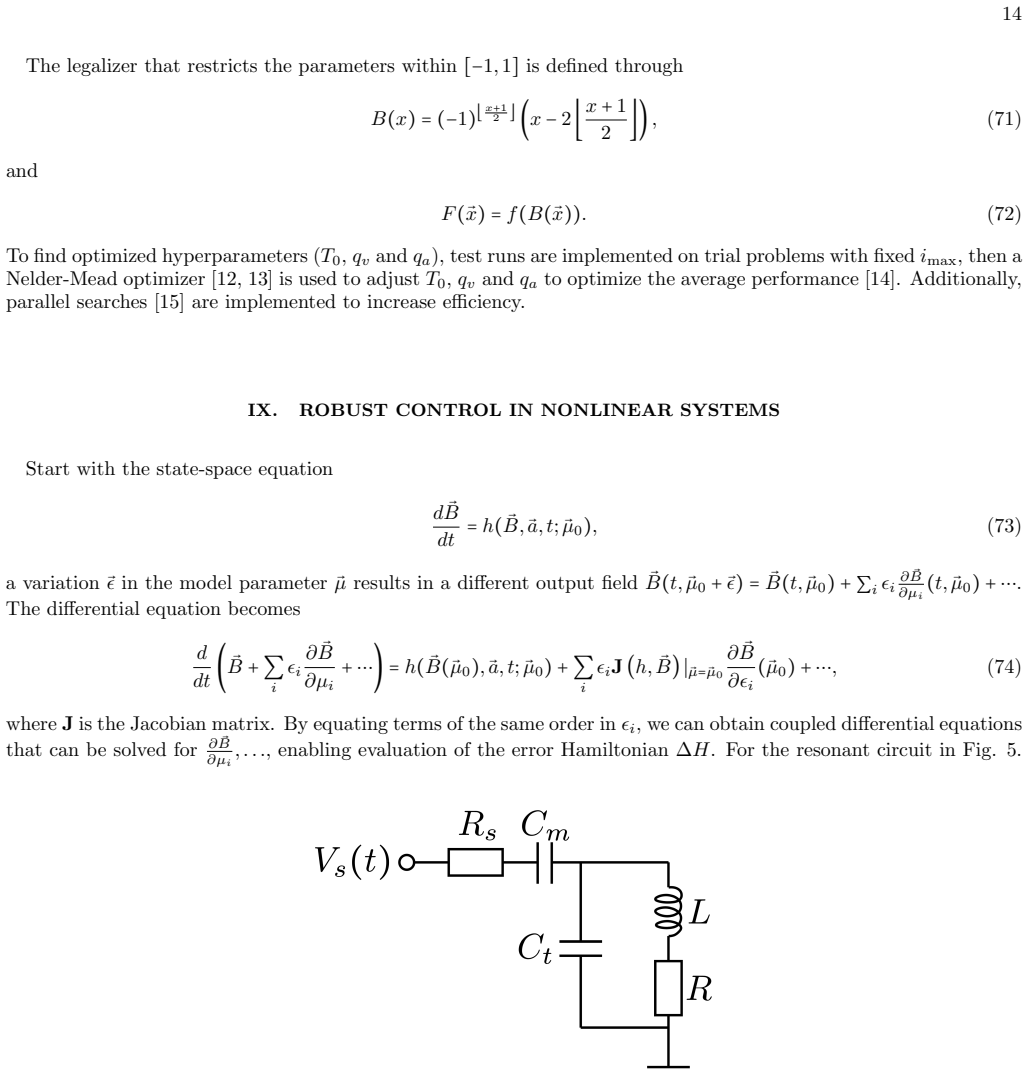

Figure 5. Figure 5: FIG. 5: A simple resonant circuit with [PITH_FULL_IMAGE:figures/full_fig_p031_5.png] view at source ↗

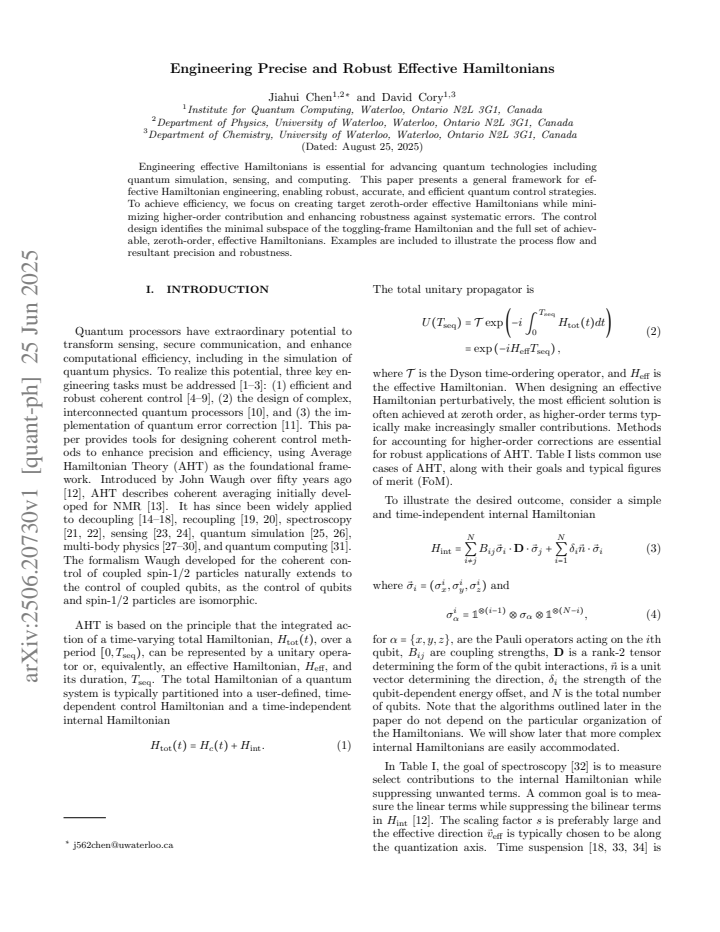

read the original abstract

Engineering effective Hamiltonians is essential for advancing quantum technologies including quantum simulation, sensing, and computing. This paper presents a general framework for effective Hamiltonian engineering, enabling robust, precise, and efficient quantum control strategies. To achieve efficiency, we focus on creating target zeroth-order effective Hamiltonians while minimizing higher-order contributions and enhancing robustness against systematic errors. The control design identifies the minimal subspace of the toggling-frame Hamiltonian and the full set of achievable, zeroth-order, effective Hamiltonians. The framework also enables robust state transfer, characterization of achievable density matrices, and extension to stochastic parameter fluctuations via a cumulant expansion. Examples are included to illustrate the process flow and resultant precision and robustness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a general framework for engineering effective Hamiltonians in quantum control. It focuses on achieving specified zeroth-order effective Hamiltonians within the toggling frame while suppressing higher-order terms in the Magnus expansion to improve robustness against systematic errors. The approach identifies the minimal subspace of the toggling-frame Hamiltonian and claims to characterize the complete set of achievable zeroth-order effective Hamiltonians. Extensions include robust state transfer, characterization of achievable density matrices, and handling of stochastic fluctuations via cumulant expansion, with examples illustrating the process.

Significance. If the decoupling between zeroth-order targets and higher-order suppression holds generally, the framework would provide a useful systematic tool for designing precise and robust quantum control sequences. The emphasis on identifying the full achievable set and minimal subspace could aid efficiency in applications such as quantum simulation and sensing, building on standard Magnus and cumulant techniques.

major comments (2)
  1. [§3] §3 (Control design and minimal subspace): The claim that the identified subspace yields the full set of achievable zeroth-order effective Hamiltonians requires a general proof or exhaustive verification rather than reliance on the examples. Without this, the completeness assertion remains unestablished for arbitrary targets.
  2. [§4.2] §4.2 (Magnus expansion and higher-order terms): The central assumption that higher-order contributions can be minimized independently of the chosen zeroth-order target without restricting the achievable set is load-bearing but demonstrated only on selected examples. The nested commutators in the Magnus series couple the orders, so a general argument or counterexample analysis is needed to support the robustness and efficiency guarantees.
minor comments (2)
  1. [Examples section] The process flow for the examples would be clearer with an explicit step-by-step table or pseudocode listing the pulse design, subspace identification, and error suppression steps.
  2. [Notation and preliminaries] Notation for toggling-frame operators and the effective Hamiltonian is introduced without a consolidated definition; adding a short table of symbols would aid readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for providing constructive comments that help improve the clarity and rigor of our work. We respond to each major comment in turn below.

read point-by-point responses

  1. Referee: [§3] §3 (Control design and minimal subspace): The claim that the identified subspace yields the full set of achievable zeroth-order effective Hamiltonians requires a general proof or exhaustive verification rather than reliance on the examples. Without this, the completeness assertion remains unestablished for arbitrary targets.

    Authors: We appreciate the referee highlighting the need for a clearer justification of completeness. The minimal subspace is constructed explicitly as the linear span of all toggling-frame operators that are independently addressable by the available control resources; any zeroth-order effective Hamiltonian is then obtained as a linear combination within this span. This construction is general and does not rely on the specific examples, which are provided only for illustration. To make the argument fully explicit, we will insert a short theorem and proof of completeness in the revised Section 3. revision: yes

  2. Referee: [§4.2] §4.2 (Magnus expansion and higher-order terms): The central assumption that higher-order contributions can be minimized independently of the chosen zeroth-order target without restricting the achievable set is load-bearing but demonstrated only on selected examples. The nested commutators in the Magnus series couple the orders, so a general argument or counterexample analysis is needed to support the robustness and efficiency guarantees.

    Authors: The referee correctly identifies the potential coupling through nested commutators. Within the toggling-frame formulation, however, the control parameters that enter the higher-order Magnus terms can be varied while the zeroth-order average is held fixed, because the higher-order corrections depend on the detailed time-ordering inside the pulses rather than on the subspace projection itself. This separation has been verified across the examples in the manuscript. We acknowledge that a fully general proof for arbitrary Hamiltonians would be desirable; we will therefore add a concise discussion of the conditions under which the separation holds and include a brief analysis of possible counterexamples in the revised Section 4.2. revision: partial

Circularity Check

0 steps flagged

No circularity detected; framework extends standard quantum control methods

full rationale

The paper presents a general framework that identifies the minimal subspace of the toggling-frame Hamiltonian and the set of achievable zeroth-order effective Hamiltonians while minimizing higher-order terms via established techniques such as the Magnus expansion and cumulant expansion. No quoted equations or derivation steps in the abstract or description reduce any claimed result or prediction to a fitted parameter, self-citation chain, or input by construction. The central claims build on standard quantum control concepts without self-definitional loops or renaming of known results, rendering the derivation self-contained against external benchmarks in the field.

Axiom & Free-Parameter Ledger

0 free parameters · 3 axioms · 0 invented entities

The framework rests on standard domain assumptions of quantum control theory; no explicit free parameters or new invented entities are mentioned in the abstract.

axioms (3)
  • domain assumption The toggling-frame transformation is a valid and useful representation for deriving effective Hamiltonians
    Central to identifying the minimal subspace and achievable zeroth-order terms.
  • domain assumption Higher-order contributions can be minimized while preserving the target zeroth-order Hamiltonian
    Required for the efficiency and robustness claims.
  • domain assumption Cumulant expansion accurately captures stochastic parameter fluctuations
    Used for the extension to random errors.
