Asymptotic Preserving and Accurate scheme for Multiscale Poisson-Nernst-Planck (MPNP) system

Clarissa Astuto , Giovanni Russo This is my paper

Pith reviewed 2026-05-19 06:58 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath-phmath.MP
keywords multiscale modelingPoisson-Nernst-Planck equationsasymptotic preserving schemestwo-species ion transportsurface trapsboundary condition reductionnumerical analysis for PDEs
0
0 comments X

The pith

A two-species multiscale Poisson-Nernst-Planck model replaces the small-range trap potential with a boundary condition and supplies an asymptotic-preserving numerical scheme that couples positive and negative ions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a multiscale model for the Poisson-Nernst-Planck system that treats positive and negative ions together as they interact through the Coulomb field near a surface trap whose attraction range is much smaller than the overall domain. The detailed attractive potential is replaced by a boundary condition obtained from mass conservation and asymptotic analysis, and an asymptotic-preserving scheme is constructed to solve the resulting system accurately without resolving the small scale. A reader would care because most existing PNP treatments handle the two carriers independently, whereas here their coupled dynamics and the adsorption of one species at the trap surface are retained in the reduced description.

Core claim

We propose and validate a two-species Multiscale model for a Poisson-Nernst-Planck system that incorporates the simultaneous influence of both positive and negative ions interacting through the Poisson equation. The effect of the surface trap whose attraction range δ is much smaller than the macroscopic scale is replaced by a suitable boundary condition derived from mass conservation and asymptotic analysis. We also construct an asymptotic preserving and accurate scheme for the resulting MPNP system.

What carries the argument

The boundary condition for the surface trap, obtained from mass conservation and asymptotic analysis under the assumption that the attraction range δ is much smaller than the macroscopic scale, which replaces the detailed potential while preserving the essential ion dynamics and adsorption behavior.

If this is right

  • The numerical scheme remains stable and accurate even when the grid does not resolve the trap attraction range.
  • The model captures the correlated motion of both ion species and the selective adsorption of negative ions at the trap surface.
  • The asymptotic-preserving property ensures the discrete solution approaches the correct reduced model as the small scale vanishes.
  • The self-consistent Coulomb interaction between carriers is maintained through the Poisson equation at every step.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same boundary-condition reduction could be tested on other localized adsorption or reaction problems whose interaction length is small compared with the domain size.
  • Extending the scheme to time-dependent traps or moving boundaries would check whether the asymptotic preservation holds under more complex geometry.
  • Comparison with Monte-Carlo particle simulations of the same ion-trap setup could quantify how much information is retained by the continuum reduced model.

Load-bearing premise

The boundary condition is derived under the assumption that the attraction range δ is much smaller than the macroscopic scale, so the detailed potential can be replaced without losing key dynamics.

What would settle it

Numerical solutions of the full Poisson-Nernst-Planck system with a resolved but small finite δ compared against solutions of the reduced model with the proposed boundary condition, checking whether the ion densities and fluxes converge as δ approaches zero.

Figures

Figures reproduced from arXiv: 2507.01402 by Clarissa Astuto, Giovanni Russo.

Figure 1
Figure 1. Figure 1: Scheme of the experimental setup. On the top left there is a zoom in of the anions and cations behavior at the air-surface of the bubble: the cations (blue) are composed by hydrophilic heads; the anions (red) have hydrophobic tails inside the air bubble, and hydrophilic heads on the surface. In this work, we consider the PNP model for the diffusion of the two carriers [26, 41], in presence of an external t… view at source ↗
Figure 2

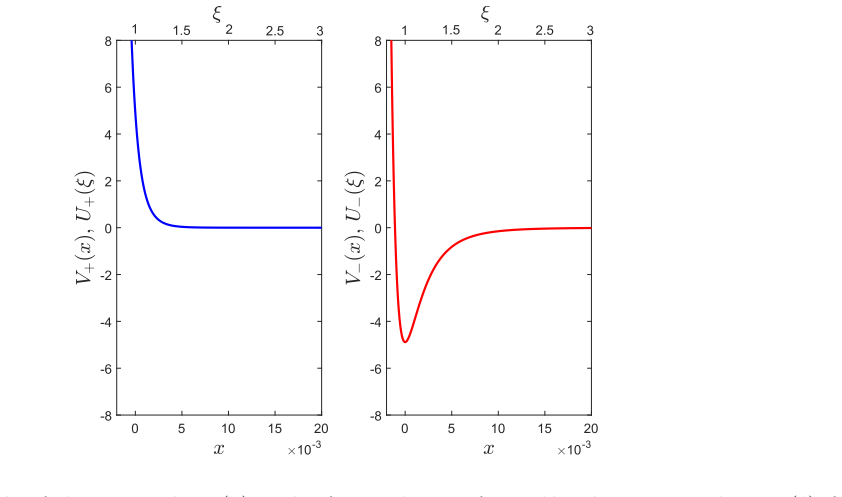

Figure 2. Figure 2: Example of the potentials V±(x) and, after a change of variable, the corresponding U±(ξ) for δ = 10−2 . Now we write the system for the interval Ωδ f = [δL, 1] ∂c± ∂t = − ∂J± ∂x , in Ωδ f (11a) J± = −D±  ∂c± ∂x ± c± ∂Φ ∂x  , in Ωδ f (11b) −ε ∂ 2Φ ∂x2 = c+ m+ − c− m− , in Ωδ f (11c) J±|x=1 = 0 (11d) ∂Φ ∂x [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

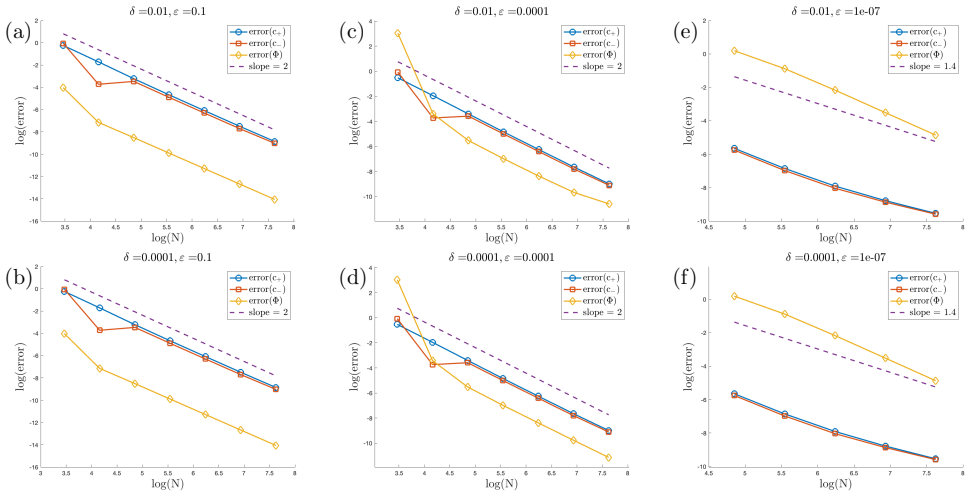

Figure 3
Figure 3. Figure 3: Space and time accuracy orders of the δ-model at final time t = 0.1, for different values of δ and ε. Simulations details are provided in Section 4. The discretization of (65a) at the left boundary reads M 2  dc−,0 dt + dc−,1 dt  = D−  c−,1 − c−,0 h − c−,1 + c−,0 2 Φ1 − Φ0 h  . (66) Now we discretize the boundary condition for Φ, that at the left boundary becomes ε Φ1 − Φ0 h = M c−,0 + c−,1 2 . (67) Eq… view at source ↗
Figure 4

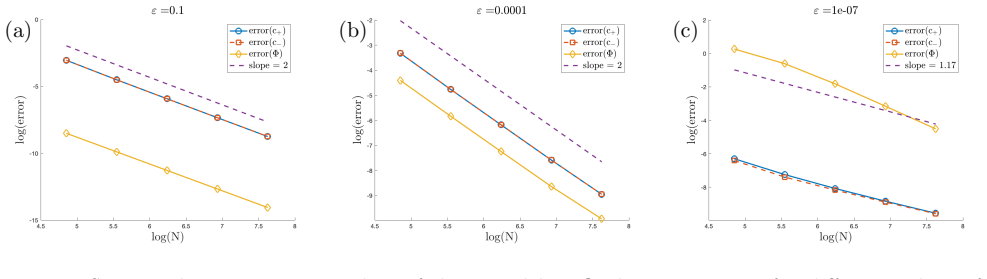

Figure 4. Figure 4: Space and time accuracy orders of the 0-model at final time t = 0.1, for different values of ε. Simulations details are provided in Section 4. for different values of N and show the results in [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5

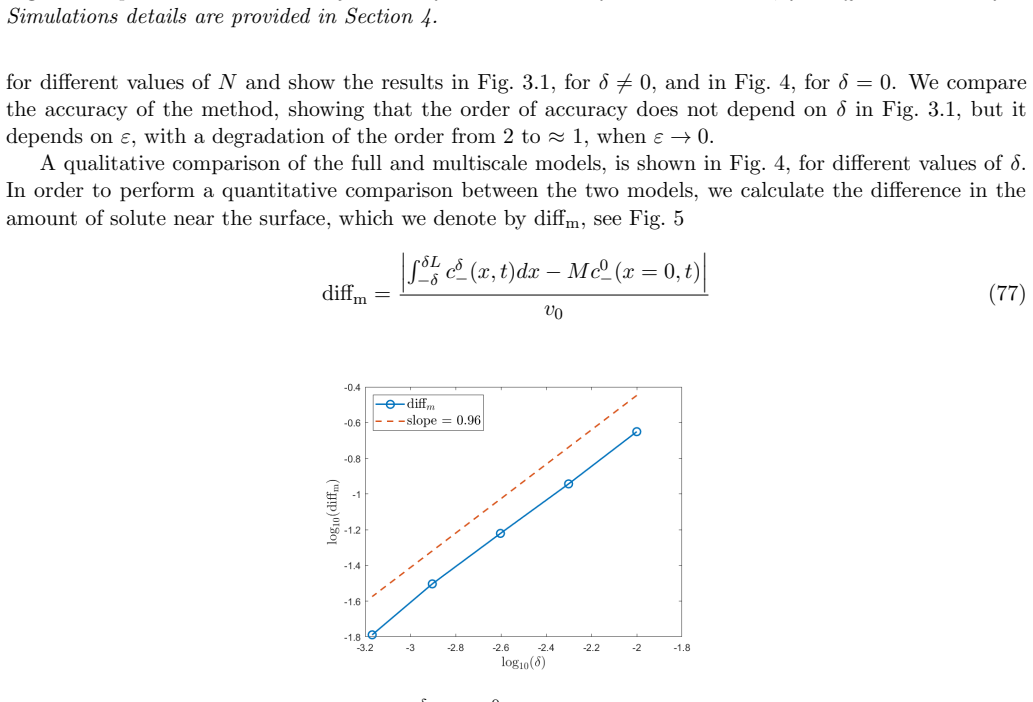

Figure 5. Figure 5: Difference between the solutions c δ − and c 0 − of the δ-model and 0-model, respectively. The quantity is computed is Eq. (77). 17 [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6

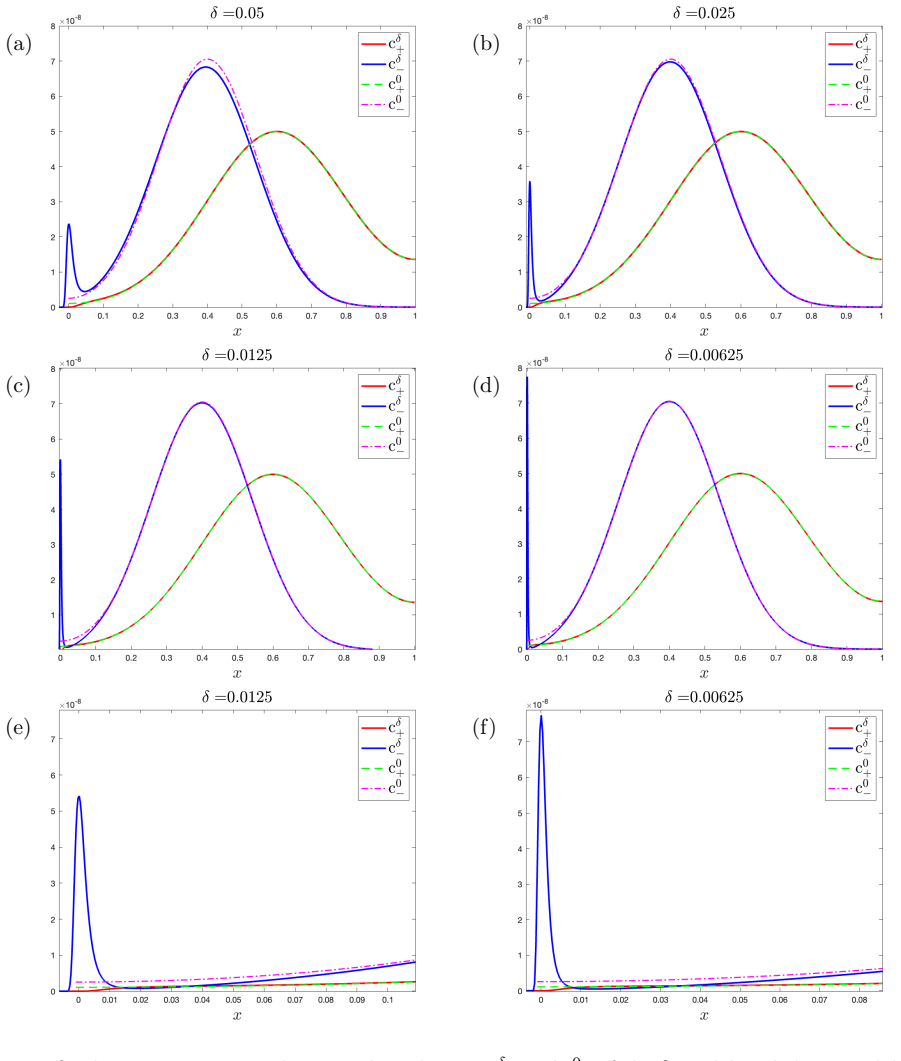

Figure 6. Figure 6: Qualitative comparison between the solutions c δ ± and c 0 ± of the δ-model and the 0-model, respec￾tively, for different values of δ. Zoom-in in panels (e),(d). 18 [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7

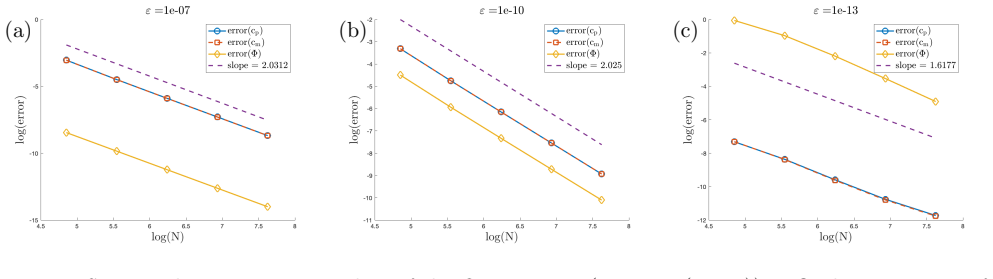

Figure 7. Figure 7: Space and time accuracy orders of the QNL system (see Eqs. (78-79)) at final time t = 0.1, for different values of ε. Simulations details are provided in Section 4. In these tests ∆t = 0.1∆x. with boundary conditions M 2 ∂C ∂t = De ∂C ∂n + DbC ∂Φ ∂n on ΓB (81a) − M 2 ∂C ∂t = Db ∂C ∂n + DeC ∂Φ ∂n on ΓB (81b) ∂Φ ∂n = M 2ε C − M 2 Q on ΓB (81c) ∂C ∂n = 0 on ΓS (81d) ∂Φ ∂n = 0 on ΓS (81e) Numerical tests in on… view at source ↗
Figure 8
Figure 8. Figure 8: Discretization of the computational domain. Ω is the green region inside the unit square R. (a): classification of the grid points: the blue points are the internal ones while the red circles denote the ghost points. (b): points of intersection between the grid and the boundary Γ (see the definition of A and B in Algorithm 1). Here, we define the set of ghost points G, which are grid points that belong to … view at source ↗
Figure 9

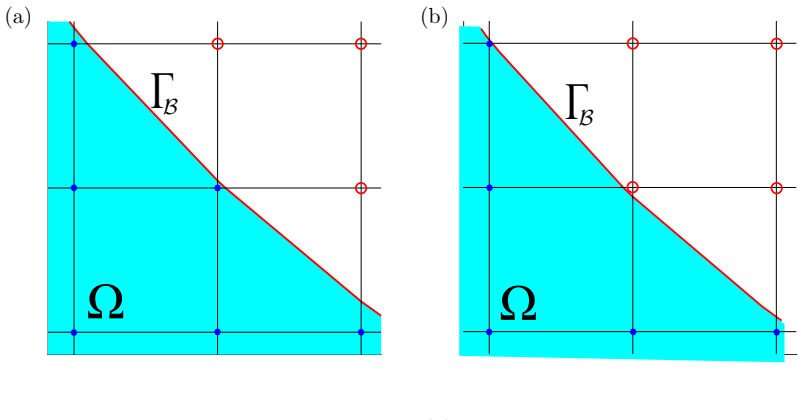

Figure 9. Figure 9: Grid before and after snapping technique. (a): representation of the cell related to the internal point P (blue points), whose distance from Γ is less than h 2 ; (b): zoom-in of the shape of the domain, after the grid point P has changed its classification, from internal to ghost point (red circles). where, for each K, φi |K is the restriction of φi in cell K, which is a bilinear function and takes value 1… view at source ↗

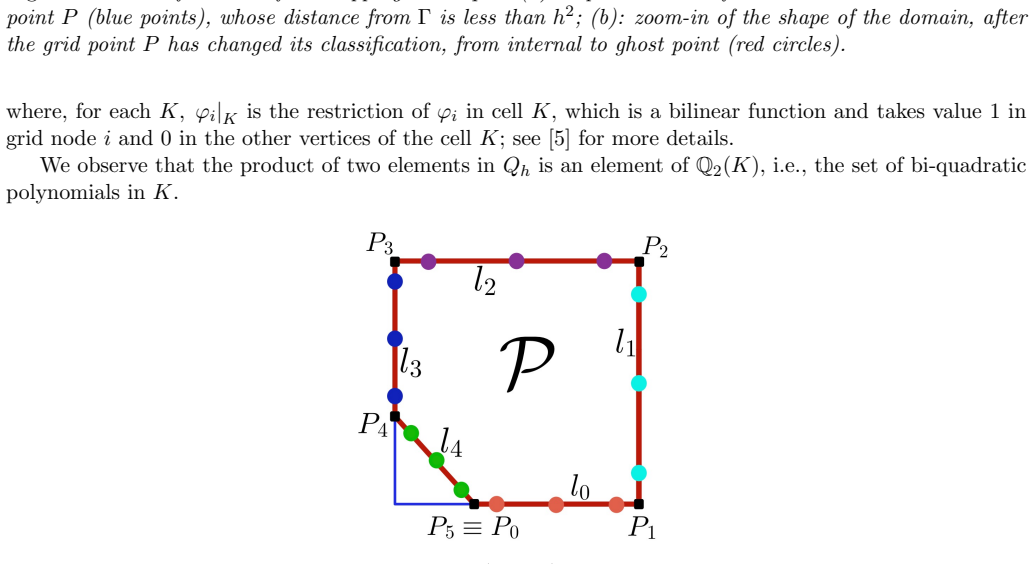

Figure 10
Figure 10. Figure 10: Scheme of the three quadrature points (circles) for each edge li , i = 0, · · · , 4. The squared points represent the vertices Pi , i = 0, · · · , 4, of the polygon P. Let us consider a general integrable function f(x, y) defined in Ω, with F(x, y) = R f(x, y)dx (in our strategy we consider the primitive in x direction; analogue results can be obtained integrating in y direction). 24 [PITH_FULL_IMAGE:fig… view at source ↗

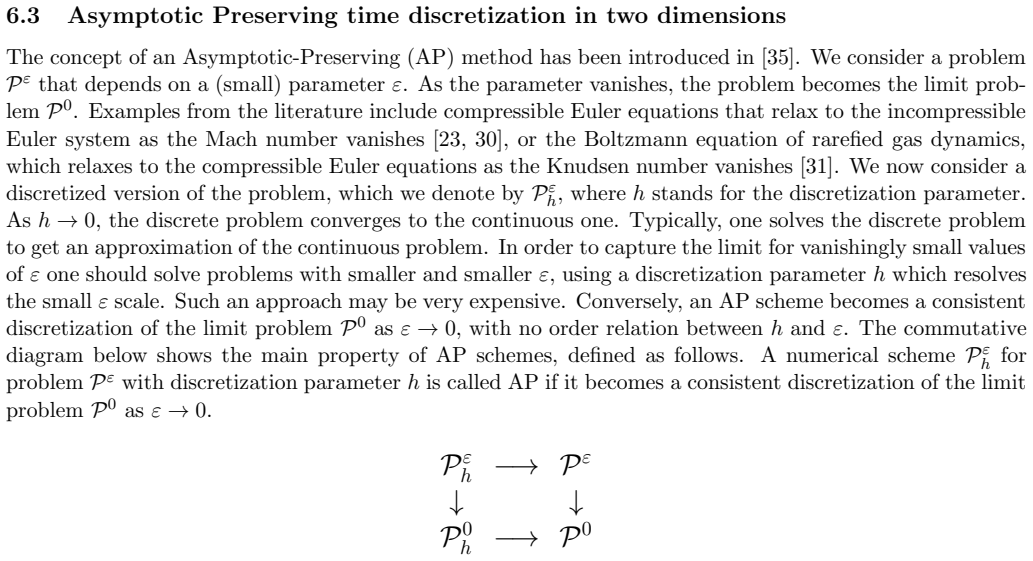

Figure 11
Figure 11. Figure 11: The AP diagram. P ε is the original problem and P ε h its numerical approximation characterized by a discretization parameter h. The AP property corresponds to the request that P 0 h is consistent with P 0 as ε → 0, independently of h. To reformulate system (89) using the computational matrices for the spatial derivatives, we express it as follows B[vh] ∂Ch ∂t −  M 2 ∂Ch ∂t − ε M 2 ∂Qh ∂t , vh  L2(ΓB,h)… view at source ↗
Figure 12
Figure 12. Figure 12: Charge conservation test: we plot the difference diffcons defined in Eq. (104), as a function of the number of cells of the space discretization (a). In panel (b), we show the same quantity in function of time, considering an explicit discretization in time. In (b) ∆t = 0.1h 2 . The initial conditions are given by C in(x, t = 0) = c in +(x, t = 0) m+ + c in −(x, t = 0) m− (102a) Q in(x, t = 0) = 1 ε  c i… view at source ↗

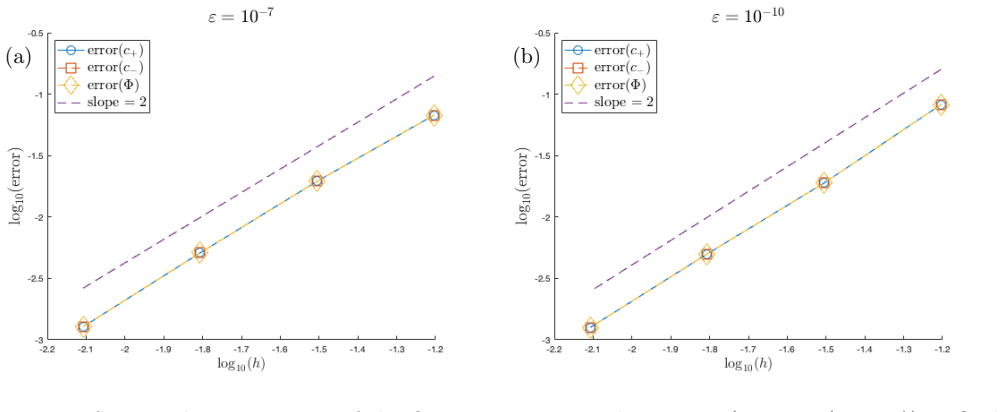

Figure 13
Figure 13. Figure 13: Space and time accuracy of the QNL system in two dimensions (see Eqs. (98–101)) at final time t = 0.3125, for different values of ε. In this test the order is calculated with Richardson extrapolation technique. Simulation details are provided in Section 7. Charge conservation If zero flux boundary conditions are adopted on the external boundary, system (59), (60) conserves the total charges of both anions… view at source ↗

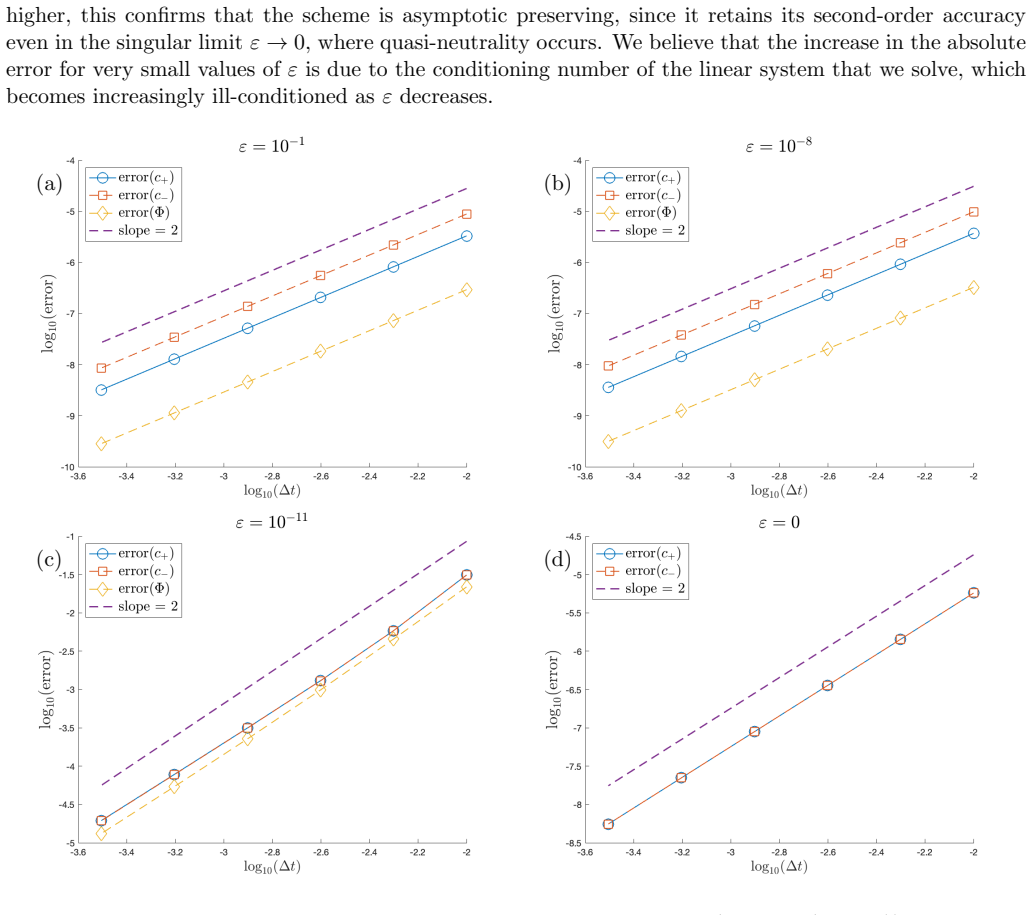

Figure 14
Figure 14. Figure 14: Time accuracy orders of the QNL system in two dimensions (see Eqs. (98–101)) at final time t = 0.1, for different values of ε. Simulation details are provided in Section 7. In panel (d) the error in Φ is not plotted, however for vanishing ε, the value of the potential Φ remains constant within machine precision. 31 [PITH_FULL_IMAGE:figures/full_fig_p031_14.png] view at source ↗

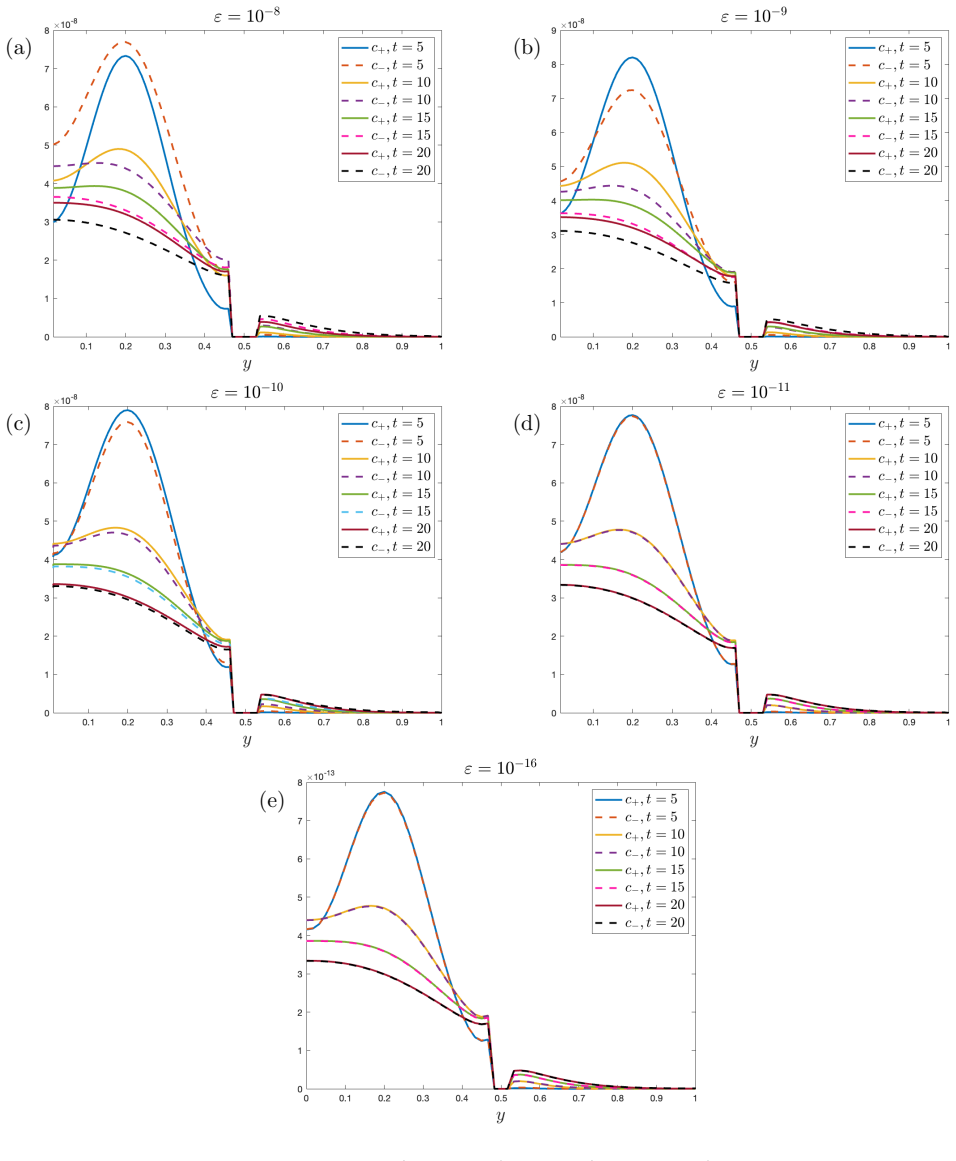

Figure 15
Figure 15. Figure 15: Profiles of the concentrations c+ (solid lines) and c− (dashed lines) in two dimensions, at x = 0.5. We show the solutions at different times t = 5, 10, 15, 20, and for different ε. In panels (a)-(d) the initial volume is v0 = 10−6 while in panel (e) v0 = 10−11 and ∆t = 0.01h. 32 [PITH_FULL_IMAGE:figures/full_fig_p032_15.png] view at source ↗

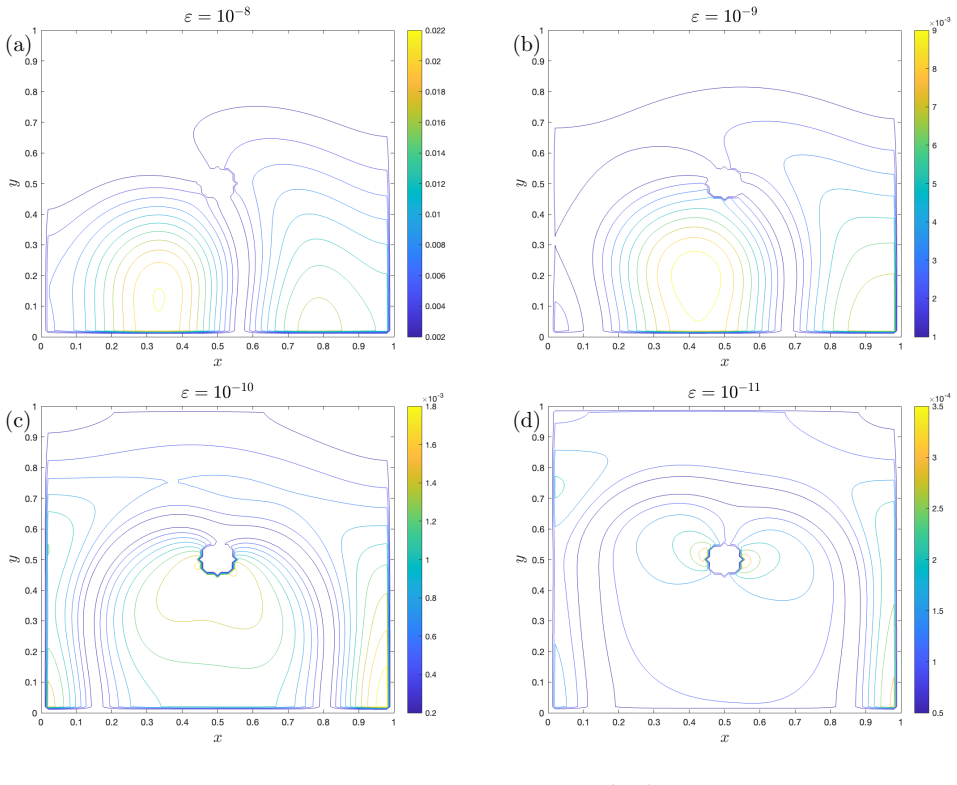

Figure 16
Figure 16. Figure 16: Contour plot of the difference defined in Eq. (105), for different values of ε. in regimes where the Debye length is small but not negligible. While the Quasi-Neutral limit provides a simplified model in the asymptotic regime ε = 0, the case ε ≪ 1 introduces significant numerical challenges: the system becomes stiff and the condition number of the discretized matrix increases, leading to potential loss of… view at source ↗
Figure 17

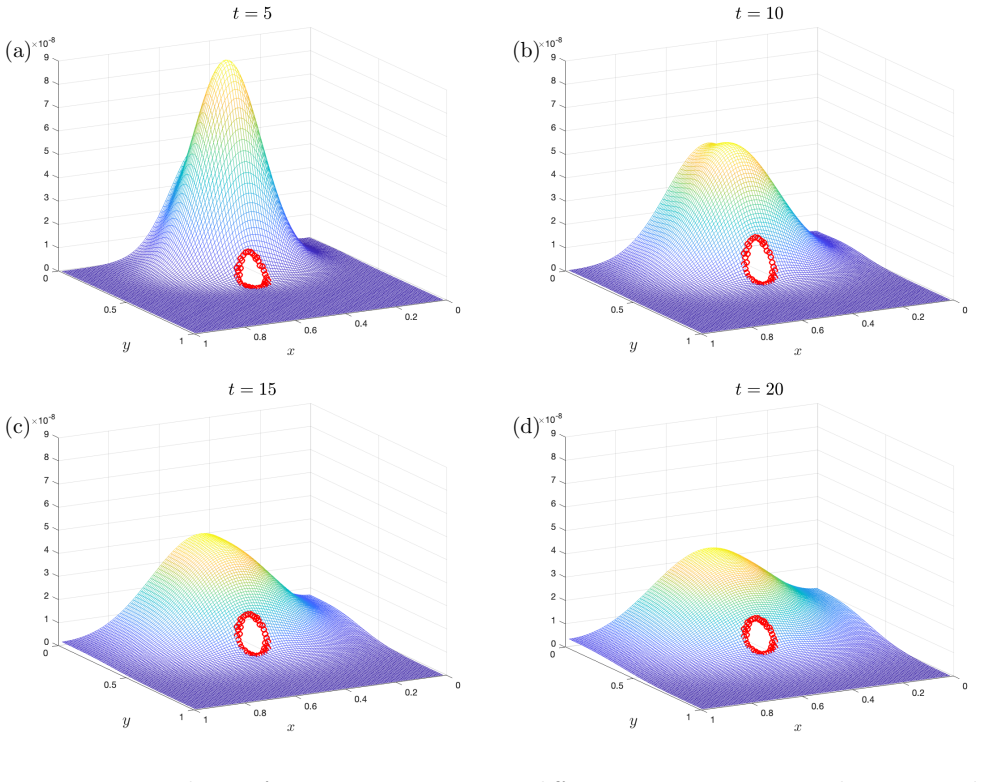

Figure 17. Figure 17: Time evolution of anion concentration c− at different times t = 5, 10, 15, and 20. We mark in red the concentration values at the boundary of the bubble ΓB,h. 40 [PITH_FULL_IMAGE:figures/full_fig_p040_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Positivity of the solution for different values of ε. (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p041_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Positivity of the solution for different initial conditions. 41 [PITH_FULL_IMAGE:figures/full_fig_p041_19.png] view at source ↗
read the original abstract

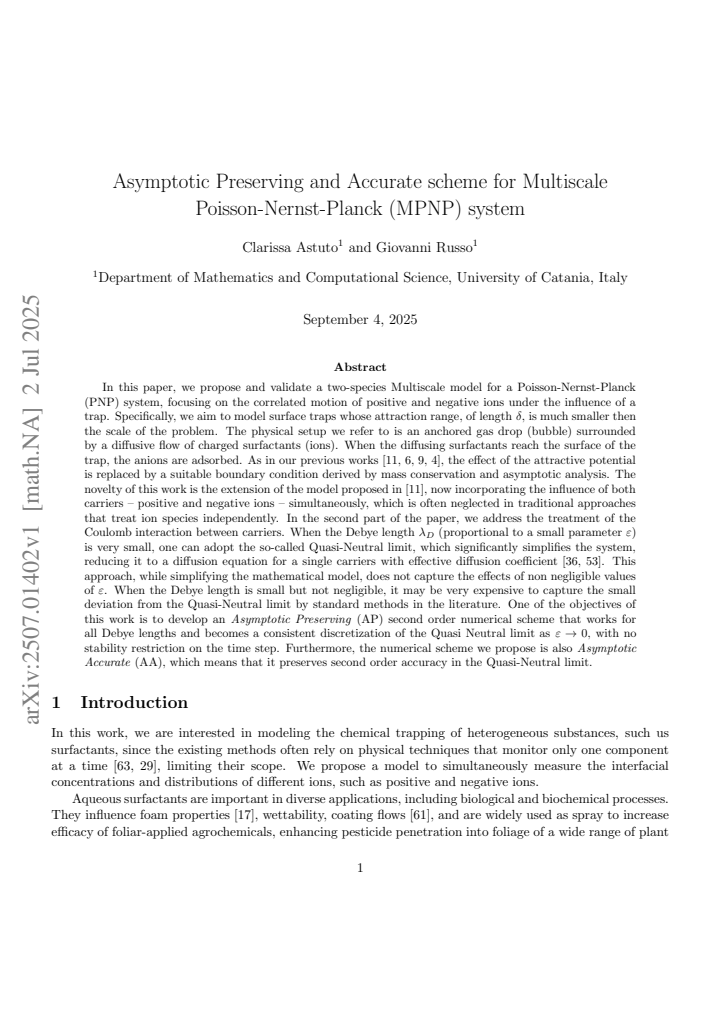

In this paper, we propose and validate a two-species Multiscale model for a Poisson-Nernst-Planck (PNP) system, focusing on the correlated motion of positive and negative ions under the influence of a trap. Specifically, we aim to model surface traps whose attraction range, of length $\delta$, is much smaller then the scale of the problem. The physical setup we refer to is an anchored gas drop (bubble) surrounded by a flow of charged surfactants {(composed by positive and negative ions) that diffuses in water. When the diffusing surfactants reach the surface of the trap, the negative ions are adsorbed because of their hydrophobic tail that is attracted by the air bubble}. As in our previous works, the effect of the attractive potential is replaced by a suitable boundary condition derived by mass conservation and asymptotic analysis. The novelty of this work is the extension of the model proposed in \cite{astuto2023multiscale}, now incorporating the influence of both carriers -- positive and negative ions -- simultaneously, which is often neglected in traditional approaches that treat ion species independently. The two carriers interact through the Coulomb potential, that is computed by a Poisson equation. [...]

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper proposes and validates a two-species multiscale Poisson-Nernst-Planck (MPNP) model for charged surfactants near a surface trap (e.g., an anchored gas bubble) whose short-range attractive potential has length δ much smaller than the macroscopic scale. The attractive potential is replaced by an effective boundary condition derived from mass conservation and asymptotic analysis; this extends the single-species model of Astuto et al. (2023) by retaining both positive and negative ions coupled through the self-consistent Poisson potential. An asymptotic-preserving numerical scheme is constructed and tested for accuracy and preservation properties.

Significance. If the two-species effective boundary condition is shown to capture the correct leading-order adsorption rates without missing cross-coupling terms, the work would supply a practical, asymptotically consistent tool for simulating multiscale PNP systems that avoids resolving the microscopic attraction length δ. The explicit treatment of both carriers addresses a frequent modeling simplification in the literature.

major comments (1)
  1. [§2.3] §2.3 (Derivation of the effective boundary condition): The single-species predecessor replaces the short-range potential by a local flux condition obtained from a separable boundary-layer problem. In the two-species extension the Poisson equation couples the densities of both carriers, so the leading-order boundary-layer problem for the normal fluxes is no longer separable. The manuscript does not exhibit the explicit two-species boundary-layer calculation; it is therefore unclear whether additional cross-terms of the same order appear in the effective adsorption rates for the negative ions.
minor comments (2)
  1. The statement that the scheme is 'parameter-free' should be qualified by listing any numerical parameters (e.g., stabilization constants or mesh-size ratios) that remain after the asymptotic analysis.
  2. Figure 4 (error plots) would benefit from a log-log inset confirming the expected convergence rate under mesh refinement.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comment on the derivation of the effective boundary condition. We address the point below and will incorporate clarifications in the revision.

read point-by-point responses

  1. Referee: [§2.3] §2.3 (Derivation of the effective boundary condition): The single-species predecessor replaces the short-range potential by a local flux condition obtained from a separable boundary-layer problem. In the two-species extension the Poisson equation couples the densities of both carriers, so the leading-order boundary-layer problem for the normal fluxes is no longer separable. The manuscript does not exhibit the explicit two-species boundary-layer calculation; it is therefore unclear whether additional cross-terms of the same order appear in the effective adsorption rates for the negative ions.

    Authors: We appreciate the referee pointing out the need for explicit details on the two-species boundary-layer analysis. In our derivation, the leading-order inner problem is formulated as a coupled system for the densities and the potential, solved subject to the short-range potential and far-field matching. Because the Poisson equation is linear in the leading-order correction and the boundary-layer coordinate is stretched by δ, the cross-coupling enters only through the self-consistent potential at higher order; the leading-order flux conditions for each species remain independent of additional cross-terms of O(1). To make this transparent, we will add the full two-species boundary-layer calculation (including the explicit solution of the inner problem and the resulting effective adsorption rates) to Section 2.3 in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

Minor self-citation to single-species predecessor; central BC derivation and scheme remain independent

full rationale

The paper extends the single-species model from the authors' prior work via citation but grounds the two-species boundary condition explicitly in mass conservation plus asymptotic analysis of the short-range trap potential. No fitted parameter is renamed as a prediction, no self-referential definition appears in the equations, and the numerical scheme is constructed and validated separately from the cited predecessor. The self-citation supplies context rather than load-bearing justification for the core result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the asymptotic reduction of the trap potential to a boundary condition and on standard assumptions of the PNP system; no new free parameters or invented entities are introduced beyond the model extension.

axioms (1)
  • domain assumption The attraction range δ is much smaller than the macroscopic scale, justifying replacement of the potential by a boundary condition via asymptotic analysis and mass conservation.
    Invoked in the abstract to derive the trap model from the physical setup.
