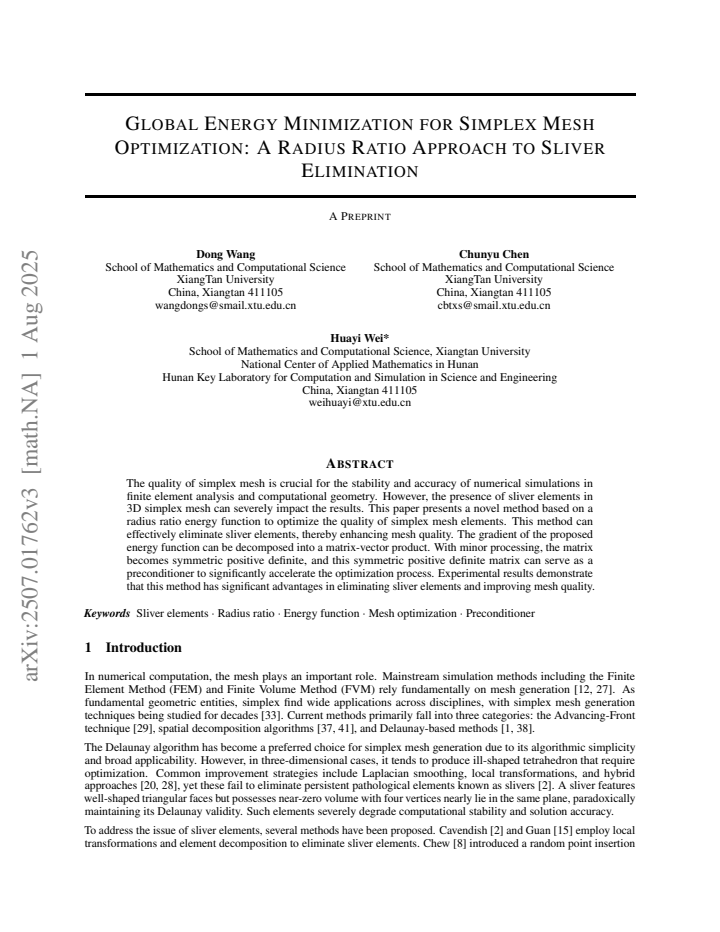

Global Energy Minimization for Simplex Mesh Optimization: A Radius Ratio Approach to Sliver Elimination

Dong Wang , Chunyu Chen , Huayi Wei This is my paper

Pith reviewed 2026-05-19 06:31 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.OC
keywords simplex meshmesh optimizationsliver eliminationradius ratioenergy minimizationvertex relocationpreconditioner
0
0 comments X

The pith

Global minimization of a radius-ratio energy removes slivers from simplex meshes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs an energy function based on the radius ratio for simplex meshes and proposes an optimization method to minimize it. This method jointly performs vertex relocation and connectivity improvement to eliminate slivers and enhance mesh quality. A preconditioner is designed using the structure of the energy gradient to accelerate convergence. Numerical experiments validate the effectiveness for both sliver removal and quality improvement.

Core claim

By defining a global energy based on the radius ratios of all simplices and minimizing it through combined vertex movement and connectivity optimization, the mesh is driven to a higher-quality state free of slivers. The preconditioner derived from the gradient reduces the number of iterations required.

What carries the argument

Radius-ratio energy function whose global minimization over vertex positions and mesh connectivity eliminates slivers.

If this is right

  • Slivers are eliminated as the energy is minimized without separate local interventions.
  • Mesh quality improves as indicated by standard measures in the experiments.
  • The preconditioner decreases the iteration count for the optimization algorithm.
  • Both vertex relocation and connectivity changes contribute to the overall improvement.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar global energy approaches might be explored for other mesh quality criteria in future work.
  • The method could be tested on meshes from real-world applications like computational fluid dynamics to assess practical impact.
  • Scalability to very large meshes remains an open question beyond the current numerical tests.

Load-bearing premise

Minimizing the radius-ratio energy reliably leads to a sliver-free mesh configuration without creating new degeneracies or requiring case-by-case parameter adjustments.

What would settle it

Apply the optimization to a mesh containing known slivers and check whether any simplex with radius ratio below the degeneracy threshold remains or whether new slivers appear in the final configuration.

Figures

Figures reproduced from arXiv: 2507.01762 by Chunyu Chen, Dong Wang, Huayi Wei.

Figure 1
Figure 1. Figure 1: Sliver element optimization method to eliminate sliver elements, which was further refined by Li [23]. Engwirda [11], Cheng [7], and others have also used different point insertion techniques to eliminate sliver elements. These methods are all local optimization algorithms, which can effectively ensure the mesh quality by setting termination conditions, such as dihedral angle, radius-edge ratio, etc. [24, … view at source ↗
Figure 2
Figure 2. Figure 2: Comparison of mesh obtained by local and global methods [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Comparison of our mesh optimization method with ODT [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Sphere example 11 [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: This domain is an L-shaped domain with an empty ball domain inside. For the L-shaped domain, the corner [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: 12 intersecting spheres example [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
read the original abstract

This paper constructs an energy function for simplex mesh based on the radius ratio and develops a corresponding mesh optimization method. The method combines vertex relocation and connectivity improvement, and can effectively remove slivers and improve the overall mesh quality. Based on the structure of the gradient of the energy function, we design a preconditioner, which reduces the number of iterations and improves the efficiency of the optimization algorithm. Numerical experiments show that the proposed method is effective in both sliver removal and mesh quality improvement.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper constructs an energy function for simplex meshes based on the radius ratio and develops a corresponding optimization method that combines vertex relocation with connectivity improvement steps. A preconditioner is derived from the gradient structure of the energy to accelerate convergence. Numerical experiments are presented to demonstrate effectiveness in sliver removal and overall mesh quality improvement.

Significance. If the global minimization of the proposed radius-ratio energy reliably produces sliver-free meshes without introducing new degeneracies, the approach could offer a practical, parameter-light alternative to existing local smoothing or remeshing techniques in finite-element mesh generation. The combination of relocation and connectivity changes plus the gradient-based preconditioner addresses two common bottlenecks in mesh optimization, but the absence of convergence analysis or quantitative benchmarks against established methods (e.g., Ruppert’s algorithm or Laplacian smoothing) keeps the significance provisional.

major comments (2)
  1. The central claim that minimizing the global radius-ratio energy drives the mesh to a sliver-free state rests entirely on numerical experiments whose quantitative details are not reported. No minimum radius-ratio values, iteration counts, or comparisons with baseline sliver-removal methods appear in the results section, leaving the effectiveness assertion unverified.
  2. No analysis is given showing that the global minimum of the aggregated radius-ratio energy is free of elements with near-zero ratio, nor that the preconditioned gradient flow avoids poor local minima that retain slivers. The construction defines the energy directly from per-element radius ratios without a structural argument that the sum (or other aggregation) excludes degenerate configurations.
minor comments (2)
  1. Notation for the radius ratio and the precise form of the energy function should be introduced with an equation number in the methods section for clarity.
  2. The description of the preconditioner would benefit from an explicit formula or pseudocode showing how it is constructed from the gradient.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the thorough review and valuable feedback on our manuscript. We address each major comment below and indicate the revisions we plan to make.

read point-by-point responses

  1. Referee: The central claim that minimizing the global radius-ratio energy drives the mesh to a sliver-free state rests entirely on numerical experiments whose quantitative details are not reported. No minimum radius-ratio values, iteration counts, or comparisons with baseline sliver-removal methods appear in the results section, leaving the effectiveness assertion unverified.

    Authors: We agree with this observation. The current manuscript presents numerical experiments but does not include sufficient quantitative details in the results section. In the revised manuscript, we will add tables reporting the minimum radius-ratio values before and after optimization, the number of iterations, and comparisons against baseline methods such as Laplacian smoothing and Ruppert’s algorithm. This will allow readers to better verify the effectiveness of the approach. revision: yes

  2. Referee: No analysis is given showing that the global minimum of the aggregated radius-ratio energy is free of elements with near-zero ratio, nor that the preconditioned gradient flow avoids poor local minima that retain slivers. The construction defines the energy directly from per-element radius ratios without a structural argument that the sum (or other aggregation) excludes degenerate configurations.

    Authors: The paper does not provide a theoretical analysis or structural proof that the global minimum of the energy excludes degenerate elements, as the energy is constructed as an aggregation of local radius ratios. Similarly, while the preconditioner accelerates the gradient-based optimization, we do not analyze its ability to avoid poor local minima. The method relies on the practical combination of vertex relocation and connectivity changes, supported by numerical results showing sliver elimination. A rigorous theoretical treatment of the energy landscape and convergence properties is beyond the current scope and would constitute a substantial extension of the work. revision: no

standing simulated objections not resolved
  • The lack of theoretical analysis demonstrating that the global minimum of the radius-ratio energy is free of slivers or that the optimization procedure avoids retaining slivers in local minima.

Circularity Check

0 steps flagged

Energy defined directly from standard radius-ratio metric; no reduction of claims to fitted inputs or self-citation chains

full rationale

The paper defines its energy function explicitly from the geometric radius ratio (a conventional per-element quality measure) and then minimizes the resulting global functional via combined vertex relocation and connectivity updates. No equation equates a claimed prediction or uniqueness result to a quantity already fitted or assumed inside the same manuscript. The preconditioner is derived from the gradient structure of this energy, but remains an implementation detail rather than a load-bearing self-referential step. Numerical experiments are presented as validation rather than as the sole justification for the method's correctness. This yields only a minor score consistent with incidental self-citations that do not carry the central claim.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the domain assumption that radius ratio is an appropriate scalar proxy for element quality and that the resulting non-convex energy landscape can be navigated by the chosen relocation-plus-connectivity scheme without additional regularization.

axioms (1)
  • domain assumption Radius ratio serves as a reliable scalar indicator of simplex quality for the purpose of global energy minimization.
    Invoked when the energy function is constructed from radius ratio.

pith-pipeline@v0.9.0 · 5608 in / 1188 out tokens · 38778 ms · 2026-05-19T06:31:02.733304+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

41 extracted references · 41 canonical work pages

  1. [1]

    Bern and D

    M. Bern and D. Eppstein. Mesh generation and optimal triangulation. In Computing in Euclidean geometry, pages 47–123. World Scientific, 1995

    work page 1995

  2. [2]

    J. C. Caendish, D. A. Field, and W. H. Frey. An apporach to automatic three-dimensional finite element mesh generation. International journal for numerical methods in engineering, 21(2):329–347, 1985

    work page 1985

  3. [3]

    L. Chen. Mesh smoothing schemes based on optimal delaunay triangulations. In IMR, pages 109–120. Citeseer, 2004

    work page 2004

  4. [4]

    Chen and M

    L. Chen and M. Holst. Efficient mesh optimization schemes based on optimal delaunay triangulations. Computer Methods in Applied Mechanics and Engineering, 200(9-12):967–984, 2011

    work page 2011

  5. [5]

    Chen and J.-c

    L. Chen and J.-c. Xu. Optimal delaunay triangulations. Journal of Computational Mathematics, pages 299–308, 2004

    work page 2004

  6. [6]

    Cheng, T

    S.-W. Cheng, T. K. Dey, H. Edelsbrunner, M. A. Facello, and S.-H. Teng. Sliver exudation.Journal of the ACM (JACM), 47(5):883–904, 2000

    work page 2000

  7. [7]

    Cheng and S.-H

    S.-W. Cheng and S.-H. Poon. Three-dimensional delaunay mesh generation. Discrete & Computational Geometry, 36(3):419–456, 2006

    work page 2006

  8. [8]

    L. P. Chew. Guaranteed-quality delaunay meshing in 3d (short version). In Proceedings of the thirteenth annual symposium on Computational geometry, pages 391–393, 1997

    work page 1997

  9. [9]

    Dai and Y

    Y .-H. Dai and Y . Yuan. A nonlinear conjugate gradient method with a strong global convergence property.SIAM Journal on optimization, 10(1):177–182, 1999

    work page 1999

  10. [10]

    Q. Du, V . Faber, and M. Gunzburger. Centroidal voronoi tessellations: Applications and algorithms.SIAM review, 41(4):637–676, 1999

    work page 1999

  11. [11]

    Engwirda

    D. Engwirda. Locally optimal delaunay-refinement and optimisation-based mesh generation. 2014

    work page 2014

  12. [12]

    Eymard, T

    R. Eymard, T. Gallouët, and R. Herbin. Finite volume methods. Handbook of numerical analysis, 7:713–1018, 2000

    work page 2000

  13. [13]

    Fletcher and C

    R. Fletcher and C. M. Reeves. Function minimization by conjugate gradients.The computer journal, 7(2):149–154, 1964

    work page 1964

  14. [14]

    Geuzaine and J.-F

    C. Geuzaine and J.-F. Remacle. Gmsh: A 3-d finite element mesh generator with built-in pre-and post-processing facilities. International journal for numerical methods in engineering, 79(11):1309–1331, 2009. 15 Global Energy Minimization for Simplex Mesh Optimization: A Radius Ratio Approach to Sliver Elimination A PREPRINT

    work page 2009

  15. [15]

    Z. Guan, C. Song, and Y . Gu. The boundary recovery and sliver elimination algorithms of three-dimensional constrained delaunay triangulation. International journal for numerical methods in engineering, 68(2):192–209, 2006

    work page 2006

  16. [16]

    W. W. Hager and H. Zhang. A survey of nonlinear conjugate gradient methods. Pacific journal of Optimization, 2(1):35–58, 2006

    work page 2006

  17. [17]

    J. C. Hateley, H. Wei, and L. Chen. Fast methods for computing centroidal voronoi tessellations. Journal of Scientific Computing, 63(1):185–212, 2015

    work page 2015

  18. [18]

    M. R. Hestenes, E. Stiefel, et al. Methods of conjugate gradients for solving linear systems. Journal of research of the National Bureau of Standards, 49(6):409–436, 1952

    work page 1952

  19. [19]

    R. A. Horn and C. R. Johnson. Matrix analysis. Cambridge university press, 2012

    work page 2012

  20. [20]

    B. M. Klingner and J. R. Shewchuk. Aggressive tetrahedral mesh improvement. In Proceedings of the 16th international meshing roundtable, pages 3–23. Springer, 2007

    work page 2007

  21. [21]

    P. Knupp. Introducing the target-matrix paradigm for mesh optimization via node-movement. Engineering with Computers, 28(4):419–429, 2012

    work page 2012

  22. [22]

    P. Knupp. Metric type in the target-matrix mesh optimization paradigm. Technical report, Lawrence Livermore National Lab.(LLNL), Livermore, CA (United States), 2020

    work page 2020

  23. [23]

    X.-Y . Li. Generating well-shaped d-dimensional delaunay meshes.Theoretical Computer Science, 296(1):145–165, 2003

    work page 2003

  24. [24]

    Liu and B

    A. Liu and B. Joe. Relationship between tetrahedron shape measures.BIT Numerical Mathematics, 34(2):268–287, 1994

    work page 1994

  25. [25]

    D. C. Liu and J. Nocedal. On the limited memory bfgs method for large scale optimization. Mathematical programming, 45(1):503–528, 1989

    work page 1989

  26. [26]

    O. E. Livne and A. Brandt. Lean algebraic multigrid (lamg): Fast graph laplacian linear solver. SIAM Journal on Scientific Computing, 34(4):B499–B522, 2012

    work page 2012

  27. [27]

    D. S. Lo. Finite element mesh generation. CRC press, 2014

    work page 2014

  28. [28]

    S. Lo. Optimization of tetrahedral meshes based on element shape measures. Computers & structures, 63(5):951– 961, 1997

    work page 1997

  29. [29]

    Löhner and P

    R. Löhner and P. Parikh. Generation of three-dimensional unstructured grids by the advancing-front method. International Journal for Numerical Methods in Fluids, 8(10):1135–1149, 1988

    work page 1988

  30. [30]

    J. L. Nazareth. Conjugate gradient method. Wiley Interdisciplinary Reviews: Computational Statistics, 1(3):348– 353, 2009

    work page 2009

  31. [31]

    S. Ni, Z. Zhong, Y . Liu, W. Wang, Z. Chen, and X. Guo. Sliver-suppressing tetrahedral mesh optimization with gradient-based shape matching energy. Computer Aided Geometric Design, 52:247–261, 2017

    work page 2017

  32. [32]

    Nocedal and S

    J. Nocedal and S. J. Wright. Numerical optimization. Springer, 1999

    work page 1999

  33. [33]

    S. J. Owen. A survey of unstructured mesh generation technology. IMR, 239(267):15, 1998

    work page 1998

  34. [34]

    Parthasarathy, C

    V . Parthasarathy, C. Graichen, and A. Hathaway. A comparison of tetrahedron quality measures.Finite Elements in Analysis and Design, 15(3):255–261, 1994

    work page 1994

  35. [35]

    Polak and G

    E. Polak and G. Ribiere. Note sur la convergence de méthodes de directions conjuguées. Revue française d’informatique et de recherche opérationnelle. Série rouge, 3(16):35–43, 1969

    work page 1969

  36. [36]

    J. W. Ruge and K. Stüben. Algebraic multigrid. In Multigrid methods, pages 73–130. SIAM, 1987

    work page 1987

  37. [37]

    M. S. Shephard and M. K. Georges. Automatic three-dimensional mesh generation by the finite octree technique. International Journal for Numerical methods in engineering, 32(4):709–749, 1991

    work page 1991

  38. [38]

    J. R. Shewchuk. Unstructured mesh generation. Combinatorial Scientific Computing, 12(257):2, 2012

    work page 2012

  39. [39]

    Tournois, R

    J. Tournois, R. Srinivasan, and P. Alliez. Perturbing slivers in 3d delaunay meshes. In Proceedings of the 18th international meshing roundtable, pages 157–173. Springer, 2009

    work page 2009

  40. [40]

    Wei and Y

    H. Wei and Y . Huang. Fealpy: Finite element analysis library in python. https://github.com/weihuayi/ fealpy, Xiangtan University, 2017-2023

    work page 2017

  41. [41]

    Yerry and M

    M. Yerry and M. Shephard. A modified quadtree approach to finite element mesh generation. IEEE Computer Graphics and Applications, 3(01):39–46, 1983. 16

    work page 1983
