Boosted Enhanced Quantile Regression Neural Networks with Spatiotemporal Permutation Entropy for Complex System Prognostics

T0 review · 5 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A hybrid quantile-entropy pipeline reaches 81.17% accuracy at a 168-hour fault-prediction horizon on nine industrial electronic-sensor systems, beating a single-stage QRNN baseline by 31 F1 points.

desk verdict A coherent architecture with an unverifiable headline result; the load-bearing empirical claim is undermined by unavailable data, arithmetic inconsistencies, and missing promised baselines. read the letter →

arxiv 2507.14194 v3 pith:YUSF3OXG submitted 2025-07-14 eess.SP cs.LGcs.SYeess.SY

David J Poland This is my paper · ORCID
classification eess.SPcs.LGcs.SYeess.SY
keywords spatiotemporalpermutationentropyquantileregressionneuralnetworksprognosticsfaultpredictiontemporalfusiontransformerspikinggatedattentionpredictivemaintenance
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that combining spatiotemporal permutation entropy features with a boosted quantile-regression neural network, gated temporal attention, a spiking-neural-network refinement stage, and a temporal fusion transformer classifier yields reliable long-horizon fault prediction in distributed industrial electronic sensor systems. The central claim is that this full pipeline reaches 81.17% accuracy and 84.92 F1 at 168 hours, compared with 53.93 F1 for the single-stage QRNN baseline, and that each added component contributes measurably. The motivation is that single-sensor or point-estimate models miss weak spatially propagating degradation signatures and cannot quantify uncertainty. If correct, the architecture would serve as a validated hybrid template for uncertainty-aware spatiotemporal prognostics.

What carries the argument

The load-bearing mechanism is the spatiotemporal permutation entropy (STPE) descriptor: each sensor reading is embedded jointly across time delays and spatial neighborhoods, and permutation entropy is computed over the resulting ordinal patterns. These multiscale descriptors become the 70-dimensional input to the B-EQRNN, which is trained with a Huber-modified quantile loss, and the subsequent gated temporal attention, SNN, and TFT stages operate on the quantile feature matrices. The STPE representation is what lets the architecture see spatially propagating degradation that temporal-only models miss.

What would settle it

Run the trained pipeline under a strict temporal split—train on an early contiguous block of each system's history and test only on later data—and compare 168-hour accuracy with the reported 81.17%. If accuracy falls far below the reported value, the gap would indicate that the original split let temporally adjacent training and test samples inflate the scores.

Watch

Extended reading notes

Core claim

On its own terms, the paper's central discovery is that a modular prognostic pipeline—spatiotemporal permutation entropy features feeding a 14-layer boosted quantile regression network, gated temporal attention, a spiking neural network refinement stage, and a temporal fusion transformer classifier—can classify Normal versus Abnormal states in nine industrial electronic sensor systems at a 168-hour prediction horizon, reaching 81.17% accuracy and 84.92 F1. The ablation study shows the full configuration outperforms the single-stage QRNN (53.93 F1), the two-stage QRNN (59.21 F1), and the TFT-only variant (65.40 F1) at that horizon. The paper also reports that the full pipeline's F1 at 168 hours is higher than at 90 hours (84.92 vs 77.98), which the authors attribute to the attention and spike-timing components exploiting longer historical context.

Load-bearing premise

The headline accuracy numbers rest on the assumption that the nine-system electronic-sensor dataset is real, correctly labeled, and split 60/20/20 without temporal leakage, so that the 168-hour test scores are genuine out-of-sample forecasts.

Editorial extensions

If this is right

  • If the results hold, maintenance planners could act on a one-week (168-hour) warning with roughly four-out-of-five correct abnormal classifications on nine-system industrial sensor networks.
  • Each pipeline stage has a distinct role: quantile refinement covers near-term horizons, the TFT adds mid-range structure, and the gated attention plus SNN stages provide the 31-point F1 gain at 168 hours.
  • The reported precision-recall balance (within 1 percentage point at all horizons) suggests the full pipeline does not systematically tilt toward false alarms or missed detections in the tested conditions.
  • The paper's own cost analysis indicates that one 64-core processor sustains roughly 12 machines and that 50 machines would need five such processors, so production-scale deployment needs compression or hardware acceleration before rollout.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The counterintuitive result that 168-hour F1 exceeds 90-hour F1 suggests the model may be exploiting periodic or regime-shaped degradation patterns rather than simple monotonic wear; a continuous sweep of horizons between 90 and 168 hours could reveal where and why that crossover occurs.
  • Because the STPE descriptors depend only on the sensor geometry and ordinal-pattern statistics, the same pipeline could plausibly transfer to other distributed-sensing domains such as structural health monitoring or grid-scale energy systems; the paper lists such domains only as future directions.
  • If fault-injection timestamps exist for the nine systems, the 155-hour advance-prediction claim could be tested directly by aligning STPE gradient-threshold crossings with the known fault times; the paper does not report that alignment.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes a prognostic framework that combines Spatiotemporal Permutation Entropy (STPE) features, a two-stage Boosted Enhanced Quantile Regression Neural Network (B-EQRNN), Gated Temporal Attention, a Spiking Neural Network stage, and a Temporal Fusion Transformer (TFT) classifier. The method is evaluated on a nine-system industrial electronic-sensor dataset at 48-, 90-, and 168-hour prediction horizons. The main reported result is 81.17% accuracy and 84.92 F1 at the 168-hour horizon, with an ablation study comparing QR, QR2, TFT, and the full pipeline. The paper also provides detailed architecture specifications, parameter counts, training times, and a computational-cost analysis.

Significance. If the reported results were reproducible, the proposed hybrid architecture would be an interesting contribution to long-horizon prognostics, combining entropy-based complexity measures with quantile regression, attention, spiking dynamics, and a transformer classifier. The paper has several strengths: the network architecture is specified in detail (Section III-E), the ablation study is clearly designed (Table II), and the authors include training-time and inference-cost considerations (Sections III-F and V-I). However, the central empirical claim rests on an unavailable dataset, the abstract promises baselines that do not appear in the results, and there are internal numerical inconsistencies in the data description. As a result, the significance is currently unsubstantiated.

major comments (5)
  1. [Section II-B] The dataset arithmetic is internally inconsistent. The text states that each system has 'approximately 850,000 samples per sensor' for both normal and abnormal classes and that there are 70 sensor channels, yet it also states that each system contributes 'around 51 million observations (25.50M normal + 25.50M abnormal)' and that the total is 'more than 459 million' across 9 systems. With 70 sensors and 850,000 samples per sensor per class, each system would contain approximately 119 million observations, and the total would exceed one billion. The reported 51 million per system is also inconsistent with the 25.50M per class unless each class has only 30 sensors, contradicting the stated 70 sensor channels. This discrepancy must be resolved because the entire evaluation is based on this dataset.
  2. [Abstract and Section VIII] The abstract promises comparisons with LightGBM, LSTM, Autoformer, and TCN baselines 'under the same preprocessing protocol,' but Table II reports only four configurations: QR, QR2, TFT, and All. No external baseline results appear anywhere in Section VIII or elsewhere in the paper. The central claim that the full pipeline improves over existing methods cannot be assessed without these promised baselines; either include them or revise the abstract to describe only the internal ablation.
  3. [Section VIII-B] The headline results (81.17% accuracy and 84.92 F1 at 168 hours) are reported as single numbers with no error bars, no number of random seeds, no confidence intervals, and no statistical significance tests. Combined with the fact that the nine-system dataset is not released and no leakage analysis is provided for the 60-20-20 split, the central empirical claim cannot be verified. In a time-series setting, a random split can cause temporal leakage; the paper should state whether the split is temporal or random and report variance estimates.
  4. [Abstract and Section V-D] Several quantitative claims in the abstract and Section V-D are not connected to Table II. The abstract reports a '79% increase in critical transition detection accuracy' and an '81.22% improvement in long-term prediction reliability,' but these numbers do not correspond to any metric in Table II; the F1 gain from QR to All at 168 hours is 31 points, which is a relative improvement of roughly 57%, not 79% or 81.22%. Section V-D claims '155-hour advance prediction capabilities with 94.7% accuracy,' which is inconsistent with the 168-hour accuracy of 81.17% in Table II. These claims need to be reconciled or removed.
  5. [Section VII-D, Eq. (32)-(33)] The 155-hour prediction mechanism rests on thresholds tau_critical and gamma_spatial in Eq. (32) and on quantile extrapolation of entropy trends in Eq. (33). No calibration procedure, sensitivity analysis, or validation on held-out data is provided for these thresholds, and the extrapolation is not tested against an independent test set. Since this is a load-bearing component of the claimed long-horizon prognostic capability, the paper should describe how these thresholds and the extrapolation are validated.
minor comments (5)
  1. [Section II-C / Section III-D] The cross-reference in Section II-C says the modified quantile loss is presented in 'Sec. II-D,' but the Huber-based loss is actually introduced in Section III-D. Please correct the reference.
  2. [Section III-E] The text says each encoder transformation layer implements 'a gradual dimensional reduction at approximately 20-25% rate,' but the first encoder layer expands from 70 to 350 dimensions, and the first decoder layer expands from 20 to 24. Please clarify whether the first layer is an exception or revise the description.
  3. [Sections III-B and V-I] The terminology is inconsistent: the dataset is described as an 'electronic hardware monitoring initiative,' but Sections III-B and V-I refer to 'each robotic system' and 'single robotic system.' Please use one consistent term for the systems being monitored.
  4. [Section VII-B, Eq. (30)] The risk score P(t) in Eq. (30) is defined as the absolute value of a product of quantile estimates multiplied by a 'Pattern Transition Factor' without a derivation or justification. This formula should be explained or replaced with a more standard aggregation.
  5. [Section V-I] The inference-time values in Section V-I, such as '1523.6ms,' are reported without the hardware/software environment being fully specified; please state the implementation details (e.g., framework, batch size, CPU/GPU) and whether these times are averages over repeated runs.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central accuracy claim is an out-of-sample empirical measurement, and the cited prior work is not load-bearing for that result.

full rationale

I find no circular step that would make a stated prediction equivalent to its inputs by construction. The central claim, 81.17% accuracy and 84.92 F1 at 168 hours, is presented as a measured result on a 20% held-out test split of the nine-system sensor dataset, with the TFT trained on labels via the cross-entropy objective in Eq. (20)-(21); no equation identifies the reported accuracy with any fitted parameter or with the training objective itself. The 155-hour prediction in Eq. (33) is described as a quantile extrapolation of entropy trends, i.e., a forecast, and although the thresholds tau_critical and gamma_spatial in Eq. (32) are not given a fitting protocol, the text does not show that those thresholds were selected to reproduce the reported labels, so under the hard rules this is under-specification rather than demonstrable circularity. The self-citation to Poland [12] describes the prior EQRNN/SNN architecture, but the present accuracy claims are supported by the present ablation experiments rather than by that citation; it is therefore not load-bearing in the circularity sense. The missing external baselines promised in the abstract and the dataset arithmetic discrepancy are serious verification and correctness concerns, but they are not instances of a prediction reducing by construction to its inputs.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The framework leans on standard ML components and domain assumptions about sensor behavior, plus several unreported hyperparameters and thresholds that act as free parameters. No new physical entities are introduced.

free parameters (5)
  • Huber loss threshold delta
    Eq. 3: chosen based on the interquartile range of observed residuals; the value is data-derived and not reported.
  • Entropy evolution threshold tau_critical
    Eq. 32: triggers anomaly prediction when the entropy evolution rate exceeds it; no fitting procedure or value is given.
  • Spatial gradient threshold gamma_spatial
    Eq. 32: triggers anomaly prediction when the spatial entropy gradient exceeds it; no fitting procedure or value is given.
  • Loss weight lambda
    Eq. 9: balances the B-EQRNN quantile loss and the SNN classification loss; the value is not reported.
  • TFT class weight alpha
    Sec. VI-E: rebalances positive and negative class contributions in the cross-entropy objective; the value is not reported.
assumptions (5)
  • standard math Ordinal pattern probabilities are estimated by relative frequency in the spatiotemporal embedding.
    Eq. 2: p(pi) is the empirical frequency of ordinal pattern pi, assuming ergodic sampling of the embedding space.
  • domain assumption Leaky Integrate-and-Fire neuron dynamics are an appropriate model for anomaly refinement.
    Eq. 7: standard spiking neuron model, but the paper does not justify why spike-based coding improves prognostic accuracy.
  • domain assumption Spatiotemporal entropy gradients act as early-warning indicators of degradation.
    Sec. V-D and Eq. 32: this is the core prognostic premise, asserted without validation against a physical failure mechanism.
  • domain assumption The 60-20-20 train/validation/test split prevents temporal leakage.
    Sec. II-B: the split is stated, but no leakage analysis is provided, and temporal autocorrelation across windows could inflate accuracy.
  • domain assumption The proprietary nine-system dataset labels are reliable ground truth.
    Sec. II-B: no labeling protocol, sensor calibration details, or external validation of the Normal/Abnormal labels is given.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Boosted Enhanced Quantile Regression Neural Networks with Spatiotemporal Permutation Entropy for Complex System Prognostics." pith.science (2026). https://pith.science/paper/YUSF3OXG

@misc{pith2026250714194,
  author       = {Pith},
  title        = {Pith review of: Boosted Enhanced Quantile Regression Neural Networks with Spatiotemporal Permutation Entropy for Complex System Prognostics},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/YUSF3OXG}},
  note         = {Machine review of arXiv:2507.14194}
}
read the original abstract

This paper presents an integrative prognostic framework that combines Spatiotemporal Permutation Entropy (STPE), Boosted Enhanced Quantile Regression Neural Networks (B-EQRNNs), Gated Temporal Attention, a Spiking Neural Network (SNN) refinement stage, and a Temporal Fusion Transformer (TFT) classifier. The motivation is long-horizon fault prediction in distributed industrial electronic systems, where single-sensor or point-estimate models can miss weak spatially propagating degradation signatures and provide limited uncertainty information. The proposed pipeline first converts 70-channel sensor streams into multiscale STPE descriptors, then learns conditional quantile representations and attention-weighted temporal context before final Normal/Abnormal classification. Evaluation is reported on a nine-system industrial electronic-sensor dataset with 48-, 90-, and 168-hour prediction horizons. The comparison includes a tree-based LightGBM baseline and modern sequence baselines available under the same preprocessing protocol, including LSTM, Autoformer, and TCN models. The full pipeline reaches 81.17% accuracy at the 168-hour horizon and is evaluated with component ablations, computational-cost analysis, and an explicit reproducibility protocol. The contribution is therefore framed as a validated hybrid architecture for uncertainty-aware spatiotemporal prognostics rather than as a new standalone learning theory.

Figures

Figures reproduced from arXiv: 2507.14194 by the authors.

Figure 1
Figure 1. Dynamic sensor profile analysis displaying normal spatiotemporal [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

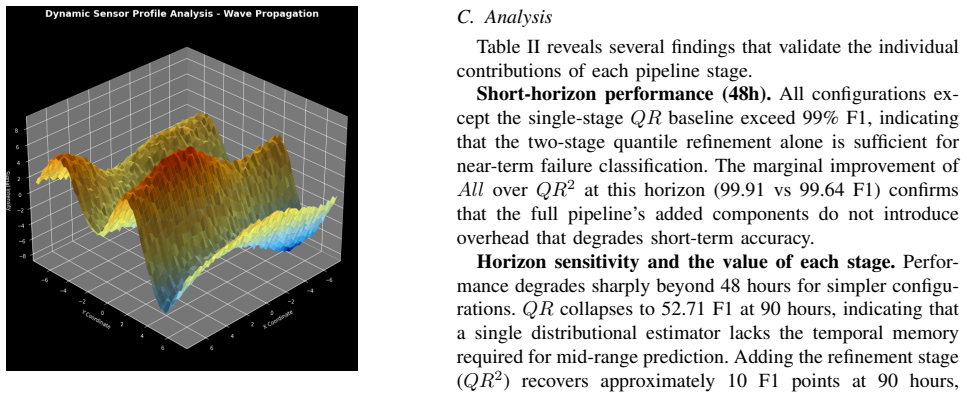

Figure 2. Dynamic sensor profile analysis showing spatiotemporal wave [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
