arxiv: 2507.19416 · v2 · submitted 2025-07-25 · 🧬 q-bio.NC · math.DS

Dual Mechanisms for Heterogeneous Responses of Inspiratory Neurons to Noradrenergic Modulation

Sreshta Venkatakrishnan , Andrew K. Tryba , Alfredo J. Garcia III , Yangyang Wang This is my paper

Pith reviewed 2026-05-19 02:46 UTC · model grok-4.3

classification 🧬 q-bio.NC math.DS
keywords preBötzinger complexnorepinephrineneuromodulationconditional burstingbursting neuronsdynamical systemsIP3respiratory rhythm
0
0 comments X

The pith

Norepinephrine modulates inspiratory neurons through simultaneous changes in calcium-activated current conductance and IP3 to produce cell-specific bursting patterns.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a computational model of neurons in the preBötzinger complex to show how norepinephrine generates heterogeneous responses across different inspiratory neuron subtypes. By adjusting two parameters in line with experimental observations, the model reproduces the distinct effects norepinephrine has on various bursting patterns. This dual adjustment proves necessary to induce conditional bursting in some neurons while leaving others inactive and to explain differing shifts in burst frequency and duration. The work matters because the respiratory rhythm must stay both stable and adaptable, and cell-specific neuromodulation is a key way the system achieves that flexibility.

Core claim

By modulating g_CAN and IP3 in a computational model of preBötC neurons, norepinephrine differentially affects NaP-dependent and CAN-dependent bursting neurons. The dual mechanism is critical for inducing conditional bursting, and specific parameter regimes keep silent neurons inactive even in the presence of NE. Dynamical systems analysis reveals how NE modulates burst frequency and duration differently depending on the underlying bursting mechanism, and these outcomes align with previously reported experimental findings.

What carries the argument

Dual modulation of the calcium-activated nonspecific cationic current conductance (g_CAN) and inositol-triphosphate (IP3) concentration, which together reproduce the experimentally observed heterogeneous responses to norepinephrine.

If this is right

  • Conditional bursting occurs only when both g_CAN and IP3 are modulated together rather than either parameter alone.
  • Silent neurons remain inactive across identifiable ranges of the two parameters even when norepinephrine is present.
  • Norepinephrine produces opposite or distinct changes in burst frequency versus burst duration depending on whether the neuron uses NaP-dependent or CAN-dependent mechanisms.
  • The modeled outcomes match the differential effects reported in experimental studies of norepinephrine on preBötC neurons.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same dual-parameter approach could be tested on other neuromodulators to see whether similar mechanisms explain their cell-specific actions in the respiratory network.
  • Mapping the parameter regimes that preserve silence might help predict conditions under which breathing rhythm stays unchanged despite neuromodulatory input.
  • Incorporating these single-neuron mechanisms into network models could clarify how heterogeneous responses scale up to shape overall inspiratory rhythm stability and flexibility.

Load-bearing premise

The experimentally observed effects of norepinephrine can be captured by modulating only g_CAN and IP3 while holding all other cellular properties fixed or scaling them uniformly.

What would settle it

An experiment that shows norepinephrine must change additional cellular properties beyond g_CAN and IP3 to produce the full range of differential effects on preBötC neuron bursting would indicate that the dual-parameter model is incomplete.

Figures

Figures reproduced from arXiv: 2507.19416 by Alfredo J. Garcia III, Andrew K. Tryba, Sreshta Venkatakrishnan, Yangyang Wang.

Figure 1
Figure 1. Figure 1: Activity patterns of the dimensionless model [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Projection of the INaP-dependent N-burst solution of (2.6) along with the bifurcation diagrams for gNaP = 2, gCa = 0.00002, [IP3] = 0.5, and varying values of gCAN. (A) gCAN = 0.7. Projection of the solution (black) and the bifurcation diagram for the fast (v, n) subsystem with respect to h, along with the h-nullcline (green). The S-shaped light purple curve (solid where attracting, dashed otherwise) denot… view at source ↗
Figure 3
Figure 3. Figure 3: Two-parameter diagrams showing the effect of ([IP [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4

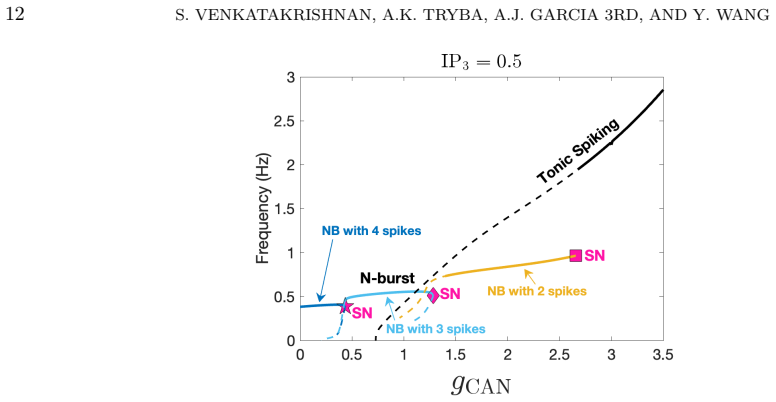

Figure 4. Figure 4: Bifurcation diagram of (2.6), showing the frequency of different N-burst solutions (colored curves) and the tonic spiking branch (black curve) as functions of gCAN. As gCAN increases, the number of spikes per burst decreases from 4 (dark blue) to 3 (light blue), then to 2 (yellow), before eventually transitioning to tonic spiking. Solid lines denote stable branches; dashed lines denote unstable branches. A… view at source ↗
Figure 5

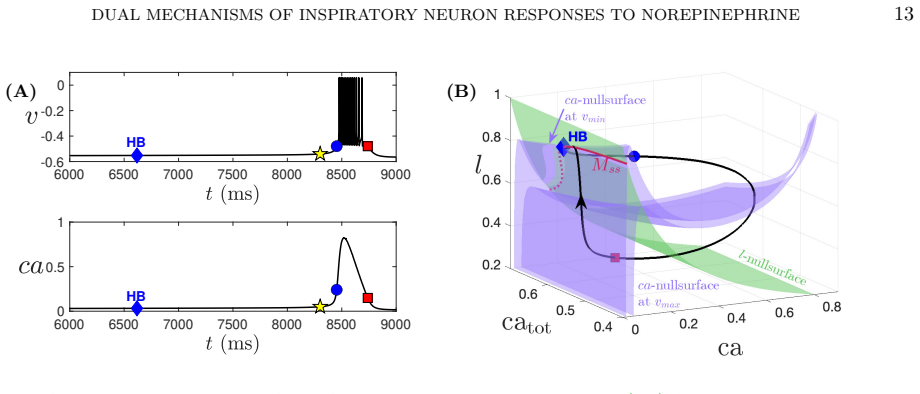

Figure 5. Figure 5: Simulation of one cycle of the C-bursting solution generated by [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: ca-nullsurfaces (blue surface) and l-nullsurface (green surface) for [IP3] = 0.2 and (A) gCAN = 1.48 and (B) gCAN = 2.14, projected onto (ca, catot, l)-space. Solution trajectories of (2.6) with gCAN = 1.48 and gCAN = 2.14 are shown in both panels by the black and red curves, respectively. Other parameters, color coding and symbols are the same as Figure 5B. the trajectory (red curve) shifts to higher cato… view at source ↗
Figure 7
Figure 7. Figure 7: ca-nullsurfaces and l-nullsurface for gCAN = 1.48 and (A) [IP3] = 0.2, (B) [IP3] = 0.33 and (C) [IP3] = 0.66, projected onto (ca, catot, l)-space, and (D) onto (ca, l)-space. Solution trajectories of (2.6) with [IP3] = 0.2, [IP3] = 0.33 and [IP3] = 0.66 are shown in all panels by the black, red and blue curves, respectively, in all panels. Other parameters, color coding and symbols are the same as in Figur… view at source ↗
Figure 8
Figure 8. Figure 8: Two-parameter diagrams showing the effects of ([IP [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Activity patterns of model (2.6) for gCa = 0.0002, shown as a function of gNaP and [IP3], with (i) gCAN = 0.7 and (ii) gCAN = 1.4. Color coding follows that in [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Simulation of one cycle of NE-induced C-bursting solution from [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Projections of the solutions from Figure 9A1 and B1 onto (ca, catot, l)-space are shown in panels (A) and (B), respectively. Also shown are the ca-nullsfurces, l-nullsurface and the superslow manifold Mss. Full system equilibria are shown by black circle (stable) and black triangle (unstable). The yellow circle denotes the superslow manifold fold Lss. Other color coding and symbols are the same as in Figu… view at source ↗
Figure 12

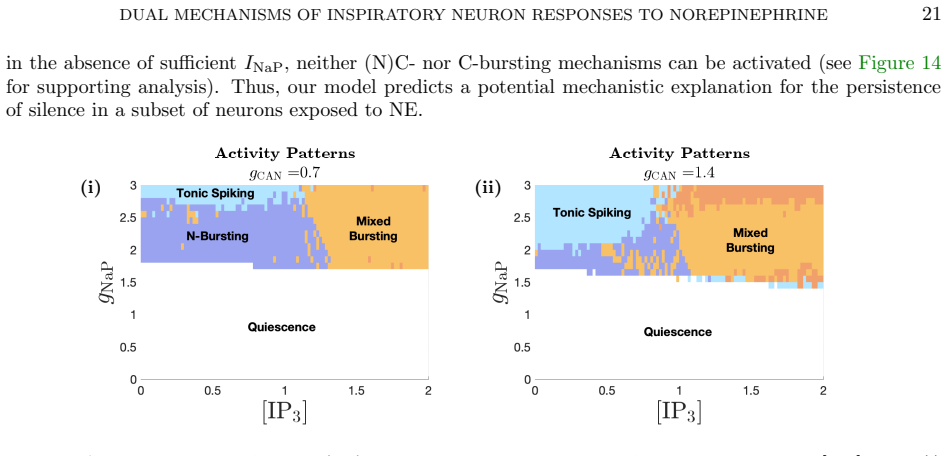

Figure 12. Figure 12: Activity patterns of model (2.6) for gCa = 5e − 5, shown as a function of gNaP and [IP3], with (i) gCAN = 0.7 and (ii) gCAN = 1.4. Color coding follows that in [PITH_FULL_IMAGE:figures/full_fig_p021_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Some example voltage and calcium temporal traces from [PITH_FULL_IMAGE:figures/full_fig_p030_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Two-parameter bifurcation diagrams of the full system [PITH_FULL_IMAGE:figures/full_fig_p030_14.png] view at source ↗
read the original abstract

Respiration is an essential involuntary function necessary for survival. This poses a challenge for the control of breathing. The preB\"otzinger complex (preB\"otC) is a heterogeneous neuronal network responsible for driving the inspiratory rhythm. While neuromodulators such as norepinephrine (NE) allow it to be both robust and flexible for all living beings to interact with their environment, the basis for how neuromodulation impacts neuron-specific properties remains poorly understood. In this work, we examine how NE influences different preB\"otC neuronal subtypes by modeling its effects through modulating two key parameters: calcium-activated nonspecific cationic current gating conductance ($g_{\rm CAN}$) and inositol-triphosphate ($\rm IP_3$), guided by experimental studies. Our computational model captures the experimentally observed differential effects of NE on distinct preB\"otC bursting patterns. We show that this dual mechanism is critical for inducing conditional bursting and identify specific parameter regimes where silent neurons remain inactive in the presence of NE. Furthermore, using methods of dynamical systems theory, we uncover the mechanisms by which NE differentially modulates burst frequency and duration in NaP-dependent and CAN-dependent bursting neurons. These results align well with previously reported experimental findings and provide a deeper understanding of cell-specific neuromodulatory responses within the respiratory network.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper develops a computational model of preBötC inspiratory neurons to examine norepinephrine (NE) effects on heterogeneous bursting. Guided by experiments, it modulates only g_CAN and IP3 to reproduce differential NE responses across NaP-dependent and CAN-dependent subtypes, claims this dual mechanism is critical for conditional bursting, identifies parameter regimes where silent neurons remain inactive, and applies dynamical systems analysis to explain NE-induced changes in burst frequency and duration.

Significance. If the modeling assumptions hold, the work offers mechanistic insight into cell-specific neuromodulation within the respiratory rhythm generator and demonstrates how dynamical systems methods can link parameter changes to specific dynamical features such as burst metrics. This could inform broader questions of network robustness and flexibility under neuromodulatory control.

major comments (2)
  1. [Abstract] Abstract: The assertion that the dual mechanism (modulation of g_CAN and IP3) is 'critical' for inducing conditional bursting and for the observed differential effects is not supported by any comparison to single-parameter modulation, alternative NE targets (e.g., leak or NaP conductances), or sensitivity analysis. Without these, the necessity of the two-parameter restriction remains untested and the claim risks being an artifact of the restricted parameter space.
  2. [Abstract] Abstract / parameter selection: Ranges for g_CAN and IP3 are stated to be 'guided by experimental studies,' yet the manuscript provides no explicit check that these ranges were chosen independently of the model outputs or that the heterogeneity and conditional bursting emerge robustly outside the fitted regimes. This raises a potential circularity concern for the central claim that the dual mechanism explains the experimental observations.
minor comments (1)
  1. [Abstract] Abstract: The statement that results 'align well with previously reported experimental findings' would benefit from citing the specific studies and providing at least qualitative or quantitative matches for burst frequency, duration, or conditional bursting incidence.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments. We address each major comment below and indicate where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that the dual mechanism (modulation of g_CAN and IP3) is 'critical' for inducing conditional bursting and for the observed differential effects is not supported by any comparison to single-parameter modulation, alternative NE targets (e.g., leak or NaP conductances), or sensitivity analysis. Without these, the necessity of the two-parameter restriction remains untested and the claim risks being an artifact of the restricted parameter space.

    Authors: We acknowledge that the word 'critical' implies a necessity that is not directly tested by comparisons to single-parameter changes or other potential NE targets. The dual modulation was selected because experimental literature specifically implicates NE effects on g_CAN and IP3 in preBötC neurons. To address this point, we will add supplementary simulations comparing single versus dual modulation and include a brief sensitivity analysis. We will also revise the abstract language to 'this dual mechanism enables' rather than 'is critical for' to more accurately reflect the presented results. revision: yes

  2. Referee: [Abstract] Abstract / parameter selection: Ranges for g_CAN and IP3 are stated to be 'guided by experimental studies,' yet the manuscript provides no explicit check that these ranges were chosen independently of the model outputs or that the heterogeneity and conditional bursting emerge robustly outside the fitted regimes. This raises a potential circularity concern for the central claim that the dual mechanism explains the experimental observations.

    Authors: The ranges were taken from published experimental measurements of NE-induced changes in CAN current and IP3 levels in respiratory neurons and were not tuned to match specific model outputs. To make this independence explicit and address the robustness concern, we will add a dedicated paragraph in the Methods section citing the experimental sources and include additional figures or text showing that the key qualitative behaviors (heterogeneity and conditional bursting) persist when parameters are varied modestly outside the primary ranges. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation chain is self-contained

full rationale

The paper constructs a computational model of preBötC neurons, selects modulations to g_CAN and IP3 guided by prior experimental literature, then applies dynamical systems analysis to derive mechanisms for conditional bursting and differential effects on frequency/duration. No step reduces by construction to the inputs: the criticality claim follows from explicit simulation of the two-parameter space and phase-plane analysis rather than tautological renaming or refitting of observed outputs. No self-citation load-bearing uniqueness theorems, ansatz smuggling, or fitted-input predictions are present. The work remains independent of its own parameter choices because the dynamical mechanisms are falsifiable against the model's equations and align with but are not forced by the experimental guidance.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on the premise that the biological actions of NE are adequately represented by independent scaling of two parameters in an existing neuron model; no new entities are postulated and the mathematical framework is standard dynamical systems.

free parameters (2)
  • g_CAN modulation factor
    Scaling factor applied to calcium-activated nonspecific cationic current conductance to reproduce NE effects; value range chosen to match experimental data.
  • IP3 modulation factor
    Scaling factor applied to inositol-triphosphate concentration or related parameters; value range chosen to match experimental data.
axioms (1)
  • domain assumption The preBötC neuron model equations and baseline parameters from prior literature remain valid when only g_CAN and IP3 are varied.
    Invoked when the authors state the model is 'guided by experimental studies' and captures observed patterns.
