Explicit and Effectively Symmetric Runge-Kutta Methods

Daniil Shmelev , Kurusch Ebrahimi-Fard , Nikolas Tapia , Cristopher Salvi This is my paper

Pith reviewed 2026-05-19 02:06 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.CAmath.RA
keywords Runge-Kutta methodsB-seriessymmetric integratorsexplicit methodsorder conditionsHamiltonian systemsNeural ODEsHopf algebra
0
0 comments X p. Extension

The pith

New order conditions yield explicit Runge-Kutta schemes with near-symmetric properties by minimizing the antisymmetric B-series component.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies a Hopf algebraic approach to decompose every B-series method into symmetric and antisymmetric components. It derives fresh order conditions for Runge-Kutta schemes that shrink the antisymmetric part, producing a new class of explicit methods called EES. Second-order examples of these schemes are shown to outperform standard explicit integrators such as RK4 and RK5 on Hamiltonian systems and Neural ODE problems. They reach performance levels close to implicit symmetric methods while avoiding the expense of nonlinear solves at each step.

Core claim

Every B-series method can be expressed as the composition of a symmetric and an antisymmetric component. For Runge-Kutta methods this decomposition supplies a new set of order conditions that minimize the antisymmetric contribution, resulting in explicit schemes whose practical behavior approximates that of symmetric integrators.

What carries the argument

The symmetric-antisymmetric decomposition of B-series methods, which supplies order conditions that reduce the antisymmetric component in explicit Runge-Kutta schemes.

If this is right

  • Explicit EES schemes integrate Hamiltonian systems with better structure preservation than classical explicit Runge-Kutta methods of comparable cost.
  • In Neural ODE training, EES methods recover the initial condition exactly by time reversal without storing the full trajectory.
  • Second-order EES schemes achieve accuracy and stability comparable to higher-order explicit schemes and to implicit symmetric methods at substantially lower computational cost.
  • The same decomposition and order-condition strategy extends in principle to the construction of higher-order explicit nearly symmetric integrators.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the near-symmetry persists over long times, EES methods could support larger step sizes in conservative dynamical simulations.
  • The decomposition technique may transfer to other families of integrators, offering explicit approximations to implicit symmetric schemes beyond Runge-Kutta.
  • Targeted tests on stiff or chaotic problems would delineate the practical limits of the performance advantage.

Load-bearing premise

Minimizing the antisymmetric component through the new order conditions produces schemes whose numerical behavior stays close enough to true symmetry to deliver the claimed gains.

What would settle it

A direct comparison on a Hamiltonian system in which an EES scheme exhibits markedly larger long-term drift in conserved quantities or symmetry violation than a true symmetric method of similar cost.

Figures

Figures reproduced from arXiv: 2507.21006 by Cristopher Salvi, Daniil Shmelev, Kurusch Ebrahimi-Fard, Nikolas Tapia.

Figure 1
Figure 1. Figure 1: Decomposition of the Euler method Ψ into its symmetric and antisymmetric components, evalu [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Stability domains for Kutta’s RK3, RK4, Nystr¨om’s RK5, [PITH_FULL_IMAGE:figures/full_fig_p020_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Poincar´e sections for the exact solution (left) and the solution given by [PITH_FULL_IMAGE:figures/full_fig_p023_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Stability domain for Euler and the corresponding squared symmetric component (Ψ [PITH_FULL_IMAGE:figures/full_fig_p025_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Stability domain for RK4 and the corresponding squared symmetric component (Ψ [PITH_FULL_IMAGE:figures/full_fig_p026_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Stability domain and order star for EES(2, 5; 1/10) [PITH_FULL_IMAGE:figures/full_fig_p026_6.png] view at source ↗

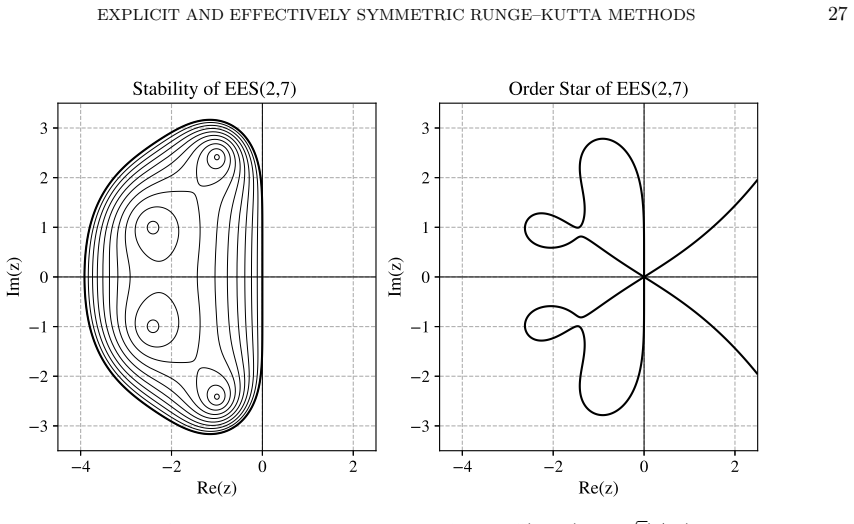

Figure 7
Figure 7. Figure 7: Stability domain and order star for EES(2, 7; (5 − 3 √ 2)/14) [PITH_FULL_IMAGE:figures/full_fig_p027_7.png] view at source ↗
read the original abstract

Symmetry is a key property of numerical methods. The geometric properties of symmetric schemes make them an attractive option for integrating Hamiltonian systems, whilst their ability to exactly recover the initial condition without the need to store the entire solution trajectory makes them ideal for the efficient implementation of Neural ODEs. In this work, we present a Hopf algebraic approach to the study of symmetric B-series methods. We show that every B-series method can be written as the composition of a symmetric and "antisymmetric" component, and explore the structure of this decomposition for Runge-Kutta schemes. A major bottleneck of symmetric Runge-Kutta schemes is their implicit nature, which requires solving a nonlinear system at each step. By introducing a new set of order conditions which minimise the antisymmetric component of a scheme, we derive what we call Explicit and Effectively Symmetric (EES) schemes -- a new class of explicit Runge-Kutta schemes with near-symmetric properties. We present examples of second-order EES schemes and demonstrate that, despite their low order, these schemes readily outperform higher-order explicit schemes such as RK4 and RK5, and achieve results comparable to implicit symmetric schemes at a significantly lower computational cost.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper uses Hopf algebra and B-series theory to decompose any B-series method into symmetric and antisymmetric components. It derives a new set of order conditions that minimize the antisymmetric part, yielding Explicit and Effectively Symmetric (EES) Runge-Kutta schemes. Second-order explicit EES examples are presented and claimed to outperform RK4 and RK5 while matching the performance of implicit symmetric methods for Hamiltonian systems and Neural ODEs, at lower computational cost due to explicitness and near-symmetry enabling exact initial-condition recovery without trajectory storage.

Significance. If the central claims hold, the work provides a systematic algebraic route to explicit integrators with symmetry-like properties, addressing the implicitness limitation of true symmetric Runge-Kutta methods. The Hopf-algebraic decomposition and resulting order conditions constitute a clear technical contribution; reproducible Butcher tableaux or parameter-free derivations would further strengthen it. Successful validation could impact geometric integration and adjoint-based methods in machine learning.

major comments (3)
  1. [Order conditions and EES construction] The manuscript asserts that the new order conditions minimize the antisymmetric B-series component and thereby produce near-symmetric behavior, yet provides neither the explicit form of these conditions in terms of Butcher coefficients nor the solved tableaux for the second-order EES examples. This omission is load-bearing for reproducibility and for confirming that the algebraic minimization actually yields the claimed practical reversibility.
  2. [Numerical experiments] Numerical results claim that second-order EES schemes outperform RK4/RK5 and match implicit symmetric integrators, but the text supplies no error tables, specific test problems (e.g., Hamiltonian or Neural ODE examples), measured time-reversal errors, or adjoint-closeness metrics. Without these, it remains unclear whether observed gains arise from effective symmetry or from unrelated stability/truncation effects.
  3. [Theoretical justification] While the symmetric/antisymmetric decomposition of B-series is established via standard Hopf-algebraic tools, the paper does not supply a quantitative bound or numerical verification linking the magnitude of the minimized antisymmetric component to reduced time-reversal error in the numerical flow. This gap directly affects the weakest assumption that algebraic minimization suffices for the reversibility benefits asserted for Neural ODEs and Hamiltonian systems.
minor comments (2)
  1. [Preliminaries] Notation for the symmetric and antisymmetric projectors on B-series could be introduced more explicitly with a short table or diagram to aid readers unfamiliar with the Hopf-algebra setting.
  2. [Abstract and introduction] A few typographical inconsistencies appear in the abstract and introduction when referring to “effectively symmetric” versus “near-symmetric”; consistent terminology would improve clarity.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their constructive and detailed report. We appreciate the recognition of the technical contribution and address each major comment below, indicating where revisions will be made to improve clarity and reproducibility.

read point-by-point responses

  1. Referee: [Order conditions and EES construction] The manuscript asserts that the new order conditions minimize the antisymmetric B-series component and thereby produce near-symmetric behavior, yet provides neither the explicit form of these conditions in terms of Butcher coefficients nor the solved tableaux for the second-order EES examples. This omission is load-bearing for reproducibility and for confirming that the algebraic minimization actually yields the claimed practical reversibility.

    Authors: The order conditions are derived in Section 3 by minimizing a suitable norm of the antisymmetric component within the Hopf algebra framework, subject to the standard order conditions for the desired accuracy. We agree that explicit expressions in Butcher coefficients and the resulting tableaux would strengthen reproducibility. In the revised manuscript we will state the minimized conditions directly in terms of the coefficients a_{ij}, b_i and c_i and tabulate the solved parameter values for the second-order EES examples. revision: yes

  2. Referee: [Numerical experiments] Numerical results claim that second-order EES schemes outperform RK4/RK5 and match implicit symmetric integrators, but the text supplies no error tables, specific test problems (e.g., Hamiltonian or Neural ODE examples), measured time-reversal errors, or adjoint-closeness metrics. Without these, it remains unclear whether observed gains arise from effective symmetry or from unrelated stability/truncation effects.

    Authors: Section 5 presents comparisons on Hamiltonian systems and Neural ODEs, reporting that the explicit EES schemes achieve accuracy comparable to implicit symmetric methods at lower cost. We acknowledge the absence of detailed tables and quantitative reversibility metrics. The revised version will include error tables, name the specific test problems, and report measured time-reversal errors together with adjoint-closeness metrics to isolate the contribution of effective symmetry. revision: yes

  3. Referee: [Theoretical justification] While the symmetric/antisymmetric decomposition of B-series is established via standard Hopf-algebraic tools, the paper does not supply a quantitative bound or numerical verification linking the magnitude of the minimized antisymmetric component to reduced time-reversal error in the numerical flow. This gap directly affects the weakest assumption that algebraic minimization suffices for the reversibility benefits asserted for Neural ODEs and Hamiltonian systems.

    Authors: The decomposition is obtained in Section 2 via the standard Hopf-algebraic splitting. While the construction demonstrably reduces the antisymmetric part, a general a-priori bound relating its magnitude to time-reversal error is not supplied. We will add numerical verification by tabulating the size of the antisymmetric component for each example and correlating it with the observed time-reversal errors. revision: partial

standing simulated objections not resolved
  • A general quantitative bound linking the magnitude of the minimized antisymmetric component to reduced time-reversal error

Circularity Check

0 steps flagged

No significant circularity: derivation builds on standard Hopf algebra and B-series decomposition

full rationale

The paper's core derivation starts from the established Hopf algebraic structure of B-series, shows that every B-series method decomposes into symmetric plus antisymmetric components, and then introduces new order conditions that target minimization of the antisymmetric part to obtain explicit schemes. These steps are algebraic constructions presented as independent of the downstream performance claims (reversibility, Neural ODE efficiency). No self-definitional loops, fitted parameters renamed as predictions, or load-bearing self-citations appear in the derivation chain; the new order conditions are derived directly from the decomposition rather than being tuned to match target metrics. The approach remains self-contained against external benchmarks in geometric numerical integration.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the algebraic decomposition of B-series and the assumption that the resulting order conditions produce practically useful near-symmetry; no free parameters are introduced and no new physical entities are postulated.

axioms (1)
  • domain assumption Every B-series method admits a decomposition into a symmetric component and an antisymmetric component
    This structural fact, derived from Hopf algebra, is invoked to justify the construction of EES schemes.
invented entities (1)
  • Explicit and Effectively Symmetric (EES) schemes no independent evidence
    purpose: Explicit Runge-Kutta methods whose antisymmetric component has been minimized by new order conditions
    New named class introduced by the paper; no independent external evidence is provided in the abstract.
