arxiv: 2508.07125 · v2 · submitted 2025-08-10 · 🪐 quant-ph · cs.DM

Block encoding the 3D heterogeneous Poisson equation with application to fracture flow

Austin Pechan , John Golden , Daniel O'Malley This is my paper

Pith reviewed 2026-05-19 00:20 UTC · model grok-4.3

classification 🪐 quant-ph cs.DM
keywords block encodingquantum linear systemsPoisson equationfracture flowheterogeneous mediaquantum algorithms3D discretizationgroundwater modeling
0
0 comments X

The pith

Quantum linear solvers solve 3D heterogeneous Poisson equations for fracture flow in O(N to the two-thirds) runtime, beating classical scaling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs an explicit block encoding for the matrix from discretizing a three-dimensional Poisson equation with varying coefficients, the kind that describes groundwater moving through networks of cracks in rock. The encoding exploits the local sparse connections on a 3D grid. Although treating the matrix and a preconditioner as separate block encodings fails to shrink the effective condition number the way classical solvers do, the three-dimensional geometry still produces a quantum runtime of O(N to the two-thirds times polylog factors). A reader should care because this identifies a concrete setting where quantum methods could first deliver practical speed and memory gains on large scientific simulations even before perfect preconditioning is solved.

Core claim

We explicitly construct a block encoding for the 3D heterogeneous Poisson matrix by leveraging the sparse local structure of the discretized operator. While classical solvers benefit from preconditioning, we show that block encoding the system matrix and preconditioner separately does not improve the effective condition number that dominates the QLS runtime. This differs from classical approaches where the preconditioner and the system matrix can often be implemented independently. Nevertheless, due to the structure of the problem in three dimensions, the quantum algorithm achieves a runtime of O(N^{2/3} polylog N · log(1/ε)), outperforming the best classical methods (with runtimes of O(N ·

What carries the argument

The block encoding of the discretized 3D heterogeneous Poisson matrix, built from its sparse local grid structure to represent the linear operator as a quantum unitary.

If this is right

  • Fracture networks with far more grid points than classical computers can store become simulable because the quantum method uses exponentially less memory.
  • The runtime grows only with the surface-like scaling of three dimensions rather than the full volume, extending the advantage to other 3D grid problems.
  • Reducing the effective condition number stays the central remaining obstacle to larger quantum speed-ups in these applications.
  • The same block-encoding construction can be reused for other heterogeneous linear systems that arise from local 3D discretizations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If future quantum preconditioners can be block-encoded without destroying the three-dimensional scaling, the runtime could drop closer to polylog N.
  • The approach may transfer directly to other 3D heterogeneous equations such as variable-coefficient diffusion or elasticity models.
  • Running the encoding circuit on small 3D test grids on current hardware would expose any constant-factor overheads hidden in the asymptotic analysis.

Load-bearing premise

The costs of building the block encoding for the matrix and preconditioner stay low enough that the overall quantum runtime advantage from three-dimensional scaling is not erased by overheads from variable coefficients or fracture geometry.

What would settle it

A gate-count or circuit-depth calculation for the block encoding on a 3D grid of size N that shows total cost growing at least as fast as N log N would show the claimed runtime advantage does not materialize.

Figures

Figures reproduced from arXiv: 2508.07125 by Austin Pechan, Daniel O'Malley, John Golden.

Figure 1

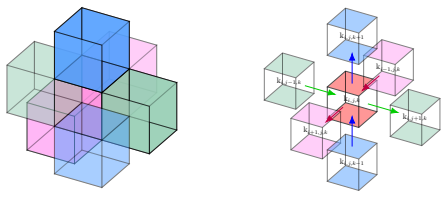

Figure 1. Figure 1: Left: A 3D spatial grid representing a discretized domain of interest. Right: a visualization of a [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: This figure shows the empirical scaling of the condition number (equivalent to the effective condition [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: This is an extension of the 2D pitchfork fracture pattern introduced in [9] to 3D. The 2D pitchfork [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Two dimensional cross sections of different fractal models of fine-grained fracture structure with [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: For the 3D pitchfork pattern shown in Fig. 3, we observe that the number of distinct elements in the [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 3
Figure 3. Figure 3: So, for this choice of ϵ, we get that the asymptotic scaling of our algorithm is not dominated by the log(1/ϵ) term, and is still O(N2/3 polylog N). E Block Encoding G′ First, it will be useful to restate some important definitions that will be used frequently throughout this section. • D is the number of distinct, non-zero values in G′ , and d ∈ {0, . . . , D−1} is a label indicating a specific value • M … view at source ↗
Figure 6

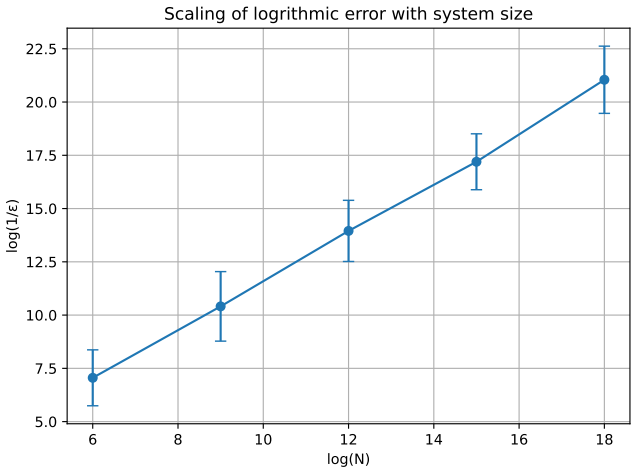

Figure 6. Figure 6: Scaling of the logarithmic error log(1/ϵ) with system size N. ϵ is defined as the smallest (non-zero) magnitude of an element in G−1 b/∥G−1 b∥. G is modeled by the modified pitchfork fracture system (seen in [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Block encoding circuit for symmetric matrices as given in equation (36) of [12]. This circuit serves [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: full block encoding for fracture flow matrix [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
read the original abstract

Quantum linear system (QLS) algorithms offer the potential to solve large-scale linear systems exponentially faster than classical methods. However, applying QLS algorithms to real-world problems remains challenging due to issues such as state preparation, data loading, and efficient information extraction. In this work, we study the feasibility of applying QLS algorithms to solve discretized three-dimensional heterogeneous Poisson equations, with specific examples relating to groundwater flow through geologic fracture networks. We explicitly construct a block encoding for the 3D heterogeneous Poisson matrix by leveraging the sparse local structure of the discretized operator. While classical solvers benefit from preconditioning, we show that block encoding the system matrix and preconditioner separately does not improve the effective condition number that dominates the QLS runtime. This differs from classical approaches where the preconditioner and the system matrix can often be implemented independently. Nevertheless, due to the structure of the problem in three dimensions, the quantum algorithm achieves a runtime of $O(N^{2/3} \ \text{polylog } N \cdot \log(1/\epsilon))$, outperforming the best classical methods (with runtimes of $O(N \log N \cdot \log(1/\epsilon))$) and offering exponential memory savings. These results highlight both the promise and limitations of QLS algorithms for practical scientific computing, and point to effective condition number reduction as a key barrier in achieving quantum advantages.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents an explicit block encoding construction for the matrix from the finite-difference discretization of the three-dimensional heterogeneous Poisson equation, motivated by applications to flow in geologic fracture networks. Using this, it analyzes the complexity of quantum linear system solvers, notes that separately block-encoding a preconditioner does not reduce the effective condition number (unlike in classical methods), and concludes that the quantum runtime is O(N^{2/3} polylog N · log(1/ε)), which is asymptotically superior to classical solvers' O(N log N · log(1/ε)) while providing exponential savings in memory.

Significance. If the claimed polylogarithmic block-encoding cost holds, this constitutes a concrete step toward quantum advantage for a practically relevant class of 3D PDE problems with highly variable coefficients. The explicit construction and the clarification on the limitations of quantum preconditioning are notable strengths. The work is grounded in standard QLS complexity and provides falsifiable runtime predictions.

major comments (1)
  1. The skeptic's concern that the block encoding cost for position-dependent heterogeneous coefficients may exceed polylog(N) does not actually land on the manuscript, because the authors explicitly construct the block encoding by leveraging the sparse local structure of the 7-point stencil, which allows the variable coefficients to be incorporated without additional asymptotic overhead beyond polylog N.
minor comments (2)
  1. The LaTeX for the runtime bound in the abstract contains an extraneous space before 'polylog'.
  2. Notation for the condition number and block-encoding cost could be defined earlier to improve readability for readers unfamiliar with QLS.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript and for the recommendation of minor revision. The referee's comment helpfully addresses a potential point of confusion regarding our block-encoding construction, and we respond to it below.

read point-by-point responses

  1. Referee: The skeptic's concern that the block encoding cost for position-dependent heterogeneous coefficients may exceed polylog(N) does not actually land on the manuscript, because the authors explicitly construct the block encoding by leveraging the sparse local structure of the 7-point stencil, which allows the variable coefficients to be incorporated without additional asymptotic overhead beyond polylog N.

    Authors: We agree with the referee's assessment. Our explicit construction in Section 3 of the manuscript indeed relies on the local sparsity of the 7-point finite-difference stencil to incorporate the spatially varying coefficients with only polylog(N) overhead. This is achieved by preparing a block encoding of the coefficient field on a per-stencil basis rather than loading the full heterogeneous data structure. We have added a short clarifying sentence in the revised version to make this distinction more prominent for readers unfamiliar with the construction. revision: partial

Circularity Check

0 steps flagged

No circularity: runtime follows from explicit block-encoding construction plus standard QLS bounds

full rationale

The paper states an explicit construction of the block encoding for the 3D heterogeneous Poisson matrix that leverages the sparse local 7-point stencil. The claimed runtime O(N^{2/3} polylog N · log(1/ε)) is obtained by substituting the grid-induced condition number κ ∼ N^{2/3} and the polylog(N) block-encoding cost T into the known QLS complexity. No equation or claim reduces to a fitted parameter, self-definition, or self-citation chain that is itself unverified. The separate discussion of preconditioner block encoding is shown not to improve effective κ, but this observation is independent of the runtime derivation. The result is therefore self-contained against external QLS theorems and classical complexity benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard quantum computing primitives for block encodings and QLS complexity bounds without introducing new free parameters, ad-hoc axioms, or invented entities beyond the problem discretization.

axioms (1)
  • standard math Standard block encoding and quantum linear system algorithm complexity results apply directly to the constructed operator.
    Invoked to derive the O(N^{2/3} polylog N log(1/ε)) runtime from the encoding cost.

pith-pipeline@v0.9.0 · 5780 in / 1291 out tokens · 55521 ms · 2026-05-19T00:20:08.912947+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

  1. [1]

    Optimal scaling quantum linear-systems solver via discrete adiabatic theorem,

    P. C. Costa, D. An, Y. R. Sanders, Y. Su, R. Babbush, and D. W. Berry, “Optimal scaling quantum linear-systems solver via discrete adiabatic theorem,” PRX Quantum, vol. 3, p. 040303, Oct 2022

    work page 2022

  2. [2]

    A shortcut to an optimal quantum linear system solver,

    A. Dalzell, “A shortcut to an optimal quantum linear system solver,” 2024

    work page 2024

  3. [3]

    Fast inversion, preconditioned quantum linear system solvers, fast green’s-function computation, and fast evaluation of matrix functions,

    Y. Tong, D. An, N. Wiebe, and L. Lin, “Fast inversion, preconditioned quantum linear system solvers, fast green’s-function computation, and fast evaluation of matrix functions,” Phys. Rev. A , vol. 104, p. 032422, Sep 2021

    work page 2021

  4. [4]

    Quantum realization of the finite element method,

    M. Deiml and D. Peterseim, “Quantum realization of the finite element method,” arXiv preprint arXiv:2403.19512, 2024

    work page arXiv 2024

  5. [5]

    On solving classes of positive-definite quantum linear systems with quadrat- ically improved runtime in the condition number,

    D. Orsucci and V. Dunjko, “On solving classes of positive-definite quantum linear systems with quadrat- ically improved runtime in the condition number,” arXiv preprint arXiv:2101.11868 , 2021

    work page arXiv 2021

  6. [6]

    Preconditioned block encodings for quantum linear systems,

    L. Lapworth and C. S¨ underhauf, “Preconditioned block encodings for quantum linear systems,” arXiv preprint arXiv:2502.20908, 2025

    work page arXiv 2025

  7. [7]

    Strang, Computational science and engineering

    G. Strang, Computational science and engineering . No. Sirsi i9780961408817, 2007

    work page 2007

  8. [8]

    dfnworks: A discrete fracture network framework for modeling subsurface flow and transport,

    J. D. Hyman, S. Karra, N. Makedonska, C. W. Gable, S. L. Painter, and H. S. Viswanathan, “dfnworks: A discrete fracture network framework for modeling subsurface flow and transport,” Computers & Geosciences, vol. 84, pp. 10–19, 2015

    work page 2015

  9. [9]

    Quantum computing and preconditioners for hydrological linear systems,

    J. Golden, D. O’Malley, and H. Viswanathan, “Quantum computing and preconditioners for hydrological linear systems,” Scientific Reports, vol. 12, Dec. 2022

    work page 2022

  10. [10]

    Quantum algorithm for linear systems of equations,

    A. W. Harrow, A. Hassidim, and S. Lloyd, “Quantum algorithm for linear systems of equations,” Physical review letters, vol. 103, no. 15, p. 150502, 2009

    work page 2009

  11. [11]

    Addressing quantum’s

    J. M. Henderson, J. Kath, J. K. Golden, A. G. Percus, and D. O’Malley, “Addressing quantum’s ”fine print”: State preparation and information extraction for quantum algorithms and geologic fracture networks,” 2023

    work page 2023

  12. [12]

    Block-encoding structured matrices for data input in quantum computing,

    C. S¨ underhauf, E. Campbell, and J. Camps, “Block-encoding structured matrices for data input in quantum computing,” Quantum, vol. 8, p. 1226, Jan. 2024. 11

    work page 2024

  13. [13]

    Hyman, G

    J. Hyman, G. Aldrich, H. Viswanathan, N. Makedonska, and S. Karra, “Fracture size and transmissivity correlations: Implications for transport simulations in sparse three-dimensional discrete fracture net- works following a truncated power law distribution of fracture size,” Water Resources Research, vol. 52, no. 8, pp. 6472–6489, 2016

    work page 2016

  14. [14]

    Flow in multiscale fractal fracture networks,

    P. Davy, O. Bour, J.-R. De Dreuzy, and C. Darcel, “Flow in multiscale fractal fracture networks,” Geological Society, London, Special Publications, vol. 261, no. 1, pp. 31–45, 2006

    work page 2006

  15. [15]

    Estimation of equivalent fracture network permeability using fractal and statistical network properties,

    A. Jafari and T. Babadagli, “Estimation of equivalent fracture network permeability using fractal and statistical network properties,” Journal of Petroleum Science and Engineering , vol. 92, pp. 110–123, 2012. Acknowledgements AP and DO gratefully acknowledge support from the Department of Energy, Office of Science, Office of Basic Energy Sciences, Geosci...

    work page 2012

  16. [16]

    dind = 00 and mhi = 1

    work page

  17. [17]

    dind = 01 and mlo = 0 (mod N1/3)

    work page

  18. [18]

    dind = 10 and j mlo (mod N 2/3) N 1/3 k = 0

    work page

  19. [19]

    dind = 11 and mlo < N 2/3

    work page

  20. [20]

    (dind, mhi, mlo) does not satisfy any of the above conditions,

    dval > D ′ and (dind, mhi, mlo) does not satisfy any of the above conditions The constraint on condition five that “(dind, mhi, mlo) does not satisfy any of the above conditions,” is added so all five conditions are dependent on each other. We need to ensure this so there is not a case where we accidentally flip the delete qubit twice. To simplify the imp...

    work page
