arxiv: 2508.16809 · v2 · submitted 2025-08-22 · 💻 cs.DC · cs.PF

PICO: Performance Insights for Collective Operations

Saverio Pasqualoni , Tommaso Bonato , Lorenzo Piarulli , Torsten Hoefler , Marco Canini , Daniele De Sensi This is my paper

Pith reviewed 2026-05-18 20:42 UTC · model grok-4.3

classification 💻 cs.DC cs.PF
keywords collective operationsperformance benchmarkingMPINCCLHPCdistributed AI trainingreproducible experiments
0
0 comments X

The pith

Default collective algorithms and transport settings can be up to 5× slower than the best available choice.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces PICO, an open-source framework that separates portable experiment setup from platform-specific execution to enable systematic benchmarking of collective operations. It supplies adaptive interfaces for MPI and NCCL, plain-MPI reference implementations, optional instrumentation, and full system configuration recording for reproducibility. Evaluations across three supercomputers establish large performance gaps between defaults and tuned selections, while simulator replays of open-source LLM training traces quantify the downstream impact of those tuned profiles. A sympathetic reader would care because collective operations underpin scaling in both HPC and large-scale AI, so exposing better configurations offers a practical route to faster execution without new hardware.

Core claim

PICO decouples experiment setup from execution, offers backend-adaptive parameter selection across MPI and NCCL, supplies instrumentable plain-MPI references, and records full runtime environments; using this machinery on three major supercomputers shows default collective algorithms and transport settings can be up to 5× slower than the best available choice and, when the resulting optimized profiles are replayed in the ATLAHS simulator on open-source LLM training traces, produces reductions in training times of up to 44%.

What carries the argument

PICO's decoupling of portable experiment setup from platform execution together with its backend-adaptive parameter selection interface for MPI and NCCL.

If this is right

  • Default collective choices in production systems are often far from optimal and can be diagnosed by isolating topology-sensitive algorithmic decisions.
  • Instrumentation inside PICO yields per-algorithm breakdowns that explain where time is lost.
  • Simulator replay of real training traces converts micro-benchmark speedups into concrete application-level time savings.
  • Portable experiment definitions plus configuration capture make performance comparisons reproducible across platforms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Many running HPC and AI jobs are likely leaving substantial performance on the table simply by accepting library defaults.
  • Embedding PICO-style selection logic into runtime systems could automate better collective choices without user intervention.
  • The same measurement approach could be applied to other communication patterns such as point-to-point or one-sided operations.

Load-bearing premise

The ATLAHS simulator accurately converts measured collective performance gains into end-to-end training time predictions for real LLM workloads.

What would settle it

Run the same open-source LLM training traces on actual hardware once with default collectives and once with the PICO-identified optimized profiles, then compare measured wall-clock training times against the simulator predictions.

Figures

Figures reproduced from arXiv: 2508.16809 by Daniele De Sensi, Lorenzo Piarulli, Marco Canini, Saverio Pasqualoni, Tommaso Bonato, Torsten Hoefler.

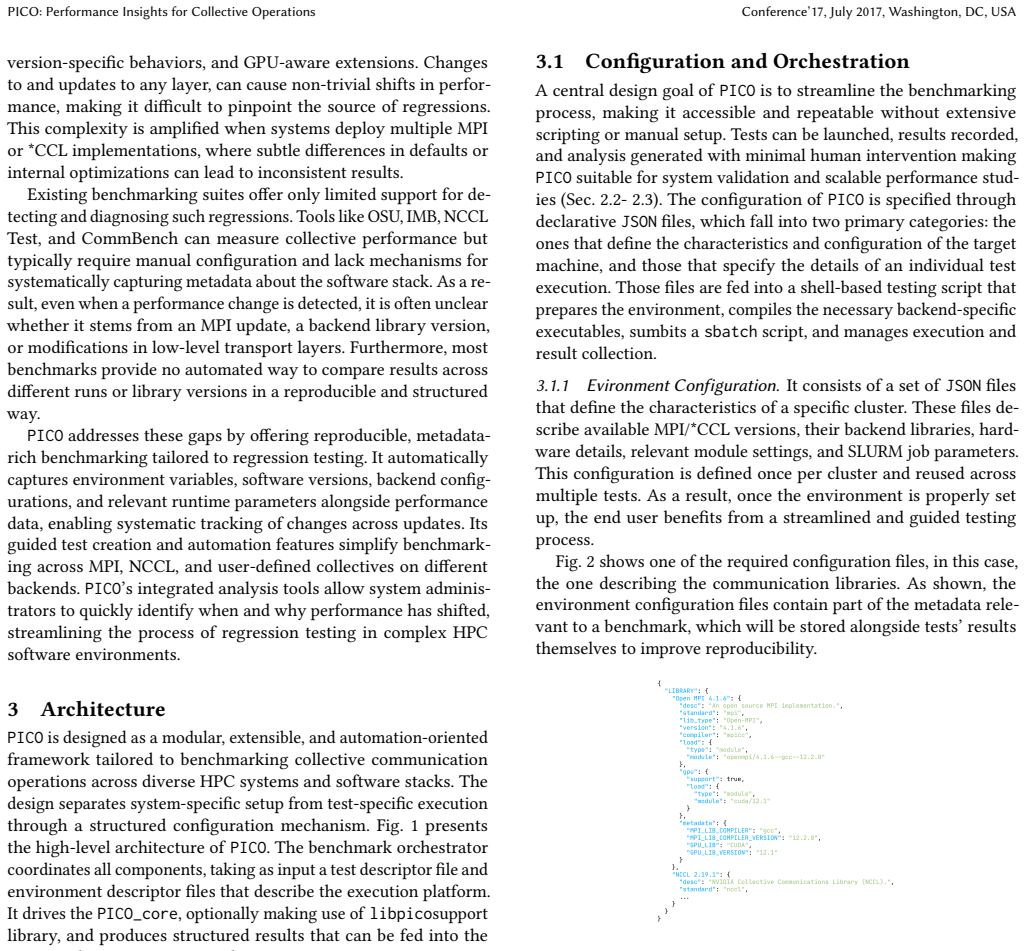

Figure 2
Figure 2. Figure 2: shows one of the required configuration files, in this case, the one describing the communication libraries. As shown, the environment configuration files contain part of the metadata rele￾vant to a benchmark, which will be stored alongside tests’ results themselves to improve reproducibility [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

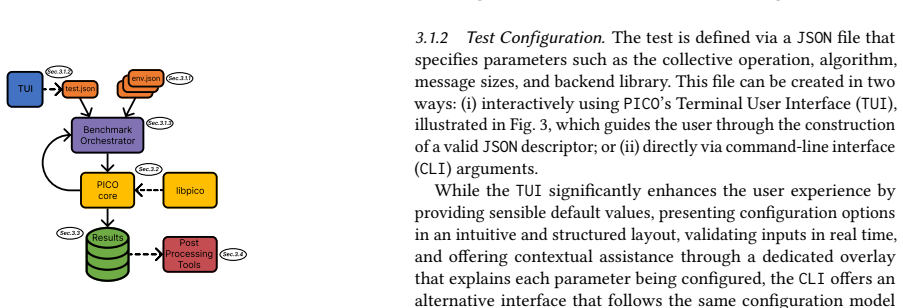

Figure 1
Figure 1. Figure 1: High-level architecture and data flow in [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

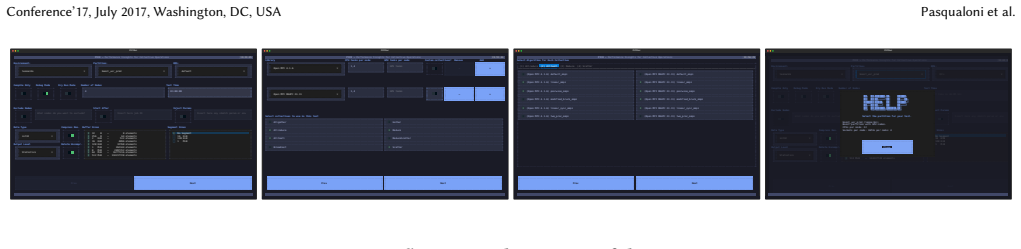

Figure 3
Figure 3. Figure 3: TUI flow across the creation of the test JSON. 3.1.3 Benchmark Orchestration. The execution of benchmarks in PICO is managed by a dedicated orchestration script that auto￾mates all steps from configuration parsing to result collection. The process begins by reading the benchmark configuration from the test.json file and the environment description from the env.json files. Based on these inputs, the orchest… view at source ↗
Figure 4
Figure 4. Figure 4: results/ directory structure. 3.3.1 Directory Structure Overview. Each benchmark execution produces a dedicated output directory under the root results/ folder. As illustrated in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

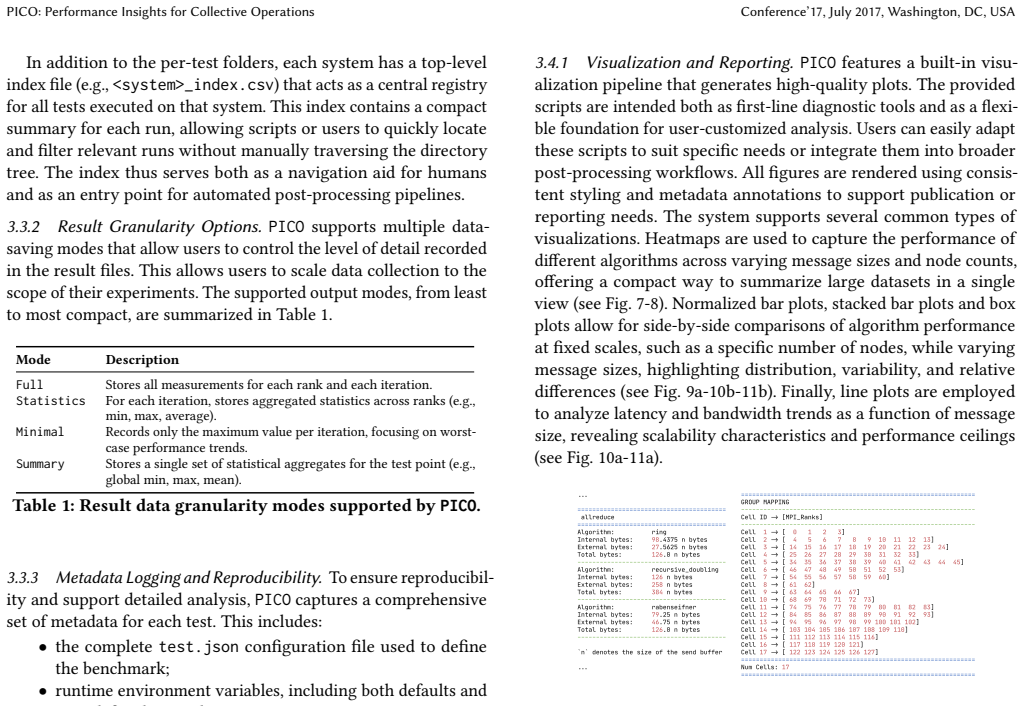

Figure 5
Figure 5. Figure 5: Tracer estimation for a 128 nodes Leonardo job. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

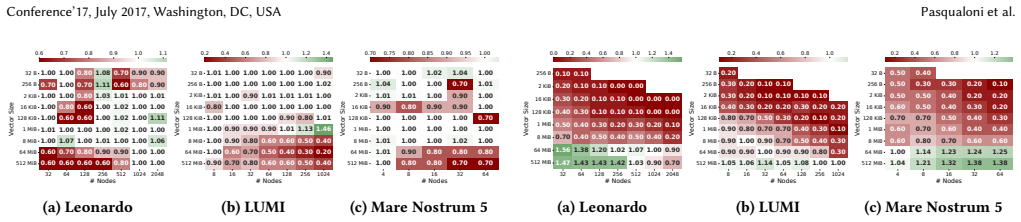

Figure 7
Figure 7. Figure 7: Median performance gain of the default algorithm [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Reduce-scatter benchmark run results on Leonardo comparing distance halving and distance doubling algo￾rithms with a 128 node allocation. 4.2 Algorithmic Differences Cost models are a common tool for reasoning about the expected performance of collective communication algorithms. The most widely used cost model for collective operations is the 𝛼, 𝛽,𝛾 model: 𝐴𝛼 + 𝐵𝛽 + 𝐶𝛾 (1) [PITH_FULL_IMAGE:figures/full_f… view at source ↗
Figure 10
Figure 10. Figure 10: Impact of UCX_MAX_RNDV_RAILS on large-scale 2048 nodes Allreduce benchmark. Rabenseifner algorithm. 4.3 Network Layer Parameters Many factors in network communication libraries are often over￾looked when running collective benchmarks, yet they can have a decisive impact on results and, if uncontrolled, can hinder test repro￾ducibility. One example is UCX_MAX_RNDV_RAILS, a UCX runtime parameter that contro… view at source ↗
Figure 11
Figure 11. Figure 11: Performance impact of data movement and reduc [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗

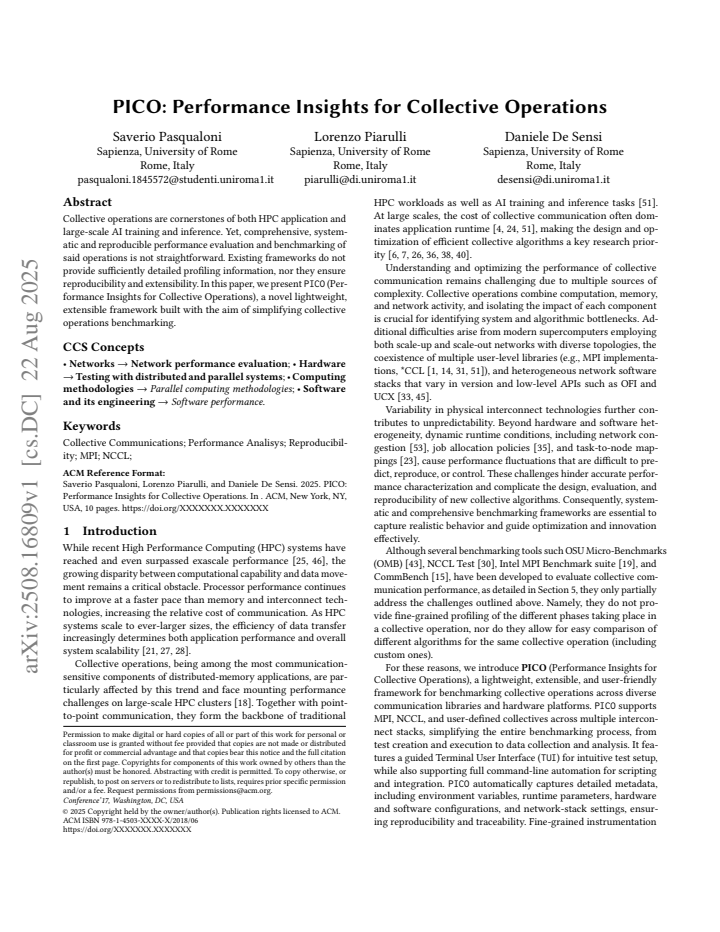

read the original abstract

Collective operations are cornerstones of both HPC applications and large-scale AI training and inference, yet benchmarking them in a systematic and reproducible way remains difficult on modern systems due to the complexity of their hardware and software stacks. Existing suites primarily report end-to-end timings and offer limited support for controlled algorithm and configuration selection, fine-grained profiling, and capturing the runtime environment. We present PICO (Performance Insights for Collective Operations), an open-source framework that decouples portable experiment setup from platform execution, provides a backend-adaptive parameter selection interface across MPI and NCCL, supplies plain-MPI reference collective implementations, optionally instrumentable, and records the system configuration for reproducible comparisons. Evaluated on three major supercomputers, PICO shows that default collective algorithms and transport settings can be up to $5\times$ slower than the best available choice. It provides diagnostic evidence by isolating topology sensitive algorithmic choices and, through instrumentation, reveals detailed algorithmic breakdowns. To assess end-to-end effects of benchmark-informed tuning and evaluate application-level impacts, we replay open-source LLM training traces in ATLAHS simulator with optimized collective profiles identified by PICO, achieving reductions in training times of up to $44\%$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper introduces PICO, an open-source framework that decouples portable experiment setup from platform execution for benchmarking collective operations. It supports MPI and NCCL backends, provides plain-MPI reference implementations, records system configurations for reproducibility, and offers diagnostic profiling. Evaluations on three supercomputers show default collective algorithms and transport settings can be up to 5× slower than optimized choices, with evidence on topology sensitivity. To assess end-to-end impact, the authors replay open-source LLM training traces in the ATLAHS simulator after substituting PICO-identified optimized collective profiles, reporting training time reductions of up to 44%.

Significance. If the simulator-based end-to-end results are validated, the work provides concrete evidence that collective tuning can yield substantial gains in large-scale AI training, complementing the direct benchmarking data from multiple production systems. The framework's emphasis on portability, instrumentation, and reproducibility is a practical contribution to the HPC and distributed systems community. The open-source release and focus on diagnostic breakdowns strengthen the utility for practitioners.

major comments (1)
  1. [Evaluation with simulator replays] In the evaluation section describing ATLAHS simulator replays of LLM training traces, the 44% training-time reduction claim is obtained by substituting PICO-optimized collective profiles into the simulator without reported cross-validation against actual end-to-end LLM training runs on the target hardware. This leaves unaddressed whether the simulator correctly propagates isolated collective speedups while accounting for compute-communication overlap, trace fidelity, and hardware-specific effects not captured in the micro-benchmarks; this assumption is load-bearing for the headline application-level result in the abstract.
minor comments (2)
  1. [Abstract and Evaluation] The abstract and evaluation sections should report the number of runs averaged, presence of error bars or statistical measures, and how post-hoc algorithm selection was performed to support the 'up to 5×' and 'up to 44%' claims.
  2. [Framework description] Clarify the exact interface and automation level of the 'backend-adaptive parameter selection' for MPI versus NCCL to aid reproducibility by readers.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and the opportunity to improve the clarity of our evaluation. We address the major comment below.

read point-by-point responses

  1. Referee: In the evaluation section describing ATLAHS simulator replays of LLM training traces, the 44% training-time reduction claim is obtained by substituting PICO-optimized collective profiles into the simulator without reported cross-validation against actual end-to-end LLM training runs on the target hardware. This leaves unaddressed whether the simulator correctly propagates isolated collective speedups while accounting for compute-communication overlap, trace fidelity, and hardware-specific effects not captured in the micro-benchmarks; this assumption is load-bearing for the headline application-level result in the abstract.

    Authors: We agree that the simulator-based results rely on the fidelity of ATLAHS in propagating isolated collective improvements. The simulator replays are intended to provide indicative estimates of end-to-end impact rather than definitive measurements, using publicly available traces and PICO-derived performance profiles. We did not conduct direct cross-validation against full-scale LLM training runs on the target systems, as such experiments would require prohibitive resources and coordinated access beyond the scope of this benchmarking-focused study. The ATLAHS framework is documented in its reference publication to model communication-computation overlap and trace replay with reasonable accuracy for distributed training workloads. In revision we will add an explicit limitations paragraph in the evaluation section that (1) states the absence of direct hardware cross-validation, (2) summarizes the simulator's modeling assumptions and known limitations with respect to hardware-specific effects not present in micro-benchmarks, and (3) qualifies the reported 44% figure as an upper-bound estimate under the simulator's replay model. These changes will make the scope of the claim transparent without altering the core contribution of the PICO framework itself. revision: yes

Circularity Check

0 steps flagged

No significant circularity in empirical benchmarking and simulator replay

full rationale

The paper presents PICO as an empirical benchmarking framework that measures collective performance on real supercomputers and then replays traces in the external ATLAHS simulator using the measured profiles. No mathematical derivation, closed-form prediction, or first-principles result is claimed; the 5× slowdown and 44% training-time figures are obtained directly from instrumentation and trace replay rather than by fitting parameters to the target quantity and renaming the fit as a prediction. The evaluation chain therefore remains self-contained against external benchmarks and does not reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework relies on standard assumptions about collective operation semantics and simulator fidelity rather than introducing new fitted parameters or invented physical entities.

axioms (1)
  • domain assumption Collective operations produce consistent timing behavior across repeated runs under controlled conditions
    Required for reproducible benchmarking and diagnostic isolation of algorithmic choices
