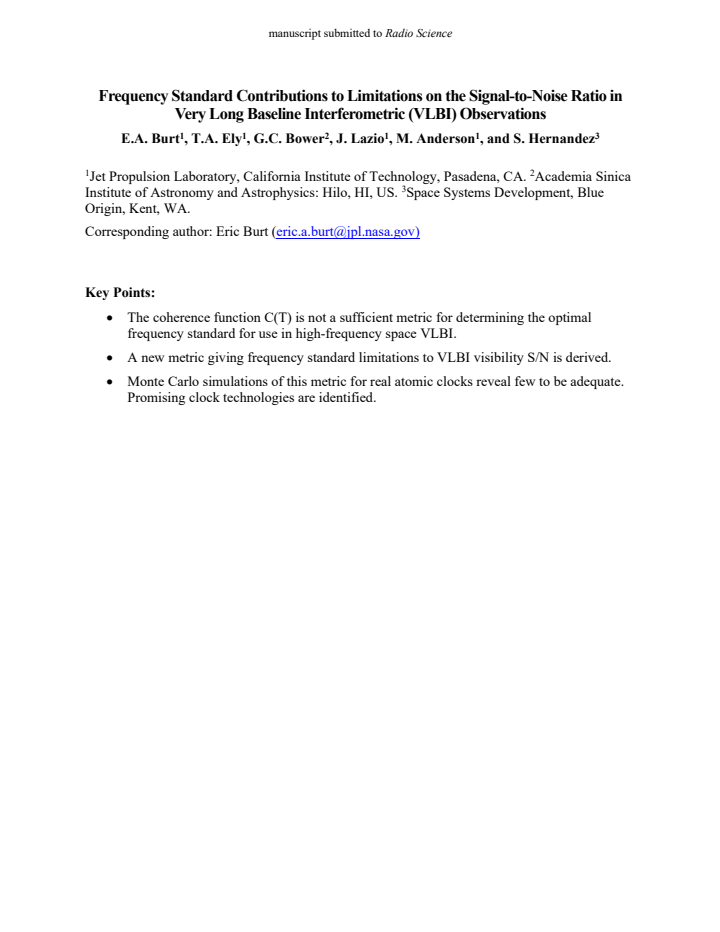

Frequency Standard Contributions to Limitations on the Signal-to-Noise Ratio in Very Long Baseline Interferometric (VLBI) Observations

Eric Burt; Geoff Bower; Joe Lazio; Marin Anderson; Sonia Hernandez; Todd Ely

arxiv: 2508.19123 · v2 · submitted 2025-08-26 · 🌌 astro-ph.IM

Frequency Standard Contributions to Limitations on the Signal-to-Noise Ratio in Very Long Baseline Interferometric (VLBI) Observations

Eric Burt , Todd Ely , Geoff Bower , Joe Lazio , Marin Anderson , Sonia Hernandez This is my paper

Pith reviewed 2026-05-18 20:56 UTC · model grok-4.3

classification 🌌 astro-ph.IM

keywords VLBIfrequency standardssignal-to-noise ratiocoherence functionultra-stable oscillatorhydrogen maseroptical local oscillatorspace-based interferometry

0 comments

The pith

The coherence function alone does not determine frequency standard viability in VLBI, and a derived clock-limited signal-to-noise expression shows only the USO and hydrogen maser work for high-frequency observations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that relying on the coherence function C(T) alone is not enough to judge if a frequency standard will work well in VLBI observations. The authors derive a new expression focused on the clock's effect on the signal-to-noise ratio of the visibility measurements. Testing this on real devices finds the ultra-stable oscillator suitable only for short times at high frequencies, the hydrogen maser better but possibly too bulky for space, and optical local oscillators as a strong candidate for longer integrations. This helps narrow options for frequency standards needed in space-based VLBI to get sharper images of distant objects like black holes.

Core claim

The paper's core claim is that the usual coherence time metric does not suffice to determine frequency standard performance in VLBI, so they derive an expression for the clock-limited signal-to-noise ratio in VLBI visibilities. When this expression is evaluated using the specifications of actual frequency standards, only the ultra-stable oscillator and hydrogen maser prove viable for high-frequency VLBI, with the former restricted to integration times of 30 seconds at 90 GHz, 10 seconds at 230 GHz, 5 seconds at 345 GHz, and none at 630 GHz. The hydrogen maser allows longer times but may be too large for space applications, while the optical local oscillator from emerging optical clock techon

What carries the argument

The derived expression for the clock-limited VLBI visibility signal-to-noise ratio, which incorporates frequency standard stability to set observation viability limits.

If this is right

Only the USO and hydrogen maser are viable for upcoming high-frequency VLBI.
USO integration times are limited to 30s at 90 GHz, 10s at 230 GHz, 5s at 345 GHz, and not viable at 630 GHz.
The hydrogen maser may have prohibitive size for space missions.
Optical local oscillators show promise with viable times of over 100s at 90 GHz, 60s at 230 GHz, 40s at 345 GHz, and 22s at 630 GHz.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Space VLBI mission planners will need to focus on compact high-stability frequency references to enable longer coherent integrations.
The S/N expression approach could be applied to assess other noise sources limiting interferometric performance.
Progress in optical clock miniaturization for space may directly expand the feasible parameter space for high-resolution black hole imaging.

Load-bearing premise

The published performance metrics of the evaluated frequency standards accurately represent their behavior under the specific VLBI integration conditions and space environment assumed in the derived S/N expression.

What would settle it

A VLBI observation at 230 GHz using an ultra-stable oscillator over 10 seconds that achieves a visibility signal-to-noise ratio significantly above the value predicted by the clock-limited expression would challenge the derived limits.

Figures

Figures reproduced from arXiv: 2508.19123 by Eric Burt, Geoff Bower, Joe Lazio, Marin Anderson, Sonia Hernandez, Todd Ely.

**Figure 2.** Figure 2: Schematic representation of two VLBI antennas and their relationship to a source ( Thompson et al., 2017, figure 3.1). The vector between the two antennas is 𝑫> measured in wavelengths or 𝑫 measured in meters. Note that both 𝒔 and 𝒔𝟎 as depicted in the figure are unit vectors and will be represented as 𝒔] and 𝒔]𝟎 in the text to avoid confusion. The source is projected onto the spherical surface determined … view at source ↗

read the original abstract

Since its observation in 2019, the first image of a super-massive black hole using Very Long Baseline Interferometry (VLBI) with an Earth-scale baseline has generated much scientific and public interest, including the possible extension of the baseline into space to obtain higher image resolution. Operating one or more VLBI nodes in space will require the use of frequency standards that are space qualified, greatly reducing the number of options available. The coherence function C(T) is the metric usually used to determine the viability of a frequency standard. Here we show that C(T) is a useful but not sufficient metric for gauging frequency standard performance in VLBI and instead derive an expression for the clock-limited VLBI visibility S/N. We evaluate this expression for real frequency standards and find only the Ultra-Stable Oscillator (USO) and hydrogen maser to be viable for upcoming high-frequency VLBI with the USO only useful for very limited integration times (30s at 90 GHz, 10s at 230 GHz, 5s at 345 GHz, and not viable at 630 GHz). The maser extends these, but may have prohivitive size for a space mission. We also evaluate emerging frequency standard technologies and find the Optical Local Oscillator portion of optical clocks to be very promising (conservatively >100s at 90 GHz, 60s at 230 GHz, 40s at 345 GHz, and 22s at 630 GHz) when accounting for both performance and potential operation in space.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper derives a clock-limited VLBI S/N expression that improves on C(T) alone and applies it to real standards, but the viability numbers rest on ground-test specs without space adjustments.

read the letter

The main point is that the authors derive an S/N formula for VLBI visibility amplitude that incorporates clock phase noise directly, rather than stopping at the usual coherence function C(T). They then plug published performance numbers for USOs, hydrogen masers, and optical local oscillators into that expression and report concrete integration-time limits at 90–630 GHz. Only the USO and maser come out as viable under current specs, with the USO restricted to very short times and the maser flagged for possible size problems; the optical LO looks promising on paper for longer integrations. That mapping from Allan deviation or phase noise to S/N at millimeter wavelengths is the concrete output a mission planner could use right away. The derivation itself appears to follow standard timing relations and cites the relevant VLBI literature without obvious circularity. The evaluations use external published clock data rather than fitting to VLBI observations, which keeps the logic clean on that front. The soft spot is the direct insertion of lab-measured stabilities into the formula without any scaling for space conditions. Thermal cycling, radiation, vibration, or microgravity can shift oscillator performance, and because the S/N expression is monotonic in the stability parameter, even modest degradation would move the reported time limits and change which standards look acceptable. The paper notes the space-qualification requirement in the introduction but does not model those effects or cite adjusted figures. The size comment on the maser is also left qualitative. This is aimed at people designing or proposing space VLBI nodes for black-hole imaging or other high-resolution work. A reader who needs to set coherent integration times or compare oscillator options will get usable numbers from the evaluations. The underlying thinking is clear and the application is timely, so the paper deserves a serious referee to check the derivation steps and press on the space-environment assumptions.

Referee Report

1 major / 3 minor

Summary. The paper claims that the coherence function C(T) is a useful but insufficient metric for frequency standard performance in VLBI and derives an expression for the clock-limited VLBI visibility S/N. Numerical evaluation of this expression using published performance data for real frequency standards (USO, hydrogen maser, optical local oscillator) shows that only the USO and hydrogen maser are viable for upcoming high-frequency VLBI (90–630 GHz), with the USO limited to very short integration times (30 s at 90 GHz, 10 s at 230 GHz, 5 s at 345 GHz, none at 630 GHz); the maser extends these but may be too large for space, while optical local oscillators appear promising (>100 s at 90 GHz down to 22 s at 630 GHz) when considering both performance and space operability.

Significance. If the derived S/N expression holds and the evaluations are robust, the work supplies a more precise, quantitative tool than C(T) for selecting frequency standards in space VLBI missions aimed at higher-resolution black-hole imaging. The explicit derivation and concrete numerical predictions for specific frequencies and standards constitute a practical contribution. The manuscript also correctly identifies that C(T) alone does not capture the full S/N impact.

major comments (1)

[§4] §4 (Evaluation of frequency standards and integration-time limits): The reported viability thresholds and integration-time limits are obtained by direct insertion of ground-based Allan-deviation or phase-noise figures into the derived S/N expression. No corrections or sensitivity analysis are provided for space-specific effects (thermal cycling, radiation, vibration, microgravity). Because the S/N expression is monotonic in the clock-stability parameter, any unaccounted degradation scales the quantitative conclusions (e.g., the 30 s / 10 s / 5 s limits for the USO and the >100 s / 60 s / 40 s / 22 s figures for the optical local oscillator). This assumption is load-bearing for the central claim that only USO and maser are viable while optical oscillators are promising.

minor comments (3)

[Abstract] Abstract: typo “prohivitive” should read “prohibitive”.
[§4] The manuscript should add explicit references or table entries for the exact published Allan-deviation values and frequency ranges used in the numerical evaluations.
[Figures] Figure captions and axis labels for S/N versus integration time should state the assumed VLBI parameters (baseline length, frequency, bandwidth) to allow direct reproduction.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive feedback and for recognizing the utility of the derived clock-limited S/N expression. We address the single major comment on §4 below and agree that additional discussion of space effects strengthens the work. The revised manuscript will incorporate a sensitivity analysis and explicit caveats.

read point-by-point responses

Referee: [§4] §4 (Evaluation of frequency standards and integration-time limits): The reported viability thresholds and integration-time limits are obtained by direct insertion of ground-based Allan-deviation or phase-noise figures into the derived S/N expression. No corrections or sensitivity analysis are provided for space-specific effects (thermal cycling, radiation, vibration, microgravity). Because the S/N expression is monotonic in the clock-stability parameter, any unaccounted degradation scales the quantitative conclusions (e.g., the 30 s / 10 s / 5 s limits for the USO and the >100 s / 60 s / 40 s / 22 s figures for the optical local oscillator). This assumption is load-bearing for the central claim that only USO and maser are viable while optical oscillators are promising.

Authors: We acknowledge that the referee's point is correct and that our quantitative limits are based on published ground-test or laboratory figures. For the USO and hydrogen maser, space-qualified hardware has flown on prior missions with stability performance that is typically within a factor of ~2 of ground values; we will cite those mission results explicitly. For optical local oscillators the technology is still maturing, so space-specific degradation data are not yet available in the literature. We will revise §4 to add a new subsection that (1) summarizes known space-environment impacts on each technology class, (2) states that the tabulated integration times are therefore upper-bound estimates, and (3) presents a simple sensitivity analysis showing how the S/N-limited integration times scale for assumed degradation factors of 2× and 5× in Allan deviation. This makes the load-bearing assumption transparent without altering the core derivation or the comparative ranking of the standards. revision: yes

Circularity Check

0 steps flagged

Derivation of S/N expression independent of evaluated clock data

full rationale

The paper first argues that the coherence function C(T) is useful but insufficient for VLBI frequency standard assessment, then derives an expression for clock-limited VLBI visibility S/N. This derivation is presented as following from standard interferometric visibility and phase stability relations. The evaluation step then inserts externally published Allan deviation or phase noise figures for USO, hydrogen maser, and optical local oscillator devices. No equation in the provided abstract or description reduces the derived S/N back to a fitted parameter taken from the same VLBI data, and no self-citation is invoked as the sole justification for the central formula. The chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The evaluations rely on external published performance data for the frequency standards.
