Vibration Damping in Underactuated Cable-suspended Artwork -- Flying Belt Motion Control

Martin Goubej , Lauria Clarke , Martin Hraba\v{c}ka , David Tolar This is my paper

Pith reviewed 2026-05-18 19:44 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords vibration dampinginput shapingconvex optimizationunderactuated systemscable-suspended robotsrobotic art installationmotion controlinteractive installation
0
0 comments X

The pith

Input shaping cast as convex optimization suppresses vibrations in suspended belt artwork.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper refurbishes an interactive art installation of ceiling-suspended belts that follow visitors via vision tracking. It builds a mathematical model of the underactuated system and casts input shaping as a convex optimization problem to cancel torsional and pendulum vibrations. This change permits higher rotational speeds and quicker responses without the oscillations that previously limited performance. A sympathetic reader would care because the work shows how targeted control methods can make large kinetic installations more fluid and engaging in real time.

Core claim

A detailed mathematical model of the flying belt system was developed to capture its dynamic behavior. An input shaping method formulated as a convex optimization problem was then implemented to suppress the system's torsional and pendulum-like vibrations, enabling smoother and faster belt movements. Experimental results show substantial improvements in system performance and audience interaction.

What carries the argument

Input shaping method formulated as a convex optimization problem, which designs motor command profiles that cancel the natural oscillatory modes of the underactuated cable-suspended belts.

If this is right

  • Higher rotational speeds become feasible without inducing disruptive oscillations.
  • The belts respond more quickly to visitor movements tracked by the vision system.
  • Overall system performance improves, leading to more responsive interactive experiences.
  • The same formulation offers a template for vibration damping in other underactuated cable-driven mechanisms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The convex-optimization approach could transfer to vibration control in cable-suspended cameras or construction cranes.
  • Combining the model with online parameter updates might allow the system to adapt when belt lengths or loads change during an exhibition.
  • Similar shaping techniques might reduce energy use by avoiding repeated corrective motor actions after each oscillation cycle.

Load-bearing premise

A detailed mathematical model accurately captures the dynamic behavior of the flying belt system.

What would settle it

Compare vibration amplitude and settling time at high speeds with and without the optimized input shaping; if the vibrations remain unchanged, the central claim fails.

Figures

Figures reproduced from arXiv: 2509.03238 by David Tolar, Lauria Clarke, Martin Goubej, Martin Hraba\v{c}ka.

Figure 1

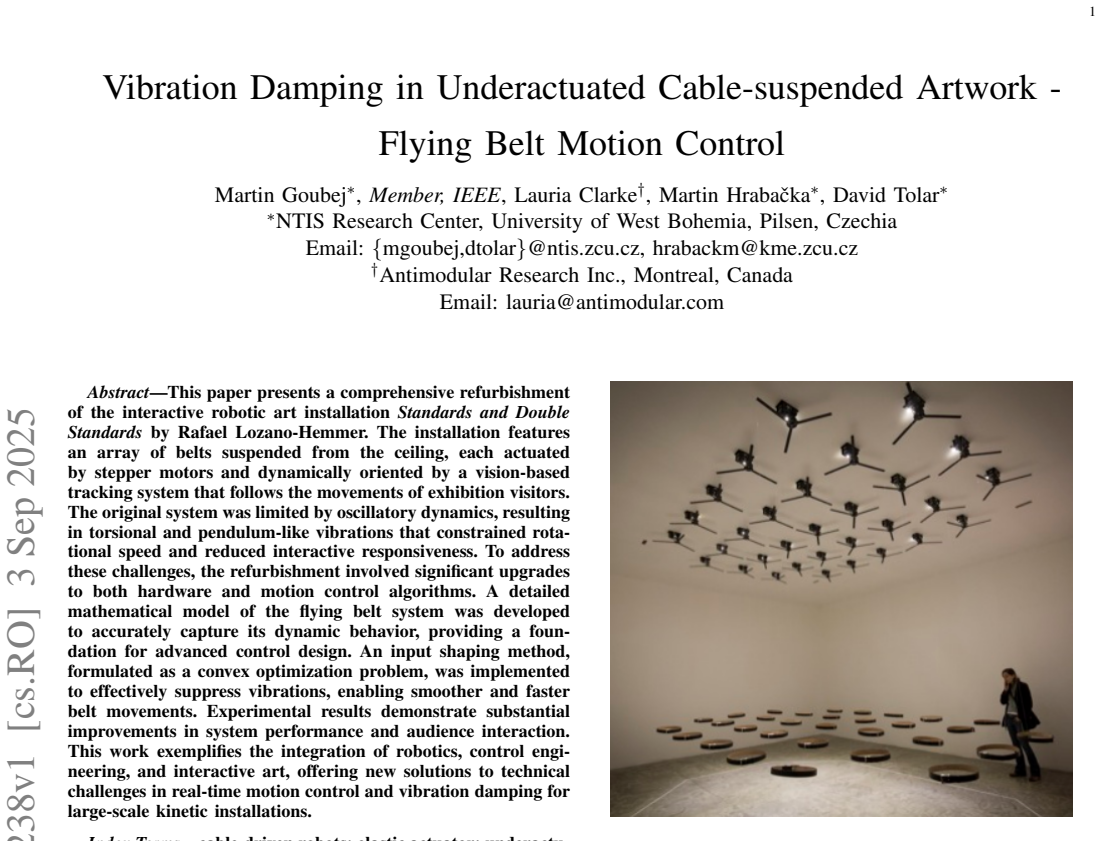

Figure 1. Figure 1: Standards and Double Standards interactive installation [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Hardware diagram of the system repeated elements combine, pushing viewers to consider the relationship between their own experience of an artwork and the collective behavior created as a result of many interactions. III. SYSTEM OVERVIEW The refurbished system can be broken into two components; the computer vision system which tracks participants within the exhibition space and the motion control system whi… view at source ↗
Figure 4
Figure 4. Figure 4: Software interface showing vision system and stabilization settings [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 3
Figure 3. Figure 3: Software diagram of the system resolution of 0.036 degrees at a total cost of $150 USD. We also integrated an external magnetic hall sensor into the rotary stage which was triggered by a small magnet mounted on the rotary arm. This connected to our microcontroller, allowing for precise precise homing of the rotary stage during use. Second, we wanted to ensure that the computational compo￾nents chosen could… view at source ↗
Figure 5
Figure 5. Figure 5: The modeled system in the initial configuration [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Body 2 in the initial configuration t = 0 (left) and in a general configuration t > 0 (right) – 2D upper view if the change is sufficiently large, the new angular position is sent via serial to the microcontroller. The vision system will always chose to compute and offset for the person whose bounding box has the shortest distance to the center of the belt if multiple people are detected in the scene. Afte… view at source ↗
Figure 7
Figure 7. Figure 7: Computational model of the mechanical system implemented in [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 5
Figure 5. Figure 5: Furthermore, the actuated motor position is denoted [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 8

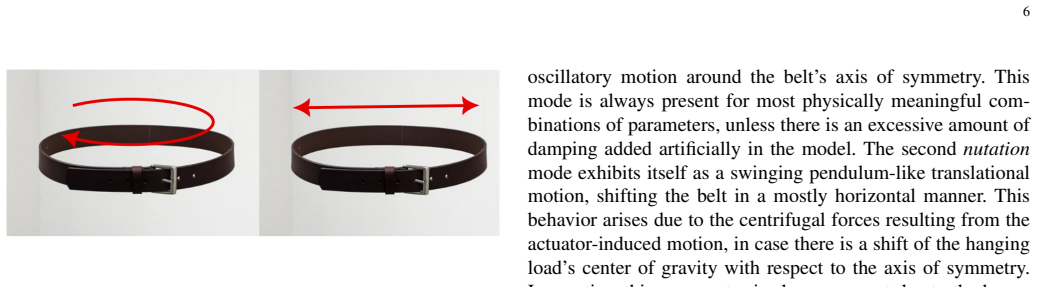

Figure 8. Figure 8: Two fundamental flexible mode shapes - torsion (left) and nutation [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Amplitude frequency response function of the linearized plant model [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Point-to-point positioning scenario using different motion planning algorithms - constant velocity profile (blue), jerk-limited 3rd degree polynomial [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
read the original abstract

This paper presents a comprehensive refurbishment of the interactive robotic art installation Standards and Double Standards by Rafael Lozano-Hemmer. The installation features an array of belts suspended from the ceiling, each actuated by stepper motors and dynamically oriented by a vision-based tracking system that follows the movements of exhibition visitors. The original system was limited by oscillatory dynamics, resulting in torsional and pendulum-like vibrations that constrained rotational speed and reduced interactive responsiveness. To address these challenges, the refurbishment involved significant upgrades to both hardware and motion control algorithms. A detailed mathematical model of the flying belt system was developed to accurately capture its dynamic behavior, providing a foundation for advanced control design. An input shaping method, formulated as a convex optimization problem, was implemented to effectively suppress vibrations, enabling smoother and faster belt movements. Experimental results demonstrate substantial improvements in system performance and audience interaction. This work exemplifies the integration of robotics, control engineering, and interactive art, offering new solutions to technical challenges in real-time motion control and vibration damping for large-scale kinetic installations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper presents a refurbishment of the interactive robotic art installation Standards and Double Standards, featuring an array of ceiling-suspended belts actuated by stepper motors and dynamically oriented via vision-based tracking of visitors. The original oscillatory dynamics (torsional and pendulum-like vibrations) limited rotational speed and responsiveness. The authors develop a detailed mathematical model of the flying belt system to capture its dynamics and formulate an input shaping method as a convex optimization problem to suppress vibrations, enabling smoother and faster movements. Experimental results are reported to demonstrate substantial improvements in system performance and audience interaction.

Significance. If the model accurately represents the underactuated dynamics and the convex optimization produces effective input commands, this work offers a practical demonstration of vibration damping techniques for large-scale cable-suspended kinetic installations. It integrates control engineering with interactive art and could inform similar applications in robotics for real-time motion control of underactuated systems. The experimental setting in a public exhibition provides a useful test of practical performance gains.

major comments (1)
  1. [Mathematical model section] Mathematical model of the flying belt system: The central claim that this model accurately captures torsional and pendulum-like vibrations (providing the foundation for the convex input-shaping optimization) is load-bearing for the reported vibration suppression. The manuscript does not appear to include explicit validation against experimental frequency responses, sensitivity analysis for parameter uncertainty, or incorporation of nonlinear cable effects and actuator dynamics; without these, it is unclear whether the observed improvements stem from the control method or from hardware upgrades alone.
minor comments (2)
  1. [Abstract] Abstract: The description of 'substantial improvements' would be strengthened by including at least one quantitative metric (e.g., measured reduction in vibration amplitude or increase in maximum rotational speed).
  2. [Introduction or related work] The paper would benefit from additional references to prior input-shaping literature for cable-suspended or underactuated systems to better situate the convex optimization formulation.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and constructive comments on our manuscript. We address the major comment regarding the mathematical model point by point below.

read point-by-point responses

  1. Referee: [Mathematical model section] Mathematical model of the flying belt system: The central claim that this model accurately captures torsional and pendulum-like vibrations (providing the foundation for the convex input-shaping optimization) is load-bearing for the reported vibration suppression. The manuscript does not appear to include explicit validation against experimental frequency responses, sensitivity analysis for parameter uncertainty, or incorporation of nonlinear cable effects and actuator dynamics; without these, it is unclear whether the observed improvements stem from the control method or from hardware upgrades alone.

    Authors: We agree that additional explicit validation would strengthen the presentation. In the revised manuscript we will add a dedicated subsection comparing the model's predicted natural frequencies (both torsional and pendulum modes) against experimental frequency responses obtained via FFT of free-vibration data collected on the installed belts. We will also include a sensitivity study showing that the convex-optimized inputs remain effective under parameter variations of up to 15 percent, consistent with our calibration tolerances. The model employs a linearized representation around the small operating angles (<5°) observed in the exhibition; we will add a brief justification for neglecting nonlinear cable sag and stretch based on the geometry and tension levels. Stepper-motor dynamics are approximated as a first-order lag whose time constant is identified from bench tests and folded into the optimization constraints. To separate the contributions of the new hardware from the control method, we will report comparative trials performed on the refurbished system both with and without the shaped inputs, confirming that residual vibrations are substantially lower only when the optimized commands are applied. revision: yes

Circularity Check

0 steps flagged

No circularity: model development and convex optimization are independent of fitted inputs or self-citations

full rationale

The paper first constructs a mathematical model of the flying belt dynamics from physical principles to capture torsional and pendulum vibrations, then uses that model to pose input shaping as a convex optimization problem whose solution is applied to the hardware. Experimental validation follows. No derivation step reduces by construction to a fitted parameter renamed as a prediction, no self-citation chain bears the central claim, and the optimization is not tautologically equivalent to its inputs. The approach remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so free parameters, axioms, and invented entities cannot be enumerated in detail; the dynamic model likely contains fitted parameters for vibration modes and the optimization may introduce weighting factors chosen for the specific hardware.
