Creation of Lunar-Like Rims in Ilmenite using Synthetic Solar Wind

Roshan S. Trivedi , Advik D. Vira , Brant M. Jones , Katherine D. Burgess , Ziyu Huang , Honglin Liu , Pranav Rane , Mengkun Tian
show 4 more authors
Masatoshi Hirabayashi Thomas M. Orlando Zhigang Jiang Phillip N. First
This is my paper

Pith reviewed 2026-05-18 19:21 UTC · model grok-4.3

classification 🌌 astro-ph.EP
keywords space weatheringsolar windilmenitenanophase ironlunar rimsApollo soilelectron microscopy
0
0 comments X

The pith

Solar wind alone creates the characteristic rims and small nanophase iron particles found in lunar samples.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper tests whether solar wind particles by themselves can produce the altered surface layers, or rims, observed in minerals from the Moon. Researchers bombarded ilmenite with a lab-made version of solar wind using deuterium ions and electrons, then examined the results with advanced electron microscopes. They found that the synthetic solar wind created rims identical in key ways to those in real lunar material, including tiny clusters of iron. Readers would care because this helps explain how the Moon's surface changes over time and improves the accuracy of using telescope data to figure out how old different areas are.

Core claim

The authors irradiated ilmenite, a common lunar mineral, with deuterium ions and low-energy electrons to simulate solar wind. Using high-resolution scanning transmission electron microscopy and electron energy-loss spectroscopy, they observed that this treatment produces rims with all the main characteristics seen in lunar samples. They identified nanophase iron particles and measured how their size and depth distribution changes with exposure level, which lets them estimate the solar wind exposure time for Apollo soil sample 71501. The work shows that small nanophase iron particles form as a direct result of solar wind.

What carries the argument

The synthetic solar wind plasma consisting of deuterium ions and low-energy electrons applied to ilmenite, with analysis through high-resolution scanning transmission electron microscopy and electron energy-loss spectroscopy to reveal rim structures and nanophase iron.

If this is right

  • Solar wind is sufficient to generate the observed rim features in lunar ferrous minerals without needing micrometeoroid impacts.
  • Nanophase iron particles smaller than 10 nm in diameter are formed specifically by solar wind irradiation.
  • The depth and size distribution of these particles can be used to calculate exposure ages for lunar soils like Apollo 71501.
  • Laboratory simulations provide a way to connect detailed microscopic changes to broader remote sensing observations of planetary surfaces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The contribution of micrometeoroids to rim formation may be smaller than often assumed for these particular features.
  • Similar lab methods could be applied to study space weathering on other airless bodies such as asteroids or Mercury.
  • Varying the ion type or energy in future tests might reveal how different solar wind conditions affect mineral alteration.
  • This could lead to better predictions of how space weathering influences the colors and spectra detected from orbit.

Load-bearing premise

That using deuterium ions and low-energy electrons in the lab produces rim features and nanophase iron distributions that match what real solar wind would do to ilmenite, without creating extra changes from the experimental conditions.

What would settle it

If direct comparison showed that actual solar wind on lunar ilmenite creates rims or iron particles with different sizes, depths, or chemical properties than those made in the synthetic irradiation tests.

Figures

Figures reproduced from arXiv: 2509.03334 by Advik D. Vira, Brant M. Jones, Honglin Liu, Katherine D. Burgess, Masatoshi Hirabayashi, Mengkun Tian, Phillip N. First, Pranav Rane, Roshan S. Trivedi, Thomas M. Orlando, Zhigang Jiang, Ziyu Huang.

Figure 1
Figure 1. Figure 1: Characteristic space weathering in lunar regolith. a [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: SSW-induced surface alteration in terrestrial ilmenite [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Compositional and structural characterization of npFe [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: EELS fine structure of features in SSW rims [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

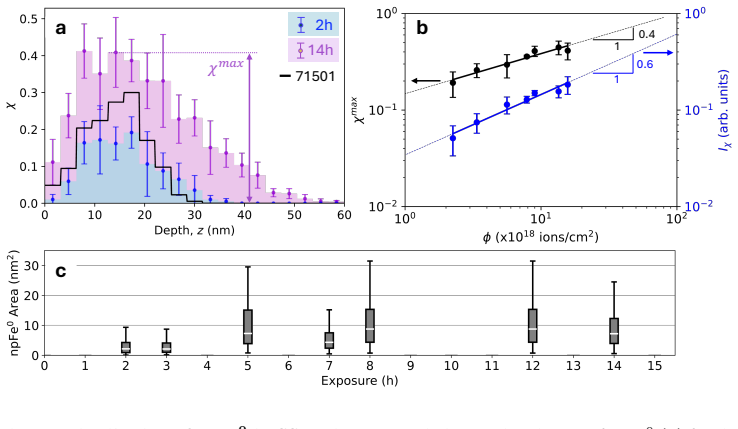

Figure 5. Figure 5: Distribution of npFe0 in SSW rims. a Depth density distribution of npFe0 (χ) for the SSW rims (2 h in blue; 14 h in purple) overlaid with the distribution for 71501 ilmenite (black). b Power-law fits to the maximum of χ distributions (χmax, left axis, black) and normalized integrated density of npFe0 coverage (Iχ, right axis, blue). c Size distribution of npFe0 for all exposures. Data for npFe0 distributio… view at source ↗
Figure 6
Figure 6. Figure 6: Defect-forming mechanisms for D+ in ilmenite. a Comparison of npFe0 distributions (χ(z)) for 2 h (blue), 5 h (green), 14 h (purple) with TRIM simulation. Fractional loss to electronic (yellow) and nuclear (green) are scaled to χmax for the 14 h exposure to show the depth-dependence of the fractional loss. Implantation profiles of D+ ions (blue, right axis), scaled to the fluence for SSW exposures. b-e DFT … view at source ↗
read the original abstract

Space weathering of lunar minerals, due to bombardment from solar wind (SW) particles and micrometeoroid impacts, modifies the mineralogy within tens of nanometers of the surface, i.e., the rim. Via remote sensing, spectroscopic signatures of these modifications have long been used to gauge surface exposure times on the Moon. However, the relative contributions of solar wind and micrometeoroids in the creation of rim features are still debated, particularly for the few-nm clusters known as nanophase iron (npFe0), which commonly form in ferrous minerals. We address this issue in the laboratory, using deuterium ions and low-energy electrons as a synthetic solar wind plasma to irradiate ilmenite (FeTiO3), a common lunar mineral. Characterization by high-resolution scanning transmission electron microscopy and electron energy-loss spectroscopy shows that the solar wind alone creates rims with all the main characteristics of lunar samples. We conclusively identify npFe0 and quantify its distribution as a function of depth and fluence, allowing us to estimate the SW exposure of Apollo soil 71501. Our results confirm that small npFe0 (<10 nm in diameter) form due to the solar wind. Similar experiments could provide microscopic details of space weathering, improving the link between surface modification processes and macroscopic remote sensing data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports laboratory irradiation of ilmenite (FeTiO3) using deuterium ions and low-energy electrons as a synthetic solar wind plasma. HR-STEM and EELS characterization demonstrates formation of surface rims containing small npFe0 particles (<10 nm), with depth and fluence quantification that matches key features of lunar samples. The authors conclude that solar wind alone produces these rims and use the results to estimate the exposure age of Apollo soil 71501.

Significance. If the synthetic plasma faithfully reproduces solar wind effects, the work would provide direct experimental support for solar wind as the dominant mechanism for small npFe0 formation in ferrous lunar minerals, helping quantify the relative contributions of solar wind versus micrometeoroids in space weathering. The fluence-dependent npFe0 distribution and EELS-based identification offer a concrete link to remote-sensing maturity indicators.

major comments (2)
  1. [Abstract and experimental description] The central claim that solar wind alone creates lunar-like rims rests on the fidelity of the deuterium + low-energy electron proxy. Deuterium has twice the mass of protons, altering nuclear stopping and penetration depth relative to the actual solar wind (~95% H+ at keV/nucleon energies). This could shift npFe0 nucleation sites or rim chemistry, rendering the observed features and the Apollo 71501 exposure calibration non-representative. The manuscript must explicitly compare the chosen ion energies, fluences, and charge states to solar wind spectra and justify why the proxy differences do not affect the conclusions.
  2. [Methods and Results] Full details on sample preparation, ion-beam parameters, and controls for electron-beam damage or reduction artifacts during HR-STEM/EELS are required. Without these, it is difficult to rule out that the identified npFe0 and rim structures arise partly from experimental conditions rather than the intended solar-wind simulation.
minor comments (2)
  1. [Results] Clarify the exact fluence values and depth scales used for the npFe0 quantification so that the exposure-age estimate for Apollo 71501 can be directly reproduced.
  2. [Figures] Ensure figure captions explicitly state the ion species, energy, and fluence for each panel to avoid ambiguity when comparing to lunar samples.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which have helped us improve the clarity and rigor of the manuscript. We address each major comment below and have revised the paper accordingly to incorporate additional comparisons and methodological details.

read point-by-point responses

  1. Referee: [Abstract and experimental description] The central claim that solar wind alone creates lunar-like rims rests on the fidelity of the deuterium + low-energy electron proxy. Deuterium has twice the mass of protons, altering nuclear stopping and penetration depth relative to the actual solar wind (~95% H+ at keV/nucleon energies). This could shift npFe0 nucleation sites or rim chemistry, rendering the observed features and the Apollo 71501 exposure calibration non-representative. The manuscript must explicitly compare the chosen ion energies, fluences, and charge states to solar wind spectra and justify why the proxy differences do not affect the conclusions.

    Authors: We thank the referee for this important observation. While deuterium ions have greater mass than protons, the experimental energies were chosen based on SRIM modeling to produce comparable nuclear and electronic stopping powers and penetration depths (~10-30 nm) to typical solar wind protons in ilmenite. In the revised manuscript we have added a dedicated subsection in Methods that tabulates our ion energy, fluence, and charge state against solar wind spectra (including the ~95% H+ component and minor He2+ contribution). We justify that the primary npFe0 formation pathway—hydrogen/deuterium implantation followed by Fe reduction and diffusion—is insensitive to the small isotopic mass difference at the observed particle sizes (<10 nm). The close morphological and chemical match to Apollo rims provides empirical support that the proxy faithfully reproduces the key space-weathering outcomes. These additions do not alter our conclusions but improve transparency. revision: yes

  2. Referee: [Methods and Results] Full details on sample preparation, ion-beam parameters, and controls for electron-beam damage or reduction artifacts during HR-STEM/EELS are required. Without these, it is difficult to rule out that the identified npFe0 and rim structures arise partly from experimental conditions rather than the intended solar-wind simulation.

    Authors: We agree that expanded methodological transparency is necessary. The revised manuscript now contains a substantially expanded Methods section that details: (i) ilmenite sample preparation (single-crystal polishing, FIB thinning, and mounting), (ii) exact ion-beam parameters (energy, current density, total fluence, and vacuum conditions for each irradiation run), and (iii) STEM/EELS controls including low-dose acquisition protocols, comparison spectra from unirradiated regions, and reference measurements on synthetic Fe standards to exclude beam-induced reduction. These additions confirm that the observed npFe0 particles and rim chemistry result from the synthetic solar-wind exposure rather than instrumental artifacts. revision: yes

Circularity Check

0 steps flagged

No significant circularity: experimental replication and direct comparison to lunar samples

full rationale

The paper is a laboratory experimental study that irradiates ilmenite with a synthetic plasma (deuterium ions plus low-energy electrons), performs STEM/EELS characterization, observes rim features and npFe0 distributions, and compares them directly to lunar samples. The estimation of solar wind exposure for Apollo soil 71501 is a fluence-based calibration from the lab results matched to observed features, not a derivation that reduces to fitted parameters or self-citations by the paper's own equations. No load-bearing steps involve self-definition, fitted inputs renamed as predictions, or uniqueness theorems imported from prior author work. The central claim rests on independent experimental observations against external lunar benchmarks, making the work self-contained with no circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the chosen synthetic plasma accurately mimics natural solar wind effects; no free parameters or invented entities are introduced.

axioms (1)
  • domain assumption Deuterium ions and low-energy electrons serve as a faithful proxy for solar wind plasma in producing space-weathering rims on ilmenite.
    Invoked to justify the laboratory irradiation setup as equivalent to natural solar wind bombardment.
