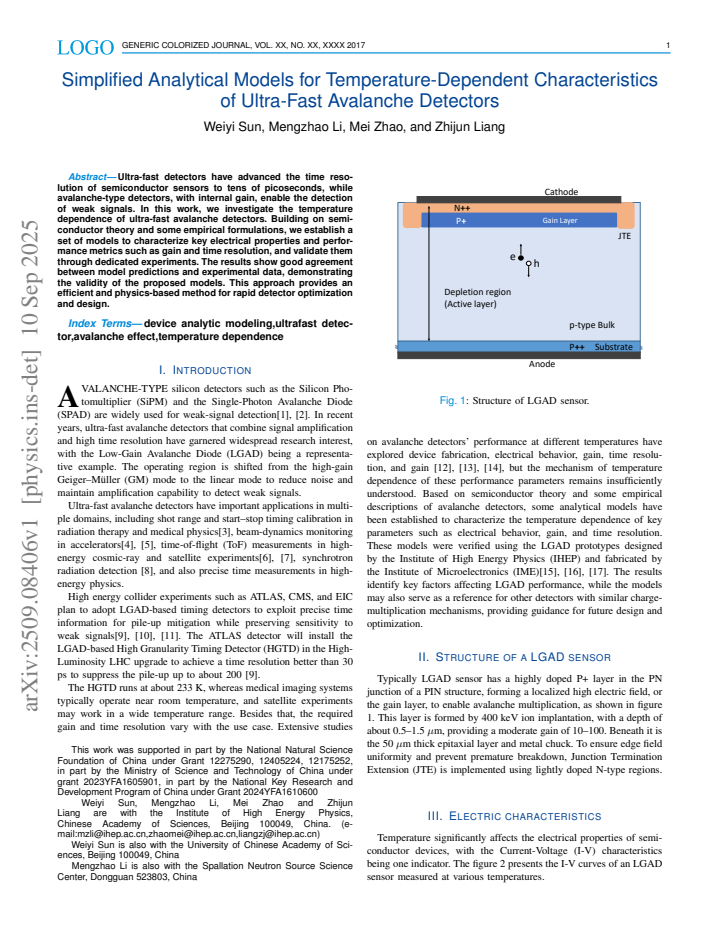

Temperature Dependence of Gain and Time Resolution in LGAD Detectors

Weiyi Sun , Mengzhao Li , Mei Zhao , Zhijun Liang This is my paper

Pith reviewed 2026-05-18 18:08 UTC · model grok-4.3

classification ⚛️ physics.ins-det hep-ex
keywords LGADLow-Gain Avalanche Diodegaintime resolutiontemperature dependencebias compensationmultiplication regionsilicon timing detectors
0
0 comments X

The pith

LGAD gain-voltage curves at multiple temperatures can be reconstructed from one reference curve via a bias-compensation relation derived from an equivalent rectangular gain layer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a compact analytical framework for LGAD gain and timing behavior that replaces the actual non-uniform multiplication region with an equivalent rectangular gain layer. From this representation it derives a first-order bias-compensation relation that keeps gain constant when temperature changes, allowing the full family of gain-versus-voltage curves to be obtained from a single reference-temperature measurement. The same compensation idea is extended to time resolution by decomposing the total resolution into jitter and intrinsic components, each represented by its own equivalent bias offset. The method is validated on IHEP-designed LGADs fabricated by IME together with an independent HPK dataset. The resulting description reduces the number of temperature points that must be measured for calibration and operation of ultrafast timing systems.

Core claim

The non-uniform multiplication region in an LGAD is replaced by an equivalent rectangular gain layer. A first-order bias-compensation relation for constant gain is derived from this representation and shown to be temperature-independent. The entire gain-voltage curve family at different temperatures is thereby reconstructed from a main curve measured at a reference temperature. The same equivalent-layer approach is applied to timing by separating total time resolution into jitter and intrinsic parts and assigning each part its own temperature-dependent bias offset, producing a function-level description of multi-temperature LGAD timing curves.

What carries the argument

equivalent rectangular gain layer representation of the multiplication region, supplying a first-order bias-compensation relation for constant gain

If this is right

  • Gain at any temperature is obtained by shifting the reference gain curve by the computed bias offset.
  • Time-resolution curves at multiple temperatures follow from separate bias offsets applied to the jitter and intrinsic components.
  • Characterization effort is reduced because exhaustive multi-temperature sweeps are no longer required.
  • The analytical model supplies a practical tool for predicting operating points and performing calibration in temperature-varying environments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Large detector arrays could adopt reduced-density temperature testing protocols based on the compensation relation.
  • Real-time temperature correction routines in readout electronics could incorporate the derived bias offsets directly.
  • The rectangular-layer approximation could be compared with device simulations to establish its range of validity.
  • Extension of the same compensation method to irradiated LGADs would test whether the framework remains predictive after radiation damage.

Load-bearing premise

Replacing the actual non-uniform multiplication region with an equivalent rectangular gain layer still yields a temperature-independent bias-compensation relation accurate enough for the tested devices and the independent dataset.

What would settle it

A direct measurement at a second temperature in which the gain after applying the predicted bias compensation deviates substantially from the value on the reference curve.

read the original abstract

Low-Gain Avalanche Diodes (LGADs) provide moderate internal gain and time resolutions of a few tens of picoseconds, making them a key technology for ultrafast timing in high-energy physics and beyond. However, both their gain and timing characteristics vary strongly with reverse-bias voltage and temperature. This work establishes a compact analytical framework that describes multi-temperature LGAD gain and timing behavior through an equivalent representation of the gain layer. The non-uniform multiplication region is replaced by an equivalent rectangular gain layer, from which a first-order bias-compensation relation for constant gain is derived and validated. Using multi-temperature measurements of LGADs designed by IHEP and fabricated by IME, together with an independent HPK dataset, we show that the gain-voltage curve family can be reconstructed from a reference-temperature main curve, substantially reducing characterization effort. The same idea is then extended to timing by decomposing the total time resolution into jitter and intrinsic components and representing their temperature dependences as component-wise equivalent bias offsets. The resulting framework provides a function-level description of multi-temperature LGAD time-resolution curves and offers a practical tool for calibration, operation, and reduced-density characterization of LGAD-based ultrafast timing systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper claims that modeling the LGAD multiplication region as an equivalent rectangular gain layer yields a first-order bias-compensation relation that permits reconstruction of the full family of gain-voltage curves at multiple temperatures from a single reference-temperature curve. The same decomposition into equivalent bias offsets is applied to time resolution after separating jitter and intrinsic contributions. The framework is derived analytically and validated on multi-temperature data from IHEP/IME devices together with an independent HPK dataset.

Significance. If the central approximation holds with the reported accuracy, the work supplies a compact, function-level description that can materially reduce the experimental effort required for temperature-dependent characterization of LGAD timing detectors. The inclusion of an external HPK dataset provides a useful check against device-specific fitting.

major comments (1)
  1. The derivation of the first-order bias-compensation relation rests on replacing the actual peaked field profile with a uniform rectangular slab (see the section introducing the equivalent rectangular gain layer). Because the ionization coefficient is exponentially sensitive to the local field, any temperature-induced shift in the shape or position of the real peak may introduce higher-order corrections not captured by a fixed rectangular equivalent. The manuscript demonstrates overall agreement with measured curves but does not quantify the residual temperature-dependent error that would remain if the true non-uniform profile were restored; a dedicated residual analysis or comparison against TCAD field profiles across the measured temperature range would directly test whether the first-order relation remains sufficiently accurate at the edges of the operating window.
minor comments (2)
  1. In the figures that overlay reconstructed and measured gain curves, add a residual panel or tabulated RMS deviation per temperature to make the reconstruction fidelity quantitative rather than visual.
  2. Clarify in the text whether the equivalent-layer width and height are held strictly fixed across all temperatures or allowed a weak temperature dependence; the current wording leaves this ambiguous.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and constructive comment on the equivalent rectangular gain layer approximation. We address the point below and outline the planned revision.

read point-by-point responses

  1. Referee: The derivation of the first-order bias-compensation relation rests on replacing the actual peaked field profile with a uniform rectangular slab (see the section introducing the equivalent rectangular gain layer). Because the ionization coefficient is exponentially sensitive to the local field, any temperature-induced shift in the shape or position of the real peak may introduce higher-order corrections not captured by a fixed rectangular equivalent. The manuscript demonstrates overall agreement with measured curves but does not quantify the residual temperature-dependent error that would remain if the true non-uniform profile were restored; a dedicated residual analysis or comparison against TCAD field profiles across the measured temperature range would directly test whether the first-order relation remains sufficiently accurate at the edges of the operating window.

    Authors: We agree that the exponential sensitivity of the ionization coefficient implies that any temperature-driven change in the actual field peak could produce higher-order corrections beyond the fixed rectangular equivalent. The model is presented as a first-order approximation whose validity is tested by its ability to reconstruct the full family of measured gain curves from a single reference-temperature curve, with comparable performance on both the IHEP/IME and independent HPK datasets. To directly address the request for quantification of residuals, the revised manuscript will include a new subsection that extracts and plots the relative residuals between measured and reconstructed gains as a function of temperature, with particular attention to the high- and low-gain edges of the operating window. This data-driven residual analysis will provide a practical bound on any unaccounted temperature dependence. A device-specific TCAD reconstruction of the evolving field profile lies outside the scope of the present experimental study; we will instead note this limitation and cite existing literature on LGAD field profiles to contextualize the expected size of higher-order effects. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation grounded by independent dataset

full rationale

The paper replaces the non-uniform gain layer with an equivalent rectangular representation, derives a first-order bias-compensation relation from that model, and validates reconstruction of the full gain-voltage family on both its own IHEP/IME multi-temperature data and a separate HPK dataset. Because the central relation is obtained from the rectangular ansatz rather than by fitting the target multi-temperature curves directly, and because external data provide an independent check, the derivation chain does not reduce to its inputs by construction. No load-bearing self-citation or fitted-input-renamed-as-prediction step is present in the supplied text.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the modeling choice of an equivalent rectangular gain layer whose parameters are determined from data; no explicit free parameters or invented particles are named in the abstract, but the rectangular-layer construct functions as an ad-hoc modeling entity.

axioms (1)
  • domain assumption The non-uniform multiplication region can be replaced by an equivalent rectangular gain layer without loss of predictive power for temperature dependence.
    This premise is invoked to derive the bias-compensation relation and is the foundation of the entire framework.
invented entities (1)
  • equivalent rectangular gain layer no independent evidence
    purpose: To simplify the non-uniform multiplication region into a uniform slab from which a first-order bias-compensation relation can be derived.
    The entity is introduced as a modeling approximation; the abstract provides no independent falsifiable prediction outside the fitted curves.

pith-pipeline@v0.9.0 · 5743 in / 1391 out tokens · 36573 ms · 2026-05-18T18:08:20.859618+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

29 extracted references · 29 canonical work pages

  1. [1]

    Understanding and simu- lating SiPMs,

    F. Acerbi and S. Gundacker, “Understanding and simu- lating SiPMs,” vol. 926, pp. 16–35. [Online]. Available: https://linkinghub.elsevier.com/retrieve/pii/S0168900218317704

    work page

  2. [2]

    SPAD Figures of Merit for Photon-Counting, Photon-Timing, and Imaging Applications: A Review,

    D. Bronzi, F. Villa, S. Tisa, and etal, “SPAD Figures of Merit for Photon-Counting, Photon-Timing, and Imaging Applications: A Review,” vol. 16, no. 1, pp. 3–12. [Online]. Available: http://ieeexplore.ieee.org/document/7283534/

    work page arXiv

  3. [3]

    Demonstration of LGADs and Cherenkov Gamma Detectors for Prompt Gamma Timing Proton Therapy Range Verification,

    R. Heller, J. Ellin, M. Backfish, and etal, “Demonstration of LGADs and Cherenkov Gamma Detectors for Prompt Gamma Timing Proton Therapy Range Verification,” vol. 9, no. 4, pp. 508–514. [Online]. Available: https://ieeexplore.ieee.org/document/10748344/

    work page arXiv

  4. [4]

    Characterization of thin LGAD sensors designed for beam monitoring in proton therapy,

    O. Marti Villarreal, A. Vignati, S. Giordanengo, and etal, “Characterization of thin LGAD sensors designed for beam monitoring in proton therapy,” vol. 1046, p. 167622. [Online]. Available: https://linkinghub.elsevier.com/retrieve/pii/S0168900222009147

    work page

  5. [5]

    Beam test results of 25 and 35 $$\mu$$m thick FBK ultra-fast silicon detectors,

    F. Carnesecchi, S. Strazzi, A. Alici, and etal, “Beam test results of 25 and 35 $$\mu$$m thick FBK ultra-fast silicon detectors,” vol. 138, no. 1, p. 99. [Online]. Available: https://link.springer.com/10.1140/epjp/s13360-022-03619-1

    work page doi:10.1140/epjp/s13360-022-03619-1

  6. [6]

    The Development of SiPM-Based Fast Time-of-Flight Detector for the AMS-100 Experiment in Space,

    C. Chung, T. Backes, C. Dittmar, and etal, “The Development of SiPM-Based Fast Time-of-Flight Detector for the AMS-100 Experiment in Space,” vol. 6, no. 1, p. 14. [Online]. Available: https://www.mdpi.com/2410-390X/6/1/14

    work page

  7. [7]
