arxiv: 2509.08650 · v1 · submitted 2025-09-10 · ❄️ cond-mat.mtrl-sci

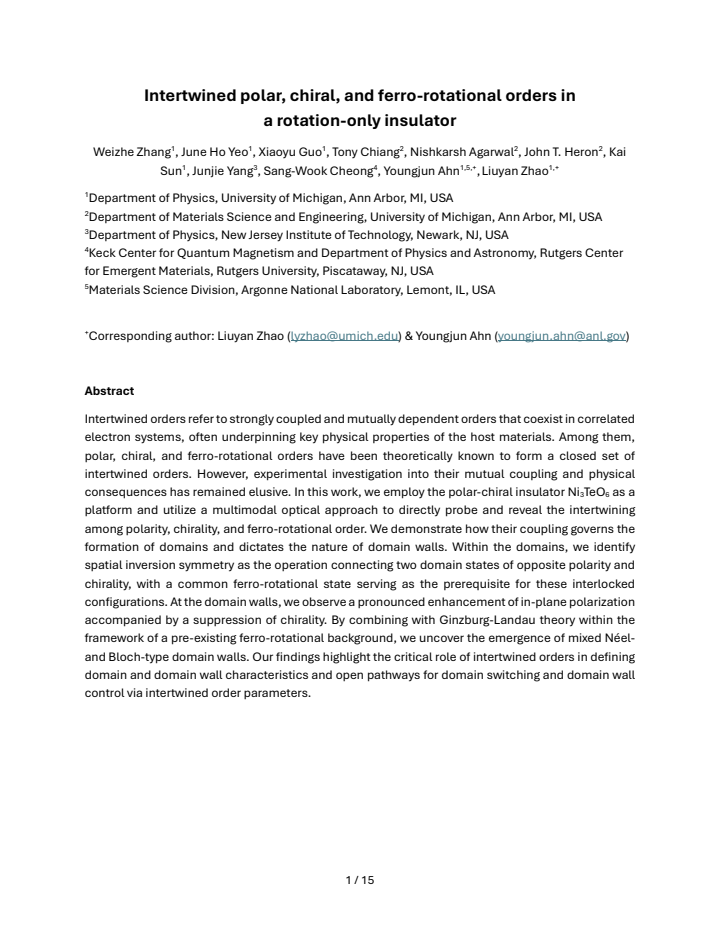

Intertwined polar, chiral, and ferro-rotational orders in a rotation-only insulator

Weizhe Zhang , June Ho Yeo , Xiaoyu Guo , Tony Chiang , Nishkarsh Agarwal , John T. Heron , Kai Sun , Junjie Yang
show 3 more authors
Sang-Wook Cheong Youngjun Ahn Liuyan Zhao
This is my paper

Pith reviewed 2026-05-18 17:52 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords intertwined orderspolar orderchiral orderferro-rotational orderdomain wallsNi3TeO6Ginzburg-Landau theoryoptical spectroscopy
0
0 comments X

The pith

Spatial inversion connects opposite-polarity and opposite-chirality domains that share one ferro-rotational state in Ni3TeO6.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that three orders—polar, chiral, and ferro-rotational—form a tightly coupled set in the insulator Ni3TeO6. Optical measurements map how domains of opposite polarity and chirality are related by spatial inversion while they sit on the same ferro-rotational background. At the walls between these domains the in-plane polarization rises and chirality falls, producing mixed Néel and Bloch walls when the observations are fed into Ginzburg-Landau theory that already contains the ferro-rotational order. A reader would care because the coupling sets the rules for how domains arrange themselves and how their boundaries behave, which in turn shapes the material’s macroscopic responses.

Core claim

Within the domains, spatial inversion symmetry is the operation connecting two domain states of opposite polarity and chirality, with a common ferro-rotational state serving as the prerequisite for these interlocked configurations. At the domain walls, a pronounced enhancement of in-plane polarization is accompanied by a suppression of chirality. By combining with Ginzburg-Landau theory within the framework of a pre-existing ferro-rotational background, the emergence of mixed Néel- and Bloch-type domain walls is uncovered.

What carries the argument

The pre-existing ferro-rotational order that acts as the fixed background allowing spatial inversion to link opposite polar and chiral domain states, with Ginzburg-Landau theory then determining the mixed character of the walls.

If this is right

  • Domains of opposite polarity and chirality are connected by spatial inversion while they share the identical ferro-rotational state.
  • Domain walls display a clear increase in in-plane polarization together with a decrease in chirality.
  • Ginzburg-Landau theory applied on top of the ferro-rotational background yields mixed Néel- and Bloch-type domain walls.
  • The mutual coupling among the three orders directly controls both domain formation and the structure of the walls.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Switching the ferro-rotational order could provide an indirect route to flip the polar and chiral domains.
  • Similar order intertwining may appear in other rotation-only insulators and could be mapped with the same optical combination.
  • Domain-wall properties engineered through these couplings might be used to create localized conducting or magnetic channels.
  • Independent verification of uniform ferro-rotation across opposite-polarity domains would strengthen the central picture.

Load-bearing premise

The multimodal optical signals can be assigned without ambiguity to polarity, chirality, or ferro-rotation without cross-talk or surface artifacts that would change the reported domain and wall assignments.

What would settle it

Finding domains in which polarity and chirality do not reverse together under spatial inversion, or walls that lack the predicted rise in in-plane polarization and drop in chirality, would falsify the reported intertwining.

read the original abstract

Intertwined orders refer to strongly coupled and mutually dependent orders that coexist in correlated electron systems, often underpinning key physical properties of the host materials. Among them, polar, chiral, and ferro-rotational orders have been theoretically known to form a closed set of intertwined orders. However, experimental investigation into their mutual coupling and physical consequences has remained elusive. In this work, we employ the polar-chiral insulator Ni$_3$TeO$_6$ as a platform and utilize a multimodal optical approach to directly probe and reveal the intertwining among polarity, chirality, and ferro-rotational order. We demonstrate how their coupling governs the formation of domains and dictates the nature of domain walls. Within the domains, we identify spatial inversion symmetry as the operation connecting two domain states of opposite polarity and chirality, with a common ferro-rotational state serving as the prerequisite for these interlocked configurations. At the domain walls, we observe a pronounced enhancement of in-plane polarization accompanied by a suppression of chirality. By combining with Ginzburg-Landau theory within the framework of a pre-existing ferro-rotational background, we uncover the emergence of mixed N\'eel- and Bloch-type domain walls. Our findings highlight the critical role of intertwined orders in defining domain and domain wall characteristics and open pathways for domain switching and domain wall control via intertwined order parameters.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports multimodal optical observations of intertwined polar, chiral, and ferro-rotational orders in the insulator Ni3TeO6. It claims that spatial inversion symmetry relates domains of opposite polarity and chirality that share a common ferro-rotational background, while domain walls exhibit enhanced in-plane polarization and suppressed chirality; Ginzburg-Landau theory applied on a pre-existing ferro-rotational background is used to identify the resulting mixed Néel- and Bloch-type walls.

Significance. If the optical contrasts can be shown to map unambiguously onto the three order parameters, the work would supply a concrete experimental realization of theoretically predicted intertwined orders and demonstrate how their coupling controls domain and domain-wall character. The multimodal optical strategy and its combination with GL modeling constitute a clear strength; the result would be of interest for domain engineering in rotation-only insulators.

major comments (2)
  1. The central domain and domain-wall assignments rest on the multimodal optical signals being assigned to polarity, chirality, and ferro-rotation without appreciable cross-talk or surface artifacts. This mapping is load-bearing for the inversion-symmetry relation and the mixed-wall conclusion stated in the abstract; additional controls (e.g., polarization dependence, thickness dependence, or comparison with bulk probes) are needed to secure it.
  2. In the Ginzburg-Landau section, the ferro-rotational background is taken as pre-existing; it is not clear whether its magnitude and symmetry are independently constrained by experiment or introduced as a fitting parameter, which directly affects the predicted stability of the mixed Néel-Bloch walls.
minor comments (2)
  1. Figure captions and text should explicitly state which optical channel (SHG, Raman, etc.) is used for each order parameter so that the assignment can be followed without ambiguity.
  2. A brief statement of the experimental resolution and error estimation for the domain-wall contrasts would strengthen the presentation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our work's significance and for the constructive major comments. We have revised the manuscript to strengthen the experimental controls and to clarify the constraints on the Ginzburg-Landau modeling. Point-by-point responses follow.

read point-by-point responses

  1. Referee: The central domain and domain-wall assignments rest on the multimodal optical signals being assigned to polarity, chirality, and ferro-rotation without appreciable cross-talk or surface artifacts. This mapping is load-bearing for the inversion-symmetry relation and the mixed-wall conclusion stated in the abstract; additional controls (e.g., polarization dependence, thickness dependence, or comparison with bulk probes) are needed to secure it.

    Authors: We agree that the mapping of optical contrasts to the three order parameters must be robust. The multimodal data already incorporate polarization-dependent measurements that exploit the distinct symmetry selection rules of each optical process (SHG for polar/chiral contrast and linear optical anisotropy for ferro-rotation). In the revised manuscript we have added an explicit supplementary section that quantifies cross-talk by showing that the signals remain orthogonal under polarization rotation. Thickness-dependent data, now included in the SI, demonstrate that domain contrast and wall profiles are independent of sample thickness down to the thinnest flakes examined, arguing against dominant surface artifacts. While a new bulk-probe comparison (e.g., neutron diffraction) lies outside the present optical study, the observed domain topology is consistent with the inversion-symmetry relation reported in earlier structural work on Ni3TeO6. We have updated the main text and abstract to summarize these controls. revision: partial

  2. Referee: In the Ginzburg-Landau section, the ferro-rotational background is taken as pre-existing; it is not clear whether its magnitude and symmetry are independently constrained by experiment or introduced as a fitting parameter, which directly affects the predicted stability of the mixed Néel-Bloch walls.

    Authors: We thank the referee for this clarification request. The ferro-rotational background is fixed by the experimentally observed optical contrast that directly reports the ferro-rotational order parameter throughout the domains; its magnitude is therefore taken from the measured signal strength rather than adjusted as a free parameter. The symmetry is dictated by the known crystal point group and the observed domain configuration. In the revised Ginzburg-Landau section we now state explicitly how the background value is extracted from the data and present a brief sensitivity analysis showing that the mixed Néel-Bloch character of the walls is stable across the range of magnitudes consistent with experiment. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental observations interpreted via standard GL theory remain independent of inputs.

full rationale

The paper reports direct multimodal optical measurements on Ni3TeO6 that map domain contrasts and wall properties, then applies conventional Ginzburg-Landau modeling inside an assumed pre-existing ferro-rotational order to classify mixed Néel-Bloch walls. No equation reduces an observed quantity to a parameter fitted from the same dataset, and no load-bearing premise collapses to a self-citation chain or definitional loop. The central claims rest on experimental signal assignments and established theory whose assumptions are stated separately from the target results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that optical probes cleanly separate the three order parameters and that Ginzburg-Landau theory remains valid when a ferro-rotational background is imposed a priori. No free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Ginzburg-Landau theory applies to the domain-wall energetics once a pre-existing ferro-rotational background is assumed.
    Invoked to explain the mixed Néel-Bloch character of the walls.

pith-pipeline@v0.9.0 · 5814 in / 1345 out tokens · 36171 ms · 2026-05-18T17:52:55.876945+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

33 extracted references · 33 canonical work pages

  1. [1]

    Eight types of symmetrically distinct vectorlike physical quantities

    Hlinka, J. Eight types of symmetrically distinct vectorlike physical quantities. Phys Rev Lett 113, (2014)

    work page 2014

  2. [2]

    Cheong, S. W. SOS: symmetry-operational similarity. NPJ Quantum Mater 4, (2019)

    work page 2019

  3. [3]

    W., Lim, S., Du, K

    Cheong, S. W., Lim, S., Du, K. & Huang, F . T. Permutable SOS (symmetry operational similarity). NPJ Quantum Mater 6, (2021)

    work page 2021

  4. [4]

    & Sunyar, A

    Goldhaber, M., Grodzins, L. & Sunyar, A. W. Helicity of Neutrinos. Physical Review 1015–1017 (1958)

    work page 1958

  5. [5]

    Cotton, F . A. Chemical Applications of Group Theory. (John Wiley & Sons, Nashville, TN, 1990)

    work page 1990

  6. [6]

    O., Lemke, T

    Foye, W. O., Lemke, T. L. & Williams, D. A. Foye’s Principles of Medicinal Chemistry. (Lippincott Williams and Wilkins, Philadelphia, PA, 2006)

    work page 2006

  7. [7]

    Hall.Lie Groups, Lie Algebras, and Representations: An Elementary Introduction

    Dresselhaus, M. S., Dresselhaus, G. & Jorio, A. Group Theory: Applications to the Physics of Condensed Matter. (Springer, Berlin, Germany, 2007). doi:10.1007/978-3- 540-32899-5

    work page doi:10.1007/978-3- 2007

  8. [8]

    Barron, L. D. Molecular Light Scattering and Optical Activity. (Cambridge University Press, Cambridge, England, 2009)

    work page 2009

  9. [9]

    & Litvin, D

    Gopalan, V . & Litvin, D. B. Rotation-reversal symmetries in crystals and handed structures. Nat Mater 10, 376–381 (2011)

    work page 2011

  10. [10]

    & Janovec, V

    Hlinka, J., Privratska, J., Ondrejkovic, P . & Janovec, V . Symmetry Guide to Ferroaxial Transitions. Phys Rev Lett 116, (2016)

    work page 2016

  11. [11]

    W., Talbayev, D., Kiryukhin, V

    Cheong, S. W., Talbayev, D., Kiryukhin, V . & Saxena, A. Broken symmetries, non- reciprocity, and multiferroicity. NPJ Quantum Mater 3, (2018)

    work page 2018

  12. [12]

    Jin, W. et al. Observation of a ferro-rotational order coupled with second-order nonlinear optical fields. Nat Phys 16, 42–46 (2020)

    work page 2020

  13. [13]

    Hayashida, T. et al. Visualization of ferroaxial domains in an order-disorder type ferroaxial crystal. Nat Commun 11, 4582 (2020). 10 / 15

    work page 2020

  14. [14]

    Luo, X. et al. Ultrafast Modulations and Detection of a Ferro-Rotational Charge Density Wave Using Time-Resolved Electric Quadrupole Second Harmonic Generation. Phys Rev Lett 127, (2021)

    work page 2021

  15. [15]

    & Kimura, T

    Yokota, H., Hayashida, T., Kitahara, D. & Kimura, T. Three-dimensional imaging of ferroaxial domains using circularly polarized second harmonic generation microscopy. NPJ Quantum Mater 7, (2022)

    work page 2022

  16. [16]

    Guo, X. et al. Ferrorotational domain walls revealed by electric quadrupole second harmonic generation microscopy. Phys Rev B 107, (2023)

    work page 2023

  17. [17]

    Liu, G. et al. Electrical switching of ferro-rotational order in nanometre-thick 1T-TaS2 crystals. Nat Nanotechnol 18, 854–860 (2023)

    work page 2023

  18. [18]

    Newnham, R. E. & Meagher, E. P . Crystal structure of Ni3TeO6. Mater Res Bull 2, 549– 554 (1967)

    work page 1967

  19. [19]

    & Berger, H

    Živković, I., Prša, K., Zaharko, O. & Berger, H. Ni3TeO6 - A collinear antiferromagnet with ferromagnetic honeycomb planes. Journal of Physics: Condensed Matter 22, (2010)

    work page 2010

  20. [20]

    T., Yang, J., Oh, Y

    Wang, X., Huang, F . T., Yang, J., Oh, Y . S. & Cheong, S. W. Interlocked chiral/polar domain walls and large optical rotation in Ni3TeO6. APL Mater 3, (2015)

    work page 2015

  21. [21]

    V & Pisarev, R

    Fiebig, M., Pavlov, V . V & Pisarev, R. V . Second-harmonic generation as a tool for studying electronic and magnetic structures of crystals: review. Journal of the Optical Society of America B 22, 96–118 (2005)

    work page 2005

  22. [22]

    Zhao, L. et al. Evidence of an odd-parity hidden order in a spin-orbit coupled correlated iridate. Nat Phys 12, 32–36 (2016)

    work page 2016

  23. [23]

    Zhao, L. et al. A global inversion-symmetry-broken phase inside the pseudogap region of YBa2Cu3Oy. Nat Phys 13, 250–254 (2017)

    work page 2017

  24. [24]

    & Hsieh, D

    Zhao, L., Torchinsky, D., Harter, J., La Torre, A. & Hsieh, D. Second harmonic generation spectroscopy of hidden phases. in Encyclopedia of Modern Optics vols 1– 5 207–226 (Elsevier, 2018)

    work page 2018

  25. [25]

    Owen, R. et al. Second-order nonlinear optical and linear ultraviolet-visible absorption properties of the type-II multiferroic candidates RbFe(AO4)2 (A=Mo,Se, S). Phys Rev B 103, (2021)

    work page 2021

  26. [26]

    Schellman, J. A. Circular Dichroism and Optical Rotation. Chem Rev 75, 323–331 (1975). 11 / 15

    work page 1975

  27. [27]

    & Woody, R

    Berova, N., Nakanishi, K. & Woody, R. W. Circular Dichroism. (John Wiley & Sons, Nashville, TN, 2000)

    work page 2000

  28. [28]

    B., Rivera, J

    Van Aken, B. B., Rivera, J. P ., Schmid, H. & Fiebig, M. Observation of ferrotoroidic domains. Nature 449, 702–705 (2007)

    work page 2007

  29. [29]

    A., Lummen, T

    Denev, S. A., Lummen, T. T. A., Barnes, E., Kumar, A. & Gopalan, V . Probing ferroelectrics using optical second harmonic generation. Journal of the American Ceramic Society 94, 2699–2727 (2011)

    work page 2011

  30. [30]

    S., Meier, D

    Zimmermann, A. S., Meier, D. & Fiebig, M. Ferroic nature of magnetic toroidal order. Nat Commun 5, (2014). 12 / 15 Figure 1 | Crystal structure, symmetry-breaking pathways, and multimodal optical platform. a, Crystal structure of Ni3TeO6, showing two domain states related by the spatial inversion (I) operation, each with interlocked polar and chiral order...

    work page 2014

  31. [31]

    A second symmetry breaking then induces either 𝐶𝐶 or 𝜑𝜑, with the third arising automatically

    Polar-first pathway: First generate polar order 𝑝𝑝 𝑧𝑧, reducing the symmetry to an intermediate group 3𝑚𝑚 (𝐶𝐶3𝑣𝑣). A second symmetry breaking then induces either 𝐶𝐶 or 𝜑𝜑, with the third arising automatically

    work page

  32. [32]

    A second step then produces 𝑝𝑝𝑧𝑧 or 𝜑𝜑

    Chiral-first pathway: First generate chiral order 𝐶𝐶, reducing the symmetry to another intermediate group 32 (𝐷𝐷3). A second step then produces 𝑝𝑝𝑧𝑧 or 𝜑𝜑

    work page

  33. [33]

    polar -first

    Ferro-rotational-first pathway: Begin by generating ferro-rotational order 𝜑𝜑, reducing the symmetry to 3� (𝐶𝐶3𝑖𝑖) or 6� (𝐶𝐶3ℎ) with subsequent symmetry breaking producing 𝑝𝑝𝑧𝑧 or 𝐶𝐶 2.2 Symmetry-breaking pathways and their connection to domain wall structures Although all three pathways lead to the same final symmetry (point group 3), they represent dist...

    work page
