arxiv: 2509.08670 · v1 · submitted 2025-09-10 · 💻 cs.CV

FractalPINN-Flow: A Fractal-Inspired Network for Unsupervised Optical Flow Estimation with Total Variation Regularization

Sara Behnamian , Rasoul Khaksarinezhad , Andreas Langer This is my paper

Pith reviewed 2026-05-18 17:09 UTC · model grok-4.3

classification 💻 cs.CV
keywords optical flow estimationunsupervised learningfractal networktotal variation regularizationmotion estimationdeep learningcomputer visionencoder-decoder architecture
0
0 comments X p. Extension

The pith

A recursive fractal network estimates dense optical flow from unlabeled video frames by minimizing brightness constancy and total variation energy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces an unsupervised deep learning approach for computing optical flow between consecutive video frames without any ground truth motion data. The method relies on a special network architecture that repeatedly nests encoder-decoder blocks in a self-similar fractal pattern, using skip connections to combine local details with broader motion context. Training minimizes a variational energy that penalizes brightness changes between frames while adding a total variation term to enforce smoothness with preserved edges. This matters for practical video analysis because labeled flow data is costly to create and often unavailable for high-resolution or real-world recordings. If successful, the technique allows direct training on raw video collections.

Core claim

The FractalPINN-Flow model centers on the Fractal Deformation Network, a recursive encoder-decoder structure inspired by fractal self-similarity, trained by minimizing an energy functional that combines L1 and L2 brightness constancy terms with total variation regularization to produce accurate, smooth, and edge-preserving optical flow fields directly from grayscale image pairs.

What carries the argument

The Fractal Deformation Network (FDN), a recursive encoder-decoder architecture with repeated nesting and skip connections that jointly processes fine local motions and longer-range patterns.

If this is right

  • The model generates accurate optical flow on synthetic and standard benchmark datasets without requiring ground truth labels.
  • It handles high-resolution inputs effectively while maintaining spatial coherence.
  • The unsupervised training makes the approach viable in settings with scarce or no annotated data.
  • Total variation regularization produces flow fields that remain smooth in uniform regions yet sharp at object boundaries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same recursive nesting pattern could be tested on related unsupervised problems such as stereo depth estimation or video frame interpolation.
  • Parameter sharing across the nested scales might lower memory use during training on very large images.
  • Applying the framework to noisy real-world video could reveal whether the self-similar structure helps under varying illumination or motion blur.

Load-bearing premise

That repeatedly nesting encoder-decoder blocks in a fractal pattern will extract both small details and large motion patterns more effectively than ordinary sequential convolutional downsampling when the only training signal is brightness constancy plus total variation smoothness.

What would settle it

On high-resolution benchmark sequences with available ground truth, if the fractal network shows no reduction in endpoint error compared with a standard convolutional network trained under identical brightness and total variation losses, the recursive nesting adds no measurable benefit.

Figures

Figures reproduced from arXiv: 2509.08670 by Andreas Langer, Rasoul Khaksarinezhad, Sara Behnamian.

Figure 1
Figure 1. Figure 1: Synthetic Shepp-Logan phantom experiment. Top row (left to right): original phantom, synthetic frame 1 with embedded circles, warped frame 2, and color wheel. Bottom row: ground truth flow, predicted flows for λTV = 0 and 10−5 , respectively, all trained for 10,000 epochs [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

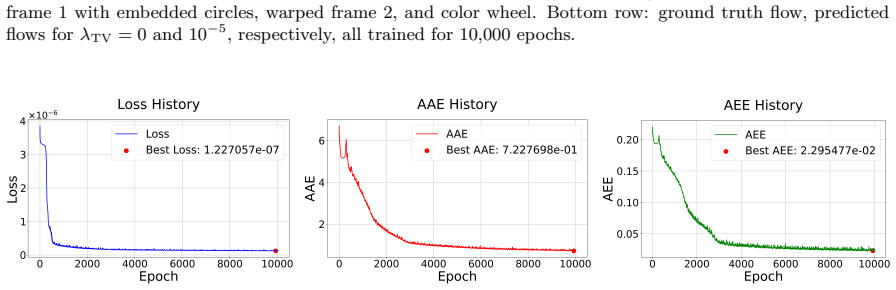

Figure 2. Figure 2: Training curves for the Shepp-Logan phantom experiment using total variation regularization with λTV = 10−5 . The model is trained for 10,000 epochs. Left: Loss history showing stable convergence with a final best loss of 1.23 × 10−7 . Middle: AEE curve indicating accurate magnitude estimation of flow vectors, with a best AEE of 2.30 × 10−2 and SDEE of 1.88 × 10−1 . Right: AAE decreasing to a final value o… view at source ↗
Figure 3
Figure 3. Figure 3: visualizes the predicted flow fields for each configuration, revealing the qualitative effects of λTV on spatial smoothness and edge preservation. High regularization improves visual coherence but risks oversmoothing fine structures, while low or zero regularization retains motion discontinuities but introduces noise and instability. These findings demonstrate the capacity of our fractal-based model to gen… view at source ↗
read the original abstract

We present FractalPINN-Flow, an unsupervised deep learning framework for dense optical flow estimation that learns directly from consecutive grayscale frames without requiring ground truth. The architecture centers on the Fractal Deformation Network (FDN) - a recursive encoder-decoder inspired by fractal geometry and self-similarity. Unlike traditional CNNs with sequential downsampling, FDN uses repeated encoder-decoder nesting with skip connections to capture both fine-grained details and long-range motion patterns. The training objective is based on a classical variational formulation using total variation (TV) regularization. Specifically, we minimize an energy functional that combines $L^1$ and $L^2$ data fidelity terms to enforce brightness constancy, along with a TV term that promotes spatial smoothness and coherent flow fields. Experiments on synthetic and benchmark datasets show that FractalPINN-Flow produces accurate, smooth, and edge-preserving optical flow fields. The model is especially effective for high-resolution data and scenarios with limited annotations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript introduces FractalPINN-Flow, an unsupervised deep learning framework for dense optical flow estimation from consecutive grayscale frames. It centers on the Fractal Deformation Network (FDN), a recursive encoder-decoder architecture inspired by fractal self-similarity that uses repeated nesting and skip connections to capture multi-scale motion. Training minimizes a variational energy combining L1/L2 brightness constancy terms with total variation regularization for smoothness. The authors claim that experiments on synthetic and benchmark datasets yield accurate, smooth, and edge-preserving flow fields, with advantages for high-resolution data and limited annotations.

Significance. If the recursive fractal nesting can be shown to provide measurable gains over standard CNN downsampling under an identical variational loss, the work would offer a novel architectural direction for unsupervised optical flow that leverages self-similar structures for better detail and long-range consistency. The grounding in classical variational principles is a positive aspect, but the overall significance is limited by the absence of quantitative evidence and ablations in the presented material.

major comments (1)
  1. [Method (Fractal Deformation Network description)] The central novelty claim—that recursive fractal encoder-decoder nesting with skip connections captures fine-grained details and long-range motion patterns more effectively than standard sequential CNN downsampling—is load-bearing for the contribution. No ablation is described that isolates the recursive fractal structure (e.g., a depth-matched non-recursive encoder-decoder baseline) while holding the L1/L2 brightness + TV energy functional fixed; without this, performance differences cannot be attributed to the fractal design rather than the loss, optimization, or data factors.
minor comments (1)
  1. [Abstract] The abstract asserts that experiments demonstrate accurate results but provides no quantitative metrics (e.g., endpoint error, AEE), baseline comparisons, or specific dataset names, making it difficult to evaluate the strength of the performance claims without reading the full results section.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We address the major comment below and describe the revisions we will make.

read point-by-point responses

  1. Referee: [Method (Fractal Deformation Network description)] The central novelty claim—that recursive fractal encoder-decoder nesting with skip connections captures fine-grained details and long-range motion patterns more effectively than standard sequential CNN downsampling—is load-bearing for the contribution. No ablation is described that isolates the recursive fractal structure (e.g., a depth-matched non-recursive encoder-decoder baseline) while holding the L1/L2 brightness + TV energy functional fixed; without this, performance differences cannot be attributed to the fractal design rather than the loss, optimization, or data factors.

    Authors: We agree that an ablation isolating the recursive fractal nesting from a depth-matched non-recursive encoder-decoder, while holding the variational loss fixed, is necessary to substantiate the architectural contribution. The current manuscript presents results against published optical flow baselines but does not include this controlled comparison. In the revised manuscript we will add the requested ablation study using identical training data, optimization, and the same L1/L2 + TV energy functional. revision: yes

Circularity Check

0 steps flagged

No circularity: architecture and loss are independent design choices

full rationale

The paper introduces a fractal-inspired recursive encoder-decoder network (FDN) as an architectural proposal and minimizes a classical variational energy combining L1/L2 brightness constancy with total variation regularization. No equation or claim reduces the network structure, the training objective, or the reported performance metrics to a fitted parameter or self-referential definition by construction. The fractal nesting is motivated by geometric self-similarity rather than derived from the loss or data; the loss itself is standard and external to the network topology. No self-citation chains or uniqueness theorems are invoked to force the design. The derivation chain is therefore self-contained and does not collapse to its inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on the standard brightness-constancy assumption of optical flow plus the unproven premise that fractal-style recursion improves multi-scale motion capture; no new physical constants or fitted parameters are explicitly named in the abstract, but regularization coefficients are implicitly present.

free parameters (1)
  • Regularization coefficients for L1, L2, and TV terms
    Weights balancing data fidelity and smoothness terms are required to define the energy functional and are typically chosen or tuned.
axioms (1)
  • domain assumption Brightness constancy holds between consecutive grayscale frames
    Invoked to justify the L1 and L2 data fidelity terms in the variational energy.
invented entities (1)
  • Fractal Deformation Network (FDN) no independent evidence
    purpose: Recursive encoder-decoder architecture to capture multi-scale motion via self-similar nesting and skip connections
    New network design introduced by the paper; no independent evidence outside the proposed method is provided.

pith-pipeline@v0.9.0 · 5712 in / 1394 out tokens · 56862 ms · 2026-05-18T17:09:30.994266+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

22 extracted references · 22 canonical work pages

  1. [1]

    A primal-dual adaptive finite element method for total variation minimization.Advances in Computational Mathematics, 51(42):1–35, 2025

    Martin Alk¨ amper, Stephan Hilb, and Andreas Langer. A primal-dual adaptive finite element method for total variation minimization.Advances in Computational Mathematics, 51(42):1–35, 2025

    work page 2025

  2. [2]

    Lewis, Stefan Roth, Michael J

    Simon Baker, Daniel Scharstein, J.P. Lewis, Stefan Roth, Michael J. Black, and Richard Szeliski. A database and evaluation methodology for optical flow.International Journal of Computer Vision, 92(1):1–31, 2011

    work page 2011

  3. [3]

    VoxelMorph: A learning framework for deformable medical image registration.IEEE Transactions on Medical Imaging, 38(8):1788–1800, 2019

    Guha Balakrishnan, Amy Zhao, Mert R Sabuncu, John Guttag, and Adrian V Dalca. VoxelMorph: A learning framework for deformable medical image registration.IEEE Transactions on Medical Imaging, 38(8):1788–1800, 2019

    work page 2019

  4. [4]

    FlowNet: Learning optical flow with convolutional networks

    Alexey Dosovitskiy, Philipp Fischer, Eddy Ilg, Philip Hausser, Caner Hazirbas, Vladimir Golkov, Patrick van der Smagt, Daniel Cremers, and Thomas Brox. FlowNet: Learning optical flow with convolutional networks. InProceedings of the IEEE International Conference on Computer Vision (ICCV), pages 2758–2766, 2015

    work page 2015

  5. [5]

    A primal-dual finite element method for scalar and vectorial total variation minimization.Journal of Scientific Computing, 96(1):24, 2023

    Stephan Hilb, Andreas Langer, and Martin Alk¨ amper. A primal-dual finite element method for scalar and vectorial total variation minimization.Journal of Scientific Computing, 96(1):24, 2023

    work page 2023

  6. [6]

    Subspace correction methods for a class of nonsmooth and nonadditive convex variational problems with mixedL 1/L2 data-fidelity in image processing

    Michael Hinterm¨ uller and Andreas Langer. Subspace correction methods for a class of nonsmooth and nonadditive convex variational problems with mixedL 1/L2 data-fidelity in image processing. SIAM Journal on Imaging Sciences, 6(4):2134–2173, 2013

    work page 2013

  7. [7]

    Determining optical flow.Artificial Intelligence, 17(1- 3):185–203, 1981

    Berthold KP Horn and Brian G Schunck. Determining optical flow.Artificial Intelligence, 17(1- 3):185–203, 1981

    work page 1981

  8. [8]

    An adaptive finite difference method for total variation minimization.Numerical Algorithms, pages 1–36, 2025

    Thomas Jacumin and Andreas Langer. An adaptive finite difference method for total variation minimization.Numerical Algorithms, pages 1–36, 2025

    work page 2025

  9. [9]

    Barron, Ariel Gordon, Kurt Konolige, and Anelia Angelova

    Rico Jonschkowski, Austin Stone, Jonathan T. Barron, Ariel Gordon, Kurt Konolige, and Anelia Angelova. What matters in unsupervised optical flow. InProceedings of the European Conference on Computer Vision (ECCV), pages 557–572, 2020

    work page 2020

  10. [10]

    Adam: A method for stochastic optimization

    Diederik Kingma and Jimmy Ba. Adam: A method for stochastic optimization. InInternational Conference on Learning Representations (ICLR), San Diega, CA, USA, 2015

    work page 2015

  11. [11]

    Automated parameter selection in theL 1-L2-TV model for removing Gaussian plus impulse noise.Inverse Problems, 33(7):074002, 2017

    Andreas Langer. Automated parameter selection in theL 1-L2-TV model for removing Gaussian plus impulse noise.Inverse Problems, 33(7):074002, 2017

    work page 2017

  12. [12]

    DeepTV: A neural network approach for total variation minimization.arXiv preprint arXiv:2409.05569, 2024

    Andreas Langer and Sara Behnamian. DeepTV: A neural network approach for total variation minimization.arXiv preprint arXiv:2409.05569, 2024

    work page arXiv 2024

  13. [13]

    FractalNet: Ultra-deep neural networks without residuals

    Gustav Larsson, Michael Maire, and Gregory Shakhnarovich. FractalNet: Ultra-deep neural networks without residuals. InInternational Conference on Learning Representations (ICLR), 2016

    work page 2016

  14. [14]

    UnFlow: Unsupervised learning of optical flow with a bidirectional census loss

    Simon Meister, Junhwa Hur, and Stefan Roth. UnFlow: Unsupervised learning of optical flow with a bidirectional census loss. InProceedings of the AAAI Conference on Artificial Intelligence, volume 32, 2018

    work page 2018

  15. [15]

    PyTorch: An imperative style, high- performance deep learning library

    Adam Paszke, Sam Gross, Francisco Massa, Adam Lerer, James Bradbury, Gregory Chanan, Trevor Killeen, Zeming Lin, Natalia Gimelshein, Luca Antiga, Alban Desmaison, Andreas Kopf, Edward Yang, Zachary DeVito, Martin Raison, Alykhan Tejani, Sasank Chilamkurthy, Benoit Steiner, Lu Fang, Junjie Bai, and Soumith Chintala. PyTorch: An imperative style, high- perf...

    work page 2019

  16. [16]

    Maziar Raissi, Paris Perdikaris, and George E Karniadakis. Physics-informed neural networks: A deep learning framework for solving forward and inverse problems involving nonlinear partial differential equations.Journal of Computational Physics, 378:686–707, 2019. 9

    work page 2019

  17. [17]

    Shepp and Benjamin F

    Larry A. Shepp and Benjamin F. Logan. The Fourier reconstruction of a head section.IEEE Transactions on Nuclear Science, 21(3):21–43, 1974

    work page 1974

  18. [18]

    VideoFlow: Exploiting temporal cues for multi-frame optical flow estimation

    Xiaoyu Shi, Zhaoyang Huang, Wenjie Bian, Daquan Li, Minghang Zhang, Ka Chun Cheung, Shijian Lu, Hongwei Qin, Jifeng Dai, and Hongsheng Li. VideoFlow: Exploiting temporal cues for multi-frame optical flow estimation. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), pages 10381–10391, 2023

    work page 2023

  19. [19]

    SMURF: Self-teaching multi-frame unsupervised RAFT with full-image warping

    Austin Stone, Daniel Maurer, Alper Ayvaci, Anelia Angelova, and Rico Jonschkowski. SMURF: Self-teaching multi-frame unsupervised RAFT with full-image warping. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), pages 2886–2895, 2021

    work page 2021

  20. [20]

    PWC-Net: CNNs for optical flow using pyramid, warping, and cost volume

    Deqing Sun, Xiaodong Yang, Ming-Yu Liu, and Jan Kautz. PWC-Net: CNNs for optical flow using pyramid, warping, and cost volume. InProceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 8934–8943, 2018

    work page 2018

  21. [21]

    RAFT: Recurrent all-pairs field transforms for optical flow

    Zachary Teed and Jia Deng. RAFT: Recurrent all-pairs field transforms for optical flow. In Computer Vision–ECCV 2020: 16th European Conference, Glasgow, UK, August 23–28, 2020, Proceedings, Part II 16, pages 402–419. Springer, 2020

    work page 2020

  22. [22]

    A duality based approach for real-time TV-L1 optical flow

    Christopher Zach, Thomas Pock, and Horst Bischof. A duality based approach for real-time TV-L1 optical flow. InPattern Recognition (DAGM), pages 214–223. Springer, 2007. 10

    work page 2007
