Regularization in Data-driven Predictive Control: A Convex Relaxation Perspective

Xu Shang , Yang Zheng This is my paper

Pith reviewed 2026-05-18 17:05 UTC · model grok-4.3

classification 🧮 math.OC cs.SYeess.SY
keywords data-driven predictive controlregularizationconvex relaxationbi-level optimizationsystem identificationcausality-based regularizerA-DDPC
0
0 comments X

The pith

Regularized data-driven predictive control formulations are convex relaxations of bi-level optimization problems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that several common regularization techniques in data-driven predictive control correspond to convex relaxations of a bi-level optimization setup. System identification is treated as the inner problem whose solution is needed for the outer predictive control task. This framing unifies direct and indirect data-driven methods by showing how penalties, projections, and causality constraints implicitly enforce identification. A reader would care because the view explains the strong practical performance of regularization and suggests a new iterative method that solves the identification subproblem more completely.

Core claim

Using a bi-level optimization framework, system identification is modeled as an inner problem and predictive control as an outer problem. Several regularized DDPC formulations, including l1-norm penalties, projection-based regularizers, and a newly introduced causality-based regularizer, are shown to be convex relaxations of their respective bi-level problems. This perspective clarifies the conceptual links between direct and indirect data-driven control and highlights how regularization implicitly enforces system identification. An optimality-based variant called A-DDPC is proposed that approximately solves the inner problem with all identification constraints via an iterative algorithm.

What carries the argument

The bi-level optimization framework that places system identification in the inner level and predictive control in the outer level, which permits regularizers to be read as convex relaxations enforcing identification constraints.

If this is right

  • Regularization implicitly enforces system identification constraints.
  • Direct and indirect data-driven control methods are linked through the shared relaxation view.
  • The A-DDPC variant reduces both bias and variance errors relative to standard regularized formulations.
  • Pre-processing the trajectory library with system identification techniques can improve performance in nonlinear cases.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same relaxation lens might be used to derive new regularizers from other identification constraints not yet considered.
  • The framework could be tested on nonlinear systems where identification errors are larger to see whether the performance gains of A-DDPC persist.
  • Similar bi-level relaxations may apply to data-driven methods in adjacent fields such as reinforcement learning.

Load-bearing premise

The bi-level optimization structure with identification as the inner problem accurately represents the data-driven predictive control setting.

What would settle it

Solve the explicit bi-level problem on a given trajectory dataset and compare its outer-level optimum to the solution of a regularized DDPC formulation on the same data; large mismatch would falsify the relaxation interpretation.

Figures

Figures reproduced from arXiv: 2509.09027 by Xu Shang, Yang Zheng.

Figure 1
Figure 1. Figure 1: Schematic of data-driven predictive control ( [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The influence of the penalty parameter λ in (15), where we have replaced y with 1/x. is the same as {(g, σy, u, y) | Dg = col(uini, yini + σy, u, y), h(g) = 0}, where D is a fixed trajectory matrix. We next move the constraint on g to the cost via regularization, leading to a direct DDPC min g,σy∈Γ, u∈U,y∈Y ∥y∥ 2 Q + ∥u∥ 2 R + λy∥σy∥ 2 2 + λw|h(g)| subject to Dg = col(uini, yini + σy, u, y). (16) Section 4… view at source ↗
Figure 3

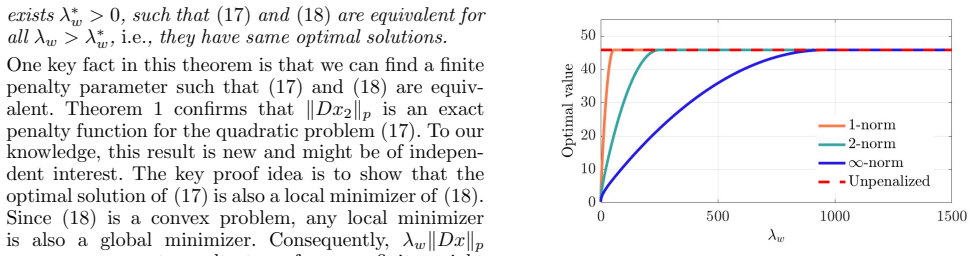

Figure 3. Figure 3: Numerical illustration of Theorem 1. The optimal [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of realized control cost of different vari [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of realized control cost of different [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
read the original abstract

This paper explores the role of regularization in data-driven predictive control (DDPC) through the lens of convex relaxation. Using a bi-level optimization framework, we model system identification as an inner problem and predictive control as an outer problem. Within this framework, we show that several regularized DDPC formulations, including l1-norm penalties, projection-based regularizers, and a newly introduced causality-based regularizer, can be viewed as convex relaxations of their respective bi-level problems. This perspective clarifies the conceptual links between direct and indirect data-driven control and highlights how regularization implicitly enforces system identification. We further propose an optimality-based variant, A-DDPC, which approximately solves the inner problem with all identification constraints via an iterative algorithm. Numerical experiments demonstrate that A-DDPC outperforms existing regularized DDPC by reducing both bias and variance errors. These results indicate that further benefits may be obtained by applying system identification techniques to pre-process the trajectory library in nonlinear settings. Overall, our analysis contributes to a unified convex relaxation view of regularization in DDPC and sheds light on its strong empirical performance beyond linear time-invariant systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops a bi-level optimization framework in which system identification is cast as an inner problem and predictive control as an outer problem. It argues that several regularized data-driven predictive control (DDPC) schemes—l1-norm penalties, projection-based regularizers, and a newly proposed causality-based regularizer—arise as convex relaxations of the corresponding bi-level programs. An iterative algorithm (A-DDPC) is introduced to approximately enforce all identification constraints, and numerical experiments are reported to show that A-DDPC reduces both bias and variance relative to existing regularized DDPC methods.

Significance. A rigorous convex-relaxation interpretation would supply a principled link between direct and indirect data-driven control and could guide the systematic design of regularizers. The introduction of the causality regularizer and the A-DDPC procedure are constructive contributions; the reported numerical improvements, if reproducible, indicate practical value beyond linear time-invariant settings.

major comments (2)
  1. [§3] §3: The central claim that standard regularized DDPC formulations are convex relaxations of bi-level problems requires an explicit demonstration that the inner system-identification optimization used in the bi-level construction coincides with the identification implicitly performed by the unregularized DDPC objective. Without this matching, the relaxation argument is not shown to recover the exact penalty terms appearing in the literature.
  2. [§4.2] §4.2, Algorithm 1: The iterative A-DDPC is presented as an approximate solver of the inner identification problem, yet no convergence analysis or a priori error bound relating the iterates to the true bi-level solution is supplied; this gap directly affects the claim that A-DDPC more faithfully solves the underlying bi-level program.
minor comments (2)
  1. [§2] The definition of the trajectory library and the precise statement of the unregularized DDPC objective should be restated in §2 to make the subsequent relaxation derivations self-contained.
  2. [§5] Figure captions and axis labels in the numerical section would benefit from explicit mention of the regularization weights and the number of Monte-Carlo trials used to compute bias/variance statistics.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive report. We address each major comment below and describe the revisions we will make to the manuscript.

read point-by-point responses

  1. Referee: [§3] §3: The central claim that standard regularized DDPC formulations are convex relaxations of bi-level problems requires an explicit demonstration that the inner system-identification optimization used in the bi-level construction coincides with the identification implicitly performed by the unregularized DDPC objective. Without this matching, the relaxation argument is not shown to recover the exact penalty terms appearing in the literature.

    Authors: We agree that an explicit matching is required to make the relaxation argument fully rigorous. In the revised version we will insert a dedicated paragraph (or short subsection) in §3 that derives the precise equivalence between the inner identification program of the bi-level formulation and the unregularized DDPC objective. This derivation will recover the exact penalty terms used in the literature as the convex relaxations of the corresponding bi-level programs. revision: yes

  2. Referee: [§4.2] §4.2, Algorithm 1: The iterative A-DDPC is presented as an approximate solver of the inner identification problem, yet no convergence analysis or a priori error bound relating the iterates to the true bi-level solution is supplied; this gap directly affects the claim that A-DDPC more faithfully solves the underlying bi-level program.

    Authors: We acknowledge that the present manuscript provides no formal convergence guarantee or a priori error bound for the A-DDPC iterates. While the algorithm is introduced as an approximate procedure and its practical benefit is demonstrated numerically, we will add a brief discussion in §4.2 that reports the observed convergence behavior across the numerical examples and, where possible, a simple contraction argument based on the fixed-point structure of the iteration. This addition will clarify the extent to which A-DDPC approximates the bi-level solution. revision: yes

Circularity Check

0 steps flagged

Bi-level relaxation framework is independent modeling with no reduction to inputs by construction

full rationale

The paper introduces a bi-level optimization framework with system identification as the inner problem and predictive control as the outer problem. It then shows that existing regularized DDPC formulations (l1 penalties, projection regularizers, and a new causality regularizer) can be interpreted as convex relaxations within this framework. The A-DDPC variant is proposed as an iterative approximation to solve the full inner identification problem. This modeling choice is presented as a perspective that unifies direct and indirect data-driven control, and numerical experiments compare performance. No quoted step in the abstract or description reduces a prediction or central claim to a fitted parameter or self-citation by construction; the framework appears self-contained and externally interpretable via standard convex relaxation techniques.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The paper rests on standard domain assumptions from optimization and linear control theory; no new physical entities are postulated.

free parameters (1)
  • regularization weights
    Weights for l1-norm and other penalties are introduced in the formulations and are presumably selected or tuned.
axioms (1)
  • domain assumption Data trajectories satisfy the conditions required for the bi-level optimization to represent the DDPC problem.
    This premise is invoked when the regularized problems are framed as relaxations of the bi-level setup.
