Isogeometric Topology Optimization Based on Topological Derivatives

Guilherme Henrique Teixeira , Nepomuk Krenn , Peter Gangl , Benjamin Marussig This is my paper

Pith reviewed 2026-05-18 18:04 UTC · model grok-4.3

classification 🧮 math.NA cs.CEcs.NAmath.OC
keywords topology optimizationisogeometric analysistopological derivativeslevel-set methodimmersed boundarystructural designnumerical methods
0
0 comments X

The pith

A level-set method inside an immersed isogeometric framework lets topology optimization change shapes without remeshing or predefined holes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that topological derivatives can drive the evolution of a level-set function while the underlying structure is represented and solved on an immersed isogeometric mesh. Because the mesh stays fixed, geometry updates happen by simply adjusting the level-set values rather than regenerating elements. The authors test the effect of polynomial degree on both the level-set representation and the physical solution field. They find that higher-degree functions raise the accuracy of the displacement or stress solution, yet linear functions are enough to represent the level-set itself. Two benchmark problems illustrate that the resulting designs match expected optima while preserving the no-remeshing property.

Core claim

The combination of a level-set representation, an immersed isogeometric discretization, and topological derivatives produces optimized structures through successive geometry updates that require neither remeshing nor the insertion of initial holes. Higher-degree basis functions improve the accuracy of the approximated solution fields, while linear basis functions suffice for the level-set description.

What carries the argument

An immersed isogeometric discretization paired with a level-set function that is updated by topological derivatives.

If this is right

  • Topological changes can be introduced directly through the level-set evolution without seeding initial voids.
  • Higher polynomial degrees in the physical solution field raise the fidelity of stress or displacement predictions during optimization.
  • Linear polynomials remain adequate for representing the level-set, keeping the description of the design boundary simple.
  • The fixed background mesh removes the need for repeated mesh generation steps that usually accompany topology changes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same fixed-mesh strategy could extend to problems that require frequent topology changes, such as crack propagation or multi-phase flow.
  • Because linear level-set functions suffice, the computational overhead of the design variable representation stays low even when the physics solver uses higher order.
  • If the immersed quadrature remains stable under large level-set motions, the method may scale to three-dimensional industrial geometries without mesh adaptation.

Load-bearing premise

The immersed isogeometric solution stays accurate enough for topological derivatives to be evaluated reliably as the level-set interface moves, without extra stabilization or quadrature changes.

What would settle it

A side-by-side comparison on a standard compliance-minimization benchmark in which the final compliance or volume fraction obtained without remeshing deviates measurably from the result of an equivalent remeshed reference computation.

Figures

Figures reproduced from arXiv: 2509.09236 by Benjamin Marussig, Guilherme Henrique Teixeira, Nepomuk Krenn, Peter Gangl.

Figure 1
Figure 1. Figure 1: Different types of optimization: a) Parameter Optimization; b) Shape Optimization; c) Topology [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

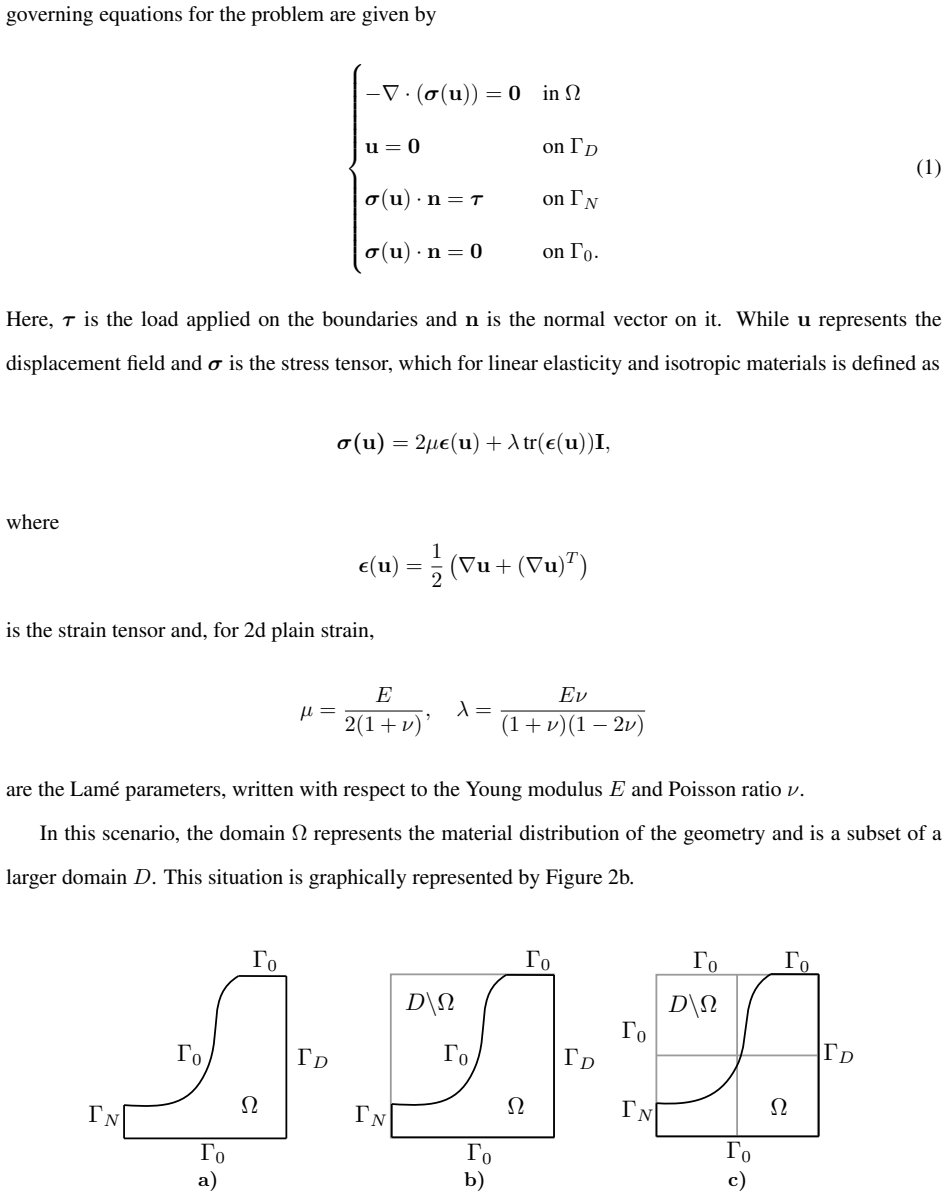

Figure 2. Figure 2: Representation of the domain problem: a) Domain [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

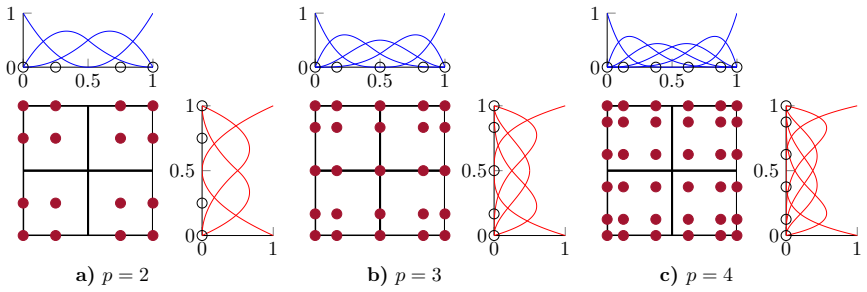

Figure 3. Figure 3: Distribution of the Greville abscissae on the elements for different polynomial degrees and basis [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

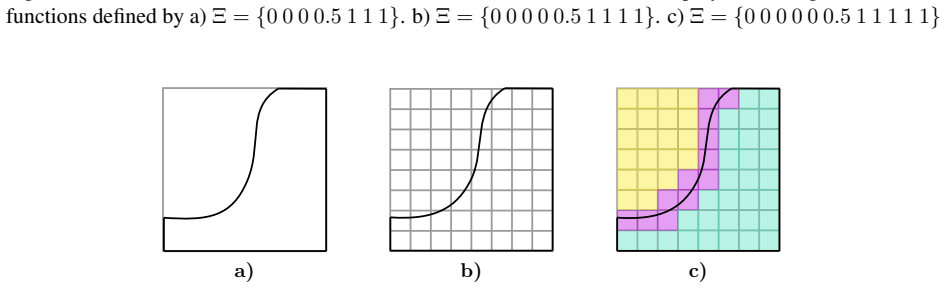

Figure 4. Figure 4: Type identification of the elements for assembling of the material property [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

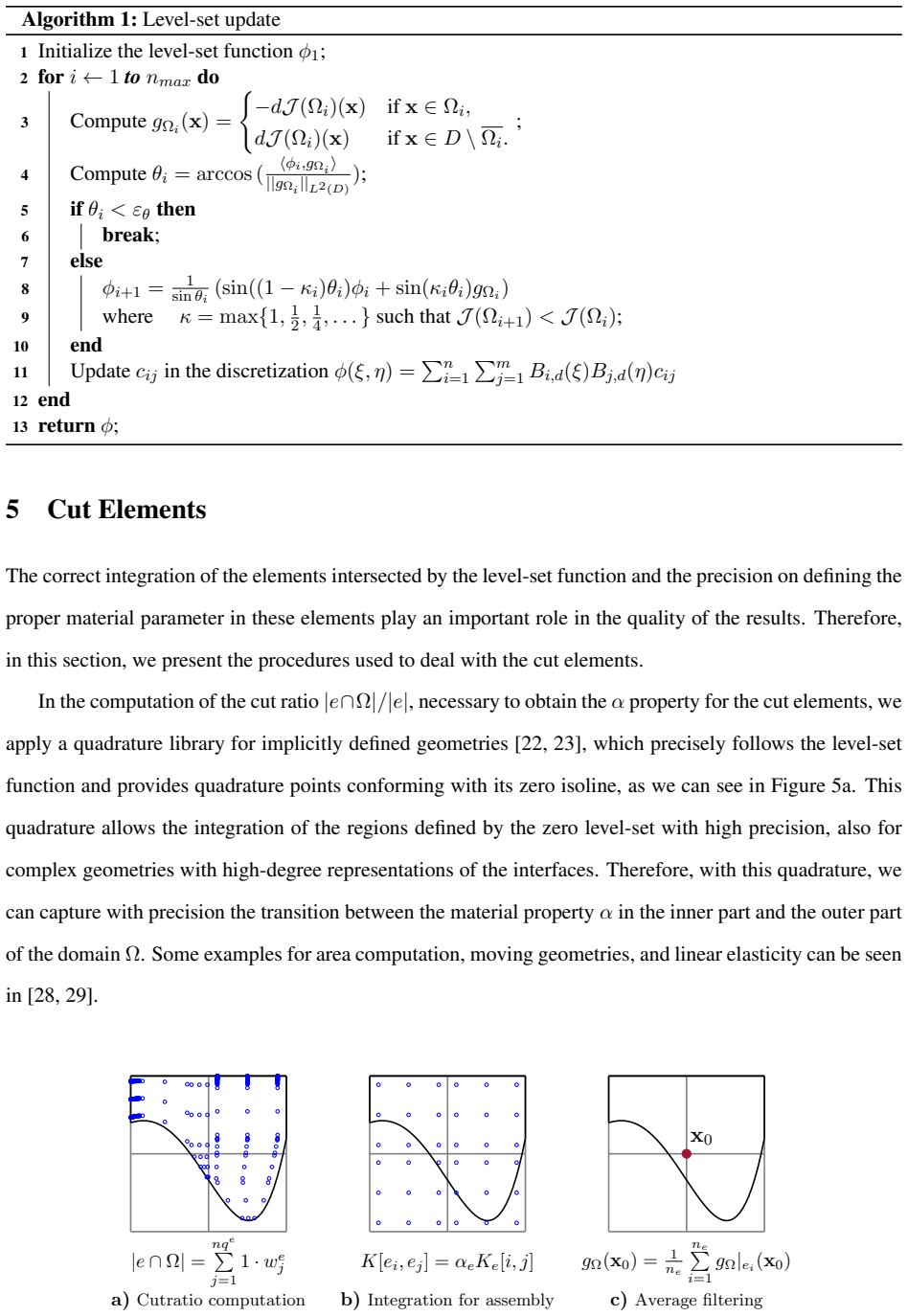

Figure 5. Figure 5: Approaches to treat the cut elements 10 [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Cantilever problem 0 10 20 30 8 10 12 Iteration J Cost Function 0 10 20 30 8 10 12 Iteration J Cost Function 0 10 20 30 0 50 100 Iteration θ Angle 0 10 20 30 0 50 100 Iteration θ Angle 0 10 20 30 0.4 0.6 0.8 1 Iteration Ai/A0 Area 0 10 20 30 0.4 0.6 0.8 1 Iteration A i/A 0 Area p = 1 (d = 1); p = 2 (d = 2); p = 3 (d = 3); p = 4 (d = 4); . p = 2 (d = 1); p = 3 (d = 1); p = 4 (d = 1) [PITH_FULL_IMAGE:figure… view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of the evolution of the cost function, angle, and area for different polynomial [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Final shape for different basis functions degree for approximating the solution: a) Level-set [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Curved cantilever problem 0 100 200 4 6 8 10 12 Iteration J Cost Function 0 100 200 4 6 8 10 12 Iteration J Cost Function 0 100 200 0 50 100 150 Iteration θ Angle 0 100 200 0 50 100 150 Iteration θ Angle 0 100 200 0.2 0.4 0.6 0.8 1 Iteration Ai/A0 Area 0 100 200 0.2 0.4 0.6 0.8 1 Iteration A i/A 0 Area p = 1 (d = 1); p = 2 (d = 2); p = 3 (d = 3); p = 4 (d = 4); . p = 2 (d = 1); p = 3 (d = 1); p = 4 (d = 1)… view at source ↗
Figure 10
Figure 10. Figure 10: Comparison of the evolution of the cost function, angle, and area for different polynomial [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Final shape for different basis functions degree for approximating the solution: a) Level-set [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
read the original abstract

Topology optimization is a valuable tool in engineering, facilitating the design of optimized structures. However, topological changes often require a remeshing step, which can become challenging. In this work, we propose an isogeometric approach to topology optimization driven by topological derivatives. The combination of a level-set method together with an immersed isogeometric framework allows seamless geometry updates without the necessity of remeshing. At the same time, topological derivatives provide topological modifications without the need to define initial holes [7]. We investigate the influence of higher-degree basis functions in both the level-set representation and the approximation of the solution. Two numerical examples demonstrate the proposed approach, showing that employing higher-degree basis functions for approximating the solution improves accuracy, while linear basis functions remain sufficient for the level-set function representation.
