Verifying Computational Graphs in Production-Grade Distributed Machine Learning Frameworks

T0 review · 3 major / 5 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Equality saturation can verify semantic equivalence of large ML computational graphs, making silent distributed-framework errors detectable at graph level.

desk verdict Solid systems paper: equality-saturation graph equivalence checking that actually scales to 400B-param models and found five real Amazon bugs; main gap is the asserted soundness of its hand-written rules. read the letter →

arxiv 2509.10694 v1 pith:XQRJ4IR2 submitted 2025-09-12 cs.LG cs.PL

Kahfi S. Zulkifli , Wenbo Qian , Shaowei Zhu , Yuan Zhou , Zhen Zhang , Chang Lou This is my paper · ORCID
classification cs.LGcs.PL
keywords equalitysaturatione-graphcomputationalgraphverificationsilenterrorsdistributedmachinelearningDatalogreasoninglayoutoptimizationbuglocalization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that semantic equivalence of large machine-learning computational graphs can be verified quickly and cheaply by treating the problem as an equality-saturation search. It presents Scalify, a tool that merges a single-device baseline graph and a distributed or optimized graph into one e-graph, applies rewrite rules plus relational reasoning about sharding and layout, and declares the graphs equivalent if their output nodes land in the same equivalence class. The authors report that this approach verifies models up to Llama-3.1-405B in minutes on a commodity machine, detects 17 of 19 reproduced historical bugs, and uncovered five previously unknown bugs in two Amazon production ML frameworks. A sympathetic reader takes this as evidence that semantic, not numeric, verification is practical at production scale and can expose silent errors that numerical comparison misses.

What carries the argument

The load-bearing machinery is the e-graph (equality graph), a data structure that groups structurally different but semantically equivalent expressions into e-classes; the tool builds one e-graph containing both the baseline and the distributed graph and iteratively applies rewrite rules until saturation. Around this core, Scalify layers a Datalog-style relational analysis that tracks sharded, duplicate, layout, partial, and slice relations across tensors, and a symbolic bijection inference that synthesizes a reshape-transpose-reshape sequence aligning two different layout paths. Layer-boundary partitioning, parallel rewriting threads, and layer memoization keep the e-graph from exploding on deep models.

What would settle it

Construct a pair of graphs whose only difference is a reshape-transpose sequence that the symbolic bijection inference treats as structurally equal but that reorders tensor elements for some concrete shape; run Scalify on random tensors and check whether it reports equivalence while the numeric outputs differ. A single such false-positive case would show the bijection or layout rules are unsound.

Watch

Extended reading notes

Core claim

Scalify's central claim is that verifying semantic equivalence between an original computational graph and its distributed/optimized counterpart reduces to checking whether the two graphs' output tensors can be rewritten into the same e-class via a small set of generic rewrite rules augmented with Datalog-style relation propagation. The tool handles layout heterogeneity by inferring a symbolic bijection between differently structured reshape-transpose sequences, handles scale by partitioning graphs along layer boundaries and memoizing rewritten layer fingerprints, and turns failures into debugging guidance by mapping unverified nodes back to source lines. The paper reports end-to-end verification of Llama-3.1-8B/70B/405B and Mixtral-8x7B/8x22B under tensor, sequence, and expert parallelism within minutes on a 6-core CPU with 16 GB RAM, plus detection of five unknown bugs in Amazon's Transformers NeuronX and NeuronX Distributed frameworks and 17 out of 19 reproduced bugs from prior studies.

Load-bearing premise

The verifier's guarantee rests on the soundness of the 25 manually written rewrite rules and the Datalog-style relation rules in Table 1: if any rule licenses a transformation that does not actually preserve tensor semantics, the tool could certify a buggy graph as verified.

Editorial extensions

If this is right

  • If the claim holds, silent errors in distributed ML frameworks can be caught before training or inference, instead of surfacing only after severe performance degradation.
  • Verification time being independent of tensor shape and parallelization degree makes the check predictable enough to run as a routine pre-flight step in model development pipelines.
  • A verified result eliminates software bugs as a cause of observed degradation, narrowing the search to numerical instability or hardware faults.
  • Since localization points to exact source lines, unverified results directly assist debugging rather than requiring a separate root-cause hunt.
  • Soundness without completeness means users can trust positive results, while treating unverified reports as a prompt for further inspection rather than proof of a bug.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same e-graph equivalence machinery could plausibly extend to training graphs, including backward passes, since the tool operates on IR graphs rather than inference-specific code; the paper only evaluates inference because its current toolchain exports inference IRs.
  • The soundness guarantee rests entirely on hand-written rewrite rules, so mechanically verifying those rules (as some prior compiler-verification efforts do for their own rewrite sets) would strengthen the tool's core correctness claim.
  • The paper's rule set covers tensor, sequence, and expert parallelism; extending to context or pipeline parallelism, which the authors flag as future work, would test whether the relational analysis generalizes beyond the five rule families presented.
  • A combination with gradient-level checks could make the verifier's verdict actionable even when graphs are verified but performance is still poor: software bugs are excluded, so hardware and numerical causes become the remaining suspects.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper presents Scalify, a system that checks whether a single-device computational graph and a distributed or optimized graph are semantically equivalent. It combines equality saturation in egglog with Datalog-style relation propagation, layout and partition analysis, symbolic bijection inference, and discrepancy-based localization. The evaluation reports verification of Llama-3.1-8B/70B/405B and Mixtral models within minutes on a commodity machine, detection of 17 out of 19 re-implemented historical bugs, and five previously unknown bugs in Amazon's NeuronX frameworks.

Significance. If the soundness claim holds, this is a significant advance: it shows equality-saturation-based equivalence checking can scale to production-sized LLM graphs, produces localized bug reports, and catches silent errors that numeric comparison misses. The evaluation is concrete, uses externally reported historical bugs, and the new bugs were submitted to the framework developers, which mitigates self-referential evaluation. The main reason this is not an accept is that the central soundness guarantee is asserted rather than proved, and the rule semantics in Table 1 and Algorithm 2 are not specified tightly enough to audit.

major comments (3)
  1. [§5.1 (Soundness) and §8 (Limitations)] The paper's central guarantee, that a verified verdict implies semantic equivalence, rests on the assertion at the end of §5.1 that the relation analysis and e-graph rewrite rules are sound, and on the restatement in §8 that Scalify is sound. No proof, machine-checked certificate, or formal semantics is supplied for the 25 manually written meta-rules or for the Datalog-style rules in Table 1. Because equality saturation merges nodes into the same e-class whenever a rule fires, one unsound rule suffices to certify a non-equivalent graph as verified, which would invalidate both the bug-detection results and the core correctness claim. Empirical detection of 17/19 re-implemented bugs and five new bugs cannot establish a universal soundness statement. Please provide a formal semantics for the relation language in Figure 7 and a soundness proof for each rule in Table 1 and for the bijection construction in Algorithm 2, or alternatively state explicitly that the tool issues certificates that are sound only relative to the rule set, with a validation-based confidence argument rather than an absolute soundness guarantee.
  2. [§5.2.3, Algorithm 2] The bijection inference algorithm's Step 3 compares symbolic axis expressions by structural equality under the axis map M, and the Scope assumptions paragraph restricts the algorithm to reshapes that merge or split dimensions. The paper does not define what structural equality means for terms built with the axis-combination operator, nor does it prove that the inferred permutation (s1, p, s2) is semantics-preserving for all shapes satisfying the symbolic constraints. If two axes with the same symbolic expression are considered equal even when their strides or memory layouts differ, the check in Algorithm 2 could return a bijection for non-equivalent layout sequences. A concrete definition of layout semantics, the equality test, and a correctness argument for the rank-normalization and permutation search is needed to make the layout-equivalence verdict sound.
  3. [Table 1 and Figure 7] Several rules in Table 1 are printed without the side conditions that the prose uses informally. For instance, the rule for layout propagation through reshape, layout(x, z', reshape(x'.shape) ∘ ℓ, c) ← layout(x,x',ℓ,c), z'=reshape(x',s'), does not state that reshape(x') is a valid reshape or that s' matches the rank and dimension sizes of x. The dot rule for partial(z,z',c,add) does not state that the sharded dimension d is the contraction dimension of the dot. If these conditions are enforced only implicitly in the implementation, the printed rule set is not auditable and cannot support the soundness claim. Please make all rule side conditions explicit in the formal semantics.
minor comments (5)
  1. [Full text, near Figure 2 and Figure 4] The full text contains stray token sequences such as /gid608/gid3/... and a literal /uni2194.15511D in the Figure 4 caption; these look like text-extraction artifacts and should be removed before publication.
  2. [§5.1, Algorithm 1] Algorithm 1 contains a commented-out line reading // update(L_s.out, L_m.out) that appears to be leftover development code; remove it or explain its role.
  3. [§7.1, comparison to TrainVerify] The statement that TrainVerify takes days even for Llama-3.1-405B is not accompanied by a measured runtime in this paper; please provide the source of this timing or soften the claim.
  4. [Figure 12] Figure 12 would be easier to interpret if the underlying verification times for single-thread, parallel-rewrite, and layer-memoization were listed in the caption or a table; the y-axis reaches 3000 seconds but no per-bar values are given.
  5. [§6 Implementation] The paper does not mention an artifact URL or code-release plan; please provide one for reproducibility, especially since the rule set is central to the claims.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: Scalify's equivalence checks are evaluated against external historical bugs and newly reported framework bugs, with no fitted parameter renamed as a prediction.

full rationale

The paper's central derivation chain is: define rewrite rules and relational analysis over computational graphs, run equality saturation via egglog, and report a graph pair as equivalent when output nodes merge into one e-class. The load-bearing assumption is that the 25 manually written meta rules and Table 1's Datalog-style rules are sound, but the paper asserts this soundness (Section 5.1: 'the relation analysis and e-graph rewrite rules are sound') without a machine-checked proof. This is a correctness-risk concern about unproven premises, not circularity: the rules are a modeling choice that could be independently checked, and no rule is defined in terms of the verification outcome it is used to produce. The evaluation does not fit parameters to make bugs detectable: the 19 reproduced bugs come from externally reported historical issue trackers, the five new bugs are submitted to framework developers, and the scalability measurements are directly reported without hidden degrees of freedom. The only self-citations (Lou et al. [56,57]) appear in related work as inspiration for studying silent failures; they do not supply a uniqueness theorem, an ansatz, or a forbidden-alternative argument, so they are not load-bearing. No prediction is equivalent by construction to an input, no fitted value is renamed as a verified result, and no known result is merely relabeled in new coordinates. Therefore, under the stated rules that require exhibiting a specific reduction or self-citation chain, no circularity is found.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The tool adds no fitted numerical constants and no new physical entities. The verification results rest on assumptions about the correctness of the handwritten rule set, the trustworthiness of the baseline graph, and the sufficiency of the supported parallelism forms; these are listed as axioms.

assumptions (4)
  • ad hoc to paper The manually written rewrite rules and Datalog-style relation rules in Table 1 are sound.
    Section 5.1 asserts 'the relation analysis and e-graph rewrite rules are sound', but no proof or machine-checked certificate is provided. All verification results inherit this assumption.
  • domain assumption The single-device graph used as the baseline is semantically correct.
    Section 3 states the original graph 'serves as the baseline without complex transformations (thus more trustworthy)'. Equivalence checking can only detect differences from this baseline, not bugs shared by both graphs.
  • domain assumption All relevant distributed transformations for the evaluated parallelism techniques are expressible with the provided 25 meta rules.
    Section 6 reports about 6.5K LOC encoding 25 meta rules. Completeness of coverage for tensor, sequence, and expert parallelism is not proven; Section 8 acknowledges the tool is not complete.
  • ad hoc to paper Layout transformations can be scoped to reshape operations that merge or split dimensions.
    Section 5.2.3 'Scope assumptions' states this limitation. Bijection inference may return None for other kinds of layouts, causing missed bugs without alerting the user.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Verifying Computational Graphs in Production-Grade Distributed Machine Learning Frameworks." pith.science (2026). https://pith.science/paper/XQRJ4IR2

@misc{pith2026250910694,
  author       = {Pith},
  title        = {Pith review of: Verifying Computational Graphs in Production-Grade Distributed Machine Learning Frameworks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XQRJ4IR2}},
  note         = {Machine review of arXiv:2509.10694}
}
read the original abstract

Modern machine learning frameworks support very large models by incorporating parallelism and optimization techniques. Yet, these very techniques add new layers of complexity, introducing silent errors that severely degrade model performance. Existing solutions are either ad hoc or too costly for production. We present Scalify, a lightweight framework that exposes silent errors by verifying semantic equivalence of computational graphs using equality saturation and Datalog-style reasoning. To scale, Scalify partitions graphs with parallel rewriting and layer memoization, reuses rewrite templates, and augments equality saturation with relational reasoning and symbolic bijection inference. It further localizes discrepancies to precise code sites, turning verification results into actionable debugging guidance. Scalify verifies models as large as Llama-3.1-405B within minutes on a commodity machine and exposed five unknown bugs in Amazon production machine learning frameworks.

Figures

Figures reproduced from arXiv: 2509.10694 by the authors.

Figure 1
Figure 1. Incorrect layout transformation in BSH optimization. Llama-3.1-405B within minutes on a commodity machine, showing scalability across multiple parallelism techniques including tensor, sequence, and expert parallelism. Scalify uncovered five previously unknown bugs in Amazon’s Trans￾formers NeuronX [27] and NeuronX Distributed [24] frame￾works, in addition to detecting and localizing 17 out of 19 reproduced bugs from… view at source ↗
Figure 2
Figure 2. E-Graph example. result in the attention computation (the root cause is marked in red). The buggy version mistakenly reshapes the tensors to the BSH format n_seqs, n_active_tokens, hidden_size, while it should have accounted for the merging of axes from the result tensor, where the actual result tensor’s dimensions is symbolized as (s * b, h). The wrong reshape operation can lead to incorrect model outputs without e… view at source ↗
Figure 4
Figure 4. Scalify workflow. searching the whole code space is tedious. Developers need guidance to resolve discrepancies beyond confirming bugs. 5 System Design We introduce Scalify, a framework that automatically verifies the semantic equivalence of ML computational graphs from production-grade machine learning frameworks. Scalify in￾troduces the following key techniques: • Scaling e-graphs to production-scale computational … view at source ↗
Figures from the paper (8 more)
Figure 5
Figure 5. Figure 5: Illustration of the topological traversal. previously rewritten subgraphs. Each partitioned subgraph is assigned a fingerprint derived from its single-device and distributed forms. When a new subgraph shares the same fingerprint as an earlier one, Scalify reuses the me…
Figure 6
Figure 6. Figure 6: A full computation graph of different reshape, transpose and dot operators with distributed semantics. We show how the partition and layout analysis is integrated with the propagation process (via rule templates defined from [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: Syntax of relational analysis. We use italics to denote operations and monospace to denote relation symbols. supplements the missing information by manually specifying which tensors carry device metadata and how they should be interpreted. These registered input relati…
Figure 8
Figure 8. Figure 8: A computation graph with fine-grained slicing and unroll loop analysis. details in Section 5.2.3), which yields an axis correspondence (𝑖 ′ 2 ,𝑖′ 1 , 𝑗′ ) ↔ (𝑗,𝑖1,𝑖2). The allreduce node eliminates the partial relation and restores a normal tensor relation according to…
Figure 9
Figure 9. Figure 9: The bijection inference process described in Algorithm 2. layout transformations with each other. Scalify aims to relate two layout transformations because many optimization tech￾niques encode different layout transformations, and ensuring the equivalence of them is cr…
Figure 10

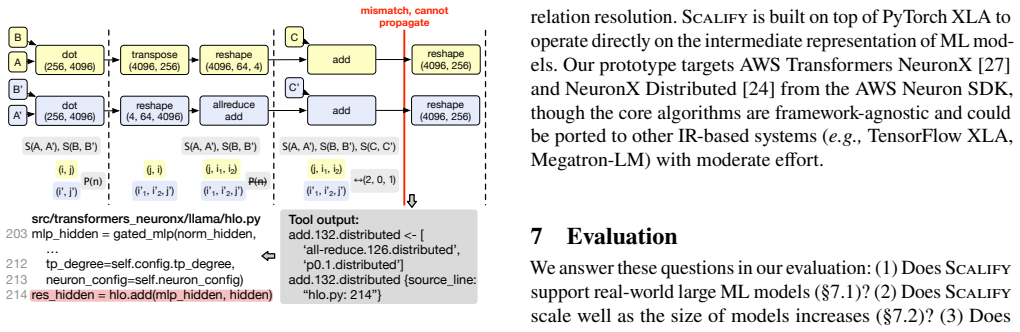

Figure 10. Figure 10: Upper graph is the oracle and bottom graph is the buggy graph. The layout relation does not propagate because the bijections of the inputs of add are not the same. During the rewrite process, Scalify checks whether the node Scalify rewrites belongs to a relation or no…
Figure 11
Figure 11. Figure 11: Scalify’s performance when checking the equivalence for different configurations.                     [PITH_FULL_IMAGE:figures/full_fig_p011_11.png]
Figure 12
Figure 12. Figure 12: Verification time based on scaling techniques. pinpointed incorrect reshape operators in all-to-all transforma￾tions and tensor sharding, where reshapes failed to produce semantically equivalent tensors. For Bugs #4–5, Scalify iden￾tified the faulty functions but not …
