arxiv: 2509.16049 · v1 · submitted 2025-09-19 · 🪐 quant-ph

Integrated Telecom Wavelength Heralded Single-Photon Source based on GHz gated detectors

Maria Ana Pereira , Mingsong Wu , Arslan Sajid Raja , Rui Ning Wang , Tobias Kippenberg , Hugo Zbinden , Tiff Brydges , Rob Thew This is my paper

Pith reviewed 2026-05-18 15:20 UTC · model grok-4.3

classification 🪐 quant-ph
keywords heralded single photon sourcetelecom wavelengthspectral puritysilicon nitrideInGaAs SPADgated detectorphoton pair source
0
0 comments X

The pith

A GHz-gated detector on an integrated source both times and spectrally filters heralded telecom photons.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how a continuous-wave pumped photon-pair source paired with a fast-gated InGaAs/InP avalanche diode can produce heralded single photons that are spectrally pure at telecom wavelengths. The diode supplies the timing clock while its temporal resolution acts as a spectral filter on the heralded photon. This matters because pure single photons are needed for quantum networks, yet the method stays simple and avoids bulky external filters. The demonstration uses a narrow-band silicon-nitride integrated source, proving the idea works in a compact platform.

Core claim

We introduce a heralded single-photon source that uses a CW-pumped probabilistic photon-pair generator together with a rapid-gating InGaAs/InP SPAD. The gate provides both the synchronous clock and the temporal resolution that filters the spectrum of the heralded photon, yielding high spectral purity at telecom wavelengths when combined with a narrow-band integrated silicon-nitride pair source.

What carries the argument

The GHz-gated InGaAs/InP single-photon avalanche diode, which supplies the detection clock while its finite temporal resolution performs spectral filtering on the heralded photon.

If this is right

  • High-purity heralded photons become available at telecom wavelengths with minimal additional optics.
  • The same gating approach can be retuned for other center wavelengths or bandwidth targets.
  • Integration with silicon-nitride waveguides keeps the source compact and scalable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Removing separate spectral filters could lower total loss and raise the usable photon rate in quantum links.
  • The architecture might combine with on-chip demultiplexing to generate multiple independent heralded photons from one pump.
  • Testing the scheme at varying pump powers would reveal the practical trade-off between pair generation rate and achieved purity.

Load-bearing premise

The detector's timing resolution is fine enough to give the required spectral purity without adding unacceptable jitter or loss.

What would settle it

Measure the second-order correlation function or spectral width of the heralded photons and find the purity falls short of what the stated temporal resolution should produce.

Figures

Figures reproduced from arXiv: 2509.16049 by Arslan Sajid Raja, Hugo Zbinden, Maria Ana Pereira, Mingsong Wu, Rob Thew, Rui Ning Wang, Tiff Brydges, Tobias Kippenberg.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic of the setup used for characterising the SPAD, [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

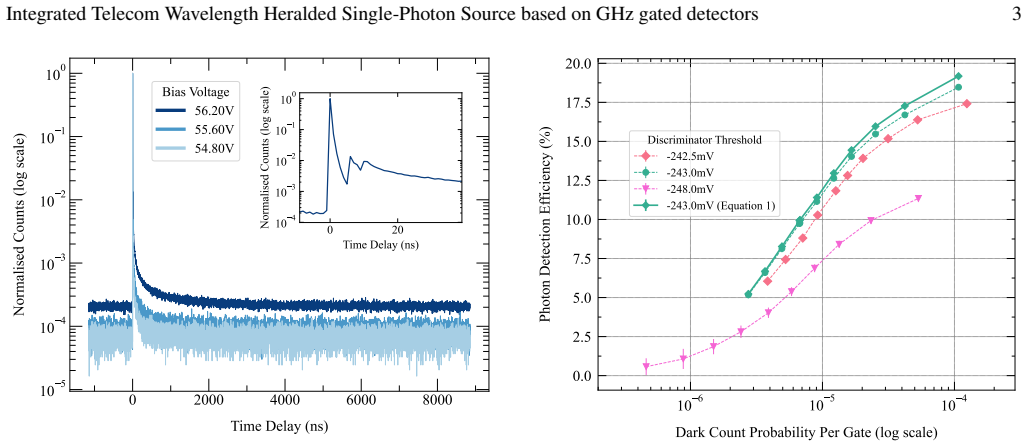

Figure 2. Figure 2: FIG. 2. Detection count histograms (normalized to the maximum) [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

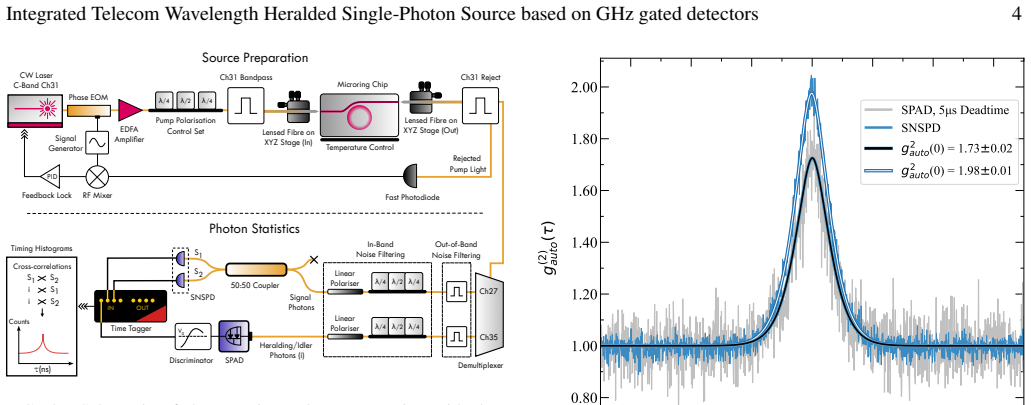

Figure 4. Figure 4: FIG. 4. Schematic of the experimental setup, starting with the [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. The heralded signal photon rate and heralding efficiency as [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
read the original abstract

We introduce a simple and flexible concept for a heralded -- spectrally pure -- single photon source. The scheme uses a probabilistic photon pair source pumped with a CW laser, whereby a rapid gating InGaAs/InP single photon avalanche diode provides a synchronous clock and temporally resolves, and hence spectrally filters, the heralded photons. We demonstrate the concept by combining this with a narrow-band integrated silicon nitride photon-pair source. This simple architecture is capable of heralding photons with high spectral purity in the telecom band, but could be adapted to other wavelengths and bandwidth regimes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces a simple architecture for a heralded spectrally pure single-photon source at telecom wavelengths. It combines a continuous-wave pumped integrated silicon nitride (SiN) photon-pair source with GHz-gated InGaAs/InP single-photon avalanche diodes (SPADs). The gating is used to provide a synchronous clock and to temporally resolve the heralded photons, thereby acting as a spectral filter to achieve high purity. The work demonstrates this concept and suggests it can be adapted to other wavelengths and bandwidth regimes.

Significance. If the results hold, this approach provides a straightforward and flexible method for generating high-purity heralded single photons in the telecom band without relying on complex external spectral filters. The integration of the SiN source and the use of high-speed gating represent practical advances that could simplify quantum photonic setups for applications in quantum communication and information processing. The paper credits the basic performance metrics of the setup, but the significance hinges on confirming the spectral purity claims through quantitative measurements.

major comments (1)
  1. [Results] Results section: The central claim that the GHz gating provides sufficient temporal resolution to achieve high spectral purity (via acting as a spectral filter) lacks supporting quantitative evidence. No joint spectral intensity, heralded photon spectrum, or g^{(2)}(0) measurement under the narrow gating window is reported to verify the purity or to show that timing jitter and losses do not degrade the heralded state.
minor comments (2)
  1. [Abstract] Abstract: The demonstration is stated without any numerical values for purity, coincidence rates, or error bars, making it difficult to assess the strength of the result from the summary alone.
  2. [Experimental Setup] Experimental Setup: Specify the exact gating frequency, window duration, and source bandwidth values, and include a brief estimate showing that the gate width is narrow compared to the inverse bandwidth as required for the filtering mechanism.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive feedback. We address the major comment below and will revise the manuscript to strengthen the quantitative support for our claims.

read point-by-point responses

  1. Referee: [Results] Results section: The central claim that the GHz gating provides sufficient temporal resolution to achieve high spectral purity (via acting as a spectral filter) lacks supporting quantitative evidence. No joint spectral intensity, heralded photon spectrum, or g^{(2)}(0) measurement under the narrow gating window is reported to verify the purity or to show that timing jitter and losses do not degrade the heralded state.

    Authors: We agree that direct quantitative verification would strengthen the results. The narrow bandwidth of the integrated SiN photon-pair source is characterized independently, and the GHz gating is intended to temporally resolve the heralded photons, thereby providing spectral filtering consistent with the time-frequency uncertainty relation. To address the referee's concern, the revised manuscript will include a measurement of the heralded g^{(2)}(0) under the narrow gating window, along with an analysis of timing jitter and losses. We will also clarify how the source bandwidth and gating parameters together support high spectral purity. Joint spectral intensity measurements were outside the scope of this proof-of-concept work focused on source-detector integration, but we will add estimates derived from the measured source properties. revision: partial

Circularity Check

0 steps flagged

No significant circularity: experimental demonstration is self-contained

full rationale

The manuscript describes an experimental architecture combining a CW-pumped integrated silicon nitride photon-pair source with GHz-gated InGaAs/InP SPAD detection to produce heralded telecom photons, where temporal gating provides both synchronization and spectral filtering. No derivation chain, equations, parameter fitting, or predictions are presented that could reduce to inputs by construction. The central claim rests on physical implementation and reported performance metrics rather than any self-citation load-bearing uniqueness theorem, ansatz smuggling, or renaming of known results. This is a standard experimental demonstration whose content is independent of the present paper's own fitted values or prior author work, yielding a self-contained result against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard quantum optics assumptions about photon-pair generation and detector timing properties; no new entities or free parameters are introduced in the abstract.

axioms (2)
  • domain assumption Probabilistic photon-pair sources produce correlated photons whose joint spectral properties can be filtered via timing information.
    Invoked when stating that temporal resolution provides spectral filtering.
  • domain assumption GHz-gated InGaAs/InP SPADs can operate with low jitter sufficient for telecom-band applications.
    Implicit in the use of the detector for both clock and filtering.
