Physical Thickness Characterization of the FRIB Production Targets

D. J. Lee; J. Song; M. Reaume; W. Franklin

arxiv: 2510.00273 · v5 · submitted 2025-09-30 · ⚛️ physics.acc-ph · nucl-ex

Physical Thickness Characterization of the FRIB Production Targets

D. J. Lee , M. Reaume , W. Franklin , J. Song This is my paper

Pith reviewed 2026-05-18 11:02 UTC · model grok-4.3

classification ⚛️ physics.acc-ph nucl-ex

keywords FRIBgraphite targetsthickness measurementnon-contact apparatusrare isotope beamstarget uniformityaccelerator targets

0 comments

The pith

A custom non-contact apparatus measures the physical thickness of FRIB graphite targets to verify 2% uniformity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes a custom-built non-contact thickness measurement system used to characterize the physical thickness of single-slice rotating graphite targets employed at the FRIB facility. These targets must maintain thickness variation within 2% to achieve high rare isotope beam production rates while dissipating up to 20 kW of beam power. By providing accurate thickness data for targets of various nominal thicknesses, the work supports efficient thermal management and consistent RIB output. A sympathetic reader would care because precise target uniformity directly impacts the efficiency and reliability of experiments exploring exotic nuclei.

Core claim

The central claim is that physical thickness characterizations of FRIB production targets with various nominal thicknesses have been performed using a custom-built non-contact thickness measurement apparatus, enabling assessment of uniformity to the required 2% level for effective rare isotope beam production.

What carries the argument

The custom-built non-contact thickness measurement apparatus, which performs accurate and repeatable measurements on the 30 cm diameter graphite discs without physical contact.

Load-bearing premise

The custom-built non-contact thickness measurement apparatus provides accurate and repeatable physical thickness data on the graphite targets without introducing measurement artifacts or calibration errors that would affect the 2% uniformity assessment.

What would settle it

A side-by-side comparison where non-contact readings on the same targets differ by more than the stated precision from independent calibrated contact or destructive measurements.

read the original abstract

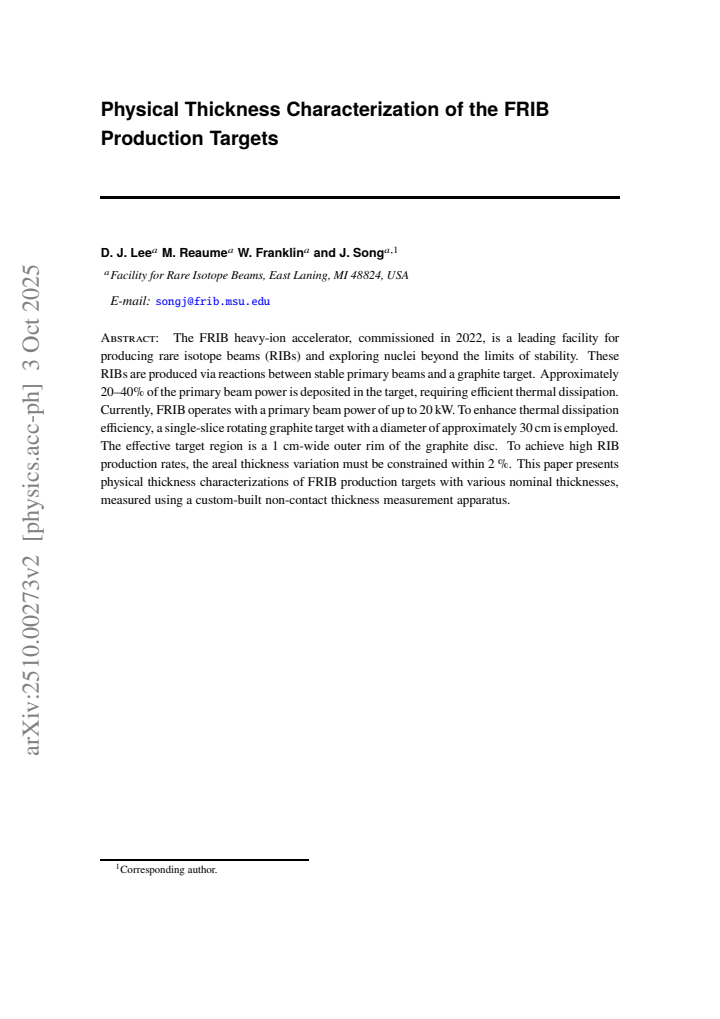

The FRIB heavy-ion accelerator, commissioned in 2022, is a leading facility for producing rare isotope beams (RIBs) and exploring nuclei beyond the limits of stability. These RIBs are produced via reactions between stable primary beams and a graphite target. Approximately 20-40 \% of the primary beam power is deposited in the target, requiring efficient thermal dissipation. Currently, FRIB operates with a primary beam power of up to 20 kW. To enhance thermal dissipation efficiency, a single-slice rotating graphite target with a diameter of approximately 30 cm is employed. The effective target region is a 1 cm-wide outer rim of the graphite disc. To achieve high RIB production rates, the areal thickness variation must be constrained within 2 \%. This paper presents physical thickness characterizations of FRIB production targets with various nominal thicknesses, measured using a custom-built non-contact thickness measurement apparatus.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a narrow but practical technical report on non-contact thickness measurements for FRIB's rotating graphite targets that fills a facility-specific need without major new principles.

read the letter

The key takeaway from this paper is that the authors have built a custom non-contact thickness measurement tool for FRIB's rotating graphite targets and used it to characterize several with different nominal thicknesses. This helps confirm the 2% areal uniformity needed for efficient operation at higher beam powers. What the paper does well is address a real operational requirement at the facility. The rotating target design with the outer rim as the effective area is described clearly, and the need for thermal dissipation from 20-40% beam power deposition sets up why thickness control matters. The non-contact approach makes sense to prevent any surface damage during measurement. The new part is the application of this apparatus to the specific FRIB geometry, which isn't covered in prior work according to the abstract. It provides concrete data for targets in use or planned. Soft spots are mostly around the lack of visible details in the summary. No numbers on measured thicknesses, no discussion of uncertainty sources, and no comparison to other methods like weighing or optical techniques. If those are in the full text with proper error analysis, the paper holds up better. Otherwise, the uniformity claim rests on unshown evidence. The method itself doesn't appear to have circularity or fitting issues since it's direct measurement. This is for accelerator physicists and target specialists at FRIB or similar rare-isotope beam facilities. Someone building or maintaining production targets would find the practical details helpful. It deserves a serious referee because it's grounded in actual facility data and could inform best practices elsewhere. I would send it for peer review. The work is honest and useful even if it's not revolutionary.

Referee Report

2 major / 2 minor

Summary. The paper reports physical thickness characterizations of FRIB graphite production targets with various nominal thicknesses, performed using a custom-built non-contact thickness measurement apparatus. The work supports the requirement that areal thickness variation must remain within 2% to enable efficient thermal dissipation and high rare-isotope-beam production rates in the rotating single-slice target under primary beam powers up to 20 kW.

Significance. If the measurements are shown to be accurate and repeatable, the results directly validate target manufacturing and quality control for the FRIB facility, thereby supporting reliable RIB yields and safe operation at current beam powers. The non-contact approach is well matched to the delicate, large-diameter graphite discs.

major comments (2)

Abstract: the claim that measurements were performed to support the 2% uniformity requirement is not accompanied by any data tables, error bars, calibration procedures, or comparison to independent methods, preventing evaluation of whether the central experimental result actually holds.
Methods/Results: the description of the custom-built non-contact apparatus lacks quantitative validation (repeatability tests, reference standards, or uncertainty budget), which is load-bearing for the uniformity assessment and must be supplied to rule out measurement artifacts.

minor comments (2)

Add a summary table listing nominal thickness, measured mean thickness, standard deviation, and percentage variation for each target to make the uniformity claim immediately verifiable.
Clarify the spatial sampling strategy (number and location of measurement points across the 1 cm-wide outer rim) so readers can judge coverage of the effective target region.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The comments correctly identify areas where additional detail will improve the clarity and rigor of the presentation. We address each major comment below and will revise the manuscript to incorporate the requested information.

read point-by-point responses

Referee: Abstract: the claim that measurements were performed to support the 2% uniformity requirement is not accompanied by any data tables, error bars, calibration procedures, or comparison to independent methods, preventing evaluation of whether the central experimental result actually holds.

Authors: We agree that the abstract would be strengthened by explicit reference to supporting data. In the revised manuscript we will update the abstract to summarize the key quantitative findings, including measured thickness variations and their uncertainties. We will also add data tables, figures with error bars, a description of the calibration procedures, and any available comparisons to independent methods in the main text so that readers can directly evaluate the 2% uniformity result. revision: yes
Referee: Methods/Results: the description of the custom-built non-contact apparatus lacks quantitative validation (repeatability tests, reference standards, or uncertainty budget), which is load-bearing for the uniformity assessment and must be supplied to rule out measurement artifacts.

Authors: The referee is correct that quantitative validation is essential for the uniformity claims. We will expand the methods section to include repeatability test results, details of the reference standards used, and a complete uncertainty budget. These additions will demonstrate the reliability of the apparatus and rule out significant measurement artifacts. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

This is a purely experimental characterization paper reporting physical thickness measurements on graphite targets via a custom non-contact apparatus. No derivations, equations, predictions, fitted parameters, or self-citations appear in the abstract or described content. The central claim is the direct presentation of empirical data to support a 2% uniformity requirement, which stands as self-contained measurement results without any reduction to prior inputs or internal definitions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central contribution rests on the domain assumption that target thickness uniformity directly limits RIB production rates and on the unverified performance of the new measurement apparatus; no free parameters or invented entities are introduced.

axioms (1)

domain assumption Areal thickness variation must be constrained within 2% to achieve high RIB production rates.
Stated directly in the abstract as the performance requirement driving the need for characterization.
