One rig to control them all

Chris Heunen , Robin Kaarsgaard , Louis Lemonnier This is my paper

Pith reviewed 2026-05-18 09:09 UTC · model grok-4.3

classification 💻 cs.LO math.CTquant-ph
keywords controlled operationsrig categoriespropscircuit theoriesreversible circuitsquantum circuitsuniversal propertyGray codes
0
0 comments X

The pith

Eight equations adjoin explicit control to any circuit theory as a prop and are sound and complete for semisimple rig semantics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a way to add controlled commands explicitly to circuit models by starting from a prop that describes the circuits and freely adjoining control operations subject to eight equations. The central result establishes that this construction is sound and complete, meaning the resulting theory satisfies a universal property that makes it exactly the circuit subtheory inside the free semisimple rig completion of the original theory. A sympathetic reader would care because controlled operations are key in reversible Boolean and quantum circuits, yet previous approaches handled them only implicitly. The proof uses coherence theorems for rig categories along with a novel induction method based on Gray codes.

Core claim

The main result is that these equations are sound and complete for the intended semantics of control: the resulting theory satisfies a universal property, identifying it exactly as the circuit subtheory of the free semisimple rig completion.

What carries the argument

Free adjunction of control to a prop via eight universally quantified equations, proved complete using rig category coherence and Gray-code induction.

If this is right

  • The construction simplifies existing sound and complete axiomatisations of quantum circuits by isolating small sets of generators and equations.
  • The same equations provide a sound and complete axiomatisation of the multiply controlled Toffoli gate set, which is universal for reversible Boolean circuits.
  • Control becomes an explicit syntactic notion separate from other computational aspects in the circuit theory.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This framework could be applied to other forms of conditional computation beyond the current circuit models.
  • The universal property might support new automated verification methods for controlled gates in circuit simulators.
  • Gray-code induction could adapt to completeness proofs for related categorical models of computation.

Load-bearing premise

The circuit theory must be given as a suitable prop, and the eight equations combined with Gray-code induction must enforce every semantic constraint of control in the free semisimple rig completion.

What would settle it

Finding a specific circuit expression that obeys the eight equations but does not correspond to the expected controlled behavior in any semisimple rig category, or an expression that matches the semantics but violates one of the equations.

Figures

Figures reproduced from arXiv: 2510.05032 by Chris Heunen, Louis Lemonnier, Robin Kaarsgaard.

Figure 1

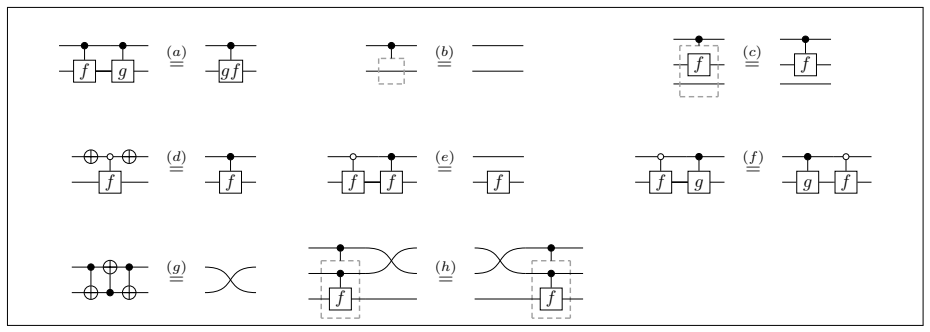

Figure 1. Figure 1: Control equations. (ii) The coherence theorems for rig categories [31, 46], and the fact that the control theory (of [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: A Gray code on bit strings of length 3. For example, a Gray code of bit strings of length 3 is shown in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Sleator-Weinfurter identity through control equations. [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
read the original abstract

Controlled commands -- computations whose execution depends on a separate input -- play a central role in reversible Boolean circuits and quantum circuits. However, existing formalisms typically treat control only implicitly, entangled with other aspects of computation. From a semantic perspective, control is most naturally expressed in semisimple rig categories, which -- unlike standard circuit models such as props -- support both parallel and conditional composition. We present a construction that freely adjoins an explicit syntactic notion of control to a circuit theory specified as a suitable prop, subject to eight universally quantified equations. Our main result is that these equations are sound and complete for the intended semantics of control: the resulting theory satisfies a universal property, identifying it exactly as the circuit subtheory of the free semisimple rig completion. The proof combines coherence for rig categories with a new method based on induction over Gray codes. We illustrate the usefulness of the framework by showing that it simplifies several existing sound and complete axiomatisations of quantum circuits, isolating a small and conceptually clean set of generators and equations. In addition, the same equations yield a sound and complete axiomatisation of the multiply controlled Toffoli gate set, that is universal for reversible Boolean circuits.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper claims to present a construction that freely adjoins an explicit syntactic notion of control to a circuit theory given as a suitable prop, subject to eight universally quantified equations. The main result is a soundness-and-completeness theorem showing that the resulting theory satisfies a universal property, identifying it exactly as the circuit subtheory of the free semisimple rig completion of the prop. The proof combines standard coherence results for rig categories with a new induction technique over Gray codes. Applications are given to simplifying axiomatizations of quantum circuits and to a sound and complete axiomatization of the multiply controlled Toffoli gate set for reversible Boolean circuits.

Significance. If the central claim holds, the work supplies a principled, minimal syntactic interface for control that is semantically justified by a universal property in semisimple rig categories. This is relevant to categorical models of reversible and quantum computation, where control is central but often treated implicitly. The isolation of a small set of generators and equations, together with the methodological contribution of Gray-code induction, could streamline existing axiomatizations and support further formal developments in circuit semantics.

major comments (1)
  1. [Proof of the main theorem] The soundness-and-completeness theorem (stated in the abstract and proved via the coherence-plus-induction argument): the sketch indicates that the eight equations plus Gray-code induction enforce all semantic constraints of the free semisimple rig completion, but the manuscript does not supply the full case analysis or explicit verification that every morphism in the target category is reached by the induction; this detail is load-bearing for the universal-property claim and requires expansion to make the completeness direction verifiable.
minor comments (2)
  1. [Construction of the controlled theory] The definition of the eight equations would benefit from an explicit listing or table early in the construction section, together with a brief motivation linking each equation to the rig-category operations.
  2. [Background and notation] Notation for props, rig categories, and the circuit subtheory should be introduced with one or two concrete examples before the general statements to improve readability for readers outside the immediate subfield.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading, positive assessment of the work's significance, and constructive suggestion regarding the proof presentation. We respond to the single major comment below.

read point-by-point responses

  1. Referee: [Proof of the main theorem] The soundness-and-completeness theorem (stated in the abstract and proved via the coherence-plus-induction argument): the sketch indicates that the eight equations plus Gray-code induction enforce all semantic constraints of the free semisimple rig completion, but the manuscript does not supply the full case analysis or explicit verification that every morphism in the target category is reached by the induction; this detail is load-bearing for the universal-property claim and requires expansion to make the completeness direction verifiable.

    Authors: We agree that the completeness direction of the main theorem would benefit from a more explicit verification that the Gray-code induction reaches every morphism in the circuit subtheory of the free semisimple rig completion. The current manuscript presents the argument by combining standard coherence for rig categories with an induction that traverses the Boolean hypercube via Gray codes, ensuring that each step corresponds to adjoining a controlled operation while preserving the universal property. To make this fully verifiable, we will expand the relevant section in the revised version with a detailed case analysis: we will explicitly treat the base cases (zero and single controls), then show by induction on the length of the Gray-code sequence that every possible combination of controls is generated exactly once, with each inductive step justified by the adjacency property of Gray codes and the eight equations. This expansion preserves the original proof strategy and theorem statement while addressing the load-bearing detail. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper adjoins an explicit control operation to a prop via eight universally quantified equations and proves soundness and completeness for the circuit subtheory of the free semisimple rig completion. The proof relies on standard coherence results for rig categories together with a novel induction technique over Gray codes. Neither the universal property nor the completeness claim reduces by construction to the input equations, a fitted parameter, or a load-bearing self-citation; the induction method supplies independent content that does not presuppose the target result. The construction is therefore not circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard background results from category theory rather than introducing new fitted parameters or postulated entities; the eight equations are the syntactic generators whose soundness is proved against the free semisimple rig semantics.

axioms (1)
  • standard math Coherence theorem for rig categories
    Invoked to combine with the new Gray-code induction in the completeness proof.
