arxiv: 2510.05528 · v2 · submitted 2025-10-07 · 💻 cs.LG

ARMOR: High-Performance Semi-Structured Pruning via Adaptive Matrix Factorization

Lawrence Liu , Alexander Liu , Mengdi Wang , Tuo Zhao , Lin F. Yang This is my paper

Pith reviewed 2026-05-18 09:19 UTC · model grok-4.3

classification 💻 cs.LG
keywords semi-structured pruning2:4 sparsitymatrix factorizationlarge language modelspost-training pruningblock coordinate descent
0
0 comments X

The pith

ARMOR factorizes each weight matrix into a 2:4 sparse core wrapped by two block diagonal matrices to reduce accuracy loss from semi-structured pruning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces ARMOR as a one-shot post-training method for pruning large language models to 2:4 sparsity. Instead of pruning weights directly, it decomposes each matrix into a sparse core surrounded by two low-overhead block diagonal matrices that correct pruning errors. These parts are selected by block coordinate descent on a layer-wise proxy loss, and the authors prove the procedure converges to a solution whose proxy loss is at most as large as that of prior 2:4 methods. Experiments on Llama and Qwen families show the resulting models retain more accuracy on downstream tasks and perplexity measures than existing approaches, while still delivering the same inference speed and memory savings. A reader would care because the technique promises to make heavily compressed models more usable without extra hardware changes.

Core claim

The paper claims that representing each weight matrix as the product of two block diagonal wrapper matrices around a 2:4 sparse core, with all components chosen by block coordinate descent to minimize a layer-wise proxy loss, produces pruned models whose proxy loss is provably no worse than that of standard 2:4 pruning and whose final task performance is measurably better on Llama and Qwen models.

What carries the argument

Adaptive matrix factorization that decomposes each weight matrix into a 2:4 sparse core enclosed by two block diagonal wrapper matrices serving as pre- and post-transformation error correctors.

If this is right

  • Pruned models achieve higher accuracy on a range of downstream tasks while keeping the same 2:4 sparsity pattern.
  • Inference speedups and memory reductions from 2:4 sparsity remain unchanged.
  • The block coordinate descent procedure is guaranteed to reach a proxy loss at least as low as that of previous 2:4 algorithms.
  • The overall compression-accuracy trade-off improves compared with direct pruning methods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same wrapper-and-core structure might be tested on sparsity patterns other than 2:4 to check whether error correction generalizes.
  • Combining the factorization step with quantization could be examined to see if further memory savings appear without additional accuracy cost.
  • The per-layer optimization might be applied to attention or MLP blocks selectively to measure where the correction yields the largest gains.
  • Running the method on models beyond the Llama and Qwen families would test whether the observed improvements hold for different architectures.

Load-bearing premise

The layer-wise proxy loss minimized during block coordinate descent serves as a reliable surrogate for final downstream task performance after pruning.

What would settle it

Running ARMOR and a prior 2:4 method on the same Llama or Qwen model, then measuring that the prior method produces higher accuracy on a held-out downstream task despite ARMOR having equal or lower proxy loss would falsify the central claim.

Figures

Figures reproduced from arXiv: 2510.05528 by Alexander Liu, Lawrence Liu, Lin F. Yang, Mengdi Wang, Tuo Zhao.

Figure 1
Figure 1. Figure 1: Illustration of proposed ARMOR factorization. For a given LLM, each weight matrix [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

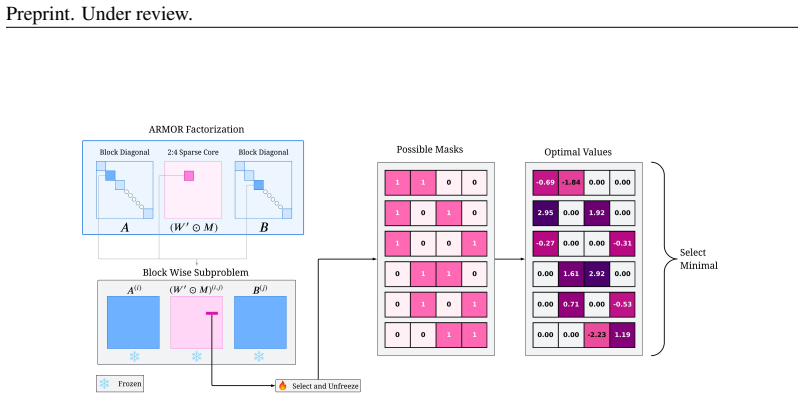

Figure 2. Figure 2: An illustration of the sparse core update step of the ARMOR optimization algorithm [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

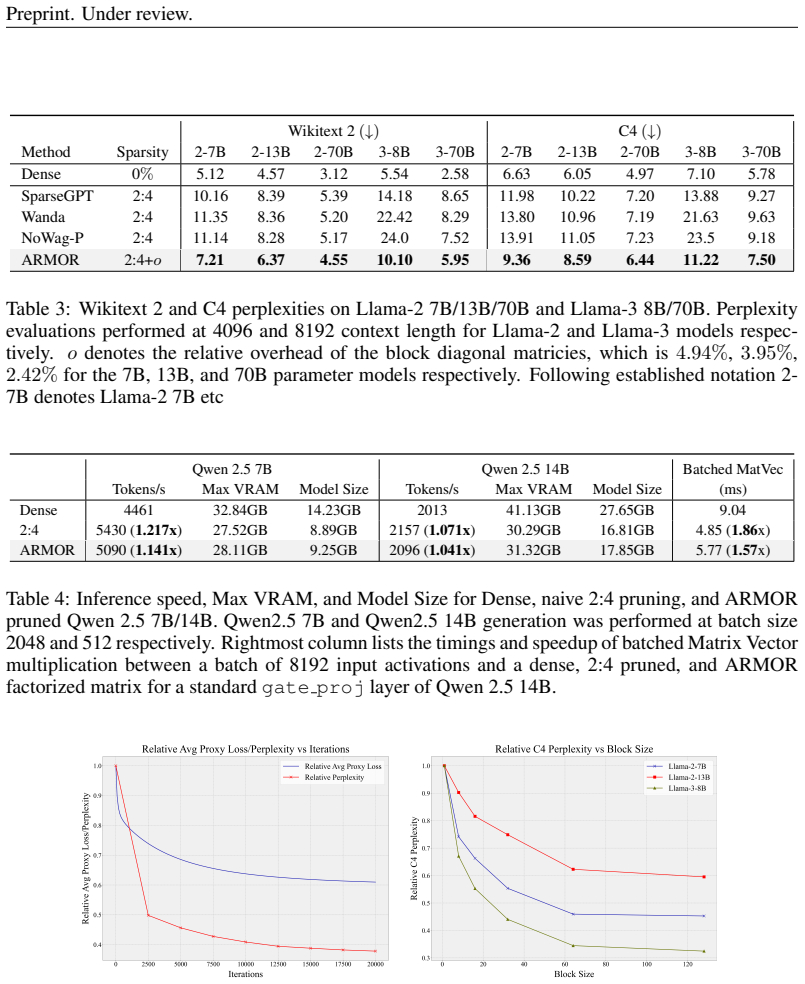

Figure 3. Figure 3: Left: Relative average Proxy Loss and C4 Perplexity of Llama-2 7B across 20,000 iter￾ations of the ARMOR Proxy Loss optimization algorithm with block size 128. Right: Relative C4 Perplexity for Lama-2 7B/13B, and Llama-3 8B across block sizes of 1, 8, 16, 32, 64, and 128. Each block size was only optimized for 5000 iterations due to time constraints. Relative perplexity is with respect to initial and optim… view at source ↗
read the original abstract

Large language models (LLMs) present significant deployment challenges due to their immense computational and memory requirements. While semi-structured pruning, particularly 2:4 sparsity, offers a path to practical hardware acceleration, existing methods often incur substantial performance degradation. To bridge this gap, we introduce ARMOR: (Adaptive Representation with Matrix-factORization), a novel one-shot post-training pruning algorithm. Instead of directly pruning weights, ARMOR factorizes each weight matrix into a 2:4 sparse core wrapped by two low-overhead, block diagonal matrices. These wrappers act as efficient pre and post-transformation error correctors, offering greater flexibility to preserve model quality compared to conventional 2:4 pruning techniques. The sparse core and block diagonal wrappers are chosen through a block coordinate descent algorithm that minimizes a layer-wise proxy loss. We theoretically prove this optimization is guaranteed to converge to a solution with a proxy loss less than or equal to state-of-the-art pruning algorithms. Experiments on Llama (Touvron et al., 2023; Dubey et al., 2024) and Qwen (Yang et al., 2025) model families demonstrate that ARMOR consistently and significantly outperforms state-of-the-art 2:4 pruning methods across a wide range of downstream tasks and perplexity evaluations. ARMOR achieves this superior performance while retaining the inference speedups and substantial memory usage reductions of 2:4 pruning, establishing a more effective trade-off between model compression and task accuracy

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces ARMOR, a one-shot post-training pruning algorithm for LLMs. Each weight matrix is factorized as a 2:4 sparse core wrapped by two low-overhead block-diagonal matrices that act as pre- and post-transformation error correctors. The factorization parameters are obtained via block coordinate descent minimizing a layer-wise proxy loss, for which a convergence proof is given that guarantees the proxy loss is at most as large as that achieved by prior SOTA 2:4 methods. Experiments on Llama and Qwen families report consistent and significant gains over existing 2:4 pruning baselines on downstream tasks and perplexity while preserving the inference speed and memory reductions of 2:4 sparsity.

Significance. If the proxy loss proves to be a faithful surrogate for downstream performance, ARMOR would represent a practical advance in semi-structured pruning by improving the accuracy-compression trade-off without sacrificing hardware acceleration. The explicit convergence guarantee for the block-coordinate procedure is a clear technical strength that distinguishes the work from purely empirical pruning methods.

major comments (2)
  1. [Experiments] The central empirical claim (outperformance on Llama/Qwen downstream tasks) rests on the unverified assumption that lower values of the layer-wise proxy loss translate into measurable gains in task metrics. No correlation analysis, scatter plots of proxy vs. task loss, or ablation that isolates the contribution of the proxy optimization appears in the experimental section, leaving the surrogate validity untested.
  2. [Method] The convergence proof establishes that the optimized proxy loss is ≤ that of SOTA 2:4 methods, yet the manuscript provides no quantitative comparison of the actual proxy-loss values attained by ARMOR versus the baselines on the same layers, which would be required to confirm that the theoretical guarantee is realized in practice and drives the reported gains.
minor comments (2)
  1. [Abstract] The abstract states 'substantial memory usage reductions' but supplies no concrete percentages or absolute figures relative to the dense or baseline pruned models; adding these numbers would strengthen the claim.
  2. Notation for the block-diagonal wrapper matrices (e.g., how their block size relates to the 2:4 pattern) is introduced without an accompanying diagram or small-scale example; a clarifying figure or equation would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation of ARMOR's significance and for the constructive major comments. We address each point below and will revise the manuscript to incorporate additional analyses that directly test the surrogate validity and practical realization of the theoretical guarantee.

read point-by-point responses

  1. Referee: [Experiments] The central empirical claim (outperformance on Llama/Qwen downstream tasks) rests on the unverified assumption that lower values of the layer-wise proxy loss translate into measurable gains in task metrics. No correlation analysis, scatter plots of proxy vs. task loss, or ablation that isolates the contribution of the proxy optimization appears in the experimental section, leaving the surrogate validity untested.

    Authors: We agree that explicit validation of the proxy loss as a surrogate would strengthen the empirical claims. While the proxy is a standard layer-wise reconstruction objective used throughout the pruning literature, and our method is designed to minimize it, we acknowledge the absence of direct correlation evidence in the original submission. In the revision we will add (i) scatter plots of proxy loss versus downstream task degradation across layers for Llama-7B and Qwen-7B, (ii) Pearson correlation coefficients, and (iii) an ablation that compares end-to-end performance when the block-coordinate optimization is replaced by a single-pass baseline that does not further minimize the proxy. These additions will quantify how much of the observed gains are attributable to the proxy optimization. revision: yes

  2. Referee: [Method] The convergence proof establishes that the optimized proxy loss is ≤ that of SOTA 2:4 methods, yet the manuscript provides no quantitative comparison of the actual proxy-loss values attained by ARMOR versus the baselines on the same layers, which would be required to confirm that the theoretical guarantee is realized in practice and drives the reported gains.

    Authors: The referee correctly notes that the convergence theorem alone does not demonstrate that the bound is tight or that it explains the downstream improvements. We will add a new table (and corresponding text) reporting the attained proxy-loss values for ARMOR and the strongest 2:4 baselines on identical layers of Llama-7B and Qwen-7B. This will allow readers to verify that ARMOR consistently achieves a strictly lower (or equal) proxy loss in practice, thereby linking the theoretical guarantee to the observed accuracy gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity; proxy optimization independent of task metrics

full rationale

The paper defines a layer-wise proxy loss minimized by block coordinate descent on the factorization (sparse core + block-diagonal wrappers) and proves convergence to proxy loss ≤ SOTA 2:4 methods. Downstream task and perplexity results on Llama/Qwen are reported as separate empirical measurements, not defined by or reduced to the proxy value. No equations or self-citations make the task gains tautological with the fitted proxy; the surrogate assumption is a correctness issue, not a definitional reduction. Derivation remains self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the untested assumption that proxy-loss minimization translates to downstream accuracy and on the introduction of the wrapper matrices as new structural degrees of freedom.

axioms (1)
  • domain assumption Layer-wise proxy loss is a faithful surrogate for end-task performance after pruning
    Invoked to justify the block coordinate descent objective and the convergence guarantee.
invented entities (1)
  • Block-diagonal wrapper matrices no independent evidence
    purpose: Pre- and post-transformation error correctors that increase flexibility beyond direct 2:4 pruning
    New structural component introduced in the factorization; no independent evidence outside the optimization is provided.

pith-pipeline@v0.9.0 · 5809 in / 1295 out tokens · 38036 ms · 2026-05-18T09:19:58.562824+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages · 1 internal anchor

  1. [1]

    Peijie Dong, Lujun Li, Zhenheng Tang, Xiang Liu, Xinglin Pan, Qiang Wang, and Xiaowen Chu

    URLhttps://api.semanticscholar.org/CorpusID:233296858. Peijie Dong, Lujun Li, Zhenheng Tang, Xiang Liu, Xinglin Pan, Qiang Wang, and Xiaowen Chu. Pruner-zero: Evolving symbolic pruning metric from scratch for large language models.arXiv preprint arXiv:2406.02924, 2024. Abhimanyu Dubey, Abhinav Jauhri, Abhinav Pandey, Abhishek Kadian, Ahmad Al-Dahle, Aiesh...

    work page arXiv 2024

  2. [2]

    Mingjie Sun, Zhuang Liu, Anna Bair, and J Zico Kolter

    URLhttps://huggingface.co/datasets/cerebras/SlimPajama-627B. Mingjie Sun, Zhuang Liu, Anna Bair, and J Zico Kolter. A simple and effective pruning approach for large language models. InThe Twelfth International Conference on Learning Representations,

    work page

  3. [3]

    Challenging BIG-Bench Tasks and Whether Chain-of-Thought Can Solve Them

    URLhttps://openreview.net/forum?id=PxoFut3dWW. Mirac Suzgun, Nathan Scales, Nathanael Sch¨arli, Sebastian Gehrmann, Yi Tay, Hyung Won Chung, Aakanksha Chowdhery, Quoc V Le, Ed H Chi, Denny Zhou, et al. Challenging big-bench tasks and whether chain-of-thought can solve them.arXiv preprint arXiv:2210.09261, 2022. Zhendong Tan, Xingjun Zhang, and Zheng Wei. ...

    work page internal anchor Pith review Pith/arXiv arXiv 2022

  4. [4]

    Update A:(A) t+1 = (A)t −η A∇ALW,X((A)t,(B) t,(W ′)t,(M) t)

    work page

  5. [5]

    Update B:(B) t+1 = (B)t −η B∇BLW,X((A)t+1,(B) t,(W ′)t,(M) t)

    work page

  6. [6]

    As Algorithm 2 states, the learning rateηis determined via localβ-smoothness, which are calculated in D

    UpdateW ′:(W ′)t+1|cont = (W ′)t −η W ′∇W ′LW,X((A)t+1,(B) t+1,(W ′)t,(M) t) From Proposition 1, the loss functionL W,X is convex with respect to each of A, B, andW ′ indi- vidually. As Algorithm 2 states, the learning rateηis determined via localβ-smoothness, which are calculated in D. For a convex andβ-smooth functionf(x), the gradient descent updatex k...

    work page

  7. [7]

    The update of A ensures that LW,X((A)t+1,(B) t,(W ′)t,(M) t)≤ L W,X((A)t,(B) t,(W ′)t,(M) t)

    work page

  8. [8]

    The update of B, starting from the new A, ensures that LW,X((A)t+1,(B) t+1,(W ′)t,(M) t)≤ L W,X((A)t+1,(B) t,(W ′)t,(M) t)

    work page

  9. [9]

    16 Preprint

    The update ofW ′, starting from the new A and B, ensures that LW,X((A)t+1,(B) t+1,(W ′)t+1|cont,(M) t)≤ L W,X((A)t+1,(B) t+1,(W ′)t,(M) t) Chaining these inequalities together, we get: LW,X((A)t+1,(B) t+1,(W ′)t+1|cont,(M) t)≤ L W,X((A)t+1,(B) t+1,(W ′)t,(M) t) ≤ L W,X((A)t+1,(B) t,(W ′)t,(M) t)≤ L W,X((A)t,(B) t,(W ′)t,(M) t) Thus, each continuous optimi...

    work page

  10. [10]

    This results in the best possible lossl ∗ m for that mask choice (Equation 7)

    For each of the 6 possible masksmin the set of valid masksM, it calculates the opti- mal weightsw ∗ m that minimize the loss for that group, assuming that maskmis chosen (Equation 8). This results in the best possible lossl ∗ m for that mask choice (Equation 7)

    work page

  11. [11]

    It then selects the maskm ∗ that yields the minimum loss among all 6 possibilities:l best = minm∈M l∗ m

    work page

  12. [12]

    The loss with the original maskm old and its weights before the update isl bef ore

    The algorithm updates the mask for group(i ′, k)tom ∗ and its corresponding weights in W ′ tow ∗ m∗ . The loss with the original maskm old and its weights before the update isl bef ore. The optimized loss for this original mask,l ∗ mold, must be less than or equal tol bef ore, since Equation 7 finds the optimal weights for any given mask. l∗ mold ≤l bef o...

    work page 2000
