GATO: GPU-Accelerated and Batched Trajectory Optimization for Scalable Edge Model Predictive Control

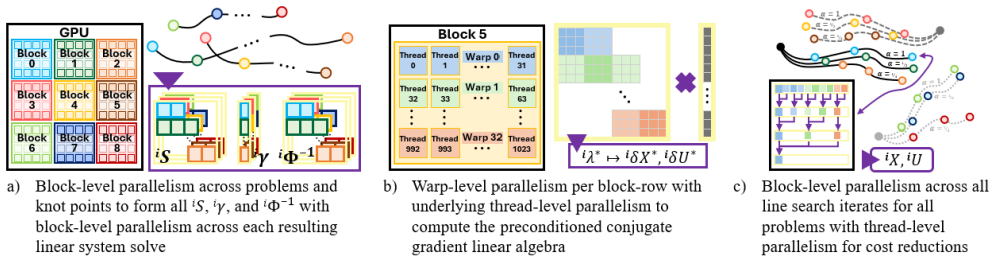

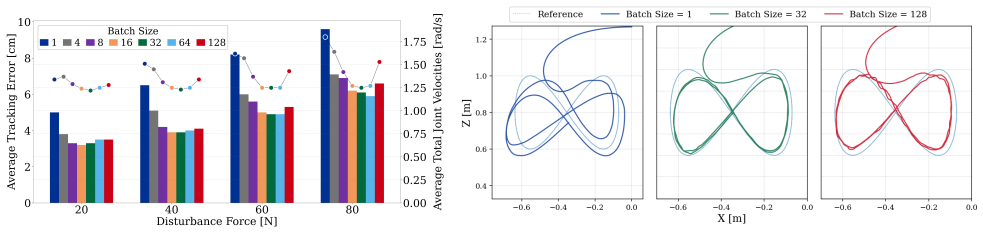

While Model Predictive Control (MPC) delivers strong performance across robotics applications, solving the underlying (batches of) nonlinear trajectory optimization (TO) problems online remains computationally demanding. Existing GPU-accelerated approaches either parallelize single solves, handle large batches at sub-real-time rates, or sacrifice model generality for speed. This leaves a large gap in solver performance for many state-of-the-art MPC applications that require real-time batches of tens to low-hundreds of solves. As such, we present GATO, an open source, GPU-accelerated, batched TO solver co-designed across algorithm, software, and computational hardware to deliver real-time throughput for these moderate batch size regimes. Our approach leverages a combination of block-, warp-, and thread-level parallelism within and across solves for ultra-high performance. We demonstrate the effectiveness of our approach through a combination of: simulated benchmarks showing speedups of 18-21x over CPU baselines and 1.4-16x over GPU baselines as batch size increases; case studies highlighting improved disturbance rejection and convergence behavior; and finally a validation on hardware using an industrial manipulator. We open source GATO to support reproducibility and adoption.
