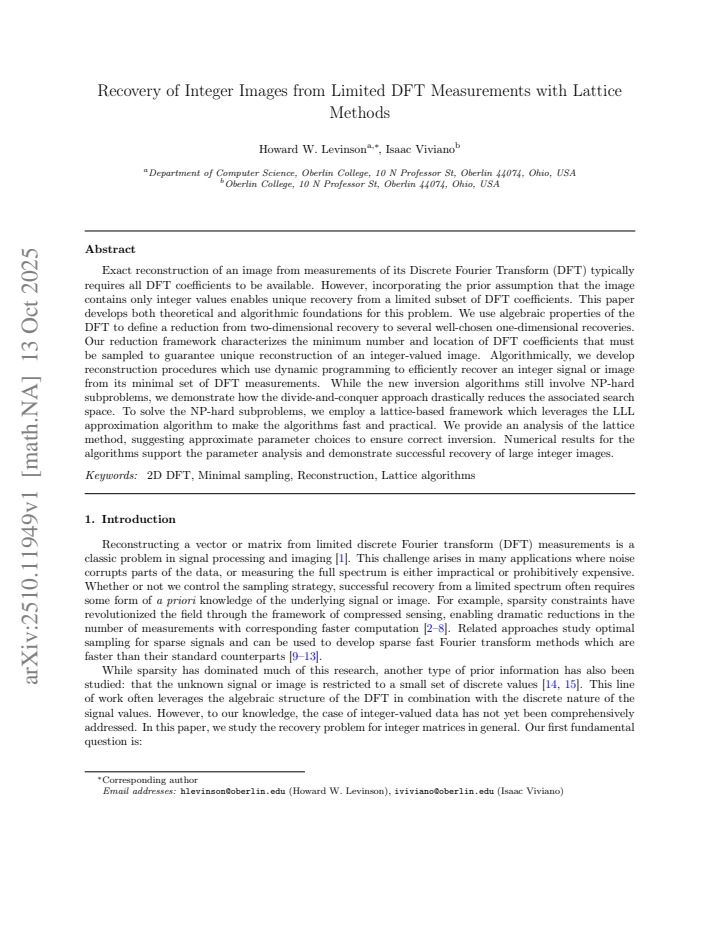

Recovery of Integer Images from Minimal DFT Measurements: Uniqueness and Inversion Algorithms
Pith reviewed 2026-05-18 06:59 UTC · model grok-4.3
The pith
Integer-valued images can be uniquely recovered from a minimal subset of their DFT coefficients by reducing the two-dimensional problem to several one-dimensional recoveries.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Exact reconstruction of an image is possible from a limited subset of its Discrete Fourier Transform coefficients when the image is known to contain only integer values. The authors define an algebraic reduction from two-dimensional recovery to several well-chosen one-dimensional recoveries. This framework characterizes the minimum number and location of DFT coefficients required to guarantee unique reconstruction. Inversion algorithms then use dynamic programming for efficient recovery from the minimal measurements and a lattice-based approach with the LLL approximation algorithm to solve the associated NP-hard subproblems in practice.
What carries the argument
Algebraic reduction from two-dimensional to one-dimensional DFT recoveries, which determines the minimal set of coefficients that guarantees uniqueness for integer-valued images.
If this is right
- Unique reconstruction is guaranteed for any integer image once the characterized minimal DFT coefficients are available.
- The divide-and-conquer reduction reduces the search space enough to make dynamic programming practical for inversion.
- Lattice reduction via the LLL algorithm renders the NP-hard subproblems computationally feasible for realistic image sizes.
- The same framework supplies explicit procedures for both one-dimensional signals and two-dimensional images.
Where Pith is reading between the lines
- Similar algebraic reductions might be developed for other discrete or quantized signals in signal processing tasks.
- Measurement hardware in imaging systems could be redesigned to acquire only the minimal coefficient set when integrality is a safe prior.
- Testing the algorithms on data with small rounding errors would clarify how far the exact-integer assumption can be relaxed.
- Links to integer linear programming may suggest further speed-ups beyond the current dynamic programming and lattice steps.
Load-bearing premise
The image must consist of exact integer values and the DFT measurements must be precise with no noise or rounding.
What would settle it
Discovery of two distinct integer-valued images that produce identical values on the minimal DFT coefficient set identified by the reduction would disprove uniqueness.
Figures
read the original abstract
Exact reconstruction of an image from measurements of its Discrete Fourier Transform (DFT) typically requires all DFT coefficients to be available. However, incorporating the prior assumption that the image contains only integer values enables unique recovery from a limited subset of DFT coefficients. This paper develops both theoretical and algorithmic foundations for this problem. We use algebraic properties of the DFT to define a reduction from two-dimensional recovery to several well-chosen one-dimensional recoveries. Our reduction framework characterizes the minimum number and location of DFT coefficients that must be sampled to guarantee unique reconstruction of an integer-valued image. Algorithmically, we develop reconstruction procedures which use dynamic programming to efficiently recover an integer signal or image from its minimal set of DFT measurements. While the new inversion algorithms still involve NP-hard subproblems, we demonstrate how the divide-and-conquer approach drastically reduces the associated search space. To solve the NP-hard subproblems, we employ a lattice-based framework which leverages the LLL approximation algorithm to make the algorithms fast and practical.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims that the integer-valued prior on images enables unique recovery from a minimal subset of DFT coefficients. It develops an algebraic reduction from 2D to multiple 1D recovery problems to characterize the minimal number and locations of required DFT samples, and proposes dynamic programming combined with lattice reduction (LLL) algorithms to solve the resulting NP-hard integer subproblems efficiently.
Significance. If the uniqueness results via the reduction and the correctness of the LLL-based recovery hold, this would be a significant contribution to compressive sensing and inverse problems in numerical analysis, allowing reconstruction of integer images with substantially fewer DFT measurements than standard methods. The divide-and-conquer reduction of search space is a notable strength.
major comments (2)
- [Reduction Framework] Reduction framework: The central claim that the algebraic reduction from 2D to 1D characterizes the minimum number and location of DFT coefficients for guaranteed uniqueness lacks an explicit theorem or set of conditions in the provided description. This is load-bearing for the theoretical contribution and requires a precise statement of the uniqueness result.
- [Inversion Algorithms] Lattice-based framework for NP-hard subproblems: The manuscript employs LLL to approximate the shortest vector and relies on a post-approximation verification step to recover the exact integer solution. However, LLL only guarantees a 2^{O(d)} approximation factor; without a proof that verification always discards spurious lattice vectors that satisfy the sampled DFT equations to machine precision but differ from the true image, the correctness of the inversion algorithms is not established.
minor comments (2)
- The abstract states that the divide-and-conquer approach 'drastically reduces the associated search space' but provides no quantitative bounds or small-scale examples to illustrate the reduction in complexity.
- Consider adding a short discussion of related work on DFT uniqueness for discrete signals or lattice methods in signal recovery to better situate the contribution.
Simulated Author's Rebuttal
We thank the referee for their careful review and constructive feedback on our manuscript. The comments highlight important aspects that will strengthen the presentation of our results. We address each major comment below and plan to incorporate revisions as indicated.
read point-by-point responses
-
Referee: Reduction framework: The central claim that the algebraic reduction from 2D to 1D characterizes the minimum number and location of DFT coefficients for guaranteed uniqueness lacks an explicit theorem or set of conditions in the provided description. This is load-bearing for the theoretical contribution and requires a precise statement of the uniqueness result.
Authors: We agree that making the uniqueness result explicit is crucial. Although the manuscript describes the algebraic reduction and its implications for the minimal DFT samples, we will add a formal theorem in the revised version. The theorem will state the precise conditions on the DFT coefficient locations and the integer image properties that ensure the reduction leads to unique recovery. This will include the characterization of the minimum number of measurements required. revision: yes
-
Referee: Lattice-based framework for NP-hard subproblems: The manuscript employs LLL to approximate the shortest vector and relies on a post-approximation verification step to recover the exact integer solution. However, LLL only guarantees a 2^{O(d)} approximation factor; without a proof that verification always discards spurious lattice vectors that satisfy the sampled DFT equations to machine precision but differ from the true image, the correctness of the inversion algorithms is not established.
Authors: We appreciate this observation on the theoretical guarantees. The LLL algorithm is used to find a good approximation to the shortest vector in the lattice defined by the DFT constraints, and the verification checks exact satisfaction of the measurements. Due to the uniqueness guaranteed by our reduction framework, any integer solution satisfying the minimal DFT equations must coincide with the original image. In the revision, we will add a clarification that the verification step, combined with the uniqueness, ensures correctness, and discuss how the reduced problem dimensions mitigate the approximation factor issues in practice. revision: yes
Circularity Check
No circularity: algebraic DFT reduction and integer prior are independent inputs
full rationale
The derivation chain reduces 2D recovery to 1D via algebraic DFT properties (standard Fourier analysis, not self-defined) and characterizes minimal samples from the integer-valued assumption, which is stated upfront as the enabling prior rather than derived from the method. No fitted parameters are renamed as predictions, no self-citations are load-bearing for uniqueness or uniqueness theorems, and no ansatz is imported via prior work. The DP and LLL steps are practical solvers for the resulting NP-hard subproblems but do not feed back into the theoretical uniqueness claim. The framework is self-contained against external DFT algebra and integer lattice benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Algebraic properties of the DFT permit a reduction from two-dimensional integer image recovery to several one-dimensional recoveries.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We use algebraic properties of the DFT to define a reduction from two-dimensional recovery to several well-chosen one-dimensional recoveries... lattice-based framework which leverages the LLL approximation algorithm
-
IndisputableMonolith/Foundation/ArithmeticFromLogic.leanLogicNat ≃ Nat unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
the minimal number of DFT coefficients required... is the number of cyclic subgroups of Z_{N1}×Z_{N2}
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
E. J. Candes, J. K. Romberg, T. Tao, Stable signal recovery from incomplete and inaccurate measure- ments, Communications on Pure and Applied Mathematics: A Journal Issued by the Courant Institute of Mathematical Sciences 59 (2006) 1207–1223
work page 2006
-
[2]
D. L. Donoho, Compressed sensing, IEEE Transactions on information theory 52 (2006) 1289–1306
work page 2006
-
[3]
M. F. Duarte, Y. C. Eldar, Structured compressed sensing: From theory to applications, IEEE Trans- actions on signal processing 59 (2011) 4053–4085
work page 2011
-
[4]
A. C. Gilbert, S. Guha, P. Indyk, S. Muthukrishnan, M. Strauss, Near-optimal sparse fourier repre- sentations via sampling, in: Proceedings of the thiry-fourth annual ACM symposium on Theory of computing, 2002, pp. 152–161. 46
work page 2002
-
[5]
A. C. Gilbert, S. Muthukrishnan, M. Strauss, Improved time bounds for near-optimal sparse fourier representations, in: Wavelets xi, volume 5914, SPIE, 2005, pp. 398–412
work page 2005
-
[6]
M. Rudelson, R. Vershynin, On sparse reconstruction from fourier and gaussian measurements, Commu- nications on Pure and Applied Mathematics: A Journal Issued by the Courant Institute of Mathematical Sciences 61 (2008) 1025–1045
work page 2008
-
[7]
M. Rudelson, R. Vershynin, Sparse reconstruction by convex relaxation: Fourier and gaussian mea- surements, in: 2006 40th Annual Conference on Information Sciences and Systems, IEEE, 2006, pp. 207–212
work page 2006
- [8]
- [9]
- [10]
-
[11]
S. Bittens, R. Zhang, M. A. Iwen, A deterministic sparse fft for functions with structured fourier sparsity, Advances in Computational Mathematics 45 (2019) 519–561
work page 2019
-
[12]
S.-H. Hsieh, C.-S. Lu, S.-C. Pei, Sparse fast fourier transform by downsampling, in: 2013 IEEE International Conference on Acoustics, Speech and Signal Processing, IEEE, 2013, pp. 5637–5641
work page 2013
-
[13]
A. C. Gilbert, P. Indyk, M. Iwen, L. Schmidt, Recent developments in the sparse fourier transform: A compressed fourier transform for big data, IEEE Signal Processing Magazine 31 (2014) 91–100
work page 2014
-
[14]
G. T. Herman, A. Kuba, Discrete tomography: Foundations, algorithms, and applications, Springer Science & Business Media, 2012
work page 2012
-
[15]
P. T. Boufounos, R. G. Baraniuk, 1-bit compressive sensing, in: 2008 42nd Annual Conference on Information Sciences and Systems, IEEE, 2008, pp. 16–21
work page 2008
-
[16]
R. G. Parker, R. L. Rardin, Discrete optimization, Elsevier, 2014
work page 2014
- [17]
-
[18]
R. M. Karp, On the computational complexity of combinatorial problems, Networks 5 (1975) 45–68
work page 1975
-
[19]
P. Q. Nguyen, B. Vallée, The LLL algorithm, Springer, 2010
work page 2010
- [20]
-
[21]
J. Zhan, B. Nazer, U. Erez, M. Gastpar, Integer-forcing linear receivers, IEEE Transactions on Infor- mation Theory 60 (2014) 7661–7685
work page 2014
-
[22]
G. T. Herman, A. Kuba, Discrete tomography in medical imaging, Proceedings of the IEEE 91 (2003) 1612–1626
work page 2003
-
[23]
A. Kadu, T. van Leeuwen, A convex formulation for binary tomography, IEEE Transactions on Com- putational Imaging 6 (2019) 1–11. 47
work page 2019
-
[24]
K. J. Batenburg, J. Sijbers, Dart: a practical reconstruction algorithm for discrete tomography, IEEE Transactions on Image Processing 20 (2011) 2542–2553
work page 2011
-
[25]
K.J.Batenburg, S.Bals, J.Sijbers, C.Kübel, P.A.Midgley, J.Hernandez, U.Kaiser, E.R.Encina, E.A. Coronado, G. Van Tendeloo, 3d imaging of nanomaterials by discrete tomography, Ultramicroscopy 109 (2009) 730–740
work page 2009
-
[26]
A. E. Yagle, A convergent composite mapping fourier domain iterative algorithm for 3-d discrete tomog- raphy, Linear Algebra and its Applications 339 (2001) 91–109. URL: https://www.sciencedirect.com/ science/article/pii/S002437950100458X. doi:https://doi.org/10.1016/S0024-3795(01)00458-X
-
[27]
Esedoglu, Blind deconvolution of bar code signals, Inverse Problems 20 (2003) 121
S. Esedoglu, Blind deconvolution of bar code signals, Inverse Problems 20 (2003) 121
work page 2003
-
[28]
S. Di Zenzo, L. Cinque, S. Levialdi, Run-based algorithms for binary image analysis and processing, IEEE Transactions on Pattern Analysis and Machine Intelligence 18 (1996) 83–89. doi:10.1109/34. 476016
work page doi:10.1109/34 1996
-
[29]
M. Ren, J. Yang, H. Sun, Tracing boundary contours in a binary image, Image and Vision Comput- ing 20 (2002) 125–131. URL: https://www.sciencedirect.com/science/article/pii/S0262885601000919. doi:https://doi.org/10.1016/S0262-8856(01)00091-9
-
[30]
S. Marchand-Maillet, Y. M. Sharaiha, Binary Digital Image Processing, Elsevier, 2000. URL: http: //dx.doi.org/10.1016/B978-0-12-470505-0.X5000-X. doi:10.1016/b978-0-12-470505-0.x5000-x
-
[31]
S.-C. Pei, K.-W. Chang, Binary signal perfect recovery from partial dft coefficients, IEEE Transactions on Signal Processing 70 (2022) 3848–3861. doi:10.1109/TSP.2022.3190615
-
[32]
H. W. Levinson, V. A. Markel, Binary discrete fourier transform and its inversion, IEEE Transactions on Signal Processing 69 (2021) 3484–3499. doi:10.1109/TSP.2021.3088215
-
[33]
H. W. Levinson, V. Markel, N. Triantafillou, Inversion of band-limited discrete fourier transforms of binary images: Uniqueness and algorithms, SIAM Journal on Imaging Sciences 16 (2023) 1338–1369
work page 2023
-
[34]
K. M. Nashold, B. E. Saleh, Synthesis of two-dimensional binary images through band-limited systems: a slicing method, IEEE Transactions on Acoustics, Speech, and Signal Processing 37 (2002) 1271–1279
work page 2002
-
[35]
K. M. Nashold, J. A. Bucklew, W. Rudin, B. E. Saleh, Synthesis of binary images from band-limited functions, Journal of the Optical Society of America A 6 (1989) 852–858
work page 1989
-
[36]
Y. Mao, Reconstruction of binary functions and shapes from incomplete frequency information, IEEE Transactions on Information Theory 58 (2012) 3642–3653
work page 2012
-
[37]
M. Vetterli, P. Marziliano, T. Blu, Sampling signals with finite rate of innovation, IEEE transactions on Signal Processing 50 (2002) 1417–1428
work page 2002
- [38]
-
[39]
J.A.Tropp, Onthelinearindependenceofspikesandsines, JournalofFourierAnalysisandApplications 14 (2008) 838–858
work page 2008
-
[40]
Tao, An uncertainty principle for cyclic groups of prime order, Math
T. Tao, An uncertainty principle for cyclic groups of prime order, Math. Res. Lett. 12 (2005) 121–127
work page 2005
-
[41]
A. K. Lenstra, H. W. Lenstra, L. Lovász, Factoring polynomials with rational coefficients, Math- ematische Annalen 261 (1982) 515–534. URL: http://dx.doi.org/10.1007/BF01457454. doi:10.1007/ bf01457454. 48
-
[42]
Coppersmith, Finding a small root of a univariate modular equation, in: U
D. Coppersmith, Finding a small root of a univariate modular equation, in: U. Maurer (Ed.), Advances in Cryptology — EUROCRYPT ’96, Springer Berlin Heidelberg, Berlin, Heidelberg, 1996, pp. 155–165
work page 1996
- [43]
-
[44]
J. Hastad, B. Just, J. C. Lagarias, C. P. Schnorr, Polynomial time algorithms for finding integer relations among real numbers, SIAM Journal on Computing 18 (1989) 859–881. URL: https://doi.org/10.1137/ 0218059. doi:10.1137/0218059.arXiv:https://doi.org/10.1137/0218059
work page doi:10.1137/0218059.arxiv:https://doi.org/10.1137/0218059 1989
-
[45]
D. H. Bailey, J. M. Borwein, PSLQ: An Algorithm to Discover Integer Relations, Technical Report, Ernest Orlando Lawrence Berkeley National Laboratory, Berkeley, CA (US), 2009. URL: https://www. osti.gov/biblio/963658. doi:10.2172/963658
- [46]
- [47]
-
[48]
Representing and counting the subgroups of the group Z_m x Z_n
M. Hampejs, N. Holighaus, L. Tóth, C. Wiesmeyr, Representing and counting the subgroups of the groupz m ×z n, 2014. URL: https://arxiv.org/abs/1211.1797.arXiv:1211.1797
work page internal anchor Pith review Pith/arXiv arXiv 2014
-
[49]
G. Myerson, How small can a sum of roots of unity be?, The American Mathematical Monthly 93 (1986) 457–459
work page 1986
-
[50]
B. Barber, Small sums of five roots of unity, Bulletin of the London Mathematical Society 55 (2023) 1890–1906
work page 2023
-
[51]
J. Buhler, M. Shokrollahi, V. Stemann, Fast and precise fourier transforms, IEEE Transactions on Information Theory 46 (2000) 213–228. doi:10.1109/18.817519
- [52]
-
[53]
H. Marchand, A. Martin, R. Weismantel, L. Wolsey, Cutting planes in integer and mixed integer pro- gramming, Discrete Applied Mathematics 123 (2002) 397–446. URL: https://www.sciencedirect.com/ science/article/pii/S0166218X01003481. doi:https://doi.org/10.1016/S0166-218X(01)00348-1
-
[54]
J. C. Lagarias, A. M. Odlyzko, Solving low-density subset sum problems, J. ACM 32 (1985) 229–246. URL: https://doi.org/10.1145/2455.2461. doi:10.1145/2455.2461
-
[55]
J. A. Greenwood, D. Durand, The distribution of length and components of the sum of n random unit vectors, The Annals of Mathematical Statistics (1955) 233–246
work page 1955
-
[56]
A. Kuketayev, Probability density function of the cartesian x-coordinate of the random point inside the hypersphere, arXiv preprint arXiv:1306.0290 (2013)
work page internal anchor Pith review Pith/arXiv arXiv 2013
-
[57]
C. Caiado, P. Rathie, Polynomial coefficients and distribution of the sum of discrete uniform variables, in: M. A. M., P. M. A., J. K. K., J. Joy (Eds.), Eighth Annual Conference of the Society of Special Func- tions and their Applications, 2007. URL: https://durham-repository.worktribe.com/output/1158118, ePrint Processing Status: DRO Team waiting for pe...
-
[58]
A. Kalbach, T. Chinburg, Lll algorithm for lattice basis reduction, 2024. URL: https://arxiv.org/abs/ 2410.22196.arXiv:2410.22196. 49
-
[59]
C. R. Harris, K. J. Millman, S. J. van der Walt, R. Gommers, P. Virtanen, D. Cournapeau, E. Wieser, J. Taylor, S. Berg, N. J. Smith, R. Kern, M. Picus, S. Hoyer, M. H. van Kerkwijk, M. Brett, A. Haldane, J. F. del Río, M. Wiebe, P. Peterson, P. Gérard-Marchant, K. Sheppard, T. Reddy, W. Weckesser, H. Abbasi, C. Gohlke, T. E. Oliphant, Array programming wi...
-
[60]
P. Q. Nguyen, D. Stehlé, An lll algorithm with quadratic complexity, SIAM Journal on Computing 39 (2009) 874–903
work page 2009
-
[61]
D. Stehlé, Floating-point lll: theoretical and practical aspects, in: The LLL Algorithm: survey and applications, Springer, 2009, pp. 179–213
work page 2009
-
[62]
T. F. development team, fplll, a lattice reduction library, Version: 5.5.0, 2023. URL: https://github. com/fplll/fplll, available at https://github.com/fplll/fplll
work page 2023
-
[63]
T. F. development team, fpylll, a Python wrapper for the fplll lattice reduction library, Version: 0.6.4,
-
[64]
URL: https://github.com/fplll/fpylll, available at https://github.com/fplll/fpylll
-
[65]
Viviano, intvert, a Python package for inversion of integer arrays from partial DFT samples, 2025
I. Viviano, intvert, a Python package for inversion of integer arrays from partial DFT samples, 2025. URL: https://pypi.org/project/intvert/, available at https://pypi.org/project/intvert/
work page 2025
-
[66]
S. Tiwari, An introduction to qr code technology, in: 2016 International Conference on Information Technology (ICIT), 2016, pp. 39–44. doi:10.1109/ICIT.2016.021
-
[67]
W. F. Schreiber, Image processing for quality improvement, Proceedings of the IEEE 66 (2005) 1640– 1651. 50
work page 2005
