Thermal and Electrical Properties of (Cr,Mo,Ta,V,W)C High-Entropy Carbide Ceramics

Ali Sarikhani; Gregory E. Hilmas; Steven M. Smith; Suzana Filipovic; William G. Fahrenholtz

arxiv: 2510.13130 · v1 · submitted 2025-10-15 · ❄️ cond-mat.mtrl-sci

Thermal and Electrical Properties of (Cr,Mo,Ta,V,W)C High-Entropy Carbide Ceramics

Ali Sarikhani , Steven M. Smith , Suzana Filipovic , William G. Fahrenholtz , Gregory E. Hilmas This is my paper

Pith reviewed 2026-05-18 07:56 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords high-entropy carbidesthermal conductivityelectrical resistivityVickers hardnesscarbothermal reductionspark plasma sinteringNeumann-Kopp rule

0 comments

The pith

The (Cr,Mo,Ta,V,W)C high-entropy carbide shows thermal conductivity rising linearly from 7 to 12 W m^{-1} K^{-1} as temperature goes from room temperature to 200 °C, with electrical resistivity tunable by excess carbon and hardness steady.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines the thermal and electrical behavior of a high-entropy carbide ceramic containing chromium, molybdenum, tantalum, vanadium, and tungsten. The authors report that thermal diffusivity rises steadily as temperature increases, producing thermal conductivity values that go up from about 7 watts per meter-kelvin at room temperature to 12 at 200 degrees Celsius. Heat capacity measurements align with predictions from the Neumann-Kopp rule, while electrical resistivity drops when excess carbon is reduced, pointing to a greater role for electrons in heat transport. Hardness remains around 29 gigapascals for all samples. These findings highlight how composition adjustments can tune the properties of such ceramics for demanding applications.

Core claim

The ceramics were made by carbothermal reduction of metal oxides and carbon, then densified by spark plasma sintering at different temperatures. Thermal diffusivity increased linearly with testing temperature, giving thermal conductivities of roughly 7 W m^{-1} K^{-1} at room temperature to 12 W m^{-1} K^{-1} at 200 °C. Heat capacities matched Neumann-Kopp estimates. Room-temperature electrical resistivity fell from 137 to 120 μΩ·cm as excess carbon went from 5.4 to 0.1 vol%, implying stronger electronic thermal conductivity contribution with less carbon. All samples showed Vickers hardness near 29 GPa at 0.49 N load. The system demonstrates tunability through processing and composition.

What carries the argument

The single-phase high-entropy carbide (Cr,Mo,Ta,V,W)C formed after carbothermal reduction and spark plasma sintering, which controls grain size, lattice parameter, and transport properties through density and carbon excess.

If this is right

If the linear increase in thermal diffusivity holds, the material's ability to conduct heat improves at higher temperatures up to at least 200 °C.
Lower excess carbon enhances the electronic part of thermal conductivity, allowing property optimization by controlling carbon content during synthesis.
Consistent hardness of 29 GPa across samples suggests the mechanical strength is robust against small variations in excess carbon.
Matching heat capacity to the Neumann-Kopp rule indicates that vibrational contributions behave as expected for a mixture of the component carbides.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

These ceramics might find use in high-temperature structural components where moderate thermal conductivity and high hardness are required without needing extreme electrical insulation.
The observed trends could extend to other high-entropy carbide compositions, suggesting a general way to adjust electronic transport by carbon stoichiometry.
Further testing at temperatures above 200 °C might reveal whether the linear diffusivity trend continues or saturates.

Load-bearing premise

The synthesis process fully converts oxides to a uniform single-phase carbide and produces fully dense samples free of porosity or unwanted phases that could skew the thermal, electrical, and hardness measurements.

What would settle it

Detection of significant porosity or secondary phases in the microstructure of the sintered ceramics that would explain or contradict the reported values of thermal diffusivity, resistivity, or hardness.

Figures

Figures reproduced from arXiv: 2510.13130 by Ali Sarikhani, Gregory E. Hilmas, Steven M. Smith, Suzana Filipovic, William G. Fahrenholtz.

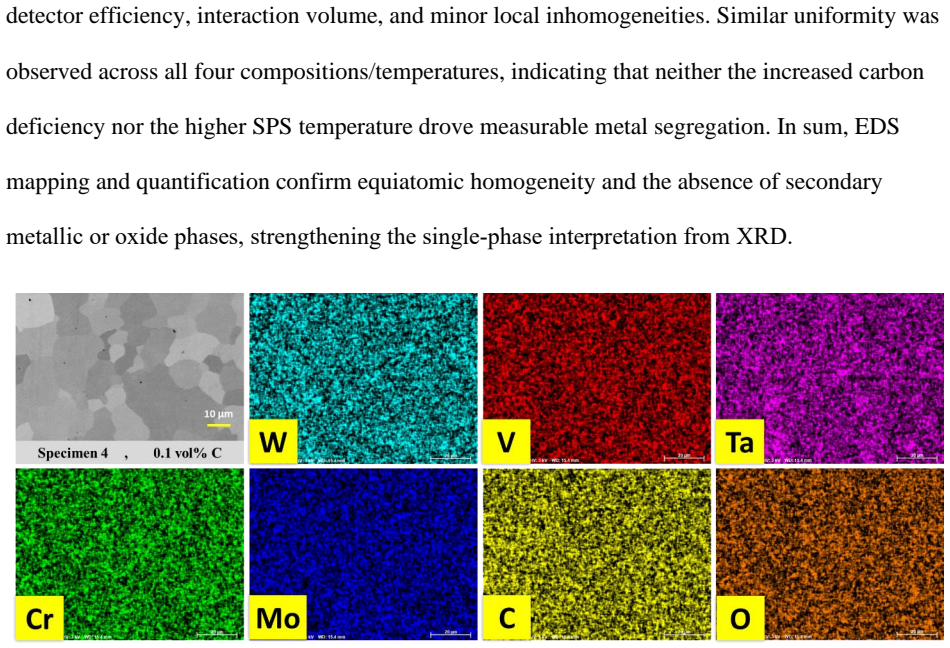

**Figure 3.** Figure 3: EDS elemental maps of the optimized (Cr,Mo,Ta,V,W)C specimen (7.5 wt% substoichiometric batch carbon, sintered at 1950 ºC). Thermal and Electrical Properties Thermal diffusivity increases approximately linearly from room temperature to 200 °C, (Fig. 4a). For the optimized microstructure, D ≈ 0.0285 cm²/s at 200 °C, comparable to prior reports for related HECs as well as a high-entropy alloy with similar c… view at source ↗

read the original abstract

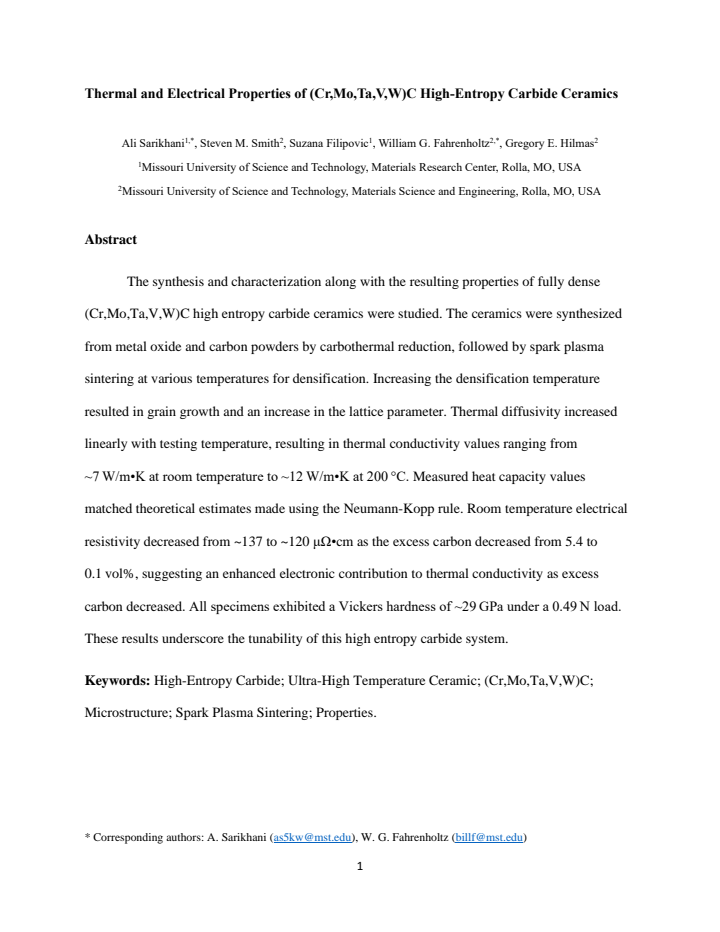

The synthesis and characterization, along with the resulting properties, of fully dense \((\mathrm{Cr, Mo, Ta, V, W})\mathrm{C}\) high-entropy carbide ceramics were studied. The ceramics were synthesized from metal oxide and carbon powders by carbothermal reduction, followed by spark plasma sintering at various temperatures for densification. Increasing the densification temperature resulted in grain growth and an increase in the lattice parameter. Thermal diffusivity increased linearly with testing temperature, resulting in thermal conductivity values ranging from approximately \(7~\mathrm{W\,m^{-1}\,K^{-1}}\) at room temperature to \(12~\mathrm{W\,m^{-1}\,K^{-1}}\) at \(200~^\circ\mathrm{C}\). Measured heat capacity values matched theoretical estimates made using the Neumann--Kopp rule. Room-temperature electrical resistivity decreased from \(137\) to \(120~\mu\Omega\cdot\mathrm{cm}\) as the excess carbon decreased from \(5.4\) to \(0.1~\mathrm{vol\%}\), suggesting an enhanced electronic contribution to thermal conductivity as excess carbon decreased. All specimens exhibited a Vickers hardness of approximately \(29~\mathrm{GPa}\) under a \(0.49~\mathrm{N}\) load. These results underscore the tunability of this high-entropy carbide system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Useful property data on this high-entropy carbide, but sample purity and density need better documentation to back the claims.

read the letter

The punchline here is that the paper gives some solid numbers on thermal conductivity and resistivity for this (Cr,Mo,Ta,V,W)C high-entropy carbide, but the whole interpretation depends on how clean and dense the samples really are. They started with oxides, did carbothermal reduction to form the carbide, then spark plasma sintered it at different temperatures. The thermal diffusivity rose linearly with test temperature, which gave conductivity values from 7 W/mK at room temp up to 12 at 200 °C. The heat capacity lined up with what you'd expect from the Neumann-Kopp rule. They also found that lower excess carbon cut the resistivity from 137 to 120 microohm-cm, and hardness was about 29 GPa no matter what. What's actually new is the property data for this specific five-metal combination and the resistivity trend with carbon content. It's an extension of other high-entropy carbide work rather than something completely different. The measurements themselves seem straightforward and the trends are clear from the abstract. The soft spot is the lack of detail on whether the material is truly single-phase and fully dense. The abstract claims that, but without reported relative densities, XRD results showing no secondary phases, or checks for uniform composition, it's possible that some porosity or leftover oxides are affecting the thermal transport and hardness. That would weaken the claim that these are the intrinsic properties of the high-entropy carbide. This is the sort of paper that people in the refractory ceramics community would look at for comparison data. It won't rewrite anything but it adds a useful data point. I'd send it out for peer review. The work is competent enough and the topic is relevant, so it should get a proper look even if it needs more microstructure info to be convincing.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the synthesis of (Cr,Mo,Ta,V,W)C high-entropy carbide ceramics via carbothermal reduction of metal oxides and carbon powders, followed by spark plasma sintering at varying temperatures. It characterizes the resulting fully dense, single-phase materials, finding that thermal diffusivity increases linearly with temperature (yielding thermal conductivity of ~7 W m^{-1} K^{-1} at room temperature to ~12 W m^{-1} K^{-1} at 200 °C), heat capacity matches Neumann-Kopp rule predictions, room-temperature electrical resistivity decreases from 137 to 120 μΩ·cm as excess carbon drops from 5.4 to 0.1 vol%, and Vickers hardness is consistently ~29 GPa at 0.49 N load. The work emphasizes tunability of properties in this high-entropy system.

Significance. If the precondition of phase-pure, fully dense specimens is verified, the results provide useful benchmark data on thermal transport, electronic contributions, and mechanical response in multicomponent carbides. The linear diffusivity trend, Neumann-Kopp agreement, and resistivity-composition correlation are internally consistent with standard experimental methods and could inform design of high-temperature ceramics, though the absence of quantitative validation metrics limits immediate impact.

major comments (2)

[Abstract and Results] Abstract and Results sections: All reported properties (thermal conductivity via k = α·ρ·C_p, resistivity trends, and hardness) presuppose fully dense, single-phase specimens without porosity or secondary phases, yet no quantitative metrics are supplied—such as relative density from Archimedes measurements, Rietveld-refined XRD phase fractions, or EDS homogeneity maps—to substantiate the 'fully dense' and 'single-phase' assertions. This directly undermines interpretation of the linear thermal diffusivity increase and the excess-carbon effect on resistivity.
[Experimental Methods] Experimental Methods: Full processing parameters (carbothermal reduction temperatures/times, SPS schedules, and post-sintering characterization protocols) are referenced only at a high level; without these details or sample statistics (e.g., number of specimens per condition, error bars on diffusivity/resistivity/hardness), reproducibility and the robustness of the 7–12 W m^{-1} K^{-1} conductivity range and 29 GPa hardness cannot be assessed.

minor comments (2)

[Results] Results: Inclusion of error bars or standard deviations on all plotted and tabulated values (thermal diffusivity, resistivity, hardness) would strengthen the presentation of the linear trends and composition dependence.
The manuscript would benefit from a brief comparison table placing the measured conductivity, resistivity, and hardness against literature values for binary or other high-entropy carbides to contextualize the tunability claims.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We agree that additional quantitative metrics and experimental details are needed to strengthen the claims of phase purity, full density, and reproducibility. We have revised the manuscript to incorporate these elements while preserving the original scientific content and interpretations.

read point-by-point responses

Referee: [Abstract and Results] Abstract and Results sections: All reported properties (thermal conductivity via k = α·ρ·C_p, resistivity trends, and hardness) presuppose fully dense, single-phase specimens without porosity or secondary phases, yet no quantitative metrics are supplied—such as relative density from Archimedes measurements, Rietveld-refined XRD phase fractions, or EDS homogeneity maps—to substantiate the 'fully dense' and 'single-phase' assertions. This directly undermines interpretation of the linear thermal diffusivity increase and the excess-carbon effect on resistivity.

Authors: We agree that quantitative validation metrics are required to support the assertions of full density and single-phase character. In the revised manuscript we have added Archimedes-method relative densities (>99 % for all specimens), Rietveld-refined XRD phase fractions (<1 vol % secondary phases), and EDS elemental maps confirming compositional homogeneity. These additions directly substantiate the reported thermal-conductivity range and the resistivity trend with excess carbon. revision: yes
Referee: [Experimental Methods] Experimental Methods: Full processing parameters (carbothermal reduction temperatures/times, SPS schedules, and post-sintering characterization protocols) are referenced only at a high level; without these details or sample statistics (e.g., number of specimens per condition, error bars on diffusivity/resistivity/hardness), reproducibility and the robustness of the 7–12 W m^{-1} K^{-1} conductivity range and 29 GPa hardness cannot be assessed.

Authors: We acknowledge that the original text provided only high-level descriptions. The revised Experimental Methods section now includes the complete carbothermal-reduction temperature–time profiles, the full SPS temperature–pressure–time schedules, post-sintering characterization protocols, the number of specimens tested per condition (3–5), and standard-deviation error bars on all thermal-diffusivity, resistivity, and hardness data. These additions enable assessment of reproducibility and robustness of the reported property ranges. revision: yes

Circularity Check

0 steps flagged

No circularity; experimental characterization with direct measurements only

full rationale

The paper is a purely experimental study reporting synthesis via carbothermal reduction and SPS, followed by direct measurements of thermal diffusivity (linear increase with temperature), thermal conductivity (7–12 W m⁻¹ K⁻¹), heat capacity (matching Neumann–Kopp estimates), electrical resistivity (137 to 120 μΩ·cm with excess carbon), and Vickers hardness (~29 GPa). No derivations, predictions, equations, or fitted parameters are presented that could reduce to inputs by construction. No self-citations, uniqueness theorems, or ansatzes are invoked in a load-bearing mathematical role. All reported values are empirical observations or straightforward comparisons to external rules, making the work self-contained against external benchmarks with no circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on established materials-science domain assumptions for synthesis and property evaluation with no new free parameters or postulated entities introduced beyond standard techniques.

axioms (1)

domain assumption Neumann-Kopp rule provides a valid estimate for the heat capacity of the multi-metal carbide
Invoked for comparison with experimental heat capacity data.

pith-pipeline@v0.9.0 · 5783 in / 1494 out tokens · 107893 ms · 2026-05-18T07:56:58.954009+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Thermal diffusivity increased linearly with testing temperature, resulting in thermal conductivity values ranging from approximately 7 W m^{-1} K^{-1} at room temperature to 12 W m^{-1} K^{-1} at 200 °C. ... Room-temperature electrical resistivity decreased from 137 to 120 μΩ·cm as the excess carbon decreased from 5.4 to 0.1 vol%.

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

31 extracted references · 31 canonical work pages

[1]

Castle, T

E. Castle, T. Csanádi, S. Grasso, et al. Processing and Properties of High-Entropy Ultra- High Temperature Carbides. Sci Rep 8 (2018) 8609. https://doi.org/10.1038/s41598-018- 26827-1

work page doi:10.1038/s41598-018- 2018
[2]

Brune, Gregory E

Paul M. Brune, Gregory E. Hilmas, William G. Fahrenholtz, Jeremy L. Watts, Caillin J. Ryan, Chris M. DeSalle, Douglas E. Wolfe, Stefano Curtarolo. Hardness of single-phase high entropy carbide ceramics with different compositions. J. Appl. Phys. 135 (2024) 165106. https://doi.org/10.1063/5.0198141

work page doi:10.1063/5.0198141 2024
[3]

High- entropy carbide: A novel class of multicomponent ceramics, Ceramics International, 44, Issue 17 (2018) 22014-22018

Jieyang Zhou, Jinyong Zhang, Fan Zhang, Bo Niu, Liwen Lei, Weimin Wang. High- entropy carbide: A novel class of multicomponent ceramics, Ceramics International, 44, Issue 17 (2018) 22014-22018. https://doi.org/10.1016/j.ceramint.2018.08.100

work page doi:10.1016/j.ceramint.2018.08.100 2018
[4]

Y. Wang. Processing and properties of high entropy carbides. Advances in Applied Ceramics 121(2) (2022) 57-78. https://doi.org/10.1080/17436753.2021.2014277

work page doi:10.1080/17436753.2021.2014277 2022
[5]

J. W. Yeh, S. K. Chen, S. J. Lin, J. Y. Gan, T. S. Chin, T. T. Shun, C. H. Tsau, and S. Y. Chang. Nanostructured high-entropy alloys with multiple principal elements: Novel alloy 20 design concepts and outcomes. Adv. Eng. Mater. 6(5) (2004) 299-303. https://doi.org/10.1002/adem.200300567

work page doi:10.1002/adem.200300567 2004
[6]

Dippo, Kenneth S

Olivia F. Dippo, Kenneth S. Vecchio. A universal configurational entropy metric for high-entropy materials. Scripta Materialia 201 (2021) 113974. https://doi.org/10.1016/j.scriptamat.2021.113974

work page doi:10.1016/j.scriptamat.2021.113974 2021
[7]

Arshad, M

M. Arshad, M. Amer, Q. Hayat, V. Janik, X. Zhang, M. Moradi, M. Bai. High Entropy Coatings (HEC) for High-Temperature Applications: Materials, Processing, and Properties. Coatings 12 (2022) 691. https://doi.org/10.3390/coatings12050691

work page doi:10.3390/coatings12050691 2022
[8]

Filipovic, N

S. Filipovic, N. Obradovic, G.E. Hilmas, W.G. Fahrenholtz, D.W. Brenner, JP. Maria, et al. A super-hard high entropy boride containing Hf, Mo, Ti, V, and W. J Am Ceram Soc. 107 (2024) 4430-4435. https://doi.org/10.1111/jace.19795

work page doi:10.1111/jace.19795 2024
[9]

Wang, ZT

Z. Wang, ZT. Li, SJ. Zhao, et al. High-entropy carbide ceramics: a perspective review. Tungsten 3 (2021) 131-142. https://doi.org/10.1007/s42864-021-00085-7

work page doi:10.1007/s42864-021-00085-7 2021
[10]

Y. Wang, T. Csanádi, H. Zhang, J. Dusza, M.J. Reece, and R.Z. Zhang. Enhanced Hardness in High-Entropy Carbides through Atomic Randomness. Adv. Theory Simul. 3 (2020) 2000111. https://doi.org/10.1002/adts.202000111

work page doi:10.1002/adts.202000111 2020
[11]

SC. Luo, WM. Guo, K. Plucknett, et al. Low-temperature densification of high-entropy (Ti,Zr,Nb,Ta,Mo)C-Co composites with high hardness and high toughness. J Adv Ceram 11 (2022) 805-813. https://doi.org/10.1007/s40145-022-0574-6

work page doi:10.1007/s40145-022-0574-6 2022
[12]

Réjasse, et al

F. Réjasse, et al. Experimental investigation and thermodynamic evaluation of the C–O– Zr ternary system. RSC Adv. 6 (2016) 100122–100135. https://doi.org/10.1039/C6RA21967E 21

work page doi:10.1039/c6ra21967e 2016
[13]

C. He, C. Zheng, W. Dai, T. Fujita, J. Zhao, S. Ma, X. Li, Y. Wei, J. Yang, Z. Wei. Purification and Phase Evolution Mechanism of Titanium Oxycarbide (TiCxOy) Produced by the Thermal Reduction of Ilmenite. Minerals 11 (2021) 104. https://doi.org/10.3390/min11020104

work page doi:10.3390/min11020104 2021
[14]

Réjasse, O

F. Réjasse, O. Rapaud, G. Trolliard, O. Masson, A. Maître. Experimental investigation thermodynamic evaluation of the C–Hf–O ternary system. J Am Ceram Soc. 100 (2017) 3757–3770. https://doi.org/10.1111/jace.14901

work page doi:10.1111/jace.14901 2017
[15]

Miller, Abdul K

David N. Miller, Abdul K. Azad, Heloise Delpouve, Lucille Quazuguel, Jun Zhou, Amit Sinha, Philip Wormald, John T. S. Irvine. Studies on the crystal structure, magnetic and conductivity properties of titanium oxycarbide solid solution (TiO1−xCx). J. Mater. Chem. A 4 (2016) 5730. https://doi.org/10.1039/C6TA00042H

work page doi:10.1039/c6ta00042h 2016
[16]

DeepSeekR1 incentivizes reasoning in LLMs through reinforcement learning

S. Divilov, H. Eckert, D. Hicks, et al. Disordered enthalpy–entropy descriptor for high- entropy ceramics discovery. Nature 625 (2024) 66–73. https://doi.org/10.1038/s41586- 023-06786-y

work page doi:10.1038/s41586- 2024
[17]

Thompson, Kaka Ma, Christopher R

Xiaochuan Tang, Gregory B. Thompson, Kaka Ma, Christopher R. Weinberger. The role of entropy and enthalpy in high entropy carbides. Computational Materials Science 210, (2022) 111474. https://doi.org/10.1016/j.commatsci.2022.111474

work page doi:10.1016/j.commatsci.2022.111474 2022
[18]

Optimized process and superior toughness of a (HfNbTaTiW)C high entropy carbide ceramic

Juan Li, Liu He, Fei Peng, Bo Liu, Qian Li, Shijun Zhao, Zhenggang Wu. Optimized process and superior toughness of a (HfNbTaTiW)C high entropy carbide ceramic. Ceramics International 50, Issue 18, Part A (2024) 32129-32137. https://doi.org/10.1016/j.ceramint.2024.06.017

work page doi:10.1016/j.ceramint.2024.06.017 2024
[19]

Harrington, Joshua Gild, Pranab Sarker, Cormac Toher, Christina M

Tyler J. Harrington, Joshua Gild, Pranab Sarker, Cormac Toher, Christina M. Rost, Olivia F. Dippo, Cameron McElfresh, Kevin Kaufmann, Eduardo Marin, Lucas 22 Borowski, Patrick E. Hopkins, Jian Luo, Stefano Curtarolo, Donald W. Brenner, Kenneth S. Vecchio. Phase stability and mechanical properties of novel high entropy transition metal carbides. Acta Mater...

work page doi:10.1016/j.actamat.2018.12.054 2019
[20]

Preparation of High-Entropy (Ti, Zr, Hf, Ta, Nb) Carbide Powder via Solution Chemistry

Pavlína Šolcová, Matěj Nižňanský, Jiří Schulz, Petr Brázda, Petra Ecorchard, Monika Vilémová, Václav Tyrpekl. Preparation of High-Entropy (Ti, Zr, Hf, Ta, Nb) Carbide Powder via Solution Chemistry. Inorganic Chemistry 60, Issue 11 (2021) 7617−7621. https://doi.org/10.1021/acs.inorgchem.1c00776

work page doi:10.1021/acs.inorgchem.1c00776 2021
[21]

Feng, W.G

L. Feng, W.G. Fahrenholtz, G.E. Hilmas. Low-temperature sintering of single-phase, high-entropy carbide ceramics. J Am Ceram Soc. 102 (2019) 7217-7224. https://doi.org/10.1111/jace.16672

work page doi:10.1111/jace.16672 2019
[22]

Pötschke, M

J. Pötschke, M. Dahal, M. Herrmann, et al. Preparation of high-entropy carbides by different sintering techniques. J Mater Sci 56 (2021) 11237-11247. https://doi.org/10.1007/s10853-021-06004-y

work page doi:10.1007/s10853-021-06004-y 2021
[23]

Schwind, M.J

E. Schwind, M.J. Reece, E. Castle, W.G. Fahrenholtz, G.E. Hilmas. Thermal and electrical properties of a high entropy carbide (Ta, Hf, Nb, Zr) at elevated temperatures. J Am Ceram Soc. 105 (2022) 4426-4434. https://doi.org/10.1111/jace.18400

work page doi:10.1111/jace.18400 2022
[24]

Brune, G.E

P.M. Brune, G.E. Hilmas, W.G. Fahrenholtz, J.L. Watts, S. Curtarolo. Thermal and electrical properties of single-phase high entropy carbide ceramics. J Am Ceram Soc. 107 (2024) 5893-5902. https://doi.org/10.1111/jace.19862

work page doi:10.1111/jace.19862 2024
[25]

Harrington et al

G.J.K. Harrington et al. Effect of carbon on the thermal and electrical transport properties of zirconium diboride. Journal of the European Ceramic Society 35 (2015) 887–896. https://doi.org/10.1016/j.jeurceramsoc.2014.09.035 23

work page doi:10.1016/j.jeurceramsoc.2014.09.035 2015
[26]

Beneficial role of carbon black on the properties of TiC ceramics

Van-Huy Nguyen, Yaghoub Pazhouhanfar, Seyed Ali Delbari, Shahrzad Shaddel, Aziz abapoor, Yasaman Mohammadpourderakhshi, Quyet Van Le, Mohammadreza Shokouhimehr, Mehdi Shahedi Asl, Abbas Sabahi Namini. Beneficial role of carbon black on the properties of TiC ceramics. Ceramics International 46, Issue 15 (2020) 23544-23555. https://doi.org/10.1016/j.ceramin...

work page doi:10.1016/j.ceramint.2020.06.125 2020
[27]

Fahrenholtz, and Donald W

Lun Feng, William G. Fahrenholtz, and Donald W. Brenner. High-Entropy Ultra-High- Temperature Borides and Carbides: A New Class of Materials for Extreme Environments. Annual Review of Materials Research 51 (2021) 165-185. https://doi.org/10.1146/annurev-matsci-080819-121217

work page doi:10.1146/annurev-matsci-080819-121217 2021
[28]

Malcolm W. Chase J. NIST-JANAF thermochemical tables. Fourth edition. Washington, DC : American Chemical Society ; New York : American Institute of Physics for the National Institute of Standards and Technology, 1998

work page 1998
[29]

Kaufmann, D

K. Kaufmann, D. Maryanovsky, W.M. Mellor, et al. Discovery of high-entropy ceramics via machine learning. npj Comput. Mater. 6 (2020) 42. https://doi.org/10.1038/s41524- 020-0317-6

work page doi:10.1038/s41524- 2020
[30]

The Development of Hard Materials and Fibrous Monolith Composites for Friction Stir Welding (2024)

Paul Michael Brune. The Development of Hard Materials and Fibrous Monolith Composites for Friction Stir Welding (2024). Doctoral Dissertations, Missouri University of Science and Technology. 3340

work page 2024
[31]

Mao, Ho-kwang Mao

Chong Peng, Xiang Gao, Mingzhi Wang, Lailei Wu, Hu Tang, Xiaomin Li, Qian Zhang, Yang Ren, Fuxiang Zhang, Yuhui Wang, Bing Zhang, Bo Gao, Qin Zou, Yucheng Zhao, Qian Yang, Dongxia Tian, Hong Xiao, Huiyang Gou, Wenge Yang, Xuedong Bai, Wendy L. Mao, Ho-kwang Mao. Diffusion-controlled alloying of single-phase multi- 24 principal transition metal carbides wi...

work page doi:10.1063/1.5054954 2019

[1] [1]

Castle, T

E. Castle, T. Csanádi, S. Grasso, et al. Processing and Properties of High-Entropy Ultra- High Temperature Carbides. Sci Rep 8 (2018) 8609. https://doi.org/10.1038/s41598-018- 26827-1

work page doi:10.1038/s41598-018- 2018

[2] [2]

Brune, Gregory E

Paul M. Brune, Gregory E. Hilmas, William G. Fahrenholtz, Jeremy L. Watts, Caillin J. Ryan, Chris M. DeSalle, Douglas E. Wolfe, Stefano Curtarolo. Hardness of single-phase high entropy carbide ceramics with different compositions. J. Appl. Phys. 135 (2024) 165106. https://doi.org/10.1063/5.0198141

work page doi:10.1063/5.0198141 2024

[3] [3]

High- entropy carbide: A novel class of multicomponent ceramics, Ceramics International, 44, Issue 17 (2018) 22014-22018

Jieyang Zhou, Jinyong Zhang, Fan Zhang, Bo Niu, Liwen Lei, Weimin Wang. High- entropy carbide: A novel class of multicomponent ceramics, Ceramics International, 44, Issue 17 (2018) 22014-22018. https://doi.org/10.1016/j.ceramint.2018.08.100

work page doi:10.1016/j.ceramint.2018.08.100 2018

[4] [4]

Y. Wang. Processing and properties of high entropy carbides. Advances in Applied Ceramics 121(2) (2022) 57-78. https://doi.org/10.1080/17436753.2021.2014277

work page doi:10.1080/17436753.2021.2014277 2022

[5] [5]

J. W. Yeh, S. K. Chen, S. J. Lin, J. Y. Gan, T. S. Chin, T. T. Shun, C. H. Tsau, and S. Y. Chang. Nanostructured high-entropy alloys with multiple principal elements: Novel alloy 20 design concepts and outcomes. Adv. Eng. Mater. 6(5) (2004) 299-303. https://doi.org/10.1002/adem.200300567

work page doi:10.1002/adem.200300567 2004

[6] [6]

Dippo, Kenneth S

Olivia F. Dippo, Kenneth S. Vecchio. A universal configurational entropy metric for high-entropy materials. Scripta Materialia 201 (2021) 113974. https://doi.org/10.1016/j.scriptamat.2021.113974

work page doi:10.1016/j.scriptamat.2021.113974 2021

[7] [7]

Arshad, M

M. Arshad, M. Amer, Q. Hayat, V. Janik, X. Zhang, M. Moradi, M. Bai. High Entropy Coatings (HEC) for High-Temperature Applications: Materials, Processing, and Properties. Coatings 12 (2022) 691. https://doi.org/10.3390/coatings12050691

work page doi:10.3390/coatings12050691 2022

[8] [8]

Filipovic, N

S. Filipovic, N. Obradovic, G.E. Hilmas, W.G. Fahrenholtz, D.W. Brenner, JP. Maria, et al. A super-hard high entropy boride containing Hf, Mo, Ti, V, and W. J Am Ceram Soc. 107 (2024) 4430-4435. https://doi.org/10.1111/jace.19795

work page doi:10.1111/jace.19795 2024

[9] [9]

Wang, ZT

Z. Wang, ZT. Li, SJ. Zhao, et al. High-entropy carbide ceramics: a perspective review. Tungsten 3 (2021) 131-142. https://doi.org/10.1007/s42864-021-00085-7

work page doi:10.1007/s42864-021-00085-7 2021

[10] [10]

Y. Wang, T. Csanádi, H. Zhang, J. Dusza, M.J. Reece, and R.Z. Zhang. Enhanced Hardness in High-Entropy Carbides through Atomic Randomness. Adv. Theory Simul. 3 (2020) 2000111. https://doi.org/10.1002/adts.202000111

work page doi:10.1002/adts.202000111 2020

[11] [11]

SC. Luo, WM. Guo, K. Plucknett, et al. Low-temperature densification of high-entropy (Ti,Zr,Nb,Ta,Mo)C-Co composites with high hardness and high toughness. J Adv Ceram 11 (2022) 805-813. https://doi.org/10.1007/s40145-022-0574-6

work page doi:10.1007/s40145-022-0574-6 2022

[12] [12]

Réjasse, et al

F. Réjasse, et al. Experimental investigation and thermodynamic evaluation of the C–O– Zr ternary system. RSC Adv. 6 (2016) 100122–100135. https://doi.org/10.1039/C6RA21967E 21

work page doi:10.1039/c6ra21967e 2016

[13] [13]

C. He, C. Zheng, W. Dai, T. Fujita, J. Zhao, S. Ma, X. Li, Y. Wei, J. Yang, Z. Wei. Purification and Phase Evolution Mechanism of Titanium Oxycarbide (TiCxOy) Produced by the Thermal Reduction of Ilmenite. Minerals 11 (2021) 104. https://doi.org/10.3390/min11020104

work page doi:10.3390/min11020104 2021

[14] [14]

Réjasse, O

F. Réjasse, O. Rapaud, G. Trolliard, O. Masson, A. Maître. Experimental investigation thermodynamic evaluation of the C–Hf–O ternary system. J Am Ceram Soc. 100 (2017) 3757–3770. https://doi.org/10.1111/jace.14901

work page doi:10.1111/jace.14901 2017

[15] [15]

Miller, Abdul K

David N. Miller, Abdul K. Azad, Heloise Delpouve, Lucille Quazuguel, Jun Zhou, Amit Sinha, Philip Wormald, John T. S. Irvine. Studies on the crystal structure, magnetic and conductivity properties of titanium oxycarbide solid solution (TiO1−xCx). J. Mater. Chem. A 4 (2016) 5730. https://doi.org/10.1039/C6TA00042H

work page doi:10.1039/c6ta00042h 2016

[16] [16]

DeepSeekR1 incentivizes reasoning in LLMs through reinforcement learning

S. Divilov, H. Eckert, D. Hicks, et al. Disordered enthalpy–entropy descriptor for high- entropy ceramics discovery. Nature 625 (2024) 66–73. https://doi.org/10.1038/s41586- 023-06786-y

work page doi:10.1038/s41586- 2024

[17] [17]

Thompson, Kaka Ma, Christopher R

Xiaochuan Tang, Gregory B. Thompson, Kaka Ma, Christopher R. Weinberger. The role of entropy and enthalpy in high entropy carbides. Computational Materials Science 210, (2022) 111474. https://doi.org/10.1016/j.commatsci.2022.111474

work page doi:10.1016/j.commatsci.2022.111474 2022

[18] [18]

Optimized process and superior toughness of a (HfNbTaTiW)C high entropy carbide ceramic

Juan Li, Liu He, Fei Peng, Bo Liu, Qian Li, Shijun Zhao, Zhenggang Wu. Optimized process and superior toughness of a (HfNbTaTiW)C high entropy carbide ceramic. Ceramics International 50, Issue 18, Part A (2024) 32129-32137. https://doi.org/10.1016/j.ceramint.2024.06.017

work page doi:10.1016/j.ceramint.2024.06.017 2024

[19] [19]

Harrington, Joshua Gild, Pranab Sarker, Cormac Toher, Christina M

Tyler J. Harrington, Joshua Gild, Pranab Sarker, Cormac Toher, Christina M. Rost, Olivia F. Dippo, Cameron McElfresh, Kevin Kaufmann, Eduardo Marin, Lucas 22 Borowski, Patrick E. Hopkins, Jian Luo, Stefano Curtarolo, Donald W. Brenner, Kenneth S. Vecchio. Phase stability and mechanical properties of novel high entropy transition metal carbides. Acta Mater...

work page doi:10.1016/j.actamat.2018.12.054 2019

[20] [20]

Preparation of High-Entropy (Ti, Zr, Hf, Ta, Nb) Carbide Powder via Solution Chemistry

Pavlína Šolcová, Matěj Nižňanský, Jiří Schulz, Petr Brázda, Petra Ecorchard, Monika Vilémová, Václav Tyrpekl. Preparation of High-Entropy (Ti, Zr, Hf, Ta, Nb) Carbide Powder via Solution Chemistry. Inorganic Chemistry 60, Issue 11 (2021) 7617−7621. https://doi.org/10.1021/acs.inorgchem.1c00776

work page doi:10.1021/acs.inorgchem.1c00776 2021

[21] [21]

Feng, W.G

L. Feng, W.G. Fahrenholtz, G.E. Hilmas. Low-temperature sintering of single-phase, high-entropy carbide ceramics. J Am Ceram Soc. 102 (2019) 7217-7224. https://doi.org/10.1111/jace.16672

work page doi:10.1111/jace.16672 2019

[22] [22]

Pötschke, M

J. Pötschke, M. Dahal, M. Herrmann, et al. Preparation of high-entropy carbides by different sintering techniques. J Mater Sci 56 (2021) 11237-11247. https://doi.org/10.1007/s10853-021-06004-y

work page doi:10.1007/s10853-021-06004-y 2021

[23] [23]

Schwind, M.J

E. Schwind, M.J. Reece, E. Castle, W.G. Fahrenholtz, G.E. Hilmas. Thermal and electrical properties of a high entropy carbide (Ta, Hf, Nb, Zr) at elevated temperatures. J Am Ceram Soc. 105 (2022) 4426-4434. https://doi.org/10.1111/jace.18400

work page doi:10.1111/jace.18400 2022

[24] [24]

Brune, G.E

P.M. Brune, G.E. Hilmas, W.G. Fahrenholtz, J.L. Watts, S. Curtarolo. Thermal and electrical properties of single-phase high entropy carbide ceramics. J Am Ceram Soc. 107 (2024) 5893-5902. https://doi.org/10.1111/jace.19862

work page doi:10.1111/jace.19862 2024

[25] [25]

Harrington et al

G.J.K. Harrington et al. Effect of carbon on the thermal and electrical transport properties of zirconium diboride. Journal of the European Ceramic Society 35 (2015) 887–896. https://doi.org/10.1016/j.jeurceramsoc.2014.09.035 23

work page doi:10.1016/j.jeurceramsoc.2014.09.035 2015

[26] [26]

Beneficial role of carbon black on the properties of TiC ceramics

Van-Huy Nguyen, Yaghoub Pazhouhanfar, Seyed Ali Delbari, Shahrzad Shaddel, Aziz abapoor, Yasaman Mohammadpourderakhshi, Quyet Van Le, Mohammadreza Shokouhimehr, Mehdi Shahedi Asl, Abbas Sabahi Namini. Beneficial role of carbon black on the properties of TiC ceramics. Ceramics International 46, Issue 15 (2020) 23544-23555. https://doi.org/10.1016/j.ceramin...

work page doi:10.1016/j.ceramint.2020.06.125 2020

[27] [27]

Fahrenholtz, and Donald W

Lun Feng, William G. Fahrenholtz, and Donald W. Brenner. High-Entropy Ultra-High- Temperature Borides and Carbides: A New Class of Materials for Extreme Environments. Annual Review of Materials Research 51 (2021) 165-185. https://doi.org/10.1146/annurev-matsci-080819-121217

work page doi:10.1146/annurev-matsci-080819-121217 2021

[28] [28]

Malcolm W. Chase J. NIST-JANAF thermochemical tables. Fourth edition. Washington, DC : American Chemical Society ; New York : American Institute of Physics for the National Institute of Standards and Technology, 1998

work page 1998

[29] [29]

Kaufmann, D

K. Kaufmann, D. Maryanovsky, W.M. Mellor, et al. Discovery of high-entropy ceramics via machine learning. npj Comput. Mater. 6 (2020) 42. https://doi.org/10.1038/s41524- 020-0317-6

work page doi:10.1038/s41524- 2020

[30] [30]

The Development of Hard Materials and Fibrous Monolith Composites for Friction Stir Welding (2024)

Paul Michael Brune. The Development of Hard Materials and Fibrous Monolith Composites for Friction Stir Welding (2024). Doctoral Dissertations, Missouri University of Science and Technology. 3340

work page 2024

[31] [31]

Mao, Ho-kwang Mao

Chong Peng, Xiang Gao, Mingzhi Wang, Lailei Wu, Hu Tang, Xiaomin Li, Qian Zhang, Yang Ren, Fuxiang Zhang, Yuhui Wang, Bing Zhang, Bo Gao, Qin Zou, Yucheng Zhao, Qian Yang, Dongxia Tian, Hong Xiao, Huiyang Gou, Wenge Yang, Xuedong Bai, Wendy L. Mao, Ho-kwang Mao. Diffusion-controlled alloying of single-phase multi- 24 principal transition metal carbides wi...

work page doi:10.1063/1.5054954 2019
