Strain-induced structural change and nearly-commensurate diffuse scattering in the model high-temperature superconductor HgBa₂CuO_(4+δ)

Mai Ye , Wenshan Hong , Tom Lacmann , Mehdi Frachet , Igor Vinograd , Gaston Garbarino , Sofia-Michaela Souliou , Michael Merz
show 4 more authors
Rolf Heid Amir-Abbas Haghighirad Yuan Li Matthieu Le Tacon
This is my paper

Pith reviewed 2026-05-18 04:54 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con
keywords straindiffuse scatteringcharge correlationHgBa2CuO4high-temperature superconductorresonating valence bondX-ray diffractioncuprate
0
0 comments X

The pith

Strain along the a-axis in underdoped HgBa2CuO4+δ induces short-range nearly-commensurate two-dimensional charge correlations with wave vector near (0.5, 0, 0).

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors apply uniaxial compression to underdoped HgBa2CuO4+δ and track the resulting lattice distortions using synchrotron X-ray diffraction. They observe Poisson ratios of 0.16 and 0.11 for the b and c directions, respectively, along with a notable 0.9 percent increase in the apical Cu-O distance under 1.1 percent a-axis compression. The central new finding is an additional diffuse scattering signal that appears only under strain. This signal is temperature-independent across the superconducting transition and matches a short-range, nearly commensurate modulation whose wave vector sits close to (0.5, 0, 0) with a correlation length of roughly four unit cells. The pattern closely follows the charge-order state predicted by resonating-valence-bond calculations on a square lattice.

Core claim

The paper reports that mechanical compression along the crystallographic a direction in HgBa2CuO4+δ produces diffuse X-ray scattering from a previously unobserved two-dimensional charge correlation. The modulation is short-range, nearly commensurate, and centered near the wave vector (0.5, 0, 0), with a correlation length of approximately four unit cells. The intensity and position of this signal remain unchanged when the sample passes through the superconducting transition temperature, indicating that the charge correlations are decoupled from superconductivity in this strain state.

What carries the argument

The strain-induced diffuse scattering interpreted as a new type of two-dimensional charge correlation with wave vector close to (0.5, 0, 0) and correlation length of about four unit cells.

If this is right

  • The charge correlations remain unchanged across the superconducting transition, showing they are insensitive to the onset of superconductivity.
  • The modulation wave vector lies close to (0.5, 0, 0) and the correlation length is limited to roughly four unit cells.
  • The observed pattern matches the charge-order state predicted in the phase diagram of the resonating-valence-bond spin-liquid model on a square lattice.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Strain may serve as a clean tuning knob to stabilize charge correlations without simultaneously altering the superconducting state in this cuprate.
  • The resemblance to RVB-model predictions suggests that similar short-range modulations could be accessed in other square-lattice models by modest lattice distortions.
  • Applying strain in different crystallographic directions could test whether other wave vectors become favored or whether the (0.5, 0, 0) feature is unique to a-axis compression.

Load-bearing premise

The diffuse scattering signal is correctly identified as arising from a new type of two-dimensional charge correlation rather than from structural defects, thermal effects, or instrumental artifacts.

What would settle it

A direct simulation or measurement showing that the observed diffuse intensity and wave-vector position can be fully accounted for by thermal diffuse scattering or known defect scattering without invoking any additional charge modulation.

Figures

Figures reproduced from arXiv: 2510.21343 by Amir-Abbas Haghighirad, Gaston Garbarino, Igor Vinograd, Mai Ye, Matthieu Le Tacon, Mehdi Frachet, Michael Merz, Rolf Heid, Sofia-Michaela Souliou, Tom Lacmann, Wenshan Hong, Yuan Li.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Crystal structure of HgBa [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

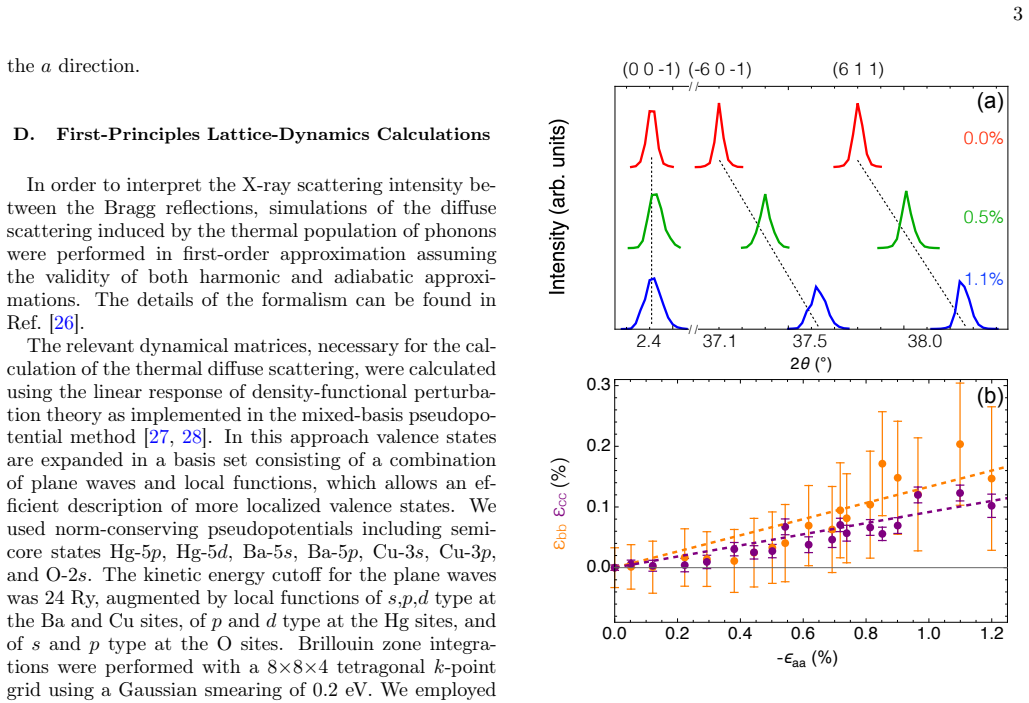

Figure 2. Figure 2: FIG. 2. The strain-induced structural change in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

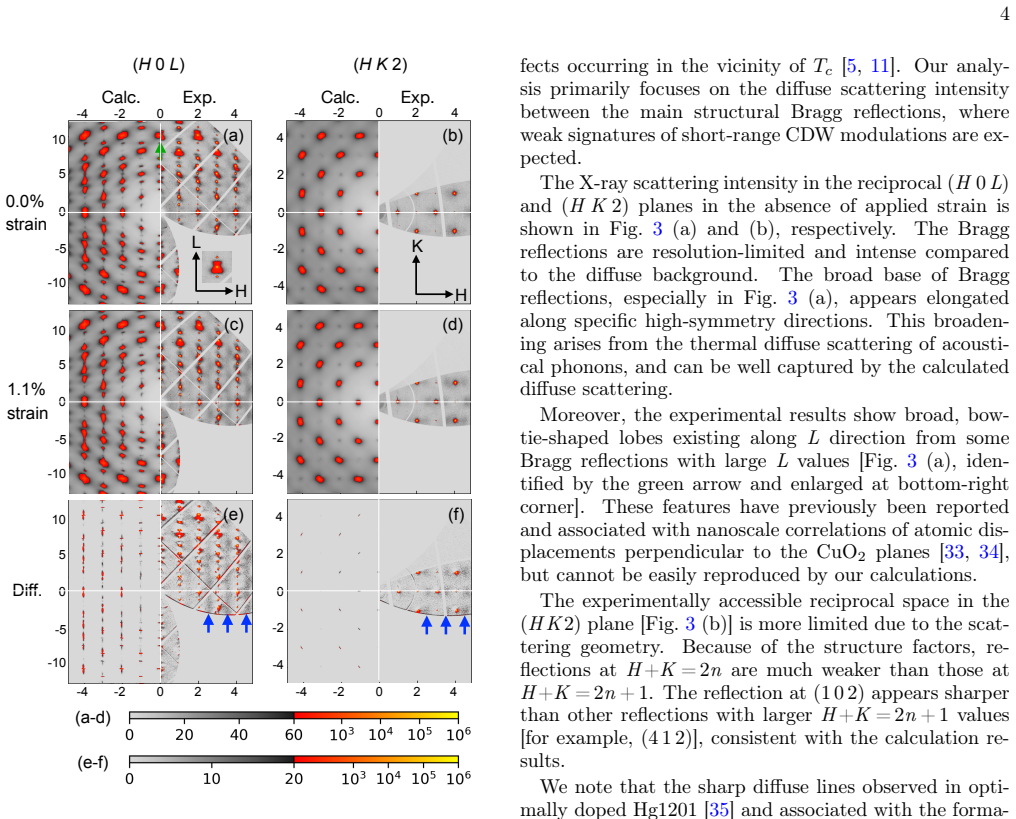

Figure 3. Figure 3: FIG. 3. The experimental X-ray diffraction patterns mea [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

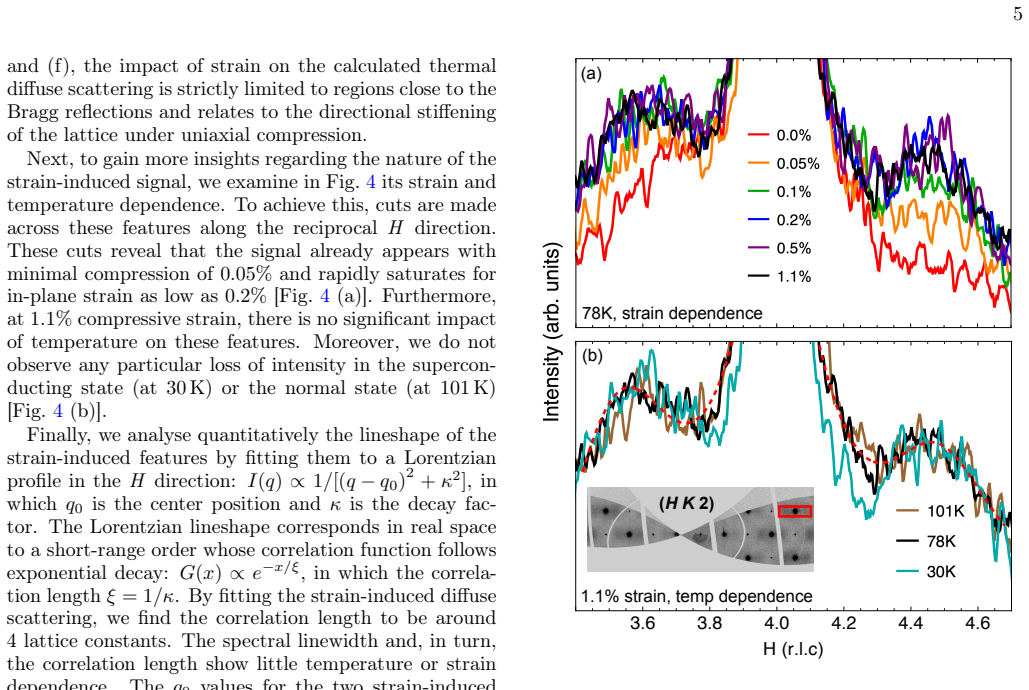

Figure 4. Figure 4: FIG. 4. The line cuts along H direction across the (4 1 2) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

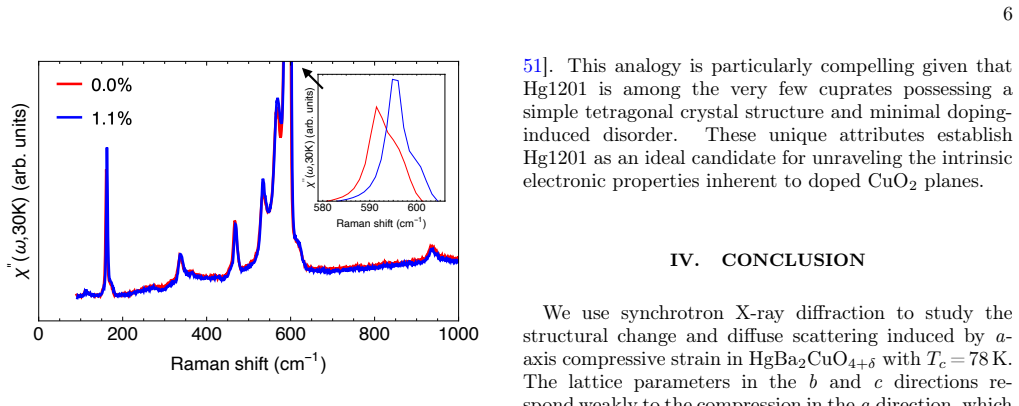

Figure 5. Figure 5: FIG. 5. Strain dependence of Raman spectra measured in [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

We investigate the strain response of underdoped HgBa$_2$CuO$_{4+\delta}$ (Hg1201), by synchrotron X-ray diffraction and corresponding simulations of thermal diffuse scattering. The compression in the crystallographic $a$ direction leads to relatively small expansion in the $b$ and $c$ directions, with Poisson ratios $\nu_{ba}$=0.16 and $\nu_{ca}$=0.11, respectively. However, the Cu-O distance in the $c$ direction exhibits a notable 0.9% increase at 1.1% $a$-axis compression. We further find strain-induced diffuse scattering which corresponds to a new type of two-dimensional charge correlation. Interestingly, this signal is insensitive to the onset of superconductivity and instead corresponds to a short-range, nearly commensurate modulation with a wave vector close to (0.5, 0, 0) and a correlation length of approximately four unit cells. It closely resembles the charge order theoretically predicted in the phase diagram of the spin-liquid model with resonating valence bonds on a square lattice.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports synchrotron X-ray diffraction measurements on underdoped HgBa₂CuO₄₊δ under uniaxial a-axis compression. It quantifies the resulting structural response via Poisson ratios ν_ba = 0.16 and ν_ca = 0.11, notes a 0.9% increase in the c-direction Cu-O distance at 1.1% a-compression, and identifies strain-induced diffuse scattering at wave vectors near (0.5, 0, 0) with a correlation length of ~4 unit cells. This signal is interpreted as a new short-range, nearly commensurate two-dimensional charge correlation that is insensitive to the superconducting transition and resembles theoretical charge order in the resonating-valence-bond spin-liquid model on a square lattice. The interpretation is supported by comparison to thermal diffuse scattering simulations.

Significance. If the attribution of the diffuse intensity holds, the work supplies direct experimental evidence that uniaxial strain can induce tunable, short-range charge correlations in a model cuprate, offering a potential bridge to theoretical phase diagrams of charge order within resonating-valence-bond states. The explicit combination of high-resolution diffraction data with thermal diffuse scattering simulations is a methodological strength that helps separate lattice from electronic contributions and could inform strain-engineering strategies in high-Tc materials.

major comments (1)
  1. [Diffuse scattering analysis] Diffuse scattering analysis section: The thermal diffuse scattering simulations are performed on the unstrained or average structure. The manuscript reports a 0.9% c-axis expansion together with anisotropic Poisson ratios under 1.1% a-compression; without re-computing the phonon spectrum or diffuse intensity on the measured strained lattice (including possible local strain gradients), the residual intensity at Q ≈ (0.5, 0, 0) cannot be unambiguously assigned to electronic charge correlations rather than modified thermal or defect scattering. This distinction is load-bearing for the central claim of a new two-dimensional charge correlation.
minor comments (2)
  1. [Abstract] The abstract states that the diffuse signal is 'insensitive to the onset of superconductivity' but does not specify the temperature range or how the comparison was performed; a brief statement in the results would clarify this point.
  2. [Results] Notation for the wave vector (0.5, 0, 0) should explicitly indicate reciprocal-lattice units and the Brillouin-zone centering to avoid ambiguity with possible incommensurate shifts.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address the single major comment below, providing clarification on our methodology while acknowledging the value of additional discussion to strengthen the interpretation.

read point-by-point responses

  1. Referee: Diffuse scattering analysis section: The thermal diffuse scattering simulations are performed on the unstrained or average structure. The manuscript reports a 0.9% c-axis expansion together with anisotropic Poisson ratios under 1.1% a-compression; without re-computing the phonon spectrum or diffuse intensity on the measured strained lattice (including possible local strain gradients), the residual intensity at Q ≈ (0.5, 0, 0) cannot be unambiguously assigned to electronic charge correlations rather than modified thermal or defect scattering. This distinction is load-bearing for the central claim of a new two-dimensional charge correlation.

    Authors: We appreciate this observation. Our thermal diffuse scattering simulations incorporated the lattice parameters of the strained crystal as refined from the measured Bragg reflections under applied compression, including the reported 0.9% c-axis expansion and the anisotropic Poisson ratios. However, we did not perform a full recalculation of the phonon dispersion on the strained lattice or explicitly model possible local strain gradients. Given the modest strain magnitude (1.1%), we anticipate only small modifications to the phonon spectrum, and the simulated TDS intensity remains concentrated near integer Bragg positions with a three-dimensional character, in contrast to the observed short-range, nearly-commensurate two-dimensional signal. To address the referee's concern directly, we will revise the manuscript to include a quantitative estimate of the expected TDS intensity variation under the measured strain (using the elastic constants and Poisson ratios) and a brief discussion ruling out local gradients as the origin of the diffuse feature. This addition will reinforce the assignment to electronic charge correlations without altering the central conclusions. revision: yes

Circularity Check

0 steps flagged

No circularity: results are direct experimental observations and comparisons

full rationale

The paper reports synchrotron X-ray diffraction measurements under uniaxial compression, extracted Poisson ratios from observed lattice expansions, and diffuse scattering signals compared against thermal diffuse scattering simulations. These steps rely on raw diffraction data and standard simulation protocols applied to the measured average structure; no parameter is fitted to a subset and then relabeled as a prediction, no central claim reduces to a self-citation chain, and no ansatz or uniqueness theorem is imported to force the interpretation. The resemblance to a spin-liquid model is presented as a qualitative similarity rather than a derived equivalence. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract relies on standard definitions in crystallography and condensed-matter physics for interpreting diffraction data and Poisson ratios; no free parameters, ad-hoc axioms, or new invented entities are apparent from the summary.

axioms (2)
  • standard math Poisson ratios are defined as the negative ratio of transverse strain to axial strain under uniaxial compression.
    Used to quantify the small expansions in b and c directions upon a-axis compression.
  • domain assumption Diffuse scattering can be simulated from thermal vibrations to distinguish charge-correlation signals from background.
    Basis for identifying the observed signal as a new type of two-dimensional charge correlation.
