arxiv: 2510.22324 · v2 · submitted 2025-10-25 · 📡 eess.SY · cs.SY

Model-Free Power System Stability Enhancement with Dissipativity-Based Neural Control

Yifei Wang , Han Wang , Kehao Zhuang , Keith Moffat , Florian D\"orfler This is my paper

Pith reviewed 2026-05-18 04:16 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords model-free controldissipativityneural networkspower system stabilityvirtual synchronous generatorstransient stabilitydata-driven control
0
0 comments X

The pith

Neural networks trained on input-state data learn dissipativity matrices that enable model-free stabilizing controllers for virtual synchronous generator power systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish a model-free method for enhancing transient stability in power systems with virtual synchronous generators. It does this by training neural networks on input-state data to learn dissipativity-characterizing matrices that can be used to design stabilizing controllers. This avoids the need for an accurate model of the grid dynamics and the difficulties of classical Lyapunov or passivity approaches. Incorporating cost function shaping helps meet user-specified performance objectives. The approach is validated through numerical results on a modified Kundur two-area system with all virtual synchronous generators.

Core claim

By training neural networks on input-state data to approximate dissipativity-characterizing matrices, stabilizing controllers can be obtained for nonlinear power systems without an explicit model, improving transient stability for grid-connected virtual synchronous generators.

What carries the argument

Neural network approximation of dissipativity-characterizing matrices that define storage functions for certifying closed-loop stability via dissipativity.

If this is right

  • Stabilizing controllers can be designed without an accurate model of the grid dynamics.
  • The approach addresses cases where finding storage functions for large grids is intractable with classical methods.
  • Cost function shaping aligns controller performance with user-specified objectives.
  • Numerical tests confirm effectiveness on a modified all-VSG Kundur two-area power system.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The data-driven learning could support online adaptation if new trajectories are collected during operation.
  • Similar neural approximation of dissipativity properties might apply to other large nonlinear networked systems.
  • Robust generalization of the learned matrices would reduce dependence on detailed system models in practice.

Load-bearing premise

That neural networks trained on finite input-state trajectories can produce dissipativity matrices whose associated storage functions actually certify closed-loop stability for the real nonlinear power system under all relevant disturbances.

What would settle it

Observing loss of stability or failure of the dissipativity inequality under a disturbance outside the training trajectories would falsify the central claim.

Figures

Figures reproduced from arXiv: 2510.22324 by Florian D\"orfler, Han Wang, Kehao Zhuang, Keith Moffat, Yifei Wang.

Figure 1
Figure 1. Figure 1: The architecture of three types of matrix NNs. For simplicity, we only draw one MLP schematic. Different matrix NNs do not share the same MLP. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

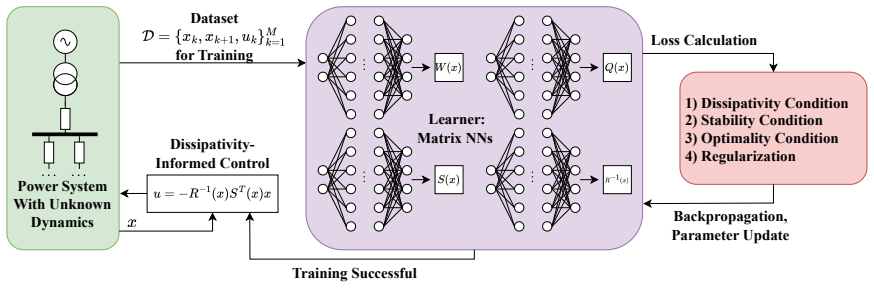

Figure 2. Figure 2: An overview of our algorithm, which generate a stabilizing control after training NNs that can characterize dissipativity. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

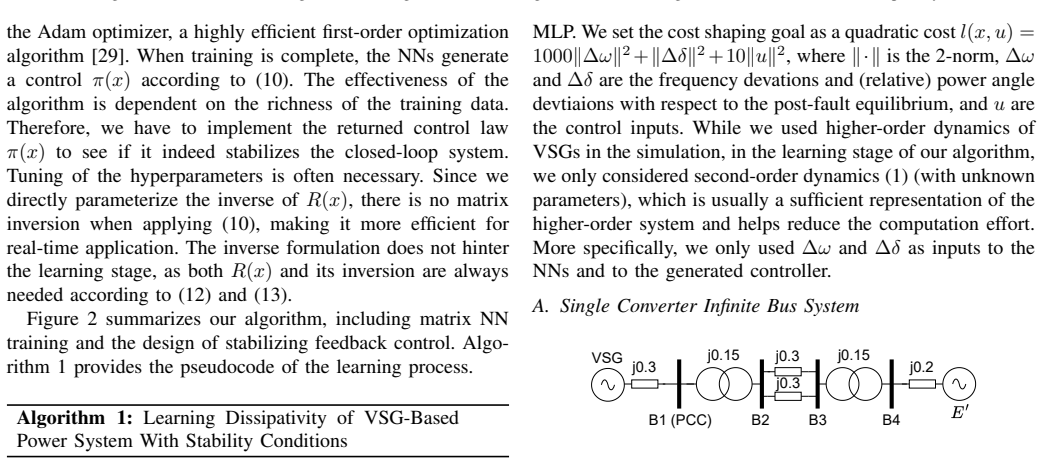

Figure 3. Figure 3: Schematic of the SCIB system. As seen in [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

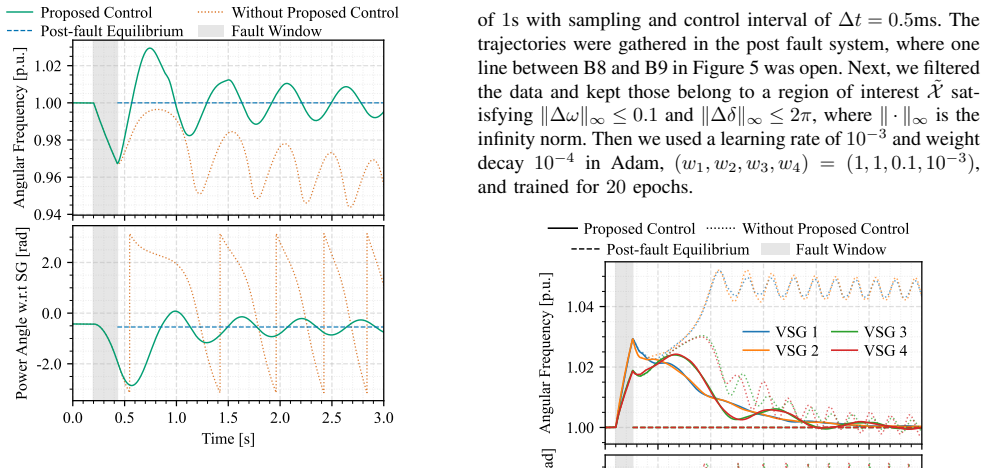

Figure 4. Figure 4: The effect of proposed control in the SCIB system. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6

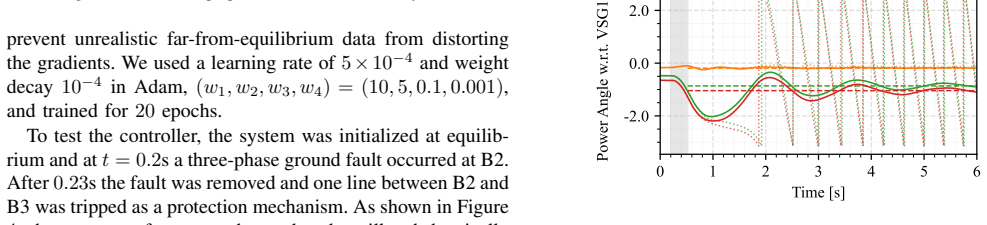

Figure 6. Figure 6: The effect of proposed control in the two-area system. [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 5

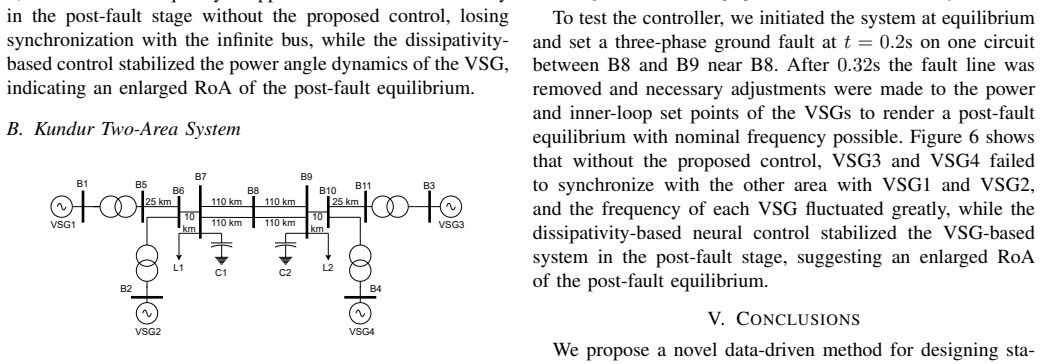

Figure 5. Figure 5: The modified Kundur two-area system with VSGs. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

The integration of converter-interfaced generation introduces new transient stability challenges to modern power systems. Classical Lyapunov- and scalable passivity-based approaches typically rely on restrictive assumptions, and finding storage functions for large grids is generally considered intractable. Furthermore, most methods require an accurate grid dynamics model. To address these challenges, we propose a model-free, nonlinear, and dissipativity-based controller which, when applied to grid-connected virtual synchronous generators (VSGs), enhances power system transient stability. Using input-state data, we train neural networks to learn dissipativity-characterizing matrices that yield stabilizing controllers. Furthermore, we incorporate cost function shaping to improve the performance with respect to the user-specified objectives. Numerical results on a modified, all-VSG Kundur two-area power system validate the effectiveness of the proposed approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a model-free nonlinear dissipativity-based neural controller for enhancing transient stability in power systems with virtual synchronous generators. Neural networks are trained on input-state data to learn dissipativity-characterizing matrices that yield stabilizing controllers, with cost function shaping added to align with user objectives. Numerical validation is shown on a modified all-VSG Kundur two-area system.

Significance. If substantiated, the work would advance model-free stability methods for grids with high converter-interfaced generation by avoiding accurate models and restrictive assumptions common in Lyapunov or passivity approaches. The neural learning of dissipativity matrices offers a scalable route to controller design where classical storage-function search is intractable.

major comments (2)
  1. [Numerical Results] §4 (Numerical Results): the reported validation demonstrates empirical stabilization on the Kundur system but supplies no information on training data volume, excitation signal design, or post-training verification that the learned matrices satisfy the dissipativity inequalities for the closed-loop nonlinear dynamics under disturbances outside the training set.
  2. [Dissipativity Learning and Controller Synthesis] §3 (Dissipativity Learning and Controller Synthesis): the central stability claim rests on the storage function associated with the fitted matrices satisfying the dissipativity inequality along every closed-loop trajectory of the true system; finite-trajectory training enforces the condition only approximately at sampled points, with no additional constraint, bound, or out-of-distribution check provided to guarantee the property holds globally.
minor comments (1)
  1. [Introduction] Notation for the learned matrices and storage function could be introduced earlier with an explicit link to the dissipativity supply rate to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment point by point below, indicating where revisions will be made.

read point-by-point responses

  1. Referee: [Numerical Results] §4 (Numerical Results): the reported validation demonstrates empirical stabilization on the Kundur system but supplies no information on training data volume, excitation signal design, or post-training verification that the learned matrices satisfy the dissipativity inequalities for the closed-loop nonlinear dynamics under disturbances outside the training set.

    Authors: We agree that the numerical results section would benefit from greater detail on the data collection and verification process to improve reproducibility. In the revised manuscript, we will expand §4 to report the volume of training data (number of trajectories and samples), describe the excitation signal design (including the specific disturbances and reference changes applied), and add post-training verification results on out-of-distribution disturbances to confirm that the learned dissipativity matrices continue to satisfy the required inequalities for the closed-loop system. revision: yes

  2. Referee: [Dissipativity Learning and Controller Synthesis] §3 (Dissipativity Learning and Controller Synthesis): the central stability claim rests on the storage function associated with the fitted matrices satisfying the dissipativity inequality along every closed-loop trajectory of the true system; finite-trajectory training enforces the condition only approximately at sampled points, with no additional constraint, bound, or out-of-distribution check provided to guarantee the property holds globally.

    Authors: The referee correctly notes that our approach is data-driven and that finite sampled trajectories provide only approximate enforcement of the dissipativity condition at those points. The manuscript does not claim or provide a rigorous global guarantee for all possible closed-loop trajectories, as this would require either a system model or additional theoretical machinery that conflicts with the model-free objective. In the revision we will add an explicit discussion of this limitation in §3, along with empirical out-of-distribution checks in §4 to support practical generalization. A formal bound or constraint guaranteeing the property everywhere is not feasible within the current model-free framework without introducing restrictive assumptions we deliberately avoid. revision: partial

Circularity Check

0 steps flagged

Data-driven dissipativity learning for VSG control is self-contained with empirical validation

full rationale

The paper presents a model-free method that trains neural networks on finite input-state trajectories to obtain dissipativity-characterizing matrices, then applies standard dissipativity theory to synthesize a controller. The central claim is supported by numerical experiments on a modified Kundur two-area system rather than by a closed-form derivation that reduces to the training data by construction. No equation is shown to be identical to its inputs, no fitted parameter is relabeled as an independent prediction, and no load-bearing step relies on a self-citation chain whose content is unverified. The approach is therefore self-contained against external benchmarks (the simulated closed-loop trajectories) and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The approach rests on standard dissipativity theory and the assumption that finite data trajectories suffice to learn globally valid storage functions; no new physical entities are postulated.

free parameters (1)
  • neural-network weights and biases
    Fitted during training to produce the dissipativity-characterizing matrices from collected input-state data.
axioms (1)
  • domain assumption Dissipativity theory supplies Lyapunov-like certificates for nonlinear stability when suitable storage functions exist.
    Invoked to translate learned matrices into stabilizing feedback.
