emg2speech: Synthesizing speech from electromyography using self-supervised speech models

Harshavardhana T. Gowda , Daniel C. Comstock , Lee M. Miller This is my paper

Pith reviewed 2026-05-18 03:50 UTC · model grok-4.3

classification 💻 cs.SD cs.CLeess.AS
keywords electromyographyspeech synthesisself-supervised speech modelsneuromuscular interfaceamyotrophic lateral sclerosissilent speechEMG-to-speechorofacial muscles
0
0 comments X

The pith

EMG signals from orofacial muscles map linearly into self-supervised speech representations to generate audio directly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that self-supervised speech model representations are tightly linked to the electrical power of speech muscles, with a simple linear predictor achieving a correlation of r = 0.85. Distinct articulatory gestures produce separable clusters in EMG power space, indicating that the models implicitly capture articulatory structure. These observations support a direct mapping from recorded EMG signals into the model representation space, which then drives speech synthesis. The resulting system produces audio from silent articulation without building explicit models of the vocal tract or training a separate vocoder. The approach is shown to work on orofacial EMG from a participant with ALS.

Core claim

Self-supervised speech representations are strongly linearly related to the electrical power of muscle activity with a correlation of r = 0.85, and EMG power vectors associated with distinct articulatory gestures form structured, separable clusters. This structure permits mapping EMG signals into the S3 representation space and synthesizing speech end-to-end without explicit articulatory modeling or vocoder training, demonstrated by converting silent orofacial EMG from a participant with ALS into audio.

What carries the argument

Linear mapping of EMG signals into the self-supervised speech (S3) representation space, using the observed correlation with muscle power and the separability of gesture clusters.

If this is right

  • End-to-end EMG-to-speech generation becomes feasible for neuromuscular speech interfaces.
  • Patients with ALS or similar conditions can produce audio output from silent orofacial muscle activity.
  • Separate training of articulatory models and vocoders is unnecessary for this synthesis pipeline.
  • Self-supervised speech models implicitly encode articulatory mechanisms as reflected in EMG activity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same linear relationship may hold for other physiological signals that correlate with internal model representations.
  • This mapping offers a way to probe what physical production details self-supervised models have learned without direct supervision.
  • Validation across a larger and more diverse set of participants would test whether the mapping generalizes beyond similar individuals.
  • Real-time versions of the pipeline could support practical silent-speech communication devices.

Load-bearing premise

The observed linear relationship between S3 representations and EMG power together with cluster separability is sufficient to produce intelligible speech from new silent-articulation recordings.

What would settle it

Apply the mapping to fresh silent-articulation EMG recordings from the same or similar participants, synthesize audio, and obtain output that listeners cannot understand or that yields near-chance word recognition accuracy.

Figures

Figures reproduced from arXiv: 2510.23969 by Daniel C. Comstock, Harshavardhana T. Gowda, Lee M. Miller.

Figure 1

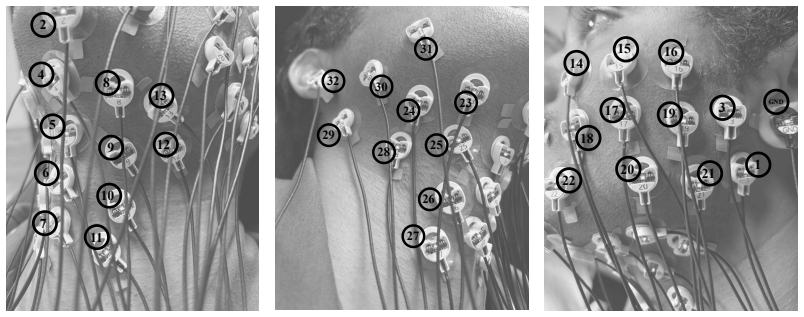

Figure 1. Figure 1: LEFT: Electrode placement on the left side of the neck. MIDDLE: Electrode placement on the right side of the neck. RIGHT: Electrode placement on the left cheek. complete, they click the mouse again to indicate the end, causing the sentence to disappear from the screen—thus allowing them to articulate at their own pace. We adapt the language corpora from [3], who demonstrated a speech brain-computer interfa… view at source ↗

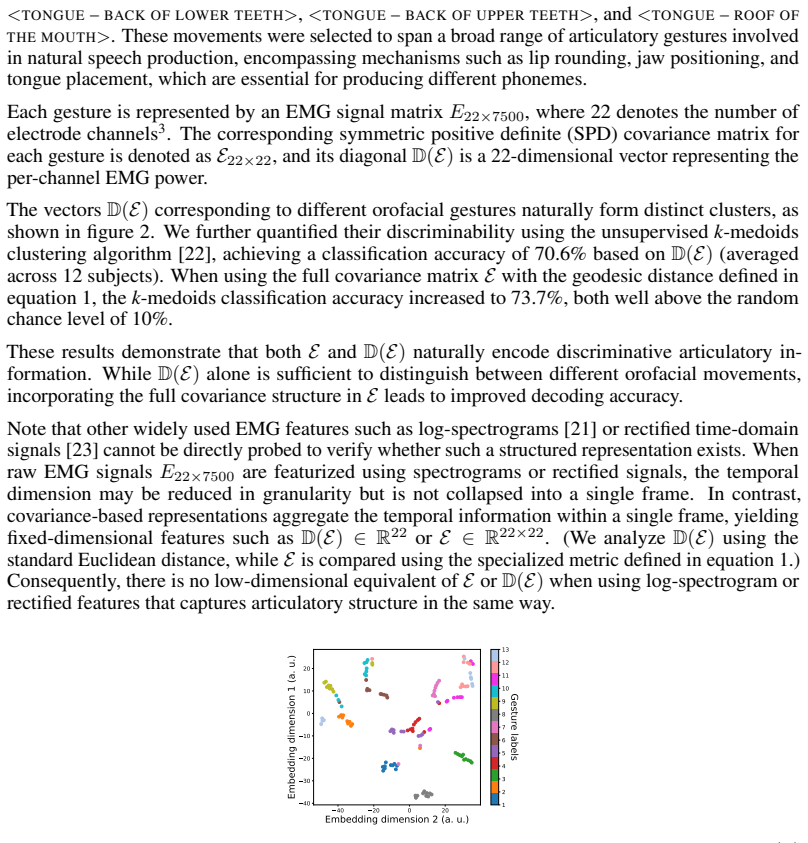

Figure 2
Figure 2. Figure 2: Different orofacial gestures are naturally separable. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

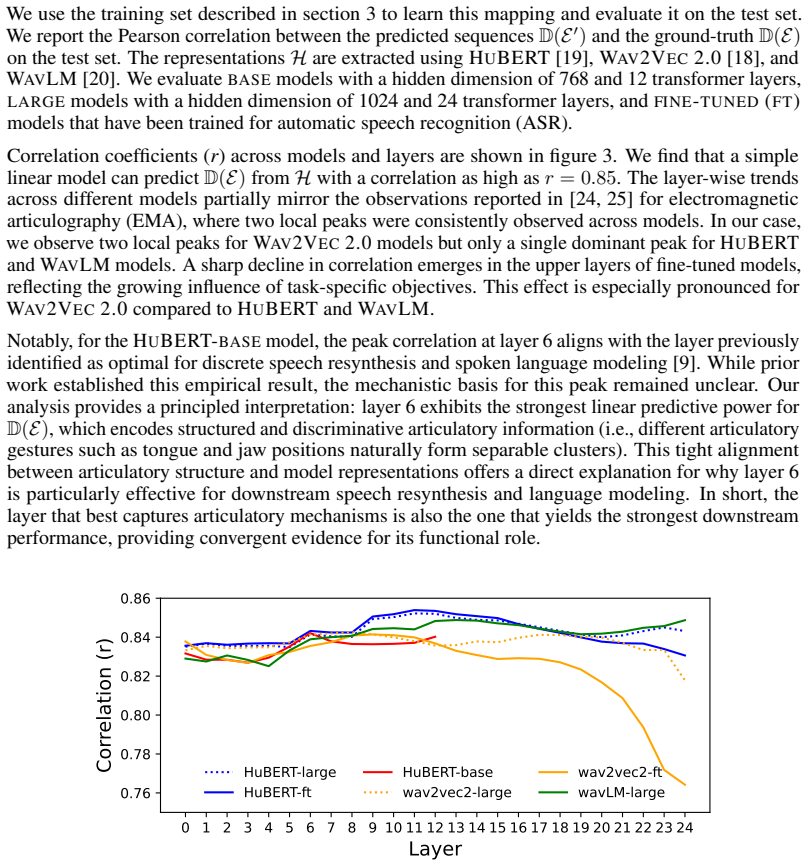

Figure 3. Figure 3: Layer-wise correlation (r) between D(E) and H across different self-supervised speech models. A simple linear mapping is used to predict D(E) from H. We also examined whether a similar linear mapping exists between EMG spectrogram features (vec(B)) and H. Frequency bands of B are obtained using five log-spaced frequency bins, as described in section 4. However, the resulting correlation coefficients are su… view at source ↗
Figure 4

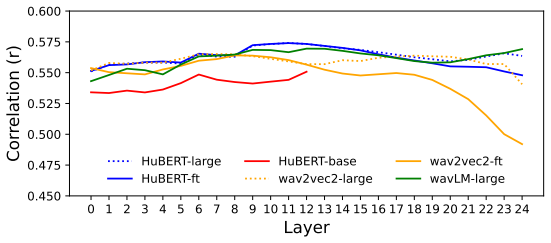

Figure 4. Figure 4: Layer-wise correlation (r) between B and H across different self-supervised speech models. A simple linear mapping is used to predict B from H. 5.3 emg2speech synthesis As shown earlier, the following relationship holds: H linear mapping −−−−−−−−−→ D(E) gesture-specific clustering −−−−−−−−−−−−−−−−−−→ OROFACIAL MOVEMENTS. The existence of a simple linear mapping from H to D(E) is significant: it reveals tha… view at source ↗
Figure 5

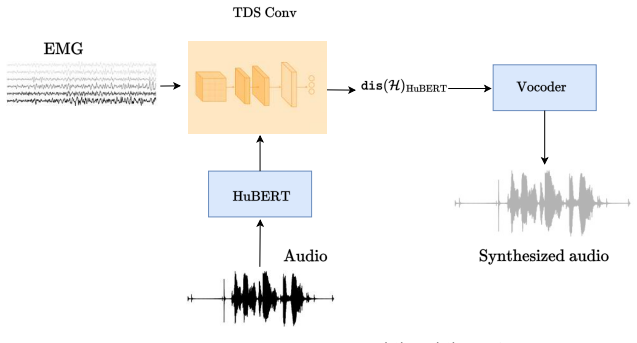

Figure 5. Figure 5: Multivariate EMG signals are converted into [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

We present a neuromuscular speech interface that translates electromyographic (EMG) signals recorded from orofacial muscles during speech articulation directly into audio. We find that self-supervised speech (S3) representations are strongly linearly related to the electrical power of muscle activity: a simple linear mapping predicts EMG power from S3 representations with a correlation of r = 0.85. In addition, EMG power vectors associated with distinct articulatory gestures form structured, separable clusters. Together, these observations suggest that S3 models implicitly encode articulatory mechanisms, as reflected in EMG activity. Leveraging this structure, we map EMG signals into the S3 representation space and synthesize speech, enabling end-to-end EMG-to-speech generation without explicit articulatory modeling or vocoder training. We demonstrate this system with a participant with amyotrophic lateral sclerosis (ALS), converting orofacial EMG recorded while she silently articulated speech into audio.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces emg2speech, a neuromuscular interface that translates orofacial EMG signals recorded during speech articulation into audio using self-supervised speech (S3) models. It reports a strong linear correlation (r = 0.85) between S3 representations and EMG power, notes that EMG power vectors for distinct articulatory gestures form separable clusters, and demonstrates mapping EMG signals into S3 space to synthesize speech from silent articulations by an ALS participant, without explicit articulatory modeling or vocoder training.

Significance. If the synthesis produces intelligible speech, the approach could be significant for assistive speech technologies, particularly for ALS patients, by exploiting pre-trained S3 models to bypass custom vocoder training and explicit articulatory inversion. The reported linear relationship and cluster structure provide an interesting empirical link between EMG activity and S3 representations that may inform representation learning. However, the absence of quantitative synthesis metrics limits the strength of these implications.

major comments (2)
  1. [Abstract] Abstract: The central claim that the system enables 'end-to-end EMG-to-speech generation' and successfully synthesizes speech from silent EMG is load-bearing but supported only by a single-participant demonstration. No quantitative metrics (e.g., word error rate, MOS, or intelligibility scores), error bars, or baseline comparisons are reported, leaving the claim only partially evidenced.
  2. [Methods/Results] Methods/Results (mapping and inversion): The linear relationship is established between S3 representations and EMG power (a scalar summary statistic per channel or time window). It is unclear how this is inverted to recover full time-varying S3 representations that preserve phonetic detail; power discards temporal structure and channel timing, which risks under-constraining the synthesized output for new silent articulations.
minor comments (2)
  1. [Abstract] Abstract: Provide confidence intervals or statistical details for the reported r = 0.85 correlation.
  2. [Results] Consider adding a figure or table showing example synthesized waveforms or spectrograms alongside ground-truth or reference audio for the ALS demonstration.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. We address each major comment below and have revised the manuscript to improve clarity on the synthesis procedure and to better contextualize the scope of our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the system enables 'end-to-end EMG-to-speech generation' and successfully synthesizes speech from silent EMG is load-bearing but supported only by a single-participant demonstration. No quantitative metrics (e.g., word error rate, MOS, or intelligibility scores), error bars, or baseline comparisons are reported, leaving the claim only partially evidenced.

    Authors: We agree that the speech synthesis result is a single-participant demonstration without quantitative metrics such as WER, MOS, or intelligibility scores. The primary contributions of the work are the reported linear correlation (r = 0.85) between S3 representations and EMG power and the observation that EMG power vectors form separable clusters. The synthesis example illustrates a potential application rather than serving as the main claim. We have revised the abstract and added a dedicated limitations paragraph in the discussion to explicitly note the preliminary nature of the synthesis result and the absence of objective metrics. We also softened the phrasing around 'end-to-end EMG-to-speech generation' to reflect the current evidence level. revision: yes

  2. Referee: [Methods/Results] Methods/Results (mapping and inversion): The linear relationship is established between S3 representations and EMG power (a scalar summary statistic per channel or time window). It is unclear how this is inverted to recover full time-varying S3 representations that preserve phonetic detail; power discards temporal structure and channel timing, which risks under-constraining the synthesized output for new silent articulations.

    Authors: The referee correctly notes that the linear mapping relates S3 representations to EMG power, which is a summary statistic. To invert this for synthesis, the manuscript uses the observed cluster structure: EMG power vectors from silent articulations are matched to the nearest cluster centroid derived from the training data, and the corresponding S3 representation from that cluster is selected and passed to the pre-trained S3 decoder. This leverages the separability of articulatory gestures rather than a direct matrix inversion of the power scalar. We acknowledge that this approach may lose fine temporal detail present in the original EMG time series. We have substantially expanded the Methods section with a step-by-step description of the cluster-based inversion procedure, including pseudocode, and added a paragraph discussing the limitations of using power as an intermediate representation. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation rests on external pre-trained models and empirical data fits

full rationale

The paper's chain begins with an observed linear correlation (r = 0.85) between S3 representations and EMG power plus cluster separability, both obtained from data analysis on recorded signals. These empirical findings are then used to construct a mapping from EMG to S3 space for synthesis. S3 models are external pre-trained artifacts, and the linear mapping is a fitted regressor rather than a definitional identity. No self-citations, uniqueness theorems, or ansatzes from prior author work are invoked as load-bearing premises. The synthesis claim is therefore not equivalent to its inputs by construction and remains falsifiable against held-out intelligibility metrics.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on a fitted linear mapping whose coefficients are not reported as fixed and on the domain assumption that S3 representations implicitly capture articulatory information reflected in EMG.

free parameters (1)
  • linear mapping matrix
    Coefficients of the linear transform from S3 representations to EMG power are learned from data and not derived from first principles.
axioms (1)
  • domain assumption S3 representations encode articulatory mechanisms visible in EMG power
    Invoked to justify the mapping and cluster separability as evidence for implicit encoding.
