Directional quantum scattering transducer in cooperative Rydberg metasurfaces

Jonas von Milczewski , Kelly Werker Smith , Susanne F. Yelin This is my paper

Pith reviewed 2026-05-18 02:22 UTC · model grok-4.3

classification 🪐 quant-ph physics.atom-phphysics.optics
keywords Rydberg atomsquantum transductionmetasurfacesfour-wave mixingsuperradiancedipole-dipole interactionsterahertz detectioncollective effects
0
0 comments X

The pith

Cooperative Rydberg arrays convert an incident THz photon into a directed optical photon via four-wave mixing under criticality conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a transduction scheme that uses two lasers to drive planar Rydberg arrays into a dark state while linking a signal transition, possibly in the terahertz range, to an optical idler transition. Photon-mediated dipole-dipole interactions among the emitters create collective super-radiant and sub-radiant modes on both transitions. An incoming signal photon couples efficiently into the array and mixes into a superradiant idler mode, which then decays into a highly directional optical photon that propagates within the array plane. The resulting device combines the broadband character of free-space mixing with the directionality and tunability of cooperative metasurfaces, offering a potential route to quantum-coherent THz detection and processing.

Core claim

In planar cooperative Rydberg arrays a four-wave-mixing process driven by two lasers converts an incident signal photon into a highly directional optical idler photon. The photon-mediated dipole-dipole interactions generate collective dipolar modes; under specific criticality conditions the signal photon is admixed into a superradiant idler mode whose decay is confined to the array plane. A scattering-operator formalism yields resonance and criticality conditions together with analytic transduction efficiencies that reach up to 50 percent into chosen spatial directions for infinite lattices and produce collimated output lobes whose width narrows as one over square root of N for finite arrays

What carries the argument

Scattering-operator formalism that extracts resonance and criticality conditions for the two-step signal-to-idler admixture mediated by collective dipole-dipole interactions.

If this is right

  • Directional transduction efficiencies reach 50 percent into specific spatial directions for infinite lattices.
  • Overall undirected transduction efficiency can exceed the directional figure.
  • Output from finite N-squared arrays is collimated into lobes whose angular width narrows as one over square root of N.
  • The scheme merges broadband free-space four-wave mixing with the efficiency and tunability of cooperative metasurfaces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Integration with existing optical quantum networks could enable THz quantum sensing without cryogenic detectors.
  • The collimation scaling suggests that larger arrays could support sparse-aperture imaging with reduced crosstalk.
  • Tuning the drive lasers may allow real-time adjustment of the output direction for adaptive quantum routing.

Load-bearing premise

The array must be cooperative with respect to the signal transition so that an incident photon couples efficiently and mixes into a superradiant idler mode under the stated criticality conditions.

What would settle it

Direct measurement of the far-field intensity pattern from a finite square array of N by N Rydberg emitters, checking whether the angular width of the dominant output lobe scales as one over square root of N while the peak directional efficiency approaches the predicted 50 percent limit for large N.

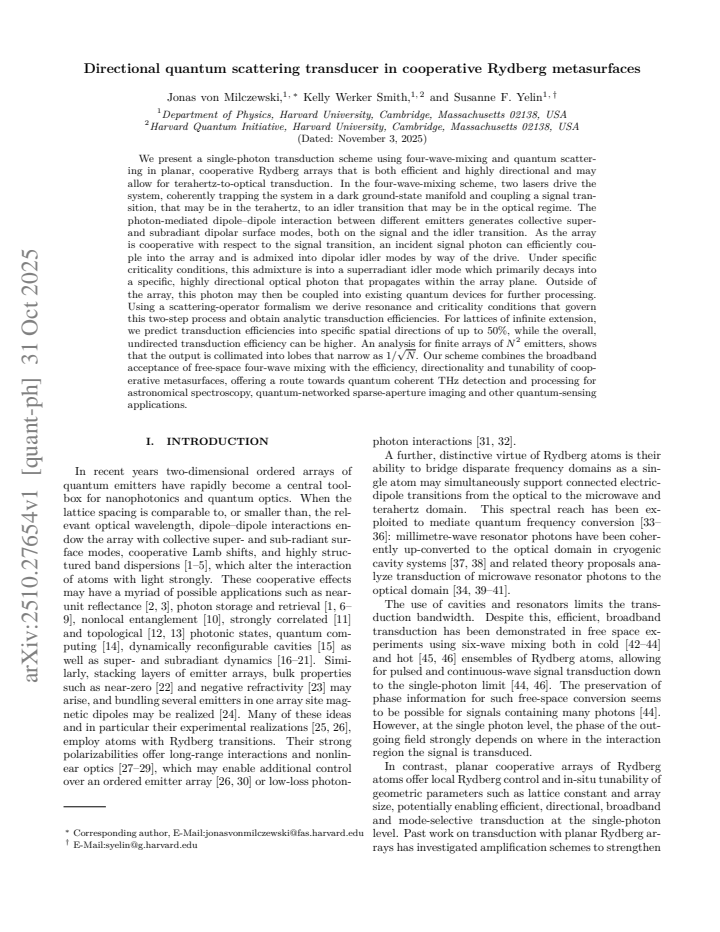

read the original abstract

We present a single-photon transduction scheme using 4-wave-mixing and quantum scattering in planar, cooperative Rydberg arrays that is both efficient and highly directional and may allow for terahertz-to-optical transduction. In the 4-wave-mixing scheme, two lasers drive the system, coherently trapping the system in a dark ground-state and coupling a signal transition, that may be in the terahertz, to an idler transition that may be in the optical. The photon-mediated dipole-dipole interactions between emitters generate collective super-/subradiant dipolar modes, both on the signal and the idler transition. As the array is cooperative with respect to the signal transition, an incident signal photon can efficiently couple into the array and is admixed into dipolar idler modes by the drive. Under specific criticality conditions, this admixture is into a superradiant idler mode which primarily decays into a specific, highly directional optical photon that propagates within the array plane. Outside of the array, this photon may then be coupled into existing quantum devices for further processing. Using a scattering-operator formalism we derive resonance and criticality conditions that govern this two-step process and obtain analytic transduction efficiencies. For infinite lattices, we predict transduction efficiencies into specific spatial directions of up to 50%, while the overall, undirected transduction efficiency can be higher. An analysis for finite arrays of $N^2$ emitters, shows that the output is collimated into lobes that narrow as $1/\sqrt{N}$. Our scheme combines the broadband acceptance of free-space 4-wave mixing with the efficiency, directionality and tunability of cooperative metasurfaces, offering a route towards quantum-coherent THz detection and processing for astronomical spectroscopy, quantum-networked sparse-aperture imaging and other quantum-sensing applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript proposes a single-photon transduction scheme for terahertz-to-optical conversion via four-wave mixing and quantum scattering in planar cooperative Rydberg metasurfaces. Two lasers coherently trap the system in a dark ground state while coupling a signal transition (potentially THz) to an idler transition (optical). Photon-mediated dipole-dipole interactions generate collective super- and subradiant modes on both transitions. An incident signal photon couples efficiently into the array due to cooperativity and is admixed into a superradiant idler mode under specific criticality conditions, decaying directionally within the array plane. Using a scattering-operator formalism, resonance and criticality conditions are derived to obtain analytic transduction efficiencies. For infinite lattices, directional efficiencies reach up to 50% with higher overall undirected efficiency; for finite N²-emitter arrays, output collimates into lobes narrowing as 1/sqrt(N). The scheme targets applications in quantum sensing and networks.

Significance. If the analytic derivations prove sound, the proposal offers a promising route to efficient, directional quantum transduction that merges the broadband nature of free-space four-wave mixing with the tunability and directionality of cooperative metasurfaces. The explicit predictions for both infinite-lattice efficiencies and finite-array collimation scaling, derived from standard quantum-optics scattering formalism without additional free parameters beyond array size N, constitute a strength by providing concrete, testable outcomes. This could impact THz detection for astronomy, sparse-aperture imaging, and quantum networks, assuming the cooperative-regime assumptions hold.

major comments (1)
  1. Abstract: The central claims of up to 50% directional transduction efficiency and the 1/sqrt(N) collimation scaling rest on analytic derivations using the scattering-operator formalism, including explicit resonance conditions, criticality criteria, and efficiency calculations. These are summarized but not shown, creating a load-bearing gap that prevents verification of internal consistency, the validity of the cooperative-regime assumption for the signal transition, or the precise origin of the 50% bound.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for recognizing the potential significance of the proposed transduction scheme. We address the major comment point by point below.

read point-by-point responses

  1. Referee: [—] Abstract: The central claims of up to 50% directional transduction efficiency and the 1/sqrt(N) collimation scaling rest on analytic derivations using the scattering-operator formalism, including explicit resonance conditions, criticality criteria, and efficiency calculations. These are summarized but not shown, creating a load-bearing gap that prevents verification of internal consistency, the validity of the cooperative-regime assumption for the signal transition, or the precise origin of the 50% bound.

    Authors: We appreciate the referee highlighting the need for clear traceability of the central analytic results. The abstract is a concise summary by design and therefore does not contain the full derivations. The scattering-operator formalism, resonance and criticality conditions, and the explicit efficiency calculations (including the origin of the 50% directional bound for infinite lattices) are derived step by step in the main text. The cooperative-regime assumption for the signal transition is justified by comparing the collective linewidth to the single-emitter decay rate for the chosen lattice spacing and wavelength, as shown in the section introducing the model Hamiltonian and collective decay operators. These sections contain all intermediate steps and allow direct verification of internal consistency without additional free parameters. If the referee prefers, we can add a short sentence to the abstract referencing the key equations or include a one-paragraph summary of the derivation in the introduction. revision: partial

Circularity Check

0 steps flagged

No circularity; derivation chain not examinable from abstract alone

full rationale

Only the abstract is available, which states that a scattering-operator formalism is used to derive resonance and criticality conditions and obtain analytic transduction efficiencies for infinite and finite arrays. No equations, self-citations, fitted parameters, or ansatzes are presented that could reduce any claimed prediction to an input by construction. The described approach begins from standard quantum optics collective-mode assumptions and photon-mediated interactions, with no load-bearing steps identifiable as self-definitional or fitted-input-called-prediction. This is the most common honest finding when detailed derivations are absent.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The proposal relies on standard quantum optics assumptions for collective modes and scattering without introducing new entities or heavily fitted parameters beyond array geometry and drive conditions.

free parameters (1)
  • Array size N
    Finite N^2 emitter arrays determine output lobe narrowing scaling as 1/sqrt(N)
axioms (2)
  • domain assumption Photon-mediated dipole-dipole interactions generate collective super-/subradiant dipolar modes on signal and idler transitions
    Invoked to enable efficient coupling and admixture in the cooperative array
  • standard math Scattering-operator formalism yields resonance and criticality conditions for the two-step transduction process
    Used to derive analytic transduction efficiencies
