arxiv: 2511.06891 · v1 · submitted 2025-11-10 · ❄️ cond-mat.mes-hall

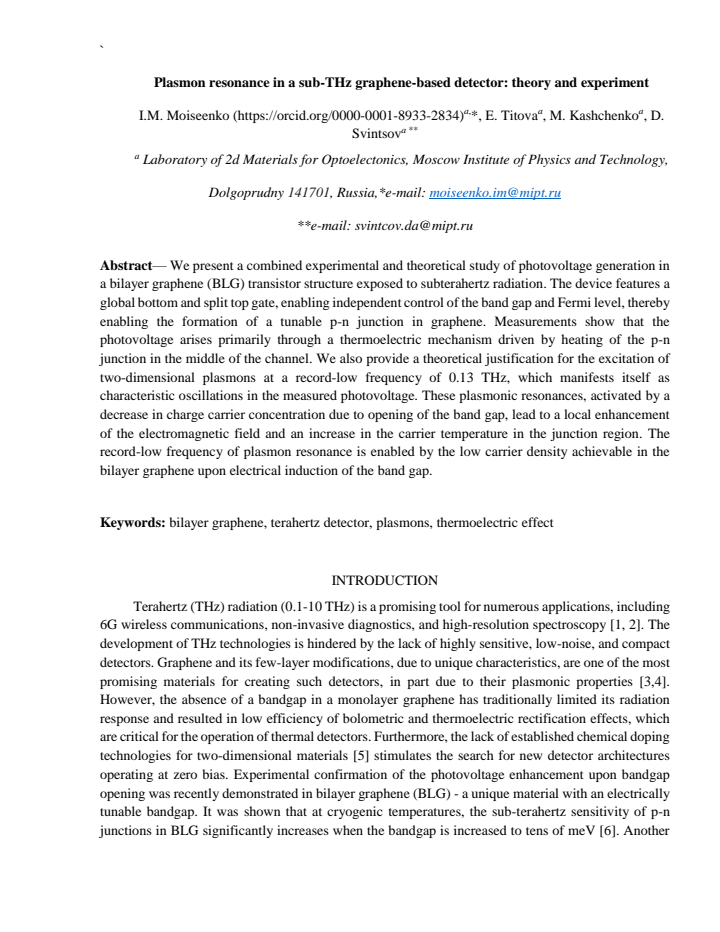

Plasmon resonance in a sub-THz graphene-based detector: theory and experiment

Pith reviewed 2026-05-18 00:03 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords bilayer grapheneplasmon resonancesub-THz detectorthermoelectric photovoltagep-n junction2D plasmonsband gap tuning
0
0 comments X

The pith

Bilayer graphene transistor produces photovoltage mainly through thermoelectric heating of a tunable p-n junction, with oscillations from 0.13 THz plasmon resonances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies photovoltage generation in a bilayer graphene device under sub-terahertz radiation using gates that form a controllable p-n junction. It shows through measurements that the main mechanism is thermoelectric, arising from local heating at the junction rather than direct photovoltaic conversion. Theory supports the excitation of two-dimensional plasmons at a record-low frequency of 0.13 THz when the band gap opens and carrier density drops, producing characteristic oscillations that enhance the local field and temperature. These results matter because they demonstrate how electrical control of the band gap enables plasmonic effects at frequencies where graphene detectors have been difficult to operate. The combination of experiment and modeling links the observed signal directly to junction heating amplified by the plasmon resonance.

Core claim

In a bilayer graphene transistor with independent bottom and split top gates, exposure to 0.13 THz radiation generates photovoltage primarily via a thermoelectric mechanism from heating of the central p-n junction; this response exhibits oscillations due to the resonant excitation of two-dimensional plasmons, which become possible at such low frequencies only when the electrically induced band gap lowers the carrier density to the required range.

What carries the argument

Electrically tunable p-n junction in gapped bilayer graphene that enables low carrier density for 0.13 THz two-dimensional plasmon resonances, which locally enhance the electromagnetic field and carrier temperature.

If this is right

  • Gate-controlled band-gap opening can be used to tune plasmon frequency down to 0.13 THz in graphene detectors for enhanced sub-THz response.
  • The thermoelectric mechanism allows independent optimization of junction position and heating profile to maximize photovoltage sensitivity.
  • Plasmon-enhanced local heating provides a route to increase carrier temperature without increasing incident power.
  • Similar gate structures in other bilayer 2D materials could replicate the low-frequency resonance by achieving comparable carrier-density reduction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same junction-heating and plasmon-enhancement principle could be tested in multilayer graphene or transition-metal dichalcogenides to reach even lower operating frequencies.
  • Mapping the oscillation amplitude versus gate voltages might serve as an in-situ probe of the local carrier density and band-gap size without separate transport measurements.
  • If the thermoelectric and plasmonic contributions can be separated by frequency or temperature dependence, the device could function as a calibrated local thermometer for sub-THz fields.

Load-bearing premise

The observed oscillations in photovoltage are produced by plasmon resonances and not by interference or other non-plasmonic mechanisms, while the thermoelectric contribution from junction heating dominates over photovoltaic or bolometric effects.

What would settle it

If the photovoltage oscillations disappear or shift when the top gate is adjusted to close the band gap and raise carrier density, or if they remain unchanged under conditions that should suppress plasmon excitation according to the calculated dispersion, the plasmon-resonance interpretation would be ruled out.

Figures

Figures reproduced from arXiv: 2511.06891 by D. Svintsov, E. Titova, I.M. Moiseenko, M. Kashchenko.

Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
read the original abstract

We present a combined experimental and theoretical study of photovoltage generation in a bilayer graphene (BLG) transistor structure exposed to subterahertz radiation. The device features a global bottom and split top gate, enabling independent control of the band gap and Fermi level, thereby enabling the formation of a tunable p-n junction in graphene. Measurements show that the photovoltage arises primarily through a thermoelectric mechanism driven by heating of the p-n junction in the middle of the channel. We also provide a theoretical justification for the excitation of two-dimensional plasmons at a record-low frequency of 0.13 THz, which manifests itself as characteristic oscillations in the measured photovoltage. These plasmonic resonances, activated by a decrease in charge carrier concentration due to opening of the band gap, lead to a local enhancement of the electromagnetic field and an increase in the carrier temperature in the junction region. The record-low frequency of plasmon resonance is enabled by the low carrier density achievable in the bilayer graphene upon electrical induction of the band gap.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a combined experimental and theoretical study of photovoltage generation in a bilayer graphene transistor with global bottom and split top gates under sub-THz radiation. The device allows independent tuning of the band gap and Fermi level to form a p-n junction. The authors conclude that the photovoltage arises primarily via a thermoelectric mechanism from heating at the junction, and that characteristic oscillations in the photovoltage signal are due to excitation of 2D plasmons at a record-low frequency of 0.13 THz enabled by gap opening and reduced carrier density, which locally enhances the field and carrier temperature.

Significance. If the plasmon attribution and thermoelectric dominance are rigorously established, the work would demonstrate a significant advance by achieving plasmon resonances at unusually low (sub-THz) frequencies in gapped bilayer graphene and linking them to enhanced photovoltage response. This could inform designs for graphene-based THz detectors. The tunable p-n junction geometry and dual theory-experiment approach add value, but the current evidence for the mechanism relies on qualitative agreement that requires quantitative validation to be load-bearing.

major comments (2)
  1. [Theoretical justification] Theoretical justification section: The resonance condition for 2D plasmons at 0.13 THz in the split-gate BLG geometry must be explicitly derived from the bilayer plasmon dispersion relation, incorporating the electrically induced band gap and resulting low carrier density; the manuscript states that gap opening enables the low frequency but does not show the quantitative mapping (including damping, contact resistance, or non-uniform heating) onto the measured photovoltage oscillation positions.
  2. [Experimental results] Experimental results and analysis: Attribution of the observed oscillations specifically to plasmon resonances (rather than geometric interference, standing waves, or bolometric effects) requires a statistical fit or quantitative comparison with error analysis; visual identification alone leaves the plasmon mechanism as one plausible interpretation among alternatives, weakening the central claim that plasmons manifest as characteristic oscillations.
minor comments (2)
  1. [Abstract] The abstract could specify the exact frequency range and power of the incident sub-THz radiation to allow direct comparison with the claimed 0.13 THz resonance.
  2. [Notation] Notation for carrier density and gap parameters should be defined consistently between the theory and experimental sections to avoid ambiguity in how the low-density regime is achieved.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments. We address each major point below with clarifications and indicate where revisions will be incorporated to strengthen the manuscript.

read point-by-point responses
  1. Referee: [Theoretical justification] Theoretical justification section: The resonance condition for 2D plasmons at 0.13 THz in the split-gate BLG geometry must be explicitly derived from the bilayer plasmon dispersion relation, incorporating the electrically induced band gap and resulting low carrier density; the manuscript states that gap opening enables the low frequency but does not show the quantitative mapping (including damping, contact resistance, or non-uniform heating) onto the measured photovoltage oscillation positions.

    Authors: We agree that an explicit derivation from the bilayer plasmon dispersion would improve clarity. The manuscript already notes that gap opening reduces carrier density to enable the low resonance frequency, but we will add a dedicated subsection deriving the resonance condition quantitatively, including the dispersion relation modified by the induced gap, estimates of damping, contact resistance effects, and non-uniform heating contributions to the observed photovoltage peak positions. revision: yes

  2. Referee: [Experimental results] Experimental results and analysis: Attribution of the observed oscillations specifically to plasmon resonances (rather than geometric interference, standing waves, or bolometric effects) requires a statistical fit or quantitative comparison with error analysis; visual identification alone leaves the plasmon mechanism as one plausible interpretation among alternatives, weakening the central claim that plasmons manifest as characteristic oscillations.

    Authors: The oscillations are tied to gate voltages that control both the gap and density, which is inconsistent with pure geometric interference or standing waves but consistent with the plasmon dispersion. We will strengthen this by adding a quantitative comparison of measured peak positions to the calculated plasmon frequencies, including error bars and a statistical assessment of fit quality versus alternative mechanisms such as bolometric or interference effects. revision: yes

Circularity Check

0 steps flagged

No circularity: plasmon resonance frequency derived from standard bilayer graphene dispersion independent of data fit

full rationale

The paper's theoretical section derives the record-low 0.13 THz resonance condition from the established 2D plasmon dispersion in gapped bilayer graphene, incorporating the tunable band gap and resulting low carrier density via standard formulas (e.g., plasma frequency scaling with sqrt(n) adjusted for gap-induced density suppression). This calculation is self-contained against external graphene plasmon literature and does not define the resonance frequency in terms of the measured photovoltage oscillations, nor does it rename a fit as a prediction. The thermoelectric photovoltage mechanism is separately justified by gate-dependent measurements rather than by the plasmon model. No self-citation chain or ansatz smuggling bears the central claim; the match to oscillations is interpretive but the underlying equations remain externally grounded and falsifiable.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claims rest on the assumption that thermoelectric heating dominates photovoltage generation and that observed oscillations correspond to plasmon modes; these are treated as domain-standard interpretations rather than new postulates. No new particles or forces are introduced. Carrier density and band-gap values are likely adjusted to match resonance position.

free parameters (1)
  • effective carrier density after gap opening
    Adjusted to place the plasmon resonance at the observed 0.13 THz frequency.
axioms (1)
  • domain assumption Photovoltage is generated primarily by thermoelectric effect at the p-n junction rather than competing mechanisms.
    Invoked to interpret the measured voltage as heating-driven.
