High-throughput, Non-Destructive, Three-Dimensional Imaging of GaN Threading Dislocations with in-Plane Burgers Vector Component via Phase-Contrast Microscopy

Yukari Ishiakwa , Ryo Hattori , Yongzhao Yao , Daiki Katsube , Koji Sato This is my paper

Pith reviewed 2026-05-17 22:55 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords GaNthreading dislocationsphase-contrast microscopynondestructive imaging3D imagingBurgers vectorphotoluminescence
0
0 comments X

The pith

Phase-contrast microscopy detects GaN threading dislocations with in-plane Burgers vector components by matching their strain contrasts to photoluminescence images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes that phase-contrast microscopy offers a fast, nondestructive way to image threading dislocations in GaN crystals. The key evidence comes from the exact one-to-one match between features seen in PCM and those in multiphoton photoluminescence images, confirming that PCM picks up dislocations whose Burgers vector has a component in the plane of the surface. Images taken at different focal depths reveal how these dislocations run through the material, distinguishing vertical from inclined ones by whether they appear as dots or lines. The approach covers areas hundreds of micrometers across in milliseconds per frame and can spot other defects such as scratches and voids as well.

Core claim

The authors demonstrate that phase-contrast microscopy produces characteristic contrasts from the strain fields around threading dislocations that possess an in-plane Burgers vector component in GaN. These contrasts match precisely with those obtained from multiphoton excitation photoluminescence, providing direct validation. The shape of the contrast indicates dislocation inclination, and adjusting the focal plane allows tracking of their three-dimensional paths within a roughly 43 micrometer thick layer, with resolution down to 1.3 micrometers between adjacent dislocations.

What carries the argument

Phase-contrast microscopy, which translates optical phase shifts caused by local strain into visible intensity variations to reveal dislocation locations and paths.

If this is right

  • Vertical dislocations produce dot-shaped contrasts while inclined dislocations produce line-shaped contrasts.
  • Three-dimensional propagation paths become visible when the focal plane is shifted through the sample thickness.
  • Dislocations as close as 1.3 micrometers apart can be resolved individually in the images.
  • The method operates at high throughput with exposure times of only 3 milliseconds per frame over areas of hundreds of square micrometers.
  • Additional defects including scratches, facet boundaries, and voids are also detectable with the same setup.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending this optical approach to other wide-bandgap materials could provide similar nondestructive defect mapping.
  • High-speed imaging like this might support real-time monitoring during semiconductor wafer processing.
  • Statistical analysis of dislocation distributions from such images could guide improvements in crystal growth techniques.

Load-bearing premise

That the contrasts observed in phase-contrast microscopy arise exclusively from the strain fields of the threading dislocations rather than from unrelated defects or imaging artifacts.

What would settle it

Observing a PCM contrast in a location where multiphoton photoluminescence shows no corresponding dislocation signal, or vice versa, would challenge the claimed one-to-one correspondence.

read the original abstract

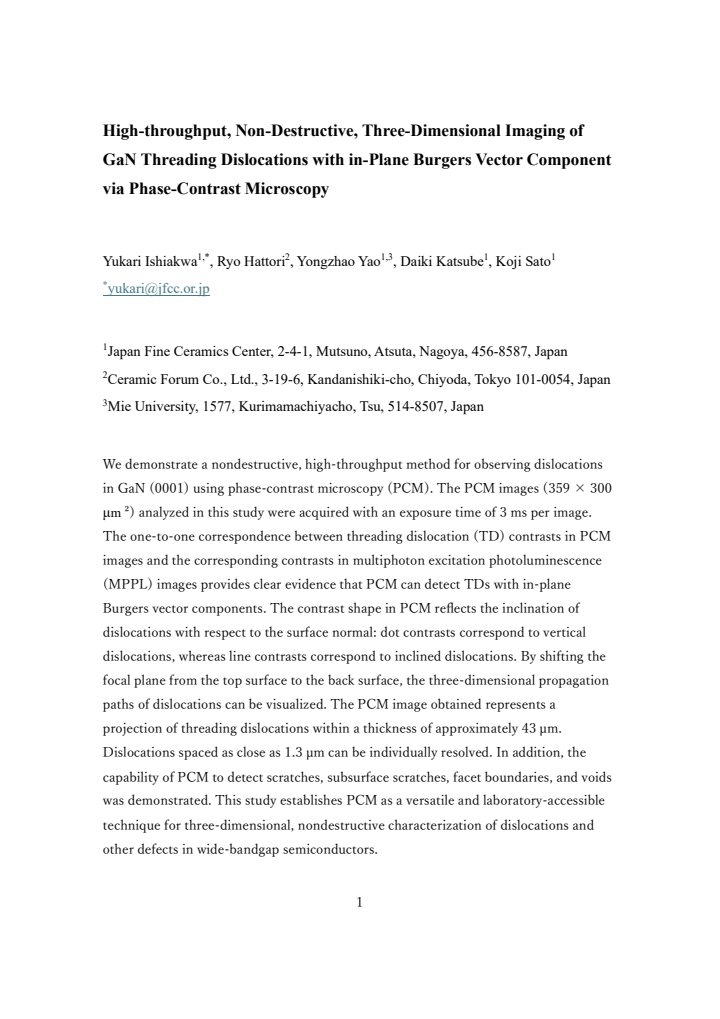

We demonstrate a nondestructive, high-throughput method for observing dislocations in GaN (0001) using phase-contrast microscopy (PCM). The PCM images (359x300 $\mu$m$^2$) analyzed in this study were acquired with an exposure time of 3 ms per image. The one-to-one correspondence between threading dislocation (TD) contrasts in PCM images and the corresponding contrasts in multiphoton excitation photoluminescence (MPPL) images provides clear evidence that PCM can detect TDs with in-plane Burgers vector components. The contrast shape in PCM reflects the inclination of dislocations with respect to the surface normal: dot contrasts correspond to vertical dislocations, whereas line contrasts correspond to inclined dislocations. By shifting the focal plane from the top surface to the back surface, the three-dimensional propagation paths of dislocations can be visualized. The PCM image obtained represents a projection of threading dislocations within a thickness of approximately 43 $\mu$m. Dislocations spaced as close as 1.3 $\mu$m can be individually resolved. In addition, the capability of PCM to detect scratches, subsurface scratches, facet boundaries, and voids was demonstrated. This study establishes PCM as a versatile and laboratory-accessible technique for three-dimensional, nondestructive characterization of dislocations and other defects in wide-bandgap semiconductors.
