pith. sign in

arxiv: 2511.10580 · v3 · submitted 2025-11-13 · 💻 cs.RO

From Fold to Function: Simulation-Driven Design of Origami Mechanisms

Tianhui Han , Shashwat Singh , Sarvesh Patil , Zeynep Temel This is my paper

Pith reviewed 2026-05-17 22:19 UTC · model grok-4.3

classification 💻 cs.RO
keywords origami mechanismssimulationMuJoCodesign optimizationCMA-EScatapultdeformable bodiesrobotics
0
0 comments X

The pith

A MuJoCo simulation framework lets designers optimize origami mechanisms such as catapults for better physical performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes a simulation approach that models origami sheets as graphs of deformable elements inside MuJoCo, with creases and actuation patterns set by the user through a graphical interface. This setup produces simulations that include realistic folding motion and contact with external surfaces or objects. The authors apply the method to an origami catapult by using CMA-ES to tune design parameters in simulation, then build and test physical versions that show improved throwing results. A sympathetic reader cares because the work reduces reliance on repeated physical trial-and-error when creating lightweight, compact robotic or deployable systems from flat sheets.

Core claim

Origami sheets can be represented as graphs of interconnected deformable bodies in MuJoCo with user-specified crease lines and actuation constraints defined through an intuitive GUI, yielding physically consistent simulations of folding and environmental interactions that support parameter optimization and transfer to improved physical prototypes, as shown in the catapult case study.

What carries the argument

MuJoCo deformable-body model of origami as graphs of elements with crease and actuation constraints entered via GUI.

Load-bearing premise

MuJoCo's deformable representation with user-defined crease and actuation constraints produces folding behavior and interactions that closely match real origami prototypes.

What would settle it

Construct the optimized origami catapult prototype and measure that its throwing distance or speed shows no improvement over a non-optimized version, or that the simulated folding sequence visibly diverges from the physical motion.

Figures

Figures reproduced from arXiv: 2511.10580 by Sarvesh Patil, Shashwat Singh, Tianhui Han, Zeynep Temel.

Figure 1

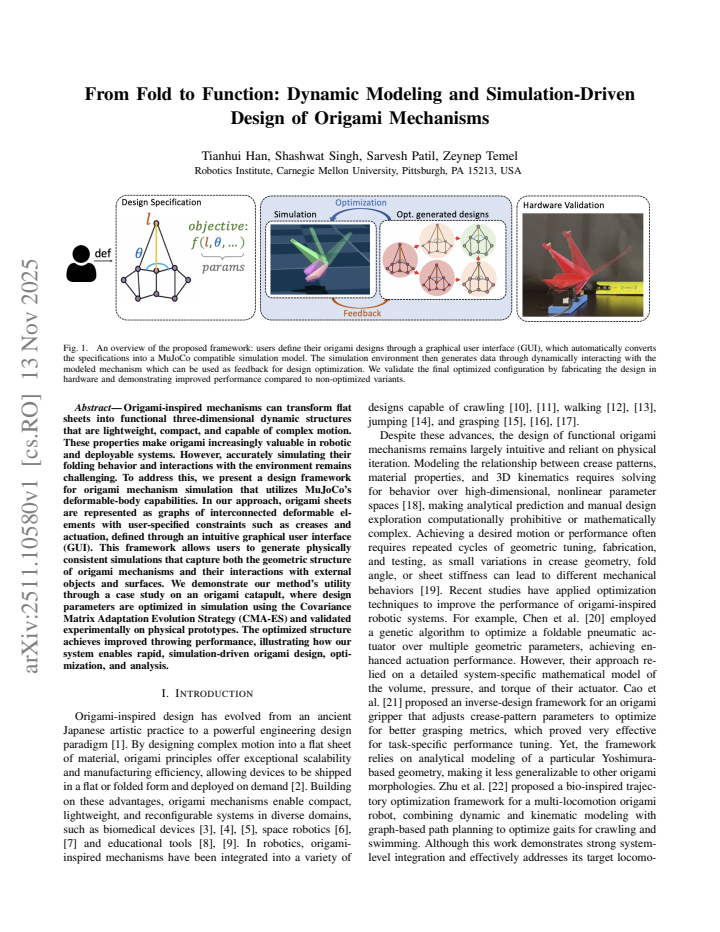

Figure 1. Figure 1: An overview of the proposed framework: users define their origami designs through a graphical user interface (GUI), which automatically converts [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

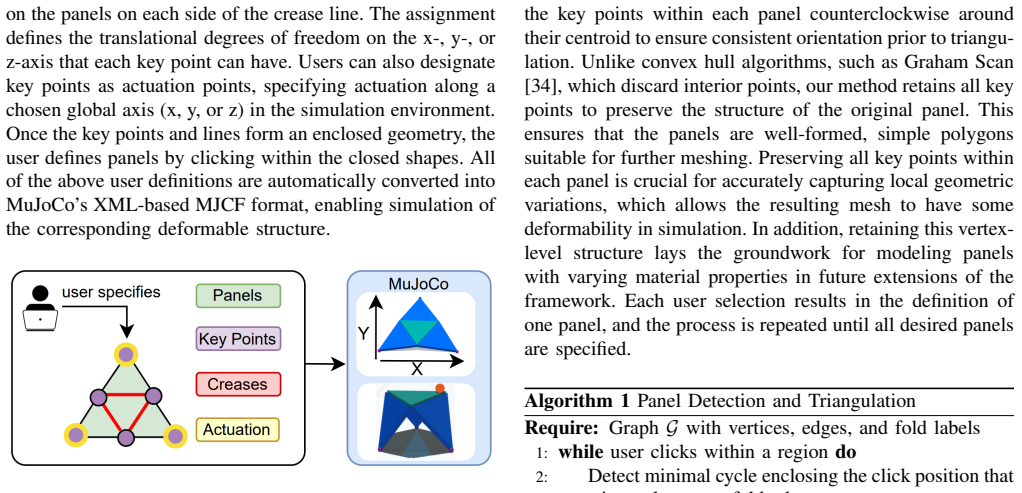

Figure 2. Figure 2: (Left) purple circles show the key points, yellow highlights key [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

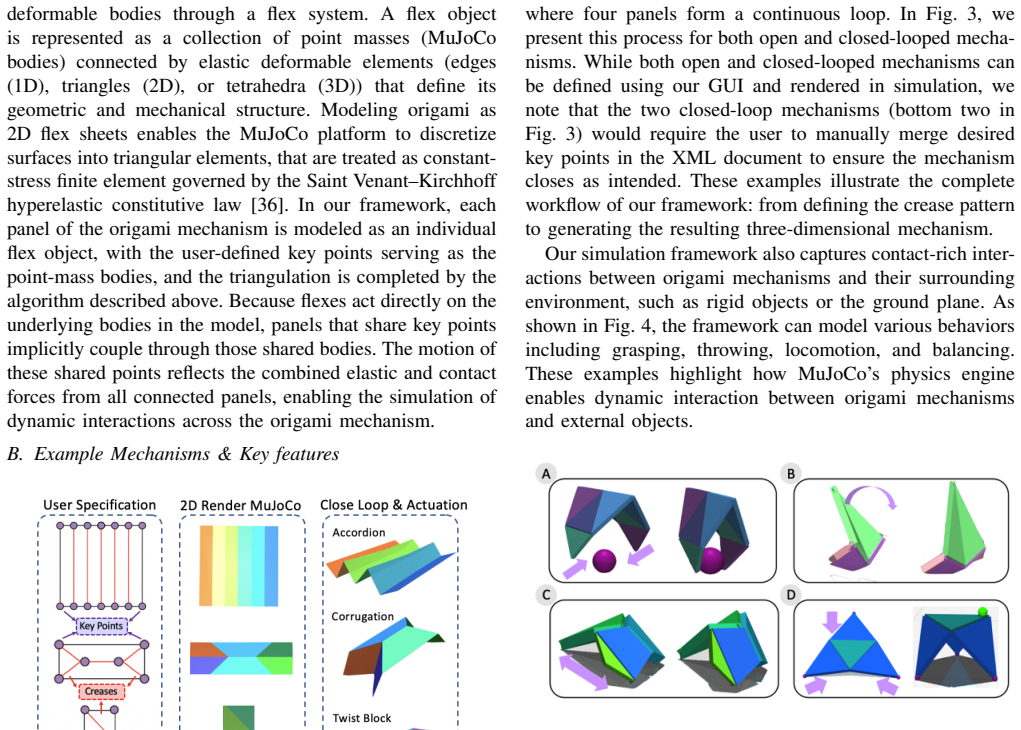

Figure 4. Figure 4: Examples of origami mechanisms interacting with their environ [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 3

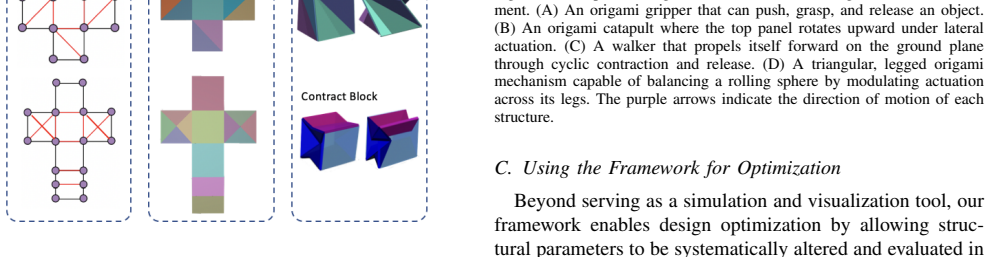

Figure 3. Figure 3: Examples of standard origami fold patterns processed through [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

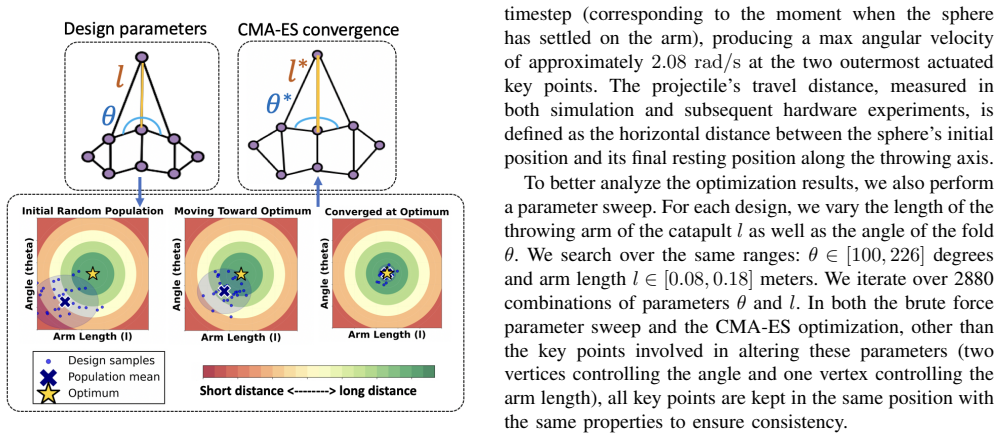

Figure 5. Figure 5: Optimization of the origami catapult mechanism over two design [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

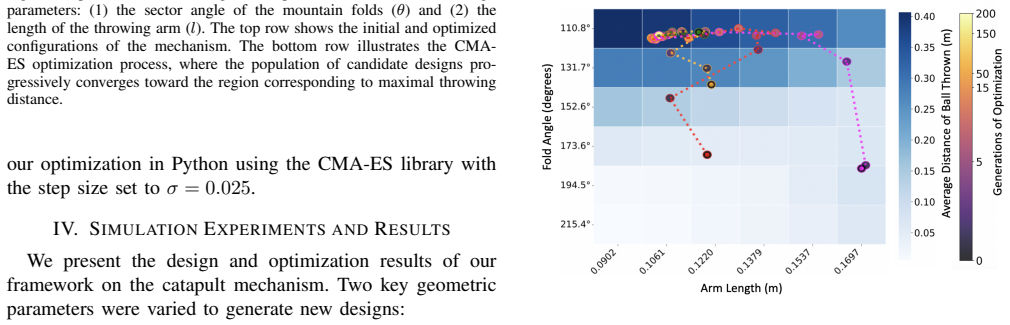

Figure 6. Figure 6: Heatmap of simulated throwing distance across the design space [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Hardware setup. Two Dynamixel motors rigidly mounted to a [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 7

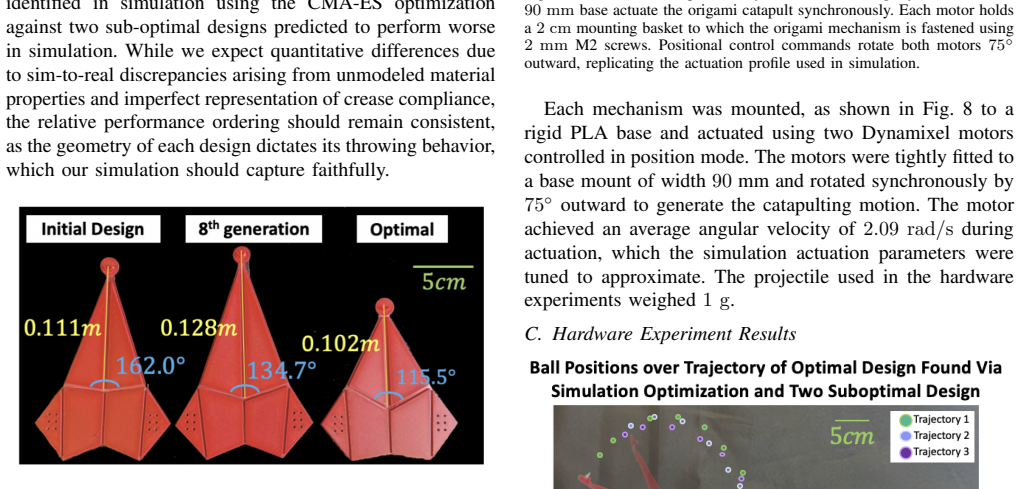

Figure 7. Figure 7: Three catapult configurations selected for hardware validation. The [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Projectile trajectories for three catapult designs recorded using [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

Origami-inspired mechanisms can transform flat sheets into functional three-dimensional dynamic structures that are lightweight, compact, and capable of complex motion. These properties make origami increasingly valuable in robotic and deployable systems. However, accurately simulating their folding behavior and interactions with the environment remains challenging. To address this, we present a design framework for origami mechanism simulation that utilizes MuJoCo's deformable-body capabilities. In our approach, origami sheets are represented as graphs of interconnected deformable elements with user-specified constraints such as creases and actuation, defined through an intuitive graphical user interface (GUI). This framework allows users to generate physically consistent simulations that capture both the geometric structure of origami mechanisms and their interactions with external objects and surfaces. We demonstrate our method's utility through a case study on an origami catapult, where design parameters are optimized in simulation using the Covariance Matrix Adaptation Evolution Strategy (CMA-ES) and validated experimentally on physical prototypes. The optimized structure achieves improved throwing performance, illustrating how our system enables rapid, simulation-driven origami design, optimization, and analysis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a simulation framework for origami mechanisms that models sheets as graphs of interconnected deformable elements in MuJoCo, with crease and actuation constraints specified through a GUI. Design parameters are then optimized via CMA-ES and the resulting origami catapult is fabricated and tested, with the claim that the optimized prototype exhibits improved throwing performance.

Significance. If the MuJoCo deformable-body model with user-specified constraints reproduces the relevant contact, bending, and dissipation physics with sufficient fidelity, the framework would enable rapid, simulation-driven iteration for lightweight deployable robotic mechanisms. The experimental validation step supplies an independent check on the end-to-end pipeline, and the use of standard CMA-ES together with an accessible GUI are practical strengths that could lower the barrier for non-expert users.

major comments (2)
  1. [Case study] Catapult case study (experimental validation paragraph): the claim that the optimized structure 'achieves improved throwing performance' is not accompanied by quantitative sim-to-real metrics (e.g., RMSE between simulated and measured launch velocity or range, or crease-angle error), nor by error bars, baseline comparisons against non-optimized designs, or ablation of MuJoCo contact/bending stiffness parameters.
  2. [Framework] Simulation framework description: the user-specified crease and actuation constraints on deformable bodies are presented without reported calibration against physical origami specimens or sensitivity analysis, leaving open whether the simulated optimum remains an optimum once transferred to hardware.
minor comments (2)
  1. [Abstract] The abstract and results section would benefit from explicit numerical values for the performance improvement (e.g., percentage increase in range or velocity) rather than the qualitative statement 'improved throwing performance'.
  2. [Figures] Figure captions for the GUI and catapult prototypes should include scale bars and material specifications to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight valuable opportunities to strengthen the quantitative aspects of our experimental validation and the description of the simulation framework. We address each major comment below and will incorporate the suggested improvements in the revised manuscript.

read point-by-point responses

  1. Referee: [Case study] Catapult case study (experimental validation paragraph): the claim that the optimized structure 'achieves improved throwing performance' is not accompanied by quantitative sim-to-real metrics (e.g., RMSE between simulated and measured launch velocity or range, or crease-angle error), nor by error bars, baseline comparisons against non-optimized designs, or ablation of MuJoCo contact/bending stiffness parameters.

    Authors: We thank the referee for this observation. The manuscript currently presents experimental results demonstrating that the optimized prototype outperforms the initial design in throwing distance and velocity, but we agree that additional quantitative sim-to-real metrics would provide stronger support for the framework's fidelity. In the revised version, we will expand the experimental validation section to include: RMSE between simulated and measured launch velocities and ranges, standard error bars from repeated physical trials (n=5), direct baseline comparisons against the non-optimized design, and a sensitivity analysis on MuJoCo contact and bending stiffness parameters. These additions will quantify the agreement between simulation and hardware. revision: yes

  2. Referee: [Framework] Simulation framework description: the user-specified crease and actuation constraints on deformable bodies are presented without reported calibration against physical origami specimens or sensitivity analysis, leaving open whether the simulated optimum remains an optimum once transferred to hardware.

    Authors: We appreciate this point regarding the framework. The crease and actuation constraints were specified based on the origami geometry and initial physical observations to ensure realistic folding motion. To address the transferability concern, we will revise the simulation framework section to include a dedicated calibration subsection that details how parameters were matched to physical specimens (e.g., via measured crease angles and actuation torques) along with a sensitivity analysis. The analysis will show that the CMA-ES optimized design maintains performance improvements across plausible variations in stiffness and contact parameters, supporting that the simulated optimum transfers effectively to hardware. revision: yes

Circularity Check

0 steps flagged

No significant circularity; framework relies on external simulation and experimental validation

full rationale

The paper describes a simulation framework for origami mechanisms using MuJoCo's deformable-body representation with user-specified crease and actuation constraints, a GUI for model generation, CMA-ES for parameter optimization in the catapult case study, and physical prototype validation for throwing performance. None of the load-bearing steps reduce by construction to self-defined quantities, fitted inputs renamed as predictions, or self-citation chains; the optimization and performance claims are grounded in an external physics engine and independent experimental measurements rather than internal redefinitions. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The framework rests on standard assumptions of continuum mechanics in MuJoCo and user-specified constraints; no new entities are postulated and optimization parameters are treated as design variables rather than free parameters fitted to the target result.

free parameters (1)
  • catapult design parameters
    Variables optimized via CMA-ES in simulation to maximize throwing performance; not fitted post-hoc to experimental data.
axioms (1)
  • domain assumption MuJoCo deformable-body model with crease and actuation constraints produces physically consistent origami folding and contact behavior
    Invoked when representing sheets as graphs of interconnected elements and claiming physical consistency.

pith-pipeline@v0.9.0 · 5484 in / 1214 out tokens · 54364 ms · 2026-05-17T22:19:25.445751+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

35 extracted references · 35 canonical work pages

  1. [1]

    A review of origami applications in mechanical engineering,

    N. Turner, B. Goodwine, and M. Sen, “A review of origami applications in mechanical engineering,”Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, vol. 230, no. 14, pp. 2345– 2362, 2016

    work page 2016

  2. [2]

    Design, fabrication and control of origami robots,

    D. Rus and M. T. Tolley, “Design, fabrication and control of origami robots,”Nature Reviews Materials, vol. 3, no. 6, pp. 101–112, 2018

    work page 2018

  3. [3]

    Biopsy with thermally-responsive un- tethered microtools,

    E. Gultepe et al., “Biopsy with thermally-responsive un- tethered microtools,”Advanced Materials, vol. 25, no. 4, pp. 514–519, Jan. 2013, Epub 2012 Oct 9.DOI:10.1002/ adma.201203348

    work page 2013

  4. [4]

    Fabricating biomedical origami: A state- of-the-art review,

    M. Johnson et al., “Fabricating biomedical origami: A state- of-the-art review,”International journal of computer assisted radiology and surgery, vol. 12, no. 11, pp. 2023–2032, 2017

    work page 2023

  5. [5]

    Cardiovascular catheter with an expandable origami structure,

    A. J. Taylor, Y . Chen, M. Fok, A. Berman, K. Nilsson, and Z. T. Ho Tse, “Cardiovascular catheter with an expandable origami structure,”Journal of medical devices, vol. 11, no. 3, p. 034 505, 2017

    work page 2017

  6. [6]

    Dynamic kirigami structures for integrated solar tracking,

    A. Lamoureux, K. Lee, M. Shlian, S. R. Forrest, and M. Shtein, “Dynamic kirigami structures for integrated solar tracking,”Nature communications, vol. 6, no. 1, p. 8092, 2015

    work page 2015

  7. [7]

    A method for building self-folding machines,

    S. Felton, M. Tolley, E. Demaine, D. Rus, and R. Wood, “A method for building self-folding machines,”Science, vol. 345, no. 6197, pp. 644–646, 2014

    work page 2014

  8. [8]

    Interactive robogami: An end-to- end system for design of robots with ground locomo- tion,

    A. Schulz et al., “Interactive robogami: An end-to- end system for design of robots with ground locomo- tion,”The International Journal of Robotics Research, vol. 36, no. 10, pp. 1131–1147, 2017.DOI:10 . 1177 / 0278364917723465eprint:https : / / doi . org / 10 . 1177 / 0278364917723465. [Online]. Available: https://doi.org/10.1177/0278364917723465

    work page doi:10.1177/0278364917723465 2017

  9. [9]

    Oribot: A novel origami robot creation system to support children’s steam learning,

    Y . Shi, L. Liu, X. Lou, Y . Lu, P. Zhang, and E. Liu, “Oribot: A novel origami robot creation system to support children’s steam learning,”Multimedia Tools and Applications, vol. 84, no. 26, pp. 31 723–31 748, 2025

    work page 2025

  10. [10]

    An origami-inspired approach to worm robots,

    C. D. Onal, R. J. Wood, and D. Rus, “An origami-inspired approach to worm robots,”IEEE/ASME transactions on mechatronics, vol. 18, no. 2, pp. 430–438, 2012

    work page 2012

  11. [11]

    Omega-shaped inchworm-inspired crawling robot with large-index-and-pitch (lip) sma spring actuators,

    J.-S. Koh and K.-J. Cho, “Omega-shaped inchworm-inspired crawling robot with large-index-and-pitch (lip) sma spring actuators,”IEEE/ASME Transactions On Mechatronics, vol. 18, no. 2, pp. 419–429, 2012

    work page 2012

  12. [12]

    High speed locomotion for a quadrupedal micro- robot,

    A. T. Baisch, O. Ozcan, B. Goldberg, D. Ithier, and R. J. Wood, “High speed locomotion for a quadrupedal micro- robot,”The International Journal of Robotics Research, vol. 33, no. 8, pp. 1063–1082, 2014

    work page 2014

  13. [13]

    Robogami: A fully integrated low-profile robotic origami,

    A. Firouzeh and J. Paik, “Robogami: A fully integrated low-profile robotic origami,”Journal of Mechanisms and Robotics, vol. 7, no. 2, p. 021 009, 2015

    work page 2015

  14. [14]

    Design methodology for con- structing multimaterial origami robots and machines,

    Z. Zhakypov and J. Paik, “Design methodology for con- structing multimaterial origami robots and machines,”IEEE Transactions on Robotics, vol. 34, no. 1, pp. 151–165, 2018

    work page 2018

  15. [15]

    Soft origami gripper with variable effec- tive length,

    B. Chen et al., “Soft origami gripper with variable effec- tive length,”Advanced Intelligent Systems, vol. 3, no. 10, p. 2 000 251, 2021

    work page 2021

  16. [16]

    A vacuum-driven origami “magic-ball

    S. Li et al., “A vacuum-driven origami “magic-ball” soft gripper,” in2019 International Conference on Robotics and Automation (ICRA), IEEE, 2019, pp. 7401–7408

    work page 2019

  17. [17]

    Design and analysis of an origami- based three-finger manipulator,

    D. Jeong and K. Lee, “Design and analysis of an origami- based three-finger manipulator,”Robotica, vol. 36, no. 2, pp. 261–274, 2018

    work page 2018

  18. [18]

    Origami robots: Design, actuation, and 3d printing methods,

    W. Xue, B. Jian, L. Jin, R. Wang, and Q. Ge, “Origami robots: Design, actuation, and 3d printing methods,”Ad- vanced Materials Technologies, e00278, 2025

    work page 2025

  19. [19]

    Multi-stability of the extensible origami structures,

    K. Xi, S. Chai, J. Ma, and Y . Chen, “Multi-stability of the extensible origami structures,”Advanced Science, vol. 10, no. 29, e2303454, Oct. 2023, Epub 2023 Aug 8.DOI:10. 1002/advs.202303454

    work page 2023

  20. [20]

    Design and optimization of an origami-inspired foldable pneumatic actuator,

    H. Chen, Y . Ma, and W. Chen, “Design and optimization of an origami-inspired foldable pneumatic actuator,”IEEE Robotics and Automation Letters, vol. 9, no. 2, pp. 1278– 1285, 2024.DOI:10.1109/LRA.2023.3343624

    work page doi:10.1109/lra.2023.3343624 2024

  21. [21]

    Design and optimization of an origami gripper for versatile grasping and manipulation,

    H. Cao, J. Zhou, K. Chen, Q. He, Q. Dou, and Y .-H. Liu, “Design and optimization of an origami gripper for versatile grasping and manipulation,”Advanced Intelligent Systems, vol. 6, no. 12, p. 2 400 271, 2024

    work page 2024

  22. [22]

    Dreher, T

    K. Zhu et al., “Theoretical modeling and bio-inspired trajec- tory optimization of a multiple-locomotion origami robot,” in2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2024, pp. 11 355–11 361.DOI: 10.1109/IROS58592.2024.10801958

    work page doi:10.1109/iros58592.2024.10801958 2024

  23. [23]

    Co-optimizing physical reconfiguration parameters and controllers for an origami-inspired reconfigurable manipulator,

    Z. Chen, L. Chen, H. Zhang, and J. Zhao, “Co-optimizing physical reconfiguration parameters and controllers for an origami-inspired reconfigurable manipulator,”arXiv preprint arXiv:2504.10474, 2025

    work page arXiv 2025

  24. [24]

    E. D. Demaine and J. O’Rourke,Geometric folding algo- rithms: linkages, origami, polyhedra. Cambridge university press, 2007

    work page 2007

  25. [25]

    Origamizing polyhedral surfaces,

    T. Tachi, “Origamizing polyhedral surfaces,”IEEE transac- tions on visualization and computer graphics, vol. 16, no. 2, pp. 298–311, 2009

    work page 2009

  26. [26]

    Simulation of rigid origami,

    T. Tachi, “Simulation of rigid origami,”Origami, vol. 4, no. 08, pp. 175–187, 2009

    work page 2009

  27. [27]

    Tachi,Rigid origami simulator,http://www.tsg

    T. Tachi,Rigid origami simulator,http://www.tsg. ne.jp/TT/software/, Accessed: October 2025

    work page 2025

  28. [28]

    Tachi,Freeform origami,http://www.tsg.ne.jp/ TT/software/, Accessed: October 2025

    T. Tachi,Freeform origami,http://www.tsg.ne.jp/ TT/software/, Accessed: October 2025

    work page 2025

  29. [29]

    Fast, interactive origami simulation using gpu computation,

    A. Ghassaei, E. D. Demaine, and N. Gershenfeld, “Fast, interactive origami simulation using gpu computation,” Origami, vol. 7, pp. 1151–1166, 2018

    work page 2018

  30. [30]

    A computational design tool for compliant mechanisms based on origami,

    C. R. Sung, K. Kuribayashi-Shigetomi, B. An, M. Boyvat, and D. Rus, “A computational design tool for compliant mechanisms based on origami,” inProceedings of the ASME 2015 International Design Engineering Technical Confer- ences and Computers and Information in Engineering Con- ference, Boston, Massachusetts, USA: ASME, Aug. 2015, V05AT08A031.DOI:10.1115/...

    work page doi:10.1115/detc2015-46982 2015

  31. [31]

    A review on origami simulations: From kinematics, to mechanics, towards multi- physics,

    Y . Zhu, M. Schenk, and E. Filipov, “A review on origami simulations: From kinematics, to mechanics, towards multi- physics,”Applied Mechanics Reviews, vol. 74, Jul. 2022. DOI:10.1115/1.4055031

    work page doi:10.1115/1.4055031 2022

  32. [33]

    Anonymous,Origami simulation framework code reposi- tory,https : / / anonymous . 4open . science / r / Origami- MuJoCo- Simulation- GUI/README.md, Accessed: 2025-10-30, 2025

    work page 2025

  33. [34]

    The graham scan triangulates simple polygons,

    X. Kong, H. Everett, and G. Toussaint, “The graham scan triangulates simple polygons,”Pattern Recognition Letters, vol. 11, no. 11, pp. 713–716, 1990,ISSN: 0167-8655. DOI:https : / / doi . org / 10 . 1016 / 0167 - 8655(90 ) 90089 - K[Online]. Available:https : / / www . sciencedirect . com / science / article / pii/016786559090089K

    work page arXiv 1990

  34. [35]

    Two algorithms for con- structing a delaunay triangulation,

    D.-T. Lee and B. J. Schachter, “Two algorithms for con- structing a delaunay triangulation,”International Journal of Computer & Information Sciences, vol. 9, no. 3, pp. 219– 242, 1980

    work page 1980

  35. [36]

    Mujoco: A physics en- gine for model-based control, in: 2012 IEEE/RSJ International Con- ference on Intelligent Robots and Systems, IEEE

    E. Todorov, T. Erez, and Y . Tassa, “Mujoco: A physics engine for model-based control,” in2012 IEEE/RSJ Interna- tional Conference on Intelligent Robots and Systems, 2012, pp. 5026–5033.DOI:10.1109/IROS.2012.6386109

    work page doi:10.1109/iros.2012.6386109 2012
