arxiv: 2511.10816 · v3 · submitted 2025-11-13 · 💻 cs.RO

Dynamically Extensible and Retractable Robotic Leg Linkages for Multi-task Execution in Search and Rescue Scenarios

William Harris , Lucas Yager , Syler Sylvester , Elizabeth Peiros , Micheal C. Yip This is my paper

Pith reviewed 2026-05-17 21:40 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic legsfive-bar linkagesearch and rescue robotsmorphing linkagevariable force outputterrain navigationmechanical advantage
0
0 comments X

The pith

A morphing five-bar linkage in robotic legs switches between long strides for terrain and high force for rescue tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a robotic leg based on a five-bar linkage that can extend and retract to change its effective geometry. This allows the leg to operate in a mode with greater height for longer strides during terrain traversal or in a mode with greater mechanical advantage for higher force during extraction. Empirical tests on a testbed measured the resulting changes in stride length, force output, and stability across these modes. A reader would care if this means future search and rescue robots could perform multiple roles with one set of legs instead of requiring separate specialized systems.

Core claim

The central claim is that a dynamically extensible and retractable five-bar linkage design for robot legs enables a geometric transformation to switch between height-advantaged and force-advantaged configurations, thereby supporting both rapid navigation on uneven terrain and high-force output for rescue operations, as shown by performance analyses on stride length, force, and stability.

What carries the argument

Dynamically extensible and retractable five-bar linkage that transforms geometry to prioritize either stride height or force output.

If this is right

  • The design supports variable stride lengths suited to different terrains.
  • Higher force output becomes available in the retracted configuration for rescue tasks.
  • Stability is preserved in both height and force modes per testbed evaluations.
  • This single mechanism reduces the need for multiple robot types in SAR missions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the leg integrates well into full robots, it may enable more compact and versatile SAR platforms.
  • Similar geometric switching could apply to other mechanisms needing adjustable leverage, like arms in manipulation tasks.
  • Future work might explore energy costs of switching between modes during continuous operation.

Load-bearing premise

That the benefits seen in the single-leg testbed will carry over to a complete robot without introducing stability problems or mechanical issues on real terrain under load.

What would settle it

Mounting multiple such legs on a robot and running it through SAR-like tasks on actual uneven ground with extraction loads, then measuring if stride, force, and stability match or exceed testbed levels.

Figures

Figures reproduced from arXiv: 2511.10816 by Elizabeth Peiros, Lucas Yager, Micheal C. Yip, Syler Sylvester, William Harris.

Figure 1

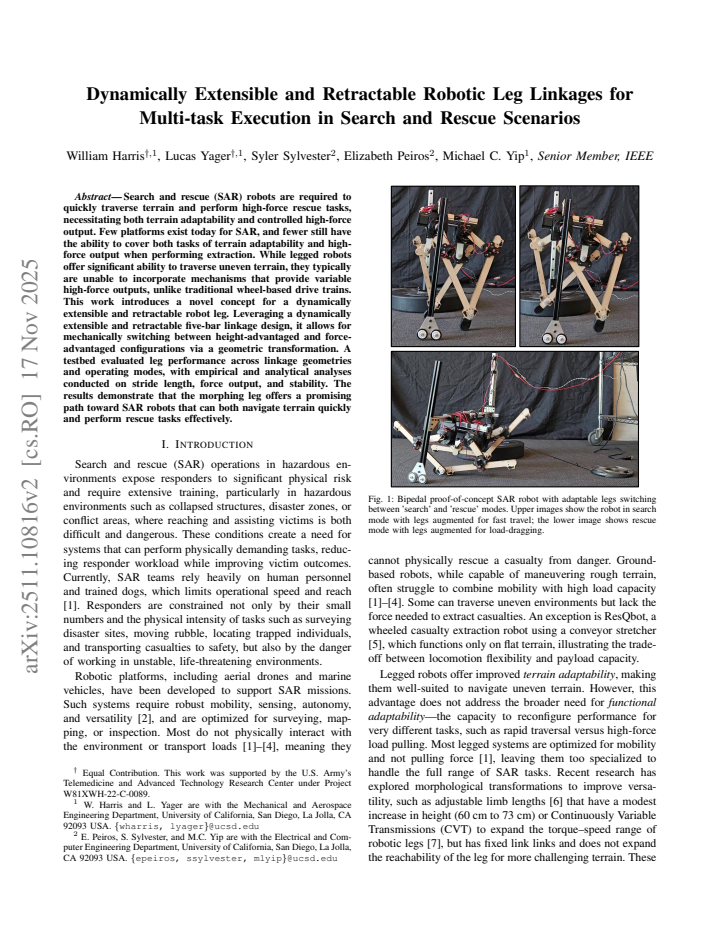

Figure 1. Figure 1: Bipedal proof-of-concept SAR robot with adaptable legs switching [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

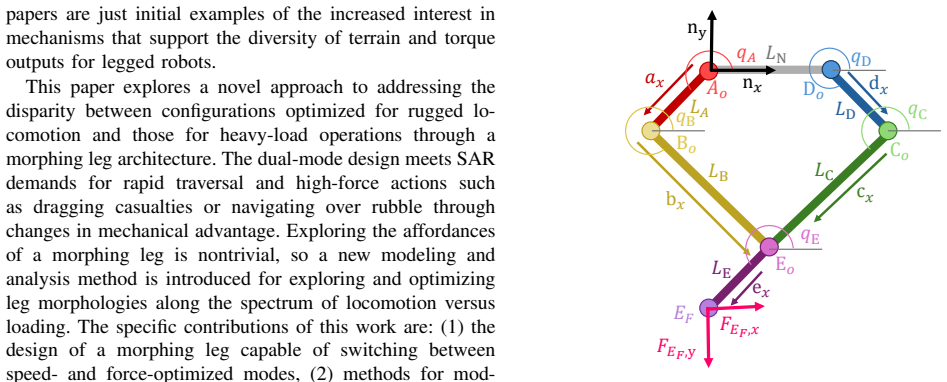

Figure 2. Figure 2: Diagram of 5-bar linkage. The six links are modeled as rigid bodies [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

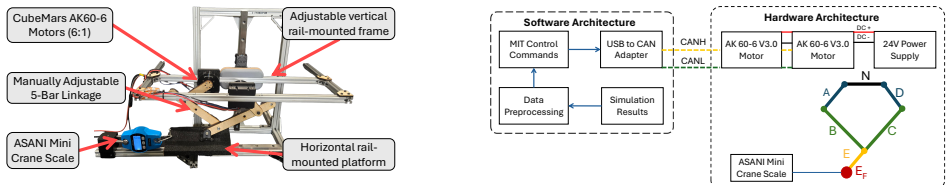

Figure 3. Figure 3: Testbed setup with vertical rail-mounted leg, horizontal force [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Capstan-driven actuator mechanism showing motor-driven spool [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Full system architecture for the bipedal system. Four AK60-6 V3.0 motors are simultaneously controlled over CAN, shown in green and yellow [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 7

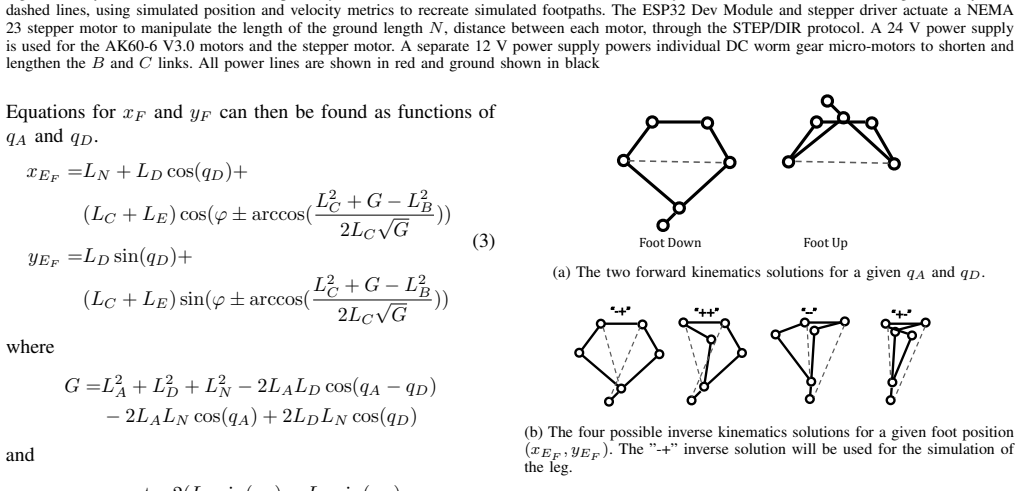

Figure 7. Figure 7: Forward and inverse kinematic solutions for position. [PITH_FULL_IMAGE:figures/full_fig_p004_7.png] view at source ↗
Figure 8

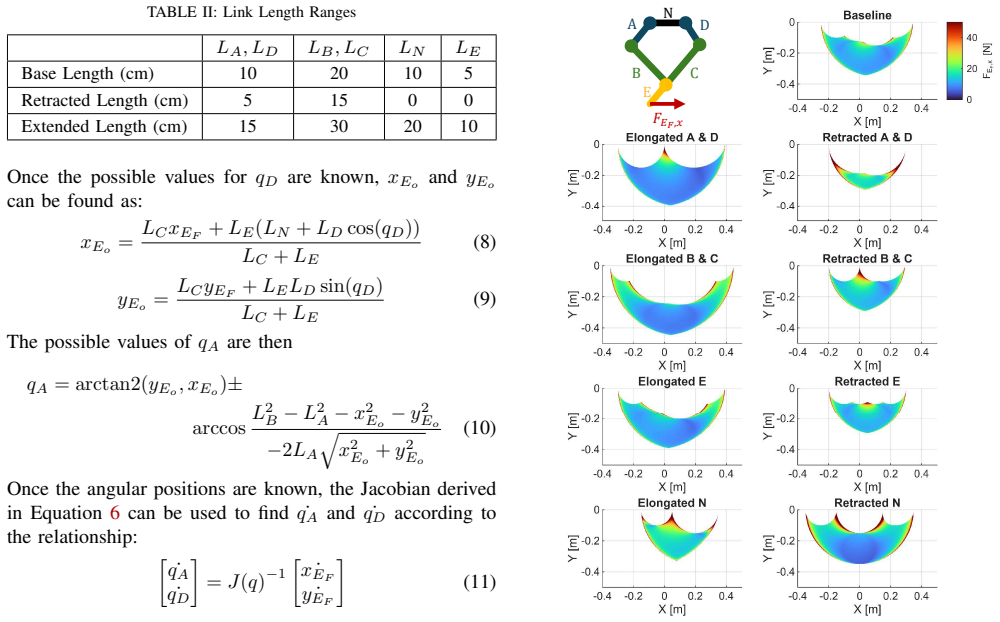

Figure 8. Figure 8: Effects of changing different linkage lengths on theoretical max [PITH_FULL_IMAGE:figures/full_fig_p005_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Condition number, κ(J(q)) throughout the workspace of the baseline configuration. A higher condition number indicates that the position is closer to a singularity and should be avoided. TABLE III: Summary of Workspace Sizes Workspace Size (m2 ) Baseline .0902 Retracted A and D .0291 Elongated A and D .1247 Retracted B and C .0667 Elongated B and C .1336 Retracted E .0671 Elongated E .1124 Retracted N .125… view at source ↗
Figure 9
Figure 9. Figure 9: Effects of changing different linkage lengths on theoretical max [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Top: Simulations of the placement of the highest average horizontal force profile for the stance portion of a foot path shown in gray. Linkage [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Varying configurations of legs of the bipedal robot for different modes of operation. Left to Right: Retracted [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
read the original abstract

Search and rescue (SAR) robots are required to quickly traverse terrain and perform high-force rescue tasks, necessitating both terrain adaptability and controlled high-force output. Few platforms exist today for SAR, and fewer still have the ability to cover both tasks of terrain adaptability and high-force output when performing extraction. While legged robots offer significant ability to traverse uneven terrain, they typically are unable to incorporate mechanisms that provide variable high-force outputs, unlike traditional wheel-based drive trains. This work introduces a novel concept for a dynamically extensible and retractable robot leg. Leveraging a dynamically extensible and retractable five-bar linkage design, it allows for mechanically switching between height-advantaged and force-advantaged configurations via a geometric transformation. A testbed evaluated leg performance across linkage geometries and operating modes, with empirical and analytical analyses conducted on stride length, force output, and stability. The results demonstrate that the morphing leg offers a promising path toward SAR robots that can both navigate terrain quickly and perform rescue tasks effectively.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a dynamically extensible and retractable five-bar linkage design for robotic legs intended for search and rescue (SAR) applications. The mechanism enables geometric reconfiguration to switch between height-advantaged configurations for terrain adaptability (stride length) and force-advantaged configurations for high-force rescue tasks. A single-leg testbed is used to conduct empirical and analytical evaluations of stride length, force output, and stability across different linkage geometries and operating modes, leading to the conclusion that the morphing leg offers a promising path toward versatile SAR robots.

Significance. If the single-leg testbed metrics prove transferable, the geometric reconfiguration approach could provide a mechanically simple means for legged platforms to address both mobility and high-force extraction without hybrid actuation schemes, filling a noted gap in current SAR robotics. The testbed-based validation of mode switching is a concrete step toward demonstrating variable mechanical advantage.

major comments (2)
  1. [Abstract] Abstract: The abstract states that empirical and analytical analyses were performed on stride, force, and stability, yet supplies no quantitative results, error bars, or exclusion criteria; the central claim of a 'promising path' therefore rests on an unevidenced summary.
  2. [Testbed evaluation] Testbed evaluation: The reported performance is measured on an isolated single-leg testbed. No data or analysis addresses inter-leg coordination, control latency during extension/retraction mode switches, load sharing, or platform-level stability under payload on real terrain, leaving the translation to a complete multi-legged SAR robot untested.
minor comments (2)
  1. [Introduction] The introduction repeats the limitations of existing legged robots; condensing this discussion would improve flow.
  2. Figure captions for the linkage configurations should explicitly label the height-advantaged versus force-advantaged geometries and include scale bars.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback on our manuscript. We address each major comment below in a point-by-point manner and indicate the revisions we have made or plan to make in the next version of the paper.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The abstract states that empirical and analytical analyses were performed on stride, force, and stability, yet supplies no quantitative results, error bars, or exclusion criteria; the central claim of a 'promising path' therefore rests on an unevidenced summary.

    Authors: We agree that the abstract would be strengthened by the inclusion of specific quantitative results. In the revised manuscript we have updated the abstract to report key empirical findings, including measured stride length increases, peak force outputs, and stability metrics, together with associated error bars and a brief statement of the experimental conditions and data exclusion criteria used. revision: yes

  2. Referee: [Testbed evaluation] Testbed evaluation: The reported performance is measured on an isolated single-leg testbed. No data or analysis addresses inter-leg coordination, control latency during extension/retraction mode switches, load sharing, or platform-level stability under payload on real terrain, leaving the translation to a complete multi-legged SAR robot untested.

    Authors: The manuscript deliberately centers on the design and isolated validation of the five-bar linkage mechanism itself. A single-leg testbed was chosen to enable precise, repeatable measurement of the geometric reconfiguration effects on stride, force, and stability without confounding variables from multi-leg dynamics. We acknowledge that inter-leg coordination, control latency during mode switches, load sharing, and full-platform stability on real terrain remain untested in the present work. We have added a new subsection in the discussion that explicitly states these limitations and outlines the planned next steps toward multi-legged integration. We maintain that the single-leg results constitute a necessary and rigorous foundation for the claims regarding the linkage's variable mechanical advantage. revision: partial

Circularity Check

0 steps flagged

No circularity: results rest on direct testbed measurements

full rationale

The paper introduces a five-bar morphing linkage and reports performance via empirical and analytical analyses on an isolated testbed for stride length, force output, and stability. No equations, fitted parameters, or self-citations appear in the provided text that would reduce any reported metric to a quantity defined by the authors' own prior choices or inputs. The central claim is supported by external experimental data rather than any self-definitional loop, fitted-input prediction, or load-bearing self-citation chain. This is a standard hardware validation paper whose derivation chain is self-contained against the testbed measurements.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard kinematic assumptions for five-bar linkages and the premise that geometric reconfiguration can be achieved mechanically without binding or loss of controllability; no new physical entities are postulated and no parameters appear to be fitted to the target performance metric.

axioms (2)
  • standard math Five-bar linkage kinematics follow standard planar rigid-body motion equations.
    Invoked implicitly when describing geometric transformation between height- and force-advantaged configurations.
  • domain assumption The testbed measurements accurately reflect isolated leg behavior under controlled conditions.
    Required for the empirical analysis of stride length, force output, and stability to support the broader claim.
