arxiv: 2511.11385 · v3 · submitted 2025-11-14 · 💻 cs.CR

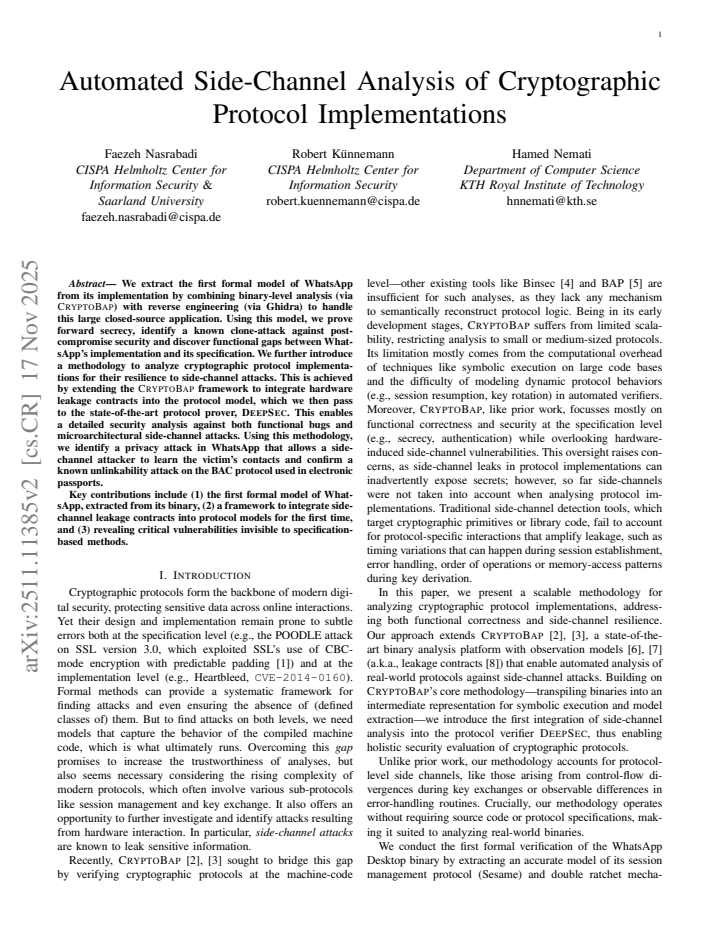

Automated Side-Channel Analysis of Cryptographic Protocol Implementations

Faezeh Nasrabadi , Robert K\"unnemann , Hamed Nemati This is my paper

Pith reviewed 2026-05-17 22:09 UTC · model grok-4.3

classification 💻 cs.CR
keywords side-channel analysisbinary liftingcryptographic protocolsformal verificationTamarinSpectreconstant-timeWhatsApp security
0
0 comments X p. Extension

The pith

A toolchain lifts real cryptographic binaries to symbolic models and checks them for leaks under explicit constant-time and speculative observation contracts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an automated toolchain that starts from selected regions in compiled binaries, lifts the machine code to an intermediate representation, and instruments it with leakage contracts modeling constant-time execution and Spectre-PHT style speculation. Symbolic execution then produces event and observation traces that are translated into the Sapic language for analysis in Tamarin, ProVerif, and DeepSec. The authors apply this to WhatsApp Desktop session management and double-ratchet code to verify forward secrecy and post-compromise security under state-cloning compromises, and to the BAC protocol in e-passports plus WhatsApp session establishment to detect an instruction-cache side channel enabling social-graph inference and to reproduce known unlinkability problems.

Core claim

Starting from a selected binary region, the toolchain lifts machine code to an intermediate representation, instruments it with leakage contracts, symbolically executes the instrumented code to obtain event and observation traces, and translates the traces into Sapic for analysis with Tamarin, ProVerif, and DeepSec. Case studies extract models of WhatsApp Desktop session-management and double-ratchet components to analyze forward secrecy and post-compromise security under state-cloning compromise, and examine the Basic Access Control protocol and WhatsApp session establishment under microarchitectural observations, identifying an instruction-cache side channel and reproducing unlinkability l

What carries the argument

The toolchain that lifts machine code to an IR, instruments it with leakage contracts for constant-time and Spectre-PHT observations, generates traces via symbolic execution, and translates them into Sapic for formal protocol analysis.

If this is right

  • Forward secrecy and post-compromise security properties can be checked for WhatsApp's double-ratchet implementation even when an adversary can clone protocol state and observe microarchitectural leaks.
  • An instruction-cache side channel in WhatsApp Desktop allows inference of the social graph under the modeled observation contracts.
  • The BAC protocol in e-passports exhibits known unlinkability violations once microarchitectural observations are included in the analysis.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same lifting-and-contract approach could be applied to other cryptographic libraries to check side-channel resilience before deployment.
  • Extending the leakage contracts to additional microarchitectural effects such as cache-timing or branch-predictor state would broaden the class of detectable leaks.
  • Combining the extracted models with hardware-specific simulators could provide more precise bounds on the practical impact of the identified side channels.

Load-bearing premise

The binary lifting step together with the chosen leakage contracts must accurately capture the microarchitectural observations that would occur on real hardware without introducing spurious leaks or missing real ones.

What would settle it

Direct measurement of instruction-cache timing or speculative execution behavior on the actual WhatsApp Desktop binary running on target hardware, checking whether the leaks predicted by the toolchain match the observed side-channel behavior.

Figures

Figures reproduced from arXiv: 2511.11385 by Faezeh Nasrabadi, Hamed Nemati, Robert K\"unnemann.

Figure 1

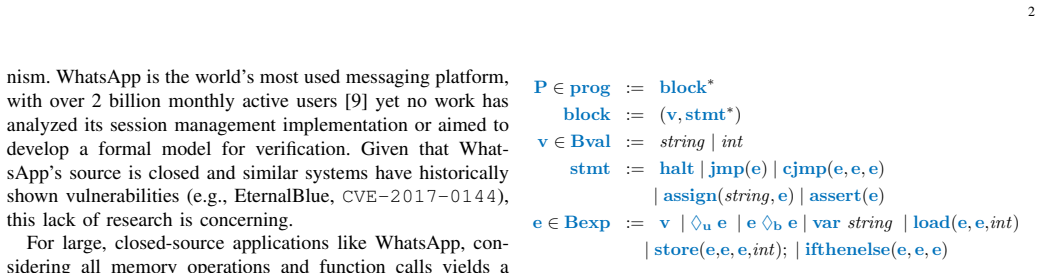

Figure 1. Figure 1: BIR’s syntax thors in March 2025. Meta has confirmed that the application is vulnerable to these identified attacks. II. BACKGROUND We build on CRYPTOBAP [2], [3], a binary analysis frame￾work that extends security protocol verification to machine code to eliminate the need to trust compilers. CRYPTOBAP ex￾tends the HolBA framework [12] to verify ARMv8 and RISC￾V machine code crypto protocols. It achieves … view at source ↗
Figure 2
Figure 2. Figure 2: A fragment of the syntax of SAPIC+ process calculus. In this figure, e, t1, t2 ∈ T , n ∈ Npriv, x ∈ V. reachable states arising from an initial symbolic state. HolBA’s symbolic execution allows for verifying functional correctness, but not (directly) protocol security, as it lacks a suitable attacker model and concurrent behavior. CRYPTOBAP bridges this gap by extracting formal models of the protocols from… view at source ↗
Figure 3

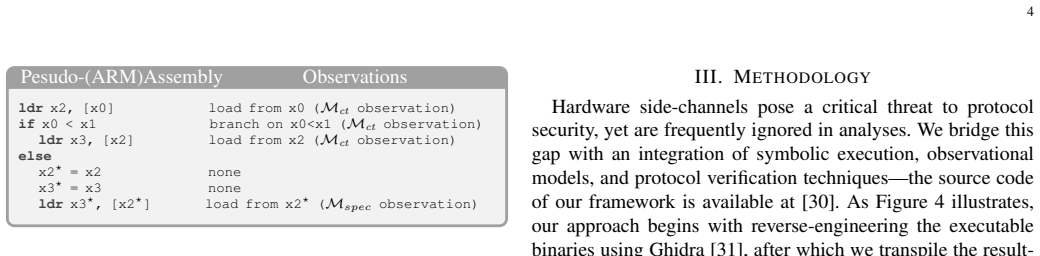

Figure 3. Figure 3: The Spectre V1 example instrumented via Mct and Mspec. We marked shadow observations with ⋆. interference [27]. Let s ∈ S be a system state, including microarchitectural components like caches, traces : T 7→ 2 O be a function to extract the sequence of observations from a given execution trace τ ∈ T, and s ∼M s ′ is the state’s indistinguishability relation w.r.t the model M. Then we say: Definition 1 (Con… view at source ↗
Figure 4
Figure 4. Figure 4: Organization of our approach for cryptographic protocols side-channel analysis. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Running example. The assembly snippet corresponds to the highlighted [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

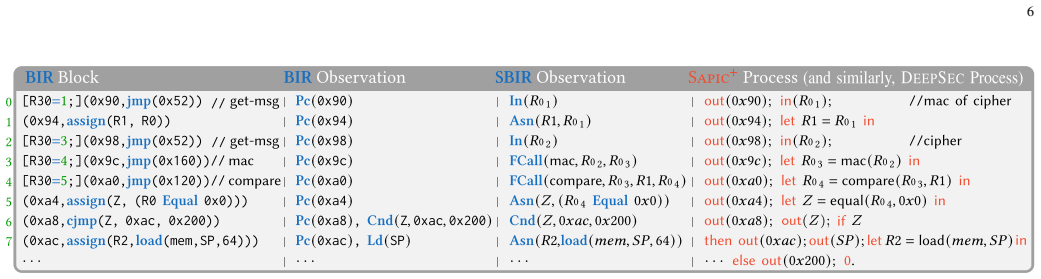

Figure 6. Figure 6: A portion of BIR blocks of the BAC protocol illustrated in [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Translating execution tree T to SAPIC+ model: e, x, x1, . . . , xn, y ∈ V are variables, n ∈ Npriv is a secret name, and not, equal, plus, mult, f ∈ F are function symbols. o s and conditional observations are either normal or shadow observations. During transpilation of binary code into BIR, we insert assertions that encode well-formedness invariants of execu￾tions, e.g., after each stack operation we add… view at source ↗
Figure 8
Figure 8. Figure 8: The observed access latency (∆t) during the designated time period. session builder represents the address of the function that initiates a secure session, while OTPK exists indicates the address of an instruction executed when a one-time pre-key is used in the creation of the master secret key for the secure session. [89] C. Cremers, M. Horvat, J. Hoyland, S. Scott, and T. van der Merwe, “A Comprehensive … view at source ↗
read the original abstract

Formal verification of cryptographic protocols typically relies on symbolic models that abstract away compiled code and microarchitectural side channels, leaving a gap between verified specifications and deployed executables. We present a toolchain that extracts protocol-relevant models from real binaries and analyzes them under explicit leakage contracts for constant-time and Spectre-PHT-style speculative observations. Starting from a selected binary region, we lift machine code to an intermediate representation, instrument it with leakage contracts, symbolically execute it to obtain event/observation traces, and translate these traces into Sapic for analysis with Tamarin, ProVerif, and DeepSec. As case studies, we extract models of WhatsApp Desktop's session-management and double-ratchet components from its binary and analyze forward secrecy and post-compromise security under a state-cloning compromise. For side-channel analysis, we study the Basic Access Control (BAC) protocol used in e-passports and WhatsApp's session establishment. Under our observation models, we identify an instruction-cache side channel in WhatsApp Desktop enabling social-graph inference, and we reproduce known unlinkability issues in BAC under microarchitectural observations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper presents a toolchain that lifts selected regions of machine code from binaries to an IR, instruments the IR with explicit leakage contracts for constant-time and Spectre-PHT-style speculative observations, symbolically executes to obtain event/observation traces, and translates the traces into Sapic for analysis with Tamarin, ProVerif, and DeepSec. Case studies extract models of WhatsApp Desktop session-management and double-ratchet components to analyze forward secrecy and post-compromise security under state-cloning, and analyze the BAC protocol, reporting discovery of an instruction-cache side channel in WhatsApp enabling social-graph inference plus reproduction of known unlinkability issues in BAC.

Significance. If the lifting and contract fidelity hold, the work would meaningfully advance automated analysis of microarchitectural side channels in real cryptographic protocol binaries, bridging the gap between symbolic protocol models and deployed implementations. The WhatsApp and BAC case studies provide concrete demonstrations of both new leak discovery and reproduction of known issues under explicit observation models.

major comments (1)
  1. [Section 4 and Section 5] Section 4 (lifting and instrumentation) and Section 5 (case studies): the central claims that the extracted traces enable sound side-channel analysis of forward secrecy, post-compromise security, and the reported instruction-cache channel rest on the unvalidated assumption that the chosen lifting rules and leakage contracts neither fabricate nor omit microarchitectural observations that would occur on real hardware. No direct comparison of generated traces against hardware measurements (cache-timing, branch-predictor state, or standard side-channel benchmarks) on the same binaries is provided.
minor comments (1)
  1. [Abstract] The abstract states that known unlinkability issues in BAC are reproduced but does not cite the specific prior results being reproduced.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and for identifying an important aspect of our presentation. The major comment concerns the validation of lifting rules and leakage contracts. We respond to this point below and describe the revisions we will make to improve clarity around our modeling assumptions.

read point-by-point responses

  1. Referee: [Section 4 and Section 5] Section 4 (lifting and instrumentation) and Section 5 (case studies): the central claims that the extracted traces enable sound side-channel analysis of forward secrecy, post-compromise security, and the reported instruction-cache channel rest on the unvalidated assumption that the chosen lifting rules and leakage contracts neither fabricate nor omit microarchitectural observations that would occur on real hardware. No direct comparison of generated traces against hardware measurements (cache-timing, branch-predictor state, or standard side-channel benchmarks) on the same binaries is provided.

    Authors: We acknowledge that the manuscript does not contain direct empirical comparisons of the generated traces against hardware measurements on the analyzed binaries. Our central claims are conditioned on the explicit leakage contracts we instrument; the soundness of the subsequent symbolic analysis (forward secrecy, post-compromise security, and the reported instruction-cache channel) holds relative to those contracts rather than to an unstated claim of exact hardware fidelity. The contracts themselves are drawn from standard models in the constant-time and speculative-execution literature. To address the concern, we will revise Section 4 to add a subsection that (i) details the lifting rules and their correspondence to observable microarchitectural events and (ii) cites prior validation efforts on similar binary-lifting techniques. We will also insert a limitations paragraph in Section 5 that explicitly states the absence of hardware trace comparisons and discusses how discrepancies could arise. These changes will make the scope of our claims and the underlying assumptions transparent to readers. revision: partial

Circularity Check

0 steps flagged

No circularity: systems tooling paper with independent pipeline implementation

full rationale

This is a systems and tooling paper whose central contribution is an implemented pipeline for binary lifting to IR, leakage contract instrumentation, symbolic execution to traces, and export to Sapic/Tamarin/ProVerif/DeepSec. No equations, fitted parameters, or self-referential definitions appear in the described derivation chain. The analyses of WhatsApp components and BAC protocol follow directly from applying the toolchain to selected binary regions under explicitly chosen observation models; results are not forced by construction from the inputs. Concerns about hardware fidelity of the lifted IR and contracts are correctness risks, not circularity. The paper is self-contained against external benchmarks via case studies on real binaries.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that binary lifting and leakage contracts faithfully model hardware observations; no free parameters or new invented entities are introduced in the abstract.

axioms (1)
  • domain assumption The chosen intermediate representation and symbolic execution semantics preserve the leakage-relevant behavior of the original machine code.
    Invoked when the abstract states that machine code is lifted to an IR and instrumented with leakage contracts before symbolic execution.

pith-pipeline@v0.9.0 · 5496 in / 1403 out tokens · 47893 ms · 2026-05-17T22:09:30.407808+00:00 · methodology
