arxiv: 2511.20496 · v3 · submitted 2025-11-25 · 💻 cs.RO

Metric, inertially aligned monocular state estimation via kinetodynamic priors

Jiaxin Liu , Min Li , Wanting Xu , Liang Li , Jiaqi Yang , Laurent Kneip This is my paper

Pith reviewed 2026-05-17 05:05 UTC · model grok-4.3

classification 💻 cs.RO
keywords monocular visual odometrynon-rigid state estimationkinetodynamic priorsdeformation-force modelB-spline trajectoriesmetric scale recoveryflexible robotic platformsgravity alignment
0
0 comments X

The pith

A learned deformation-force model and B-spline trajectories let Newton's laws recover metric scale and gravity from monocular vision on non-rigid platforms.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a way to estimate full state for flexible robotic systems whose structures deform and break rigid-body assumptions. It learns the link between observed deformation and resulting forces with a multi-layer perceptron, then represents the platform's smooth motion with continuous-time B-splines. By repeatedly applying Newton's second law, the method ties the accelerations implied by visual trajectories to the accelerations predicted from the deformation model. This produces accurate pose estimates and, more importantly, resolves the classic ill-posed problems of metric scale and gravity direction that plague monocular visual odometry. A reader cares because the approach shows that platform physics itself can supply the missing inertial information without extra sensors.

Core claim

The central claim is that capturing elastic properties through a deformation-force model learned by a multi-layer perceptron, combined with continuous-time B-spline kinematic models, allows continuous application of Newton's second law to relate visually derived accelerations to deformation-induced accelerations. This formulation enables robust and accurate pose estimation on non-rigid platforms and permits recovery of inertial sensing properties, demonstrated on a spring-camera system that resolves metric scale and gravity in monocular visual odometry.

What carries the argument

A multi-layer perceptron that learns the deformation-to-force mapping, paired with continuous-time B-spline representations of motion, so that Newton's second law can be enforced between visual trajectory accelerations and predicted deformation accelerations.

If this is right

  • Pose estimation remains accurate and robust when the platform deforms dynamically rather than staying rigid.
  • Metric scale and gravity direction become recoverable from monocular vision alone once platform physics is modeled.
  • The typically ill-posed metric and alignment problems in monocular visual odometry are resolved by the kinetodynamic constraint.
  • Existing rigid-body state estimation techniques can be extended to non-rigid systems by adding the deformation model and B-spline components.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Flexible robots could rely on monocular cameras for navigation without dedicated inertial sensors if the deformation physics is learned in advance.
  • The same kinetodynamic prior idea might apply to other deformable settings such as soft robotics or camera systems mounted on compliant structures.
  • Controlled experiments that vary the stiffness of the spring or the amplitude of deformation would test how sensitive the scale and gravity recovery is to the accuracy of the learned force model.

Load-bearing premise

The multi-layer perceptron accurately predicts the accelerations produced by deformations, and the B-spline model represents the motion faithfully enough for Newton's second law to hold without large modeling error.

What would settle it

If experiments on the spring-camera system show that the recovered metric scale or gravity direction deviates substantially from independent measurements, or if pose estimation accuracy remains poor under deformation compared with rigid-body baselines, the central claim would be falsified.

Figures

Figures reproduced from arXiv: 2511.20496 by Jiaqi Yang, Jiaxin Liu, Laurent Kneip, Liang Li, Min Li, Wanting Xu.

Figure 1
Figure 1. Figure 1: Non-rigid monocular camera system demonstrating [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

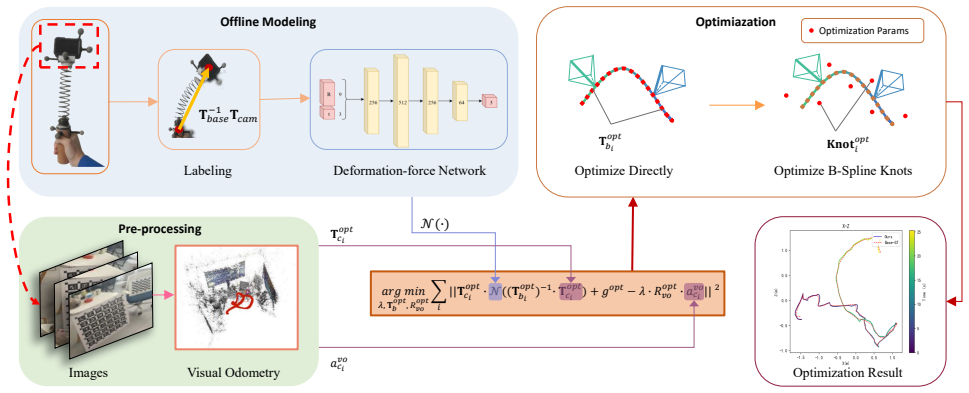

Figure 2. Figure 2: Block diagram of this pipeline, mainly contains two part. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Hardware setup. A typical non-rigid system usually [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Optimization results for representative trajectories. For improved visualization and comparison, X-Z 2D projections [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Accurate state estimation for flexible robotic systems poses significant challenges, particularly for platforms with dynamically deforming structures that invalidate rigid-body assumptions. This paper addresses this problem and enables the extension of existing rigid-body pose estimation methods to non-rigid systems. Our approach integrates two core components: first, we capture elastic properties using a deformation-force model, efficiently learned via a Multi-Layer Perceptron; second, we resolve the platform's inherently smooth motion using continuous-time B-spline kinematic models. By continuously applying Newton's Second Law, our method formulates the relationship between visually-derived trajectory acceleration and predicted deformation-induced acceleration. We demonstrate that our approach not only enables robust and accurate pose estimation on non-rigid platforms, but also shows that the properly modeled platform physics allow for the recovery of inertial sensing properties. We validate this feasibility on a simple spring-camera system, showing how it robustly resolves the typically ill-posed problem of metric scale and gravity recovery in monocular visual odometry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes integrating an MLP-learned deformation-force model with continuous-time B-spline kinematic representations to enforce Newton's Second Law on visually observed accelerations for non-rigid platforms. This is claimed to enable robust monocular pose estimation while recovering metric scale and gravity direction, demonstrated on a spring-camera rig as a solution to the ill-posed scale/gravity problem in visual odometry.

Significance. If the central derivation and validation hold, the work would provide a physics-grounded route to metric recovery and inertial alignment without external sensors or rigid-body assumptions, which is relevant for flexible robotic systems. The combination of learned deformation priors with spline-based continuous-time modeling is a plausible direction, though its practical impact depends on demonstrating that modeling errors do not propagate into the recovered quantities.

major comments (2)
  1. [Abstract / Method] Abstract and method description: the central claim that Newton's Second Law can be applied to recover metric scale and gravity rests on equating B-spline-derived second derivatives to MLP-predicted deformation accelerations, yet no error bounds, sensitivity analysis to knot spacing, or polynomial degree are supplied; any mismatch can be absorbed into the recovered scale or gravity vector.
  2. [Abstract / Validation] Validation section: the abstract asserts that the approach 'robustly resolves' the metric scale and gravity recovery problem on the spring-camera system, but the provided text contains no quantitative error metrics, baseline comparisons, ablation studies on MLP architecture, or analysis of how well the fitted model satisfies F=ma across trajectories.
minor comments (2)
  1. [Method] Notation for the B-spline control points and MLP input/output dimensions is not introduced with sufficient clarity before the optimization objective is stated.
  2. [Optimization] The manuscript would benefit from an explicit statement of the degrees of freedom in the joint optimization (B-spline coefficients plus MLP weights) and any regularization used to prevent trivial solutions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback on our manuscript. We address each major comment below and describe the revisions we will incorporate to strengthen the presentation of the method and its validation.

read point-by-point responses

  1. Referee: [Abstract / Method] Abstract and method description: the central claim that Newton's Second Law can be applied to recover metric scale and gravity rests on equating B-spline-derived second derivatives to MLP-predicted deformation accelerations, yet no error bounds, sensitivity analysis to knot spacing, or polynomial degree are supplied; any mismatch can be absorbed into the recovered scale or gravity vector.

    Authors: We agree that the manuscript would benefit from explicit discussion of these aspects. The continuous-time B-spline representation guarantees C2 continuity, so second derivatives are well-defined, and the joint optimization couples the kinematic parameters, scale, gravity, and MLP weights under the F=ma residual. Nevertheless, to directly address the concern about potential absorption of modeling error, we will add a dedicated sensitivity study in the revised version. This will include (i) analytic error propagation bounds from the spline fitting residuals to the recovered scale and gravity, (ii) empirical sweeps over knot spacing and polynomial degree, and (iii) plots demonstrating that the recovered inertial quantities remain stable within the operating range of the spring-camera rig. revision: yes

  2. Referee: [Abstract / Validation] Validation section: the abstract asserts that the approach 'robustly resolves' the metric scale and gravity recovery problem on the spring-camera system, but the provided text contains no quantitative error metrics, baseline comparisons, ablation studies on MLP architecture, or analysis of how well the fitted model satisfies F=ma across trajectories.

    Authors: The current draft emphasizes feasibility on the spring-camera platform, but we acknowledge that the validation section lacks the quantitative depth requested. In the revision we will expand the experimental section to report: absolute and relative errors on recovered metric scale and gravity direction; comparisons against standard monocular VO pipelines (e.g., ORB-SLAM3, DSO) run on the same sequences; ablations varying MLP depth/width and activation functions; and quantitative F=ma residual statistics (mean and variance of force imbalance) across all recorded trajectories. These additions will allow readers to assess both accuracy and physical consistency. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation grounded in independent physical law and separately learned model

full rationale

The paper learns an MLP deformation-force model from data and fits continuous-time B-splines to visual observations, then enforces Newton's Second Law to relate spline-derived accelerations to MLP-predicted deformation accelerations. This relationship is used to recover metric scale and gravity direction. Newton's law supplies external grounding independent of the fitted quantities, the MLP is trained separately rather than on the target estimation outputs, and no equations reduce the recovered scale/gravity to a renaming or re-use of the inputs by construction. No self-citation chains or uniqueness theorems are invoked in the provided description. The approach is self-contained against external physical priors.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on a learned neural model for deformation and the direct applicability of Newton's Second Law to visually observed trajectories; these introduce fitted parameters and domain assumptions not supplied by prior literature.

free parameters (2)
  • MLP weights and biases for deformation-force model
    Efficiently learned via Multi-Layer Perceptron to capture elastic properties
  • B-spline coefficients or knot placements
    Used to represent continuous-time kinematic models of smooth motion
axioms (2)
  • domain assumption Newton's Second Law can be continuously applied to relate visually-derived trajectory acceleration and deformation-induced acceleration
    Invoked to formulate the relationship between observed and predicted accelerations
  • domain assumption The platform motion is inherently smooth and well-represented by continuous-time B-spline models
    Used to resolve the platform's motion prior to applying physics constraints

pith-pipeline@v0.9.0 · 5475 in / 1574 out tokens · 51868 ms · 2026-05-17T05:05:17.346264+00:00 · methodology
