arxiv: 2511.21819 · v1 · submitted 2025-11-26 · 🪐 quant-ph

Testing Single Photon Entanglement using Self-Referential Measurements

Daniel Kun , Teodor Str\"omberg , Borivoje Daki\'c , Philip Walther , Lee A. Rozema This is my paper

Pith reviewed 2026-05-17 04:19 UTC · model grok-4.3

classification 🪐 quant-ph
keywords single-photon entanglementBell inequalityCHSH violationself-referential measurementsquantum nonlocalitymode entanglement
0
0 comments X

The pith

A single photon violates a Bell inequality when one copy acts as phase reference for the other in joint measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that entanglement can be demonstrated with a single photon by violating a Bell inequality without relying on homodyne detection. The authors prepare two copies of the same single-photon state after a beam splitter and perform joint measurements in which one photon supplies a phase reference for its counterpart. This self-referential scheme produces CHSH values of 2.71 and 2.23, both above the classical bound of 2. A reader would care because the approach removes technical complexity and potential loopholes associated with earlier methods. If correct, it supplies a straightforward route to testing nonlocality for any mode-entangled state across different physical platforms.

Core claim

Joint measurements performed on two copies of the identical single-photon entangled state, with one photon serving as a phase reference for the other, produce a violation of the CHSH Bell inequality, reaching values of 2.71±0.09 and 2.23±0.07 according to the choice of measurement bases.

What carries the argument

Self-referential joint measurements in which one copy of the single-photon state supplies a phase reference for its partner.

If this is right

  • Single-photon nonlocality can be tested without homodyne detectors or their associated implementation challenges.
  • The method supplies a more accessible experimental path for demonstrating the effect in optics.
  • The same self-referential strategy extends in principle to general mode-entangled states prepared in other physical systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique may simplify entanglement verification in quantum networks that rely on single-photon or single-mode resources.
  • Analogous reference-copy constructions could be explored for testing nonlocality in other degrees of freedom such as orbital angular momentum or time-bin encoding.

Load-bearing premise

The two copies remain independent except for the controlled phase reference and the joint measurements introduce no classical correlations that could mimic the observed violation.

What would settle it

Measuring a CHSH value of 2 or lower when repeating the joint measurements on independent copies, or finding evidence that external classical correlations are present between the two copies.

Figures

Figures reproduced from arXiv: 2511.21819 by Borivoje Daki\'c, Daniel Kun, Lee A. Rozema, Philip Walther, Teodor Str\"omberg.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

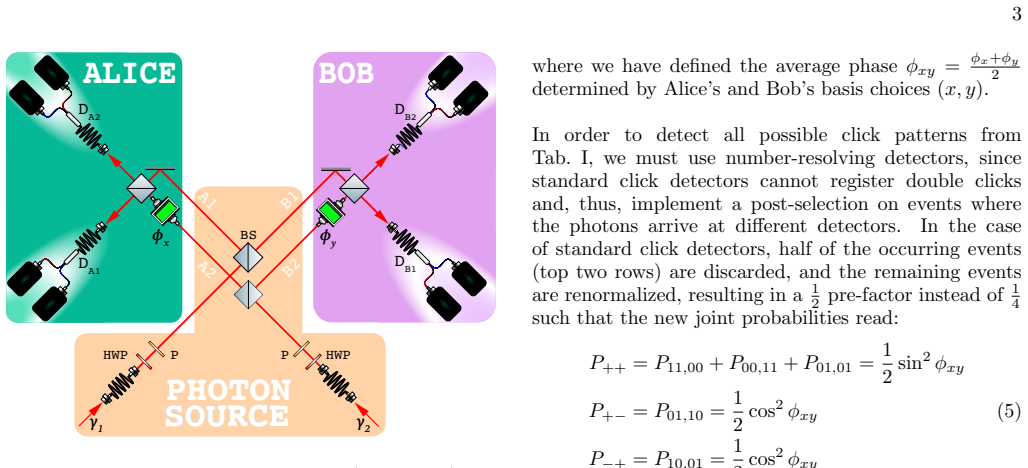

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Alice and Bob compute the two-copy CHSH param [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Entanglement does not always require one particle per party. It was predicted some thirty years ago that a single photon traversing a beam splitter could violate a Bell inequality. Although initially debated, single-photon nonlocality was eventually demonstrated via homodyne measurements. Here, we present an alternate realisation that avoids the complexity of homodyne measurements and potential loopholes in their implementation. We violate a Bell inequality by performing joint measurements on two copies of the same single-photon entangled state, where one photon acts as a phase reference for the other, making it self-referential. We observe CHSH parameters of $2.71\pm 0.09$ and $2.23\pm 0.07$, depending on the joint measurements implemented. This offers a new perspective on single-photon nonlocality and a more accessible experimental route, potentially applicable to general mode-entangled states in diverse platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an experimental demonstration of single-photon nonlocality by violating the CHSH Bell inequality using joint measurements on two copies of a single-photon entangled state generated at a beam splitter. One copy serves as a phase reference for the other in a self-referential setup, avoiding homodyne detection. The authors report CHSH parameters of 2.71±0.09 and 2.23±0.07 depending on the implemented joint measurements, claiming this provides a simpler route to single-photon entanglement tests applicable to mode-entangled states.

Significance. If the two copies remain independent except for the intended quantum phase reference and the joint measurements close detection and locality loopholes, the result would offer a more accessible experimental path to single-photon nonlocality than prior homodyne approaches, with potential for broader application in quantum optics platforms. The specific CHSH values with error bars exceeding the classical bound of 2 provide concrete, falsifiable evidence supporting the central claim.

major comments (2)
  1. [Methods / Experimental Implementation] Experimental setup and methods: The description of the self-referential phase reference does not explicitly detail how classical channels (e.g., shared timing jitter, unintended phase locking, or detection-induced basis selection) are prevented between the two copies. This is load-bearing because the skeptic concern directly questions whether the observed CHSH violations (2.71±0.09 and 2.23±0.07) could arise from classical correlations rather than quantum nonlocality.
  2. [Results and Discussion] Loophole analysis: No explicit quantitative checks or efficiency thresholds are provided for closing the detection loophole or ensuring measurement independence in the two-copy joint measurement configuration, which is required to support the claim that this approach avoids loopholes present in homodyne realizations.
minor comments (2)
  1. [Abstract / Results] The abstract states specific CHSH values but the main text should include the raw coincidence counts or data tables used to compute them for reproducibility.
  2. [Theory / Setup] Notation for the joint measurement operators could be clarified with an explicit definition or diagram to distinguish the self-referential phase reference from standard Bell-test setups.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for raising these important points regarding experimental details and loophole closure. We address each comment below and have revised the manuscript to incorporate additional clarifications and analysis.

read point-by-point responses

  1. Referee: [Methods / Experimental Implementation] Experimental setup and methods: The description of the self-referential phase reference does not explicitly detail how classical channels (e.g., shared timing jitter, unintended phase locking, or detection-induced basis selection) are prevented between the two copies. This is load-bearing because the skeptic concern directly questions whether the observed CHSH violations (2.71±0.09 and 2.23±0.07) could arise from classical correlations rather than quantum nonlocality.

    Authors: We agree that explicit details on independence are essential to rule out classical explanations. In the revised manuscript we have expanded the Methods section with a dedicated paragraph describing the physical separation of the two copies after the initial beam splitter, the use of independent optical paths and detectors with no shared classical phase reference or locking signals, and the recording of events on separate timing channels without post-selection on basis choices. The self-referential phase information is carried exclusively by the quantum state of the second copy; no classical channel exists between the measurement stations beyond the intended joint interference. revision: yes

  2. Referee: [Results and Discussion] Loophole analysis: No explicit quantitative checks or efficiency thresholds are provided for closing the detection loophole or ensuring measurement independence in the two-copy joint measurement configuration, which is required to support the claim that this approach avoids loopholes present in homodyne realizations.

    Authors: We acknowledge that the original text did not contain a quantitative loophole section. We have added a new subsection to the Results and Discussion that supplies the required analysis: measured detection efficiencies are stated and compared against the threshold needed to close the detection loophole for the implemented joint-measurement CHSH test; measurement independence is justified by the local, independent choice of measurement settings on each copy together with the absence of any communication or post-selection between the two stations. These additions directly support the claim that the self-referential approach sidesteps certain practical loopholes of homodyne implementations. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental measurement from observed counts

full rationale

The paper reports direct experimental results: joint measurements on two copies of a single-photon entangled state yield CHSH values of 2.71±0.09 and 2.23±0.07 computed from raw detection counts. No derivation chain, fitted parameters renamed as predictions, or self-citation load-bearing steps appear in the abstract or described method. The outcome is not forced by construction or prior author work; it is an independent empirical observation under the stated assumptions about independence and loophole closure. This is the expected non-finding for a pure experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions of quantum optics and the validity of the CHSH inequality for the prepared state. No free parameters are introduced in the abstract, and no new entities are postulated.

axioms (1)
  • domain assumption Quantum mechanics correctly describes the single-photon state after the beam splitter and the joint measurements performed on two copies.
    Invoked implicitly when interpreting the observed CHSH values as evidence of nonlocality.

pith-pipeline@v0.9.0 · 5460 in / 1258 out tokens · 45326 ms · 2026-05-17T04:19:44.508165+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages · 1 internal anchor

  1. [1]

    Einstein, B

    A. Einstein, B. Podolsky, and N. Rosen, Physical Review 47, 777 (1935)

    work page 1935

  2. [2]

    Schr¨ odinger, Naturwissenschaften23, 844 (1935)

    E. Schr¨ odinger, Naturwissenschaften23, 844 (1935)

    work page 1935

  3. [3]

    K. Wang, Z. Hou, K. Qian, L. Chen, M. Krenn, M. As- pelmeyer, A. Zeilinger, S. Zhu, and X.-S. Ma, Science Advances 11, 1794 (2025)

    work page 2025

  4. [4]

    Ciliberto, S

    G. Ciliberto, S. Emig, N. Pavloff, and M. Isoard, Physical Review A 109, 063325 (2024)

    work page 2024

  5. [5]

    Horodecki, P

    R. Horodecki, P. Horodecki, M. Horodecki, and K. Horodecki, Reviews of Modern Physics81, 865 (2009)

    work page 2009

  6. [6]

    A. K. Ekert, Physical Review Letters 67, 661 (1991)

    work page 1991

  7. [7]

    Entanglement and Quantum Computation

    R. Jozsa, arXiv preprint quant-ph/9707034 (1997)

    work page internal anchor Pith review Pith/arXiv arXiv 1997

  8. [8]

    Bartolucci, P

    S. Bartolucci, P. Birchall, H. Bombin, H. Cable, C. Daw- son, M. Gimeno-Segovia, E. Johnston, K. Kieling, N. Nickerson, M. Pant, et al. , Nature Communications 14, 912 (2023)

    work page 2023

  9. [9]

    Demkowicz-Dobrza´ nski and L

    R. Demkowicz-Dobrza´ nski and L. Maccone, Physical Re- view Letters 113, 250801 (2014)

    work page 2014

  10. [10]

    H.-K. Lo, M. Curty, and B. Qi, Physical Review Letters 108, 130503 (2012)

    work page 2012

  11. [11]

    J. S. Bell, Physics Physique Fizika 1, 195 (1964)

    work page 1964

  12. [12]

    J. F. Clauser, M. A. Horne, A. Shimony, and R. A. Holt, Physical Review Letters 23, 880 (1969)

    work page 1969

  13. [13]

    B. J. Oliver and C. Stroud Jr, Physics Letters A 135, 407 (1989)

    work page 1989

  14. [14]

    S. Tan, D. Walls, and M. Collett, Physical Review Letters 66, 252 (1991)

    work page 1991

  15. [15]

    Yurke and D

    B. Yurke and D. Stoler, Physical Review A 46, 2229 (1992)

    work page 1992

  16. [16]

    Alonso Calafell, T

    I. Alonso Calafell, T. Str¨ omberg, D. Arvidsson-Shukur, L. Rozema, V. Saggio, C. Greganti, N. Harris, M. Prabhu, J. Carolan, M. Hochberg, et al. , npj Quan- tum Information 5, 61 (2019)

    work page 2019

  17. [17]

    Del Santo and B

    F. Del Santo and B. Daki´ c, Physical Review Letters120, 060503 (2018)

    work page 2018

  18. [18]

    Massa, A

    F. Massa, A. Moqanaki, ¨A. Baumeler, F. Del Santo, J. A. Kettlewell, B. Daki´ c, and P. Walther, Advanced Quan- tum Technologies 2, 1900050 (2019)

    work page 2019

  19. [19]

    Massa, P

    F. Massa, P. Yadav, A. Moqanaki, W. O. Krawec, P. Ma- teus, N. Paunkovi´ c, A. Souto, and P. Walther, Quantum 6, 819 (2022)

    work page 2022

  20. [20]

    Bozzio, U

    M. Bozzio, U. Chabaud, I. Kerenidis, and E. Diamanti, Physical Review A 102, 022414 (2020)

    work page 2020

  21. [21]

    Steffinlongo, M

    A. Steffinlongo, M. Navarro, M. Cenni, X. Valcarce, A. Ac´ ın, and E. Oudot, arXiv preprint arXiv:2409.17075 (2024)

    work page arXiv 2024

  22. [22]

    D. Kun, T. Str¨ omberg, M. Spagnolo, B. Daki´ c, L. A. Rozema, and P. Walther, Physical Review A 111, L050402 (2025)

    work page 2025

  23. [23]

    Wang, X.-Y

    B. Wang, X.-Y. Luo, B.-F. Gao, J.-L. Liu, C.-Y. Wang, Z. Yan, Q.-M. Ke, D. Teng, M.-Y. Zheng, Y. Cao, et al. , arXiv preprint arXiv:2511.10988 (2025)

    work page arXiv 2025

  24. [24]

    Hardy, Physical Review Letters 73, 2279 (1994)

    L. Hardy, Physical Review Letters 73, 2279 (1994)

    work page 1994

  25. [25]

    Greenberger, M

    D. Greenberger, M. Horne, and A. Zeilinger, Physical Review Letters 75, 2064 (1995)

    work page 2064

  26. [26]

    S. J. van Enk, Physical Review A 72, 064306 (2005)

    work page 2005

  27. [27]

    M. Fuwa, S. Takeda, M. Zwierz, H. M. Wiseman, and A. Furusawa, Nature Communications 6, 6665 (2015)

    work page 2015

  28. [28]

    Guerreiro, F

    T. Guerreiro, F. Monteiro, A. Martin, J. Brask, T. V´ ertesi, B. Korzh, M. Caloz, F. Bussieres, V. Verma, A. Lita, et al. , Physical Review Letters 117, 070404 (2016)

    work page 2016

  29. [29]

    Hillery and M

    M. Hillery and M. S. Zubairy, Physical Review Letters 96, 050503 (2006)

    work page 2006

  30. [30]

    A. N. Boto, P. Kok, D. S. Abrams, S. L. Braunstein, C. P. Williams, and J. P. Dowling, Physical Review Letters85, 2733 (2000)

    work page 2000

  31. [31]

    J. P. Dowling, Contemporary Physics 49, 125 (2008)

    work page 2008

  32. [32]

    M. W. Mitchell, J. S. Lundeen, and A. M. Steinberg, Nature 429, 161 (2004). 7

    work page 2004

  33. [33]

    L. A. Rozema, J. D. Bateman, D. H. Mahler, R. Okamoto, A. Feizpour, A. Hayat, and A. M. Stein- berg, Physical Review Letters 112, 223602 (2014)

    work page 2014

  34. [34]

    L. A. Rozema, D. H. Mahler, R. Blume-Kohout, and A. M. Steinberg, Physical Review X 4, 041025 (2014)

    work page 2014

  35. [35]

    C. F. Wildfeuer, A. P. Lund, and J. P. Dowling, Physical Review A 76, 052101 (2007)

    work page 2007

  36. [36]

    Yukawa, K

    M. Yukawa, K. Miyata, T. Mizuta, H. Yonezawa, P. Marek, R. Filip, and A. Furusawa, Optics Express 21, 5529 (2013)

    work page 2013

  37. [37]

    A. J. Ferris, M. K. Olsen, E. G. Cavalcanti, and M. J. Davis, Physical Review A 78, 060104 (2008)

    work page 2008

  38. [38]

    Mølmer, Physical Review A 55, 3195 (1997)

    K. Mølmer, Physical Review A 55, 3195 (1997)

    work page 1997

  39. [39]

    Rudolph and B

    T. Rudolph and B. C. Sanders, Physical Review Letters 87, 077903 (2001)

    work page 2001

  40. [40]

    S. D. Bartlett, T. Rudolph, and R. W. Spekkens, Inter- national Journal of Quantum Information 4, 17 (2006)

    work page 2006

  41. [41]

    A. M. Bra´ nczyk (2017), arXiv:1711.00080 [quant-ph]

    work page arXiv 2017

  42. [42]

    A. Z. Goldberg, M. Grassl, G. Leuchs, and L. L. S´ anchez- Soto, Physical Review A 105, 022433 (2022)

    work page 2022

  43. [43]

    Shalm, R

    L. Shalm, R. Adamson, and A. Steinberg, Nature 457, 67 (2009)

    work page 2009

  44. [44]

    Ferretti, Y

    H. Ferretti, Y. Batuhan Yilmaz, K. Bonsma-Fisher, A. Z. Goldberg, N. Lupu-Gladstein, A. O. Pang, L. A. Rozema, and A. M. Steinberg, Optica Quantum 2, 91 (2024)

    work page 2024
