arxiv: 2512.06949 · v3 · submitted 2025-12-07 · 💻 cs.CV

Can We Go Beyond Visual Features? Neural Tissue Relation Modeling for Relational Graph Analysis in Non-Melanoma Skin Histology

Shravan Venkatraman , Muthu Subash Kavitha , Joe Dhanith P R , V Manikandarajan , Jia Wu This is my paper

Pith reviewed 2026-05-17 00:07 UTC · model grok-4.3

classification 💻 cs.CV
keywords histopathology segmentationnon-melanoma skin cancergraph neural networkstissue relation modelinginter-tissue dependenciesconvolutional neural networksskin histologyrelational graph analysis
0
0 comments X

The pith

Adding a graph neural network to model tissue relationships improves segmentation of non-melanoma skin cancer histopathology images over standard CNNs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Neural Tissue Relation Modeling to go beyond the local visual features used by convolutional neural networks in histopathology segmentation. It builds a graph from initial region predictions and uses message passing to capture spatial and functional relationships between different tissue types. This addresses the problem of overlapping or similar-looking tissues by enforcing biological context, which leads to more coherent segmentations. A sympathetic reader would care because better segmentation directly aids accurate diagnostics in skin cancer by providing context-aware results rather than isolated texture-based ones.

Core claim

NTRM augments CNNs with a tissue-level graph neural network to model spatial and functional relationships across tissue types. The framework constructs a graph over predicted regions, propagates contextual information via message passing, and refines segmentation through spatial projection, explicitly encoding inter-tissue dependencies for structurally coherent predictions.

What carries the argument

Neural Tissue Relation Modeling (NTRM), a framework that augments CNN predictions with a graph neural network for propagating inter-tissue contextual information through message passing on a constructed tissue graph.

If this is right

  • Segmentation accuracy increases particularly in boundary-dense zones with overlapping tissues.
  • Predictions become more structurally coherent by incorporating biological inter-tissue dependencies.
  • Relational modeling provides a path to more context-aware and interpretable histological segmentation compared to local receptive-field methods.
  • Performance gains of 4.9% to 31.25% in Dice similarity coefficient are observed on the benchmark dataset.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the relational approach succeeds in skin histology, it could be adapted to model tissue interactions in other cancer types such as breast or prostate histopathology.
  • The graph-based refinement might allow for better handling of rare or ambiguous tissue classes by leveraging known biological relations.
  • Future extensions could combine this with multi-scale or 3D imaging to capture deeper spatial dependencies.
  • Such methods may lead to reduced annotation effort by using relational priors to correct initial errors.

Load-bearing premise

The initial CNN predictions of tissue regions are accurate enough to construct a graph that reliably encodes true biological relationships without propagating early segmentation errors.

What would settle it

Constructing the tissue graph using ground-truth region labels instead of CNN predictions and finding no performance gain over baseline CNN segmentation would indicate that the relational modeling benefit depends on perfect initial inputs.

Figures

Figures reproduced from arXiv: 2512.06949 by Jia Wu, Joe Dhanith P R, Muthu Subash Kavitha, Shravan Venkatraman, V Manikandarajan.

Figure 1

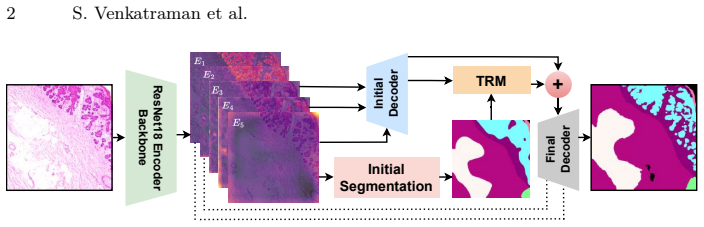

Figure 1. Figure 1: NTRM framework pipeline showing CNN-based encoding, initial segmentation, TRM module, and final decoding for relationally-informed histological segmentation. 1 Introduction Non-melanoma skin cancers, including basal cell carcinoma and squamous cell carcinoma, remain the most common malignancies worldwide, with recent es￾timates indicating over 1.2 million new cases diagnosed globally in 2022 and a continue… view at source ↗
Figure 2
Figure 2. Figure 2: NTRM architecture. A ResNet18 backbone extracts hierarchical encoder features {E1, . . . , E5}, which are decoded into an initial segmentation map. The TRM module receives this map and early decoded features D2, and refines them via graphical modeling of tissue-type relationships. The final prediction is produced after fusing the refined features with D2 via deeper decoder layers. tissue relation module (T… view at source ↗
Figure 3
Figure 3. Figure 3: Pipeline of the TRM module. Initial softmax predictions and early CNN features are used to define tissue-specific regions. Node features are extracted via masked pooling, and edges are created between spatially adjacent regions. A GNN performs message passing over this tissue graph, and refined node embeddings are projected back to the spatial domain. Tissue visuals shown include INF (Inflammation), BKG (B… view at source ↗
Figure 4
Figure 4. Figure 4: Qualitative comparison of segmentation results across non-melanoma skin cancer types: BCC, SCC, and IEC. Our method demonstrates improved localization of class boundaries and reduction in false positives (e.g., SCC) compared to others. recommended in [10]. Following prior work as well as our obtained results, we adopt the 10x setting as our primary resolution due to its optimal balance between performance … view at source ↗
Figure 5
Figure 5. Figure 5: Impact of TRM: Left – initial segmentation from CNN; Center – final prediction after TRM; Right – improvement map overlay (green shows corrected predictions). TRM corrects major errors near BCC-reticular and RET-hypodermis interfaces. modeling under lower-resolution inputs, demonstrating robust generalization across acquisition settings while preserving high segmentation fidelity. Effect of Tissue Relation… view at source ↗
read the original abstract

Histopathology image segmentation is essential for delineating tissue structures in skin cancer diagnostics, but modeling spatial context and inter-tissue relationships remains a challenge, especially in regions with overlapping or morphologically similar tissues. Current convolutional neural network (CNN)-based approaches operate primarily on visual texture, often treating tissues as independent regions and failing to encode biological context. To this end, we introduce Neural Tissue Relation Modeling (NTRM), a novel segmentation framework that augments CNNs with a tissue-level graph neural network to model spatial and functional relationships across tissue types. NTRM constructs a graph over predicted regions, propagates contextual information via message passing, and refines segmentation through spatial projection. Unlike prior methods, NTRM explicitly encodes inter-tissue dependencies, enabling structurally coherent predictions in boundary-dense zones. On the benchmark Histopathology Non-Melanoma Skin Cancer Segmentation Dataset, NTRM outperforms state-of-the-art methods, achieving a robust Dice similarity coefficient that is 4.9\% to 31.25\% higher than the best-performing models among the evaluated approaches. Our experiments indicate that relational modeling offers a principled path toward more context-aware and interpretable histological segmentation, compared to local receptive-field architectures that lack tissue-level structural awareness. Our code is available at https://github.com/shravan-18/NTRM.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces Neural Tissue Relation Modeling (NTRM), a segmentation framework that augments a CNN with a tissue-level graph neural network. It builds a graph over regions predicted by an initial CNN, applies message passing to encode spatial and functional inter-tissue dependencies, and projects the refined features back to the segmentation map. On the Histopathology Non-Melanoma Skin Cancer Segmentation Dataset, NTRM is reported to outperform prior methods with Dice similarity coefficient gains ranging from 4.9% to 31.25%. The authors argue that explicit relational modeling improves coherence in boundary-dense regions compared to purely local CNN receptive fields.

Significance. If the reported gains are shown to arise specifically from the relational message-passing step rather than from other modeling choices or dataset characteristics, the work would provide a concrete demonstration that tissue-level graph modeling can improve context-aware segmentation in histopathology. The public code release supports reproducibility and would allow the community to test the framework on additional datasets.

major comments (2)
  1. [Abstract and Results] The central performance claim rests on the assumption that the initial CNN region predictions are accurate enough to induce a biologically meaningful tissue graph. No ablation is presented that perturbs the initial predictions (e.g., by adding controlled boundary noise or using a weaker backbone) and measures the resulting degradation in final Dice; without such evidence the attribution of the 4.9–31.25 % gains specifically to message passing remains unverified.
  2. [Methods and Experiments] The manuscript provides no quantitative comparison against an oracle graph constructed from ground-truth regions. Such a baseline would isolate the contribution of the relational module from the quality of the initial node set and would directly address the error-propagation concern raised by the graph-construction pipeline.
minor comments (2)
  1. [Abstract] The abstract states numerical improvements but does not specify the exact competing methods, dataset split protocol, or whether statistical significance testing was performed; these details should be added for clarity.
  2. [Methods] Notation for the graph construction step (node features, edge definition, and projection operator) is introduced without an accompanying diagram or explicit equations; a figure illustrating the pipeline would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which correctly identify the need for stronger evidence that performance gains arise specifically from the relational message-passing component. We agree that the suggested ablations would improve the manuscript and will incorporate them in the revision.

read point-by-point responses

  1. Referee: [Abstract and Results] The central performance claim rests on the assumption that the initial CNN region predictions are accurate enough to induce a biologically meaningful tissue graph. No ablation is presented that perturbs the initial predictions (e.g., by adding controlled boundary noise or using a weaker backbone) and measures the resulting degradation in final Dice; without such evidence the attribution of the 4.9–31.25 % gains specifically to message passing remains unverified.

    Authors: We acknowledge that an explicit ablation perturbing the initial CNN outputs would more directly attribute gains to message passing. In the revised manuscript we will add controlled experiments that inject boundary noise into the initial region predictions and that substitute a weaker backbone, then measure the resulting drop in final Dice. These results will be reported alongside the existing baseline comparisons to demonstrate that the relational module provides the observed improvements. revision: yes

  2. Referee: [Methods and Experiments] The manuscript provides no quantitative comparison against an oracle graph constructed from ground-truth regions. Such a baseline would isolate the contribution of the relational module from the quality of the initial node set and would directly address the error-propagation concern raised by the graph-construction pipeline.

    Authors: We agree that an oracle-graph baseline would cleanly separate the effect of the relational module from upstream region-prediction quality. We will add this comparison in the revised experiments: graphs will be built directly from ground-truth tissue regions, message passing will be run, and the resulting Dice scores will be reported against the predicted-graph results to quantify the performance gap attributable to initial-node errors. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical framework with independent benchmark evaluation

full rationale

The paper introduces NTRM as a CNN-augmented GNN framework that constructs a graph over initial region predictions, applies message passing, and projects refinements back to the segmentation map. All reported gains (Dice improvements of 4.9–31.25 % on the Histopathology Non-Melanoma Skin Cancer Segmentation Dataset) are presented strictly as experimental outcomes of training and testing the full pipeline against external SOTA baselines. No equations, fitted parameters, or self-citations are invoked to derive the performance numbers by construction. The central claim rests on external benchmark comparison rather than internal self-definition, renaming, or load-bearing self-citation chains. The initial-CNN assumption is a methodological risk (error propagation) but does not create circularity in the reported results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Review is limited to the abstract; full details on model hyperparameters, graph construction rules, and loss functions are unavailable, so the ledger is necessarily incomplete.

axioms (1)
  • domain assumption Initial CNN predictions of tissue regions provide a usable starting point for graph construction
    Implicit in the description of building a graph over predicted regions.
invented entities (1)
  • Neural Tissue Relation Modeling (NTRM) framework no independent evidence
    purpose: Augment CNNs with graph-based relational modeling for tissue context
    New named method introduced to address limitations of local receptive-field architectures.
